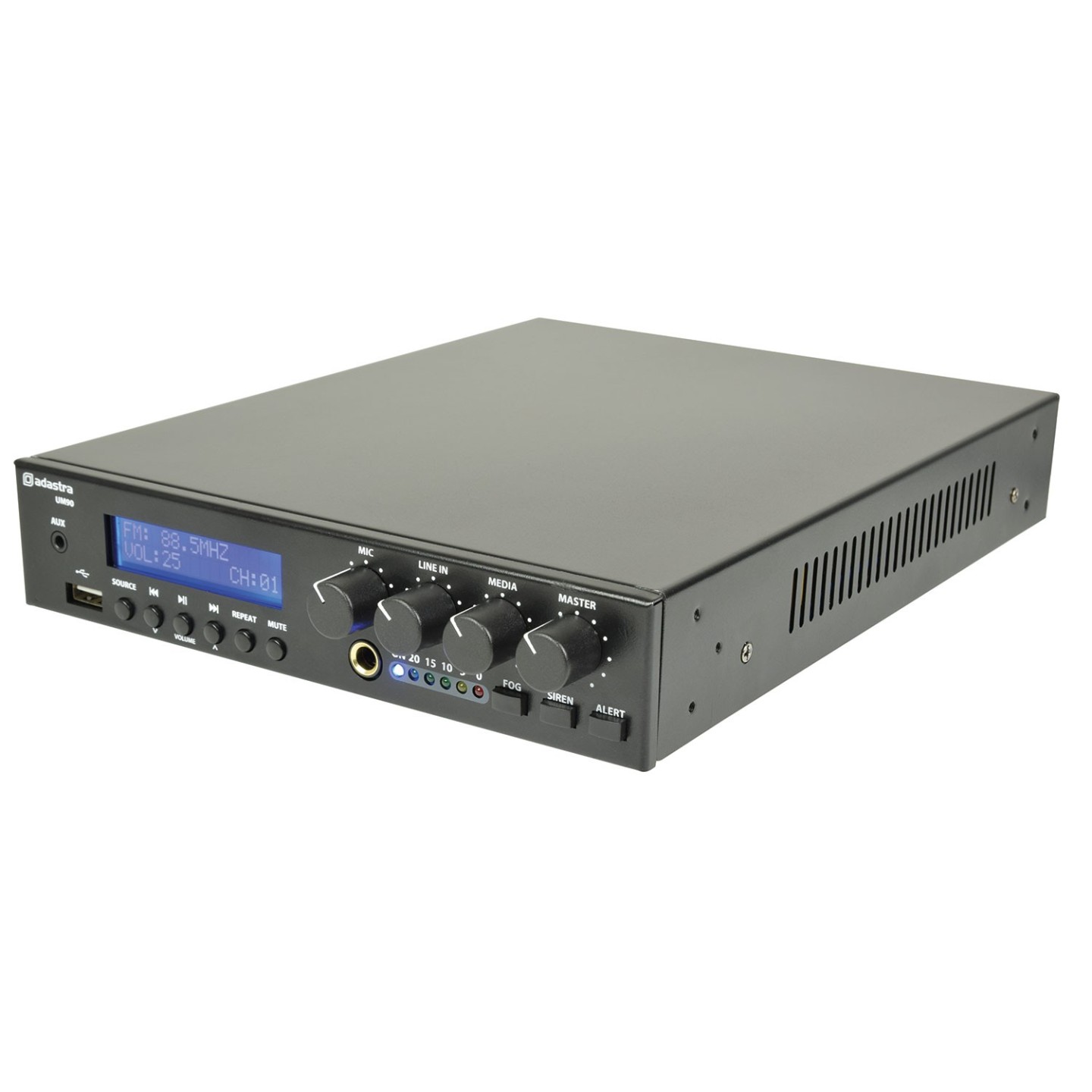

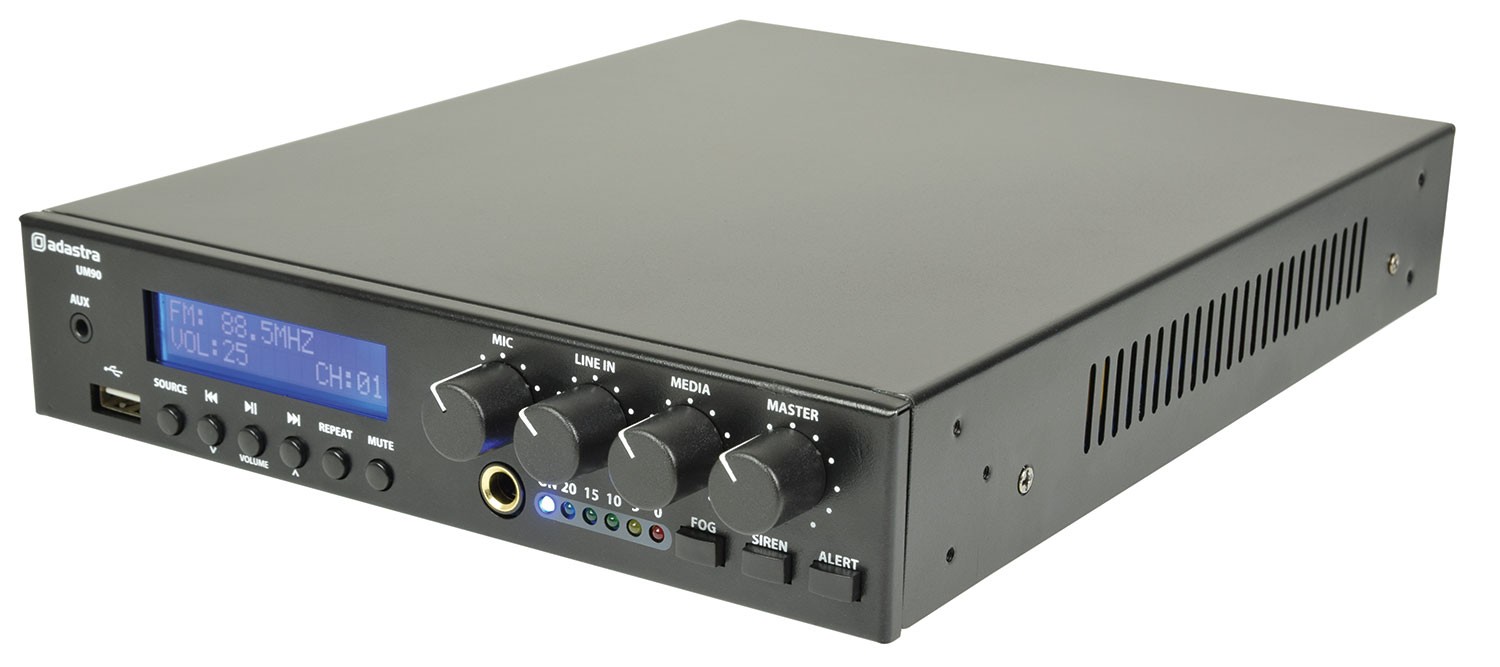

Adastra Amplifier - UM90 - 100V Compact Amplifier 90W BT USB FM 953.179UK
100V mixer amplifier with USB audio, FM tuner, and Bluetooth in a compact enclosure; mic/line inputs with front-panel volume control.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

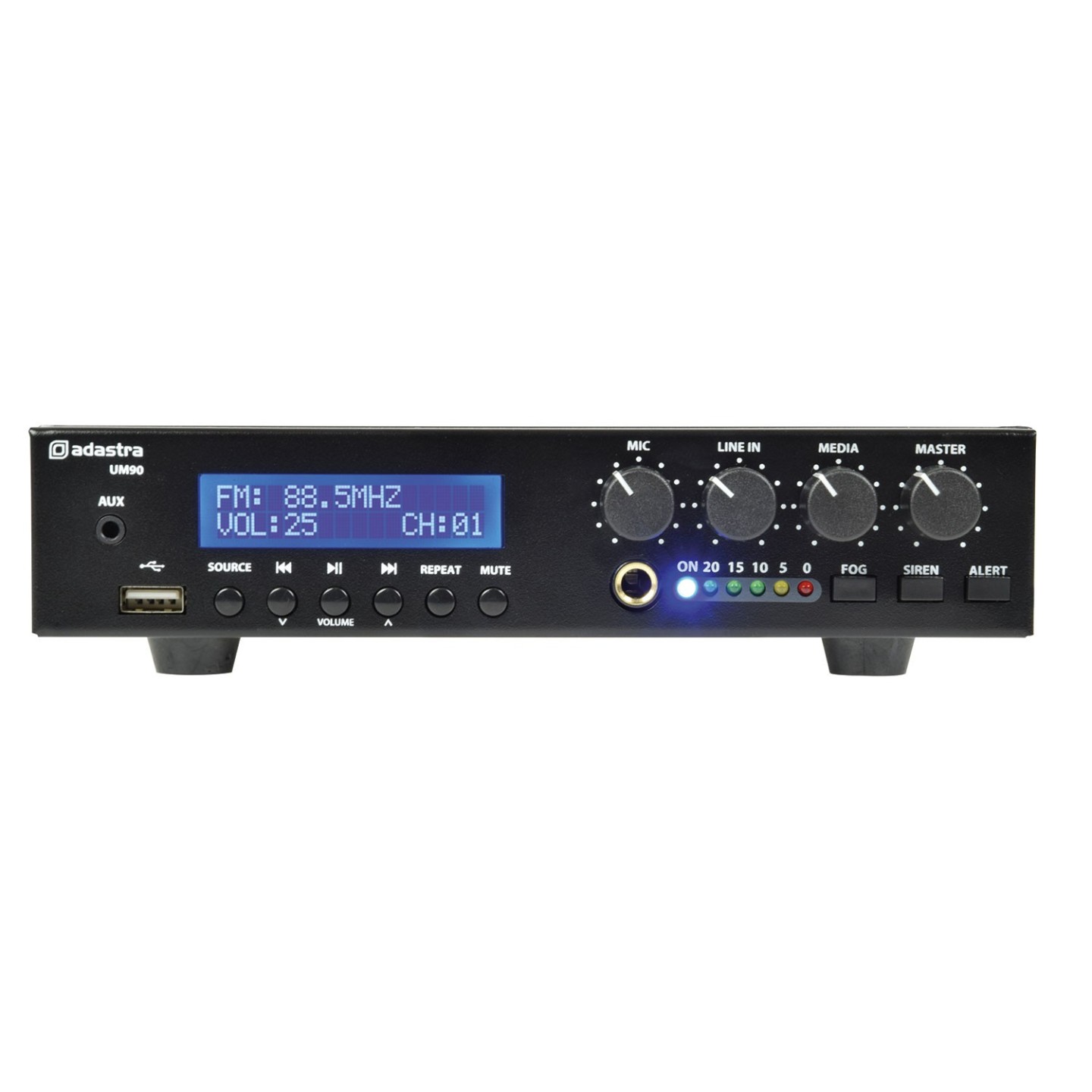

100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.
- Ultra compact form factor
- Efficient class D amplifier design
- Internal USB/FM/BT audio player
- 100V line or 8 Ohms operation
- Bluetooth with programmable ID
- Output power : rms : 90W (80W @ 24Vdc power)
- Amplifier : construction : Class D + transformer output
- Audio source : Internal USB/FM/BT player
- Bluetooth version : 5.0
- Inputs : 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
- Line output : 2 x RCA (mono)

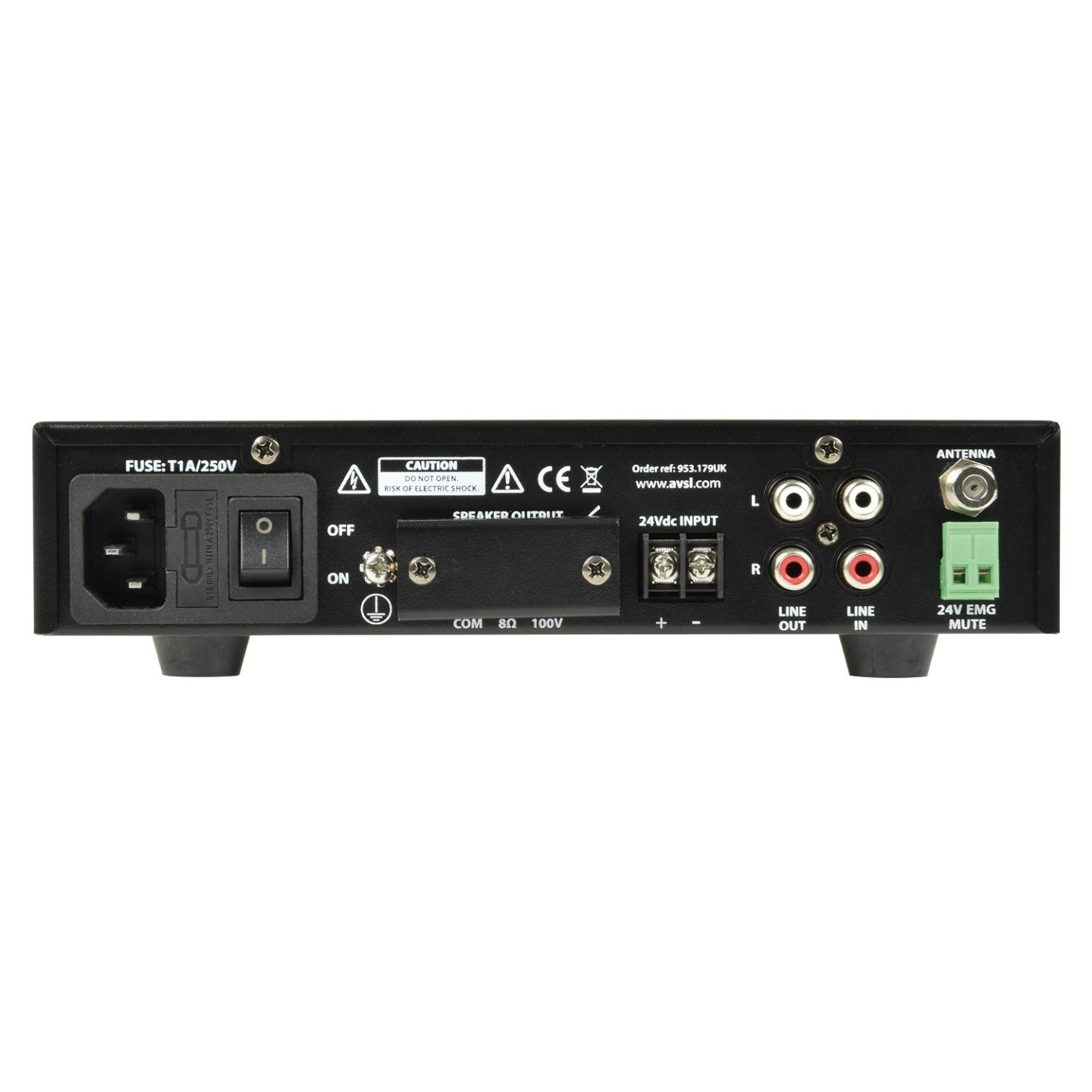

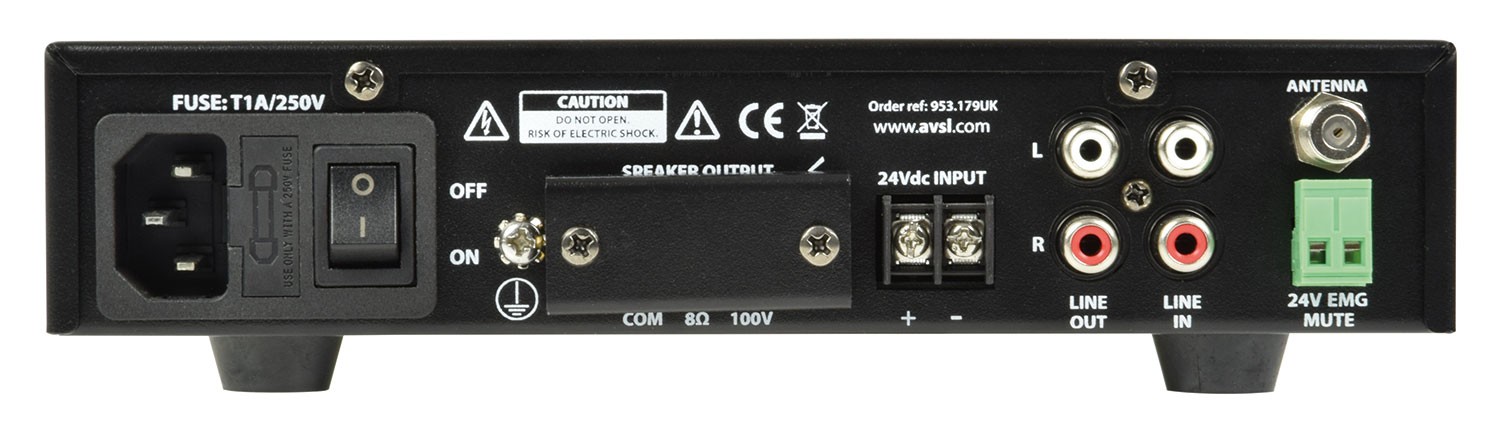

- Speaker outputs : Screw terminals - 100V / 8 Ohms / Com
- Alarm output : Fog, siren & alert generator
- DC power : 24Vdc screw terminals
- Mute : 24V relay contacts
- THD : <0.4% @ 1kHz
- Input impedance : 1k Ohms (mic/line)
- Input sensitivity : -10dB (line), -45dB (mic)
- SNR : 80dB (line), 75dB (mic)
- Frequency response : 100Hz - 18kHz
- Power supply : 170-264Vac, 50Hz (IEC) or 24Vdc
- Dimensions : 300 x 210 x 44mm
- Weight : 3.02kg
In the Box
- UM series compact 100V amplifier
- IEC power lead(s)
- Rack-mounting hardware
| Amplifier Type | Mixer Amp |
| Power | 90W |
| Zones | 1 |
| USB / FM / BT | Yes |
| Rack Mountable | Yes |
