AJAX ocBridge Plus - Wired Integration
Receiver module to connect Ajax detectors to wired and hybrid security systems; installs inside wired central units and switches transistor outputs to trigger alarms.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

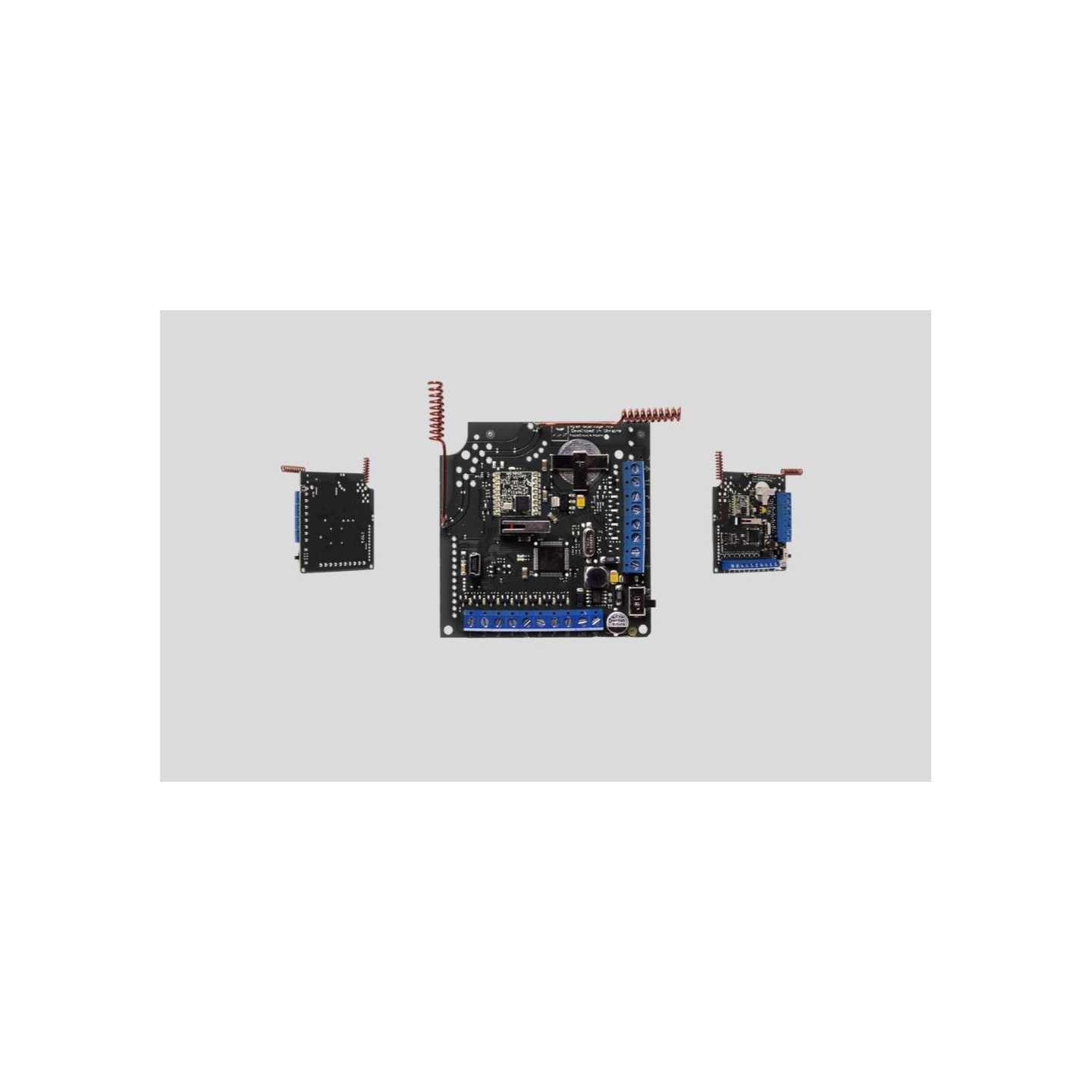

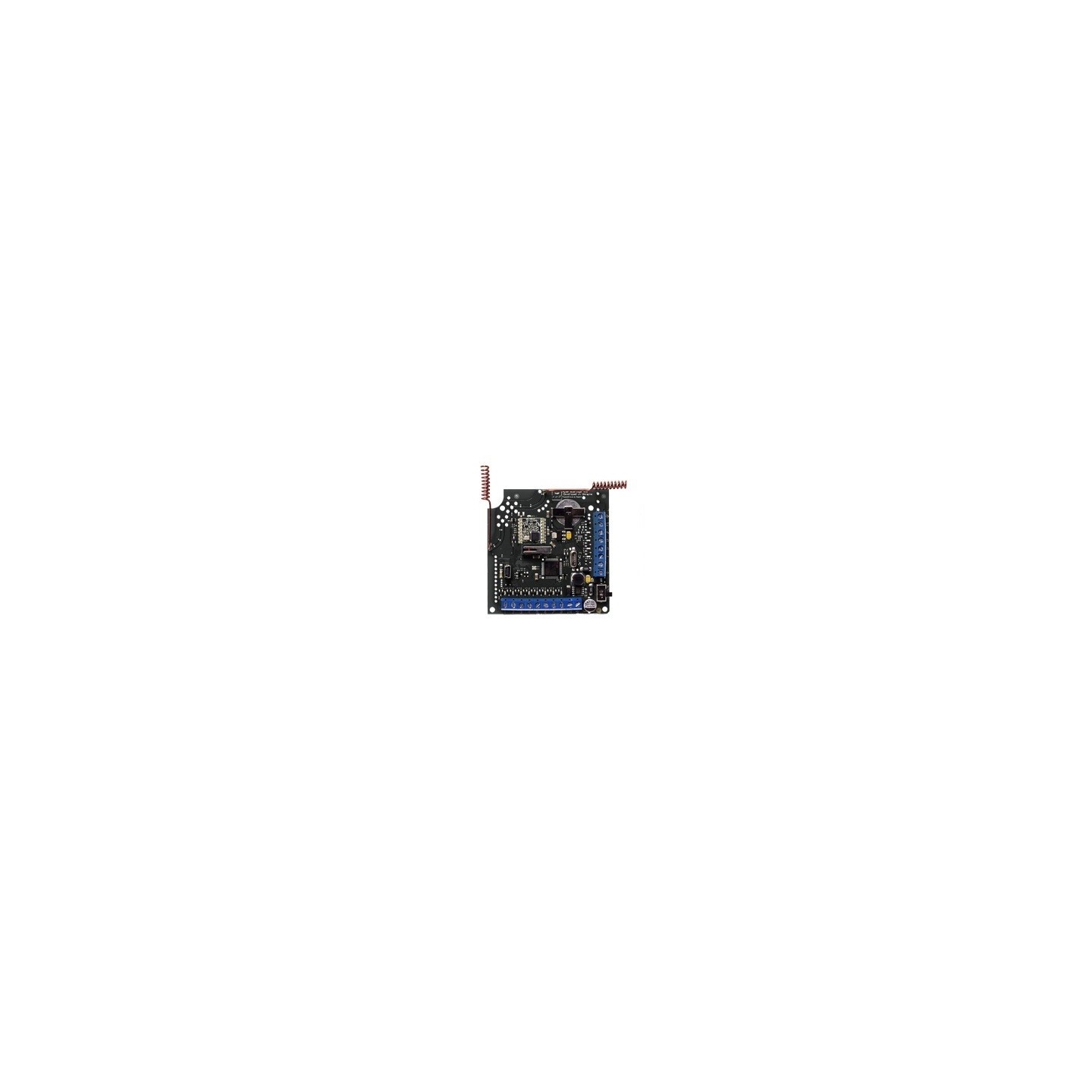

- Receiver module for connecting Ajax detectors to wired and hybrid security systems. The device is integrated into any central unit with wired security areas

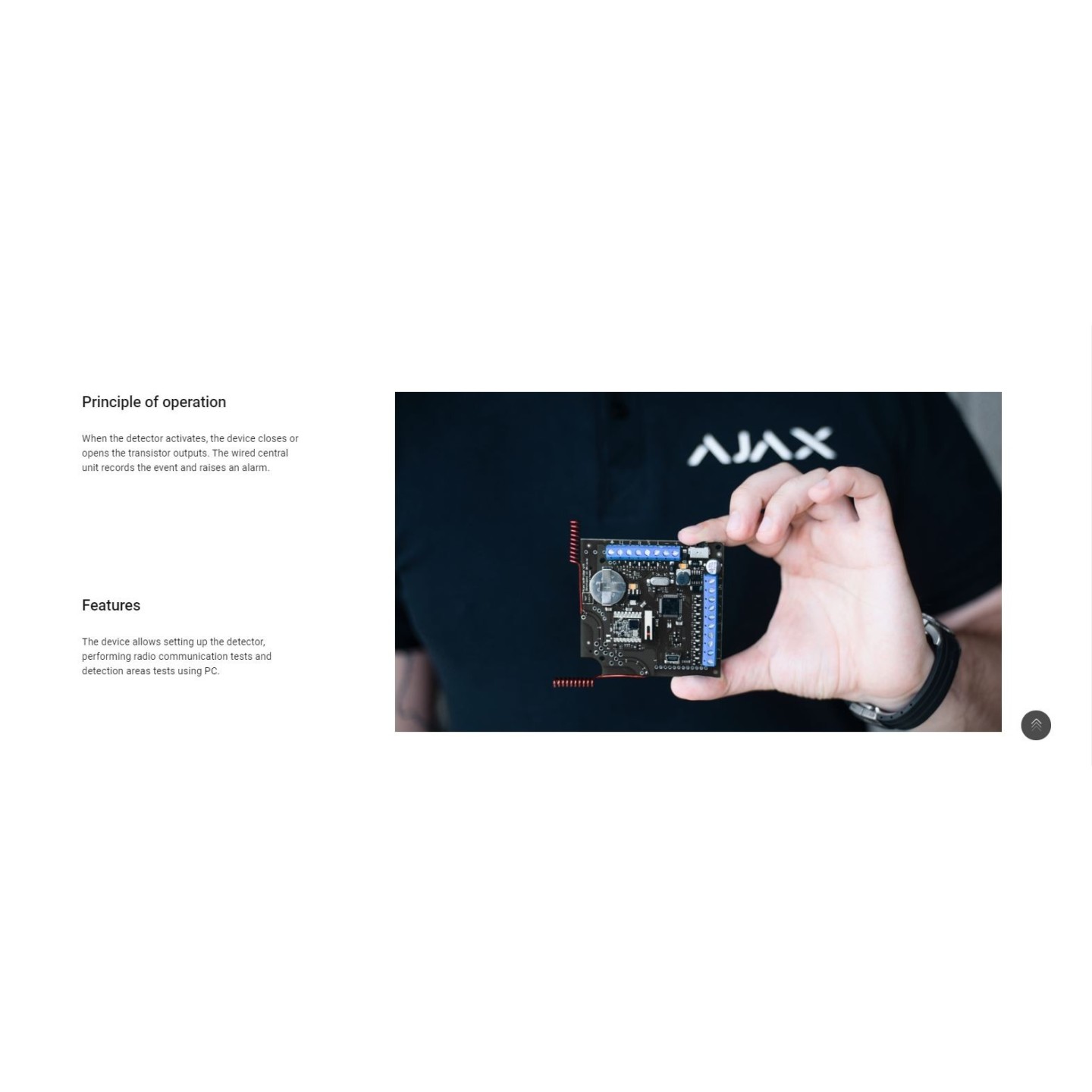

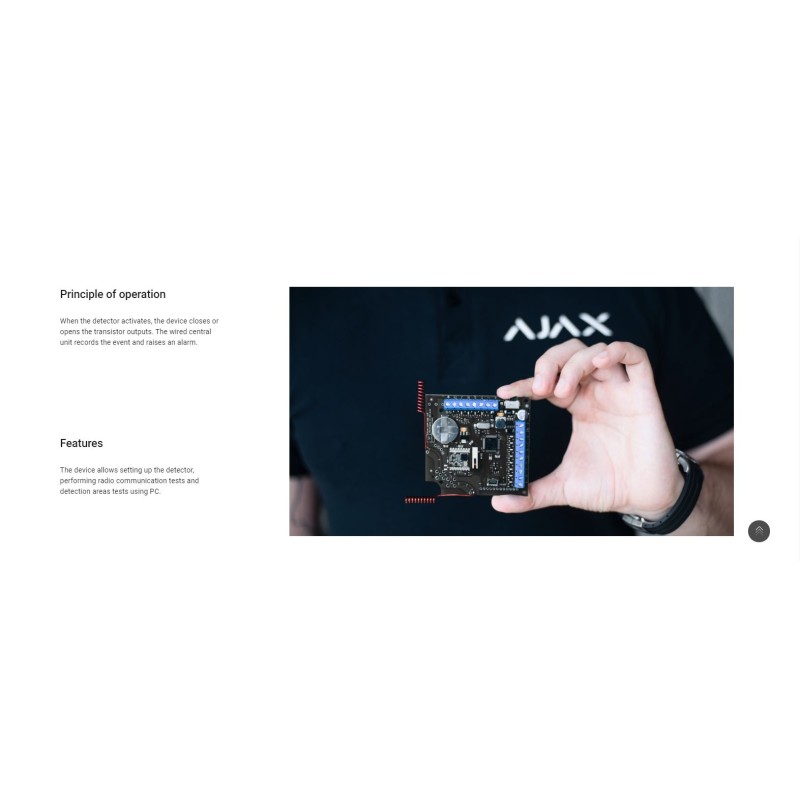

- When the detector activates, the device closes or opens the transistor outputs. The wired central unit records the event and raises an alarm
- The device allows setting up the detector, performing radio communication tests and detection areas tests using PC

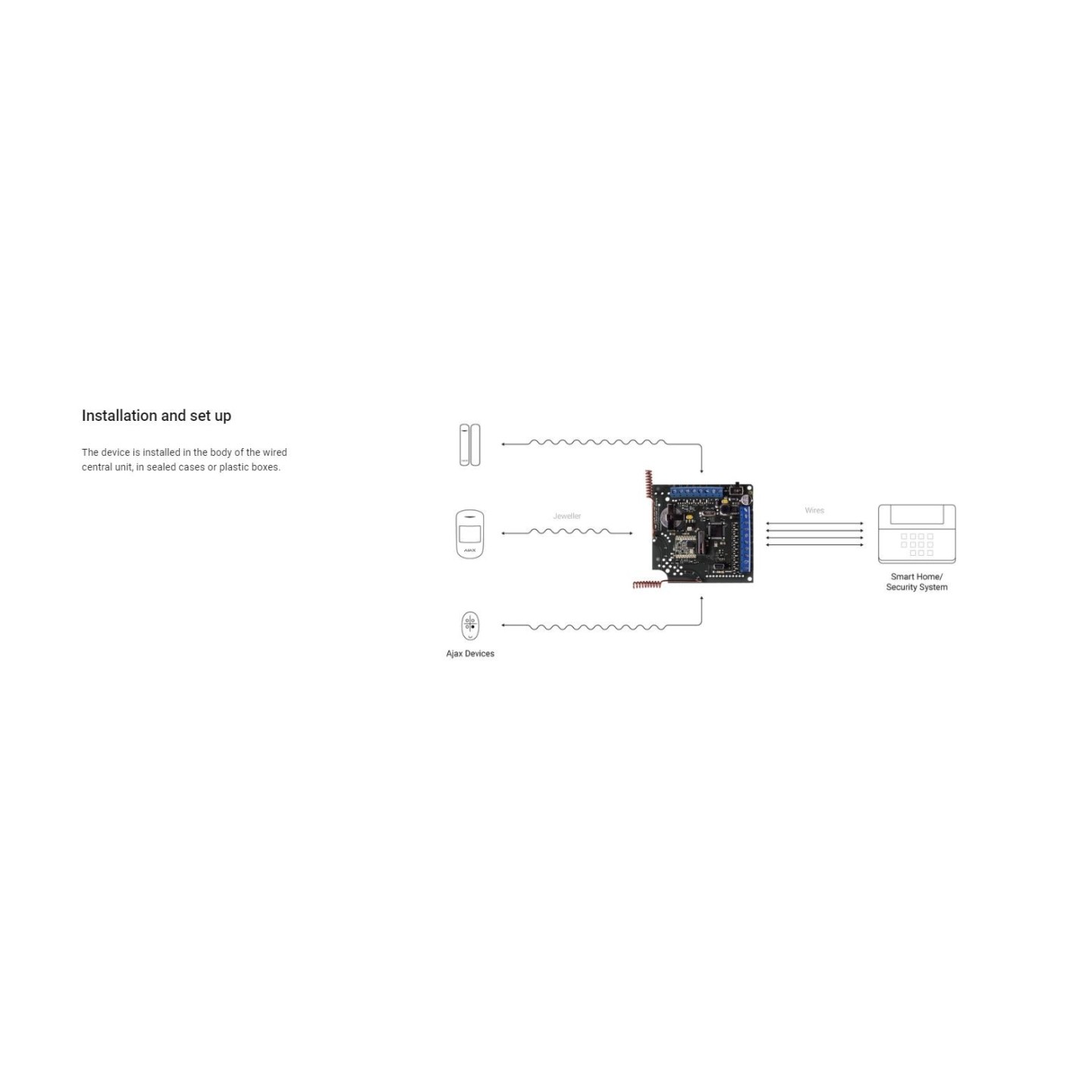

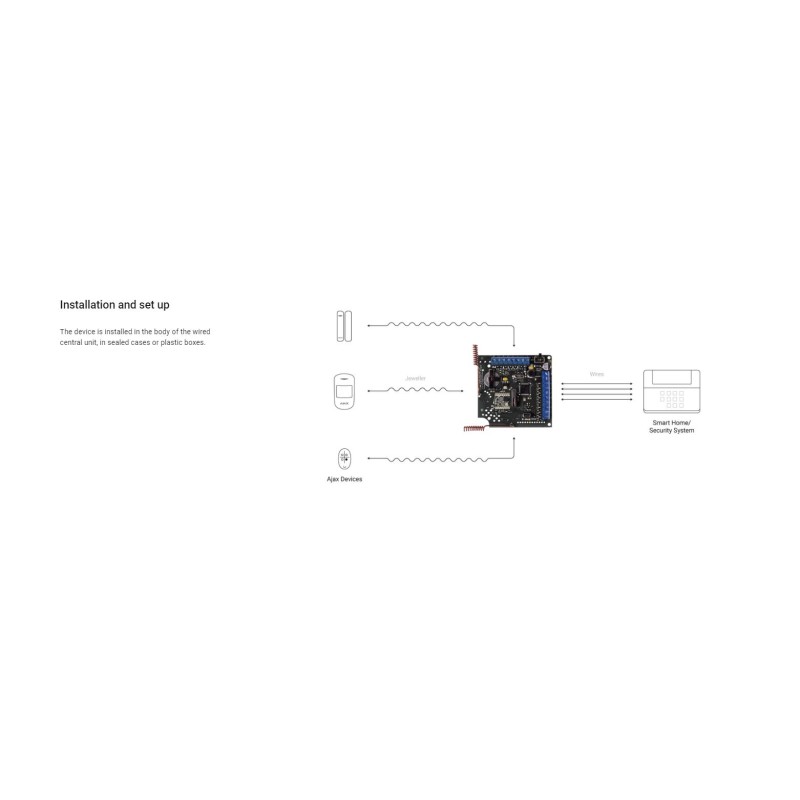

- The device is installed in the body of the wired central unit, in sealed cases or plastic boxes
- Classification : Receiver of wireless detectors
- Installation method : Indoors
- Compatibility : Wired and hybrid security systems
- Number of security areas : 8
- Number of service areas : 4
- Loops : NO/NC, EOL, 2EOL
- Maximum number of detectors : 99
- Supported devices : MotionProtect / MotionProtect Plus / CombiProtect / DoorProtect / FireProtect / FireProtect Plus / LeaksProtect / SpaceControl / GlassProtect
- Alarm signal delivery time : 0.15 s
- Power supply : Terminals +/ground
- Power supply voltage : 8 - 14 V DC
- miniUSB : 5 V (only for set up)
- Jeweller radio technology : Communication range with detectors — up to 2,000 m in an open space / Two-way communication with detectors
- Operating frequencies : 868.0 - 868.6 MHz
- Self-adjusting RF output power : up to 25 mW
- Block encryption based : AES algorithm
- Device polling period : 12 - 300 s
- Capability of external antenna connection : Yes
- Software update feature : Yes
- Operating temperature range : From –10°? to +40°?
- Permissible humidity : Up to 90%
- Anti-sabotage : Protection against fraud
- Jamming detection : Tamper
- Setting up and testing : Via configurator for PC
- Download : Current firmware version 4.50.0
- Interface : miniUSB
- Dimensions : 95 × 92 × 18 mm
- Weight : 139 g
- Certification : CE
- Warranty : Replacement and repair within 24 months of the date of sale
