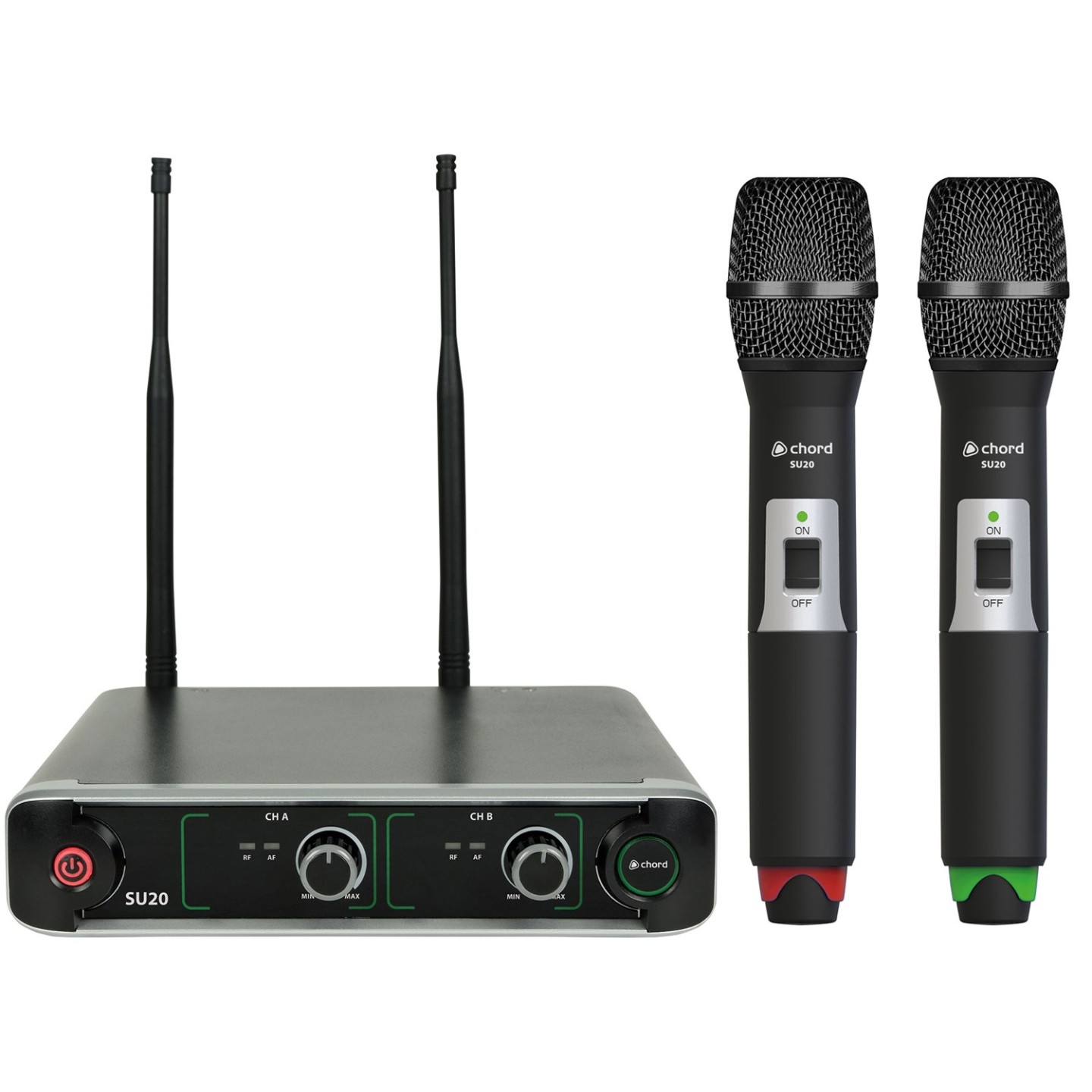

Chord RG Handheld UHF Mics - SU20 - 863.42+864.3 171.907UK

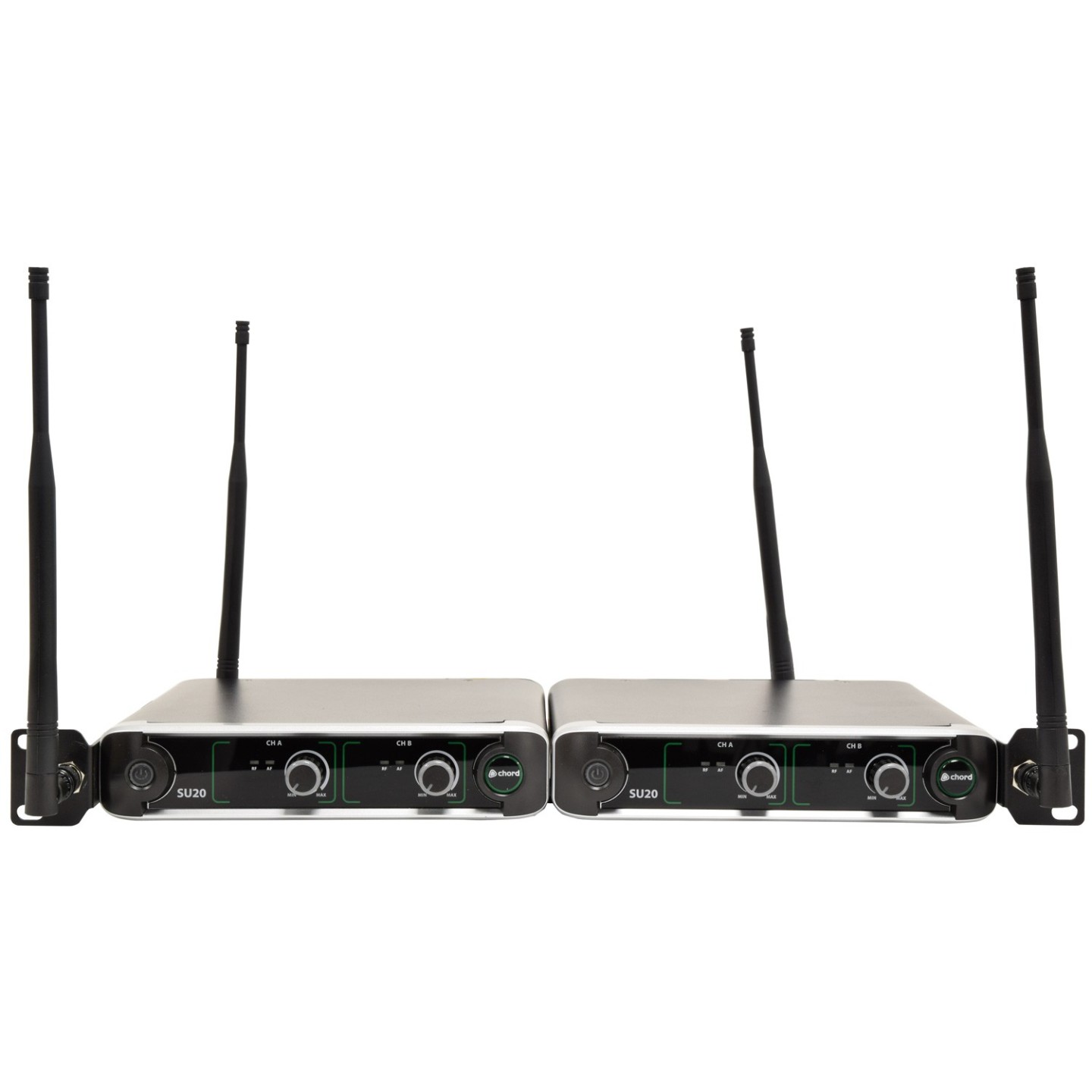

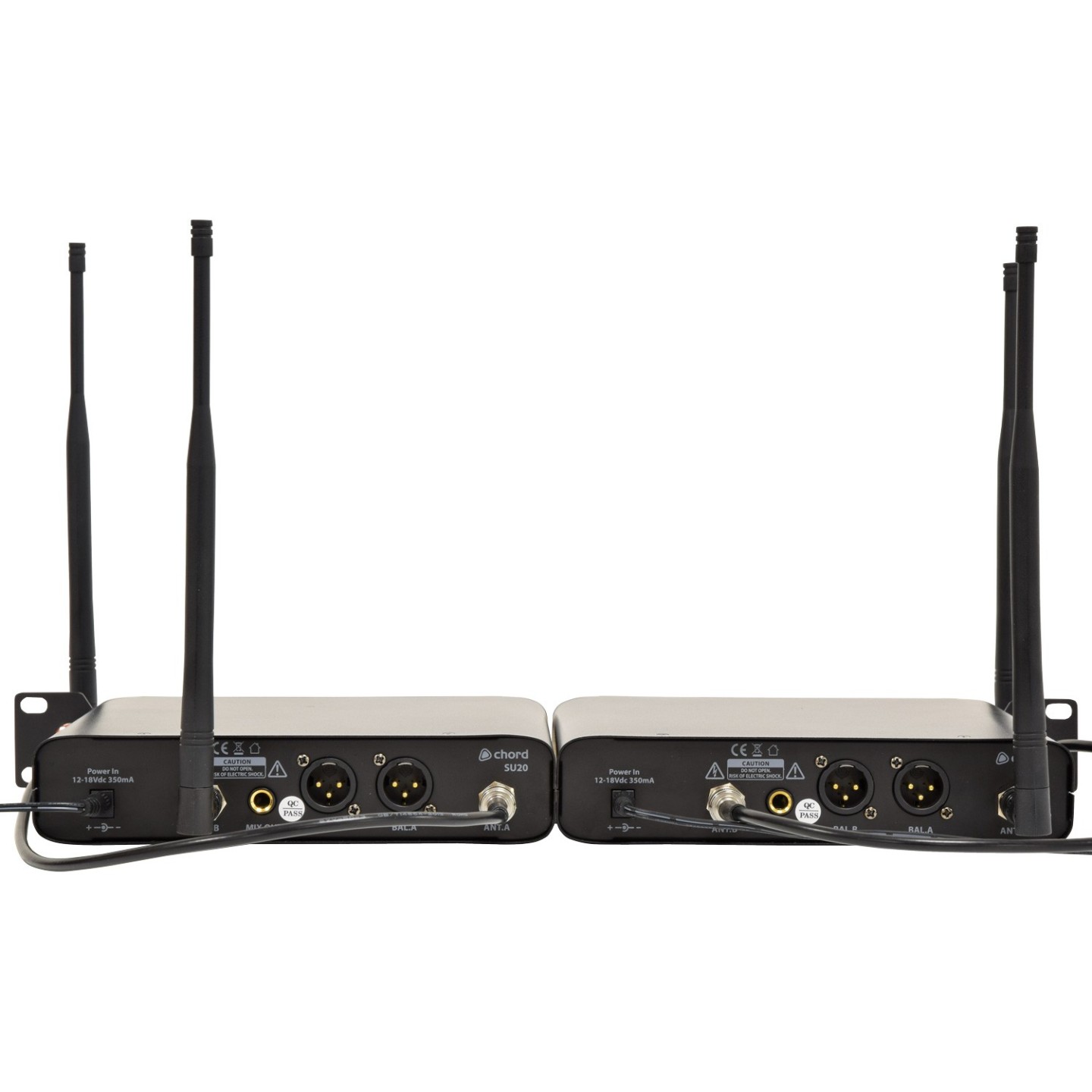

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space. BNC cables and detachable antennas are provided for rear or front mounting as required.

Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones.

Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.

• Up to 2 sets (4 microphones) can be used together
• Available in handheld or beltpack versions with 2 carrier frequency options
• Front or rear mountable antennas
• Compact half-rack receiver
• Supplied with power adaptor and 4 x AA batteries
• Power supply14Vdc 350mA (adaptor supplied)
  Antenna connection: BNC
  Batteries4 x AA (2 per transmitter) included
  Range: 60m
  Microphone polar pattern: Cardioid (handheld, neckband or lavalier)
  Output connections: 2 x balanced XLR, 1 x unbalanced 6.3mm jack
  Output impedance: 2.2k Ohms
  Output level: 400mV (balanced), 200mV (unbalanced)
  Frequency response: 50Hz - 18kHz (±3dB)
  S/N ratio: >80dB
  THD: <0.5% @ 1kHz
  Dimensions receiver: 203 x 187 x 42mm
  Weight  receiver: 845g

Dimensions  handheld transmitter:  250 x 47mmØ
Weight  handheld transmitter : 231g (no battery)
Carrier frequencies: 863.42MHz (Red) + 864.3MHz (Green)
