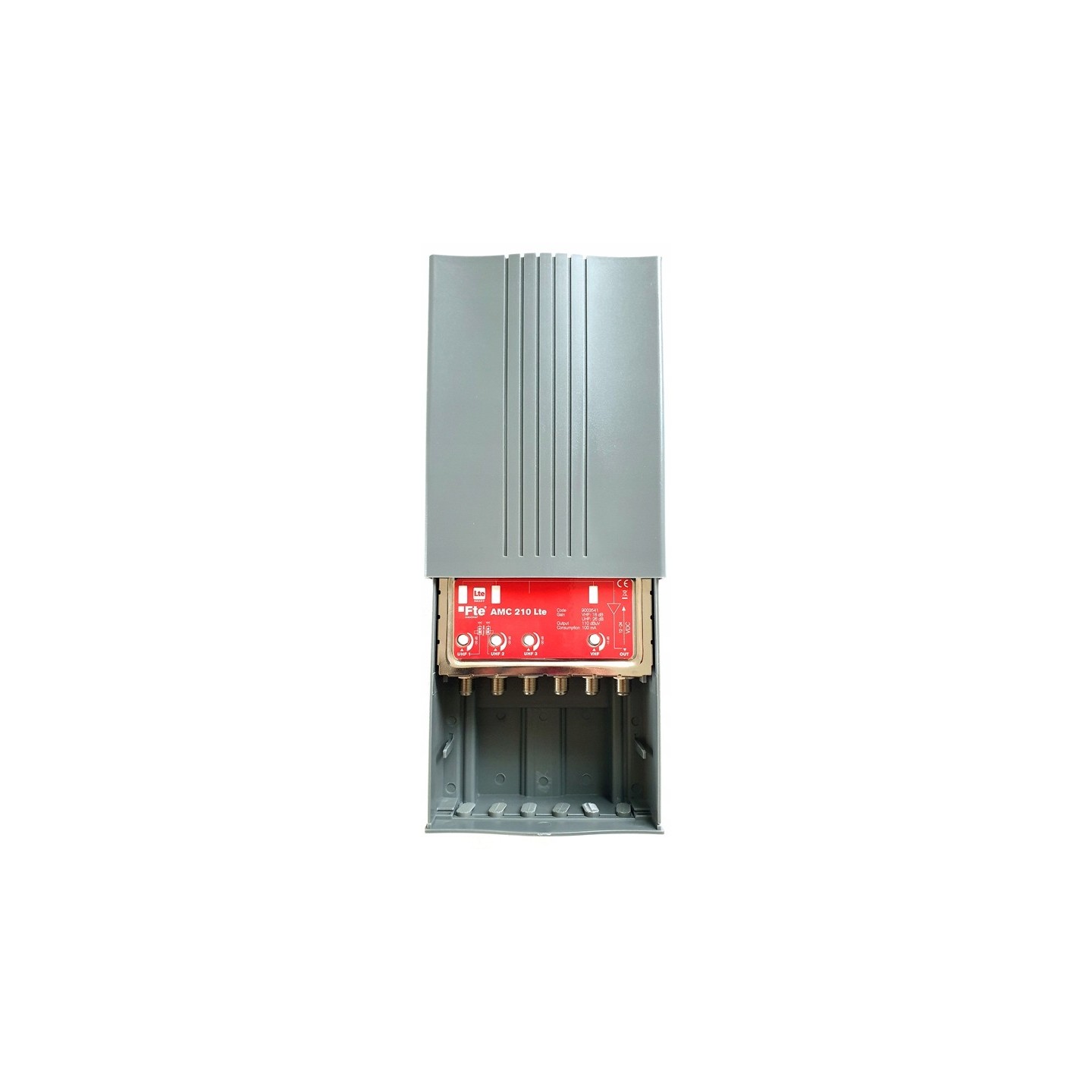

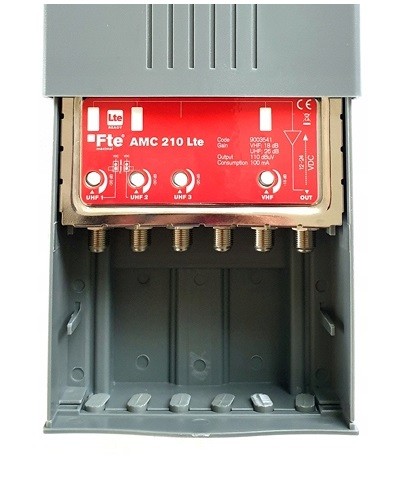

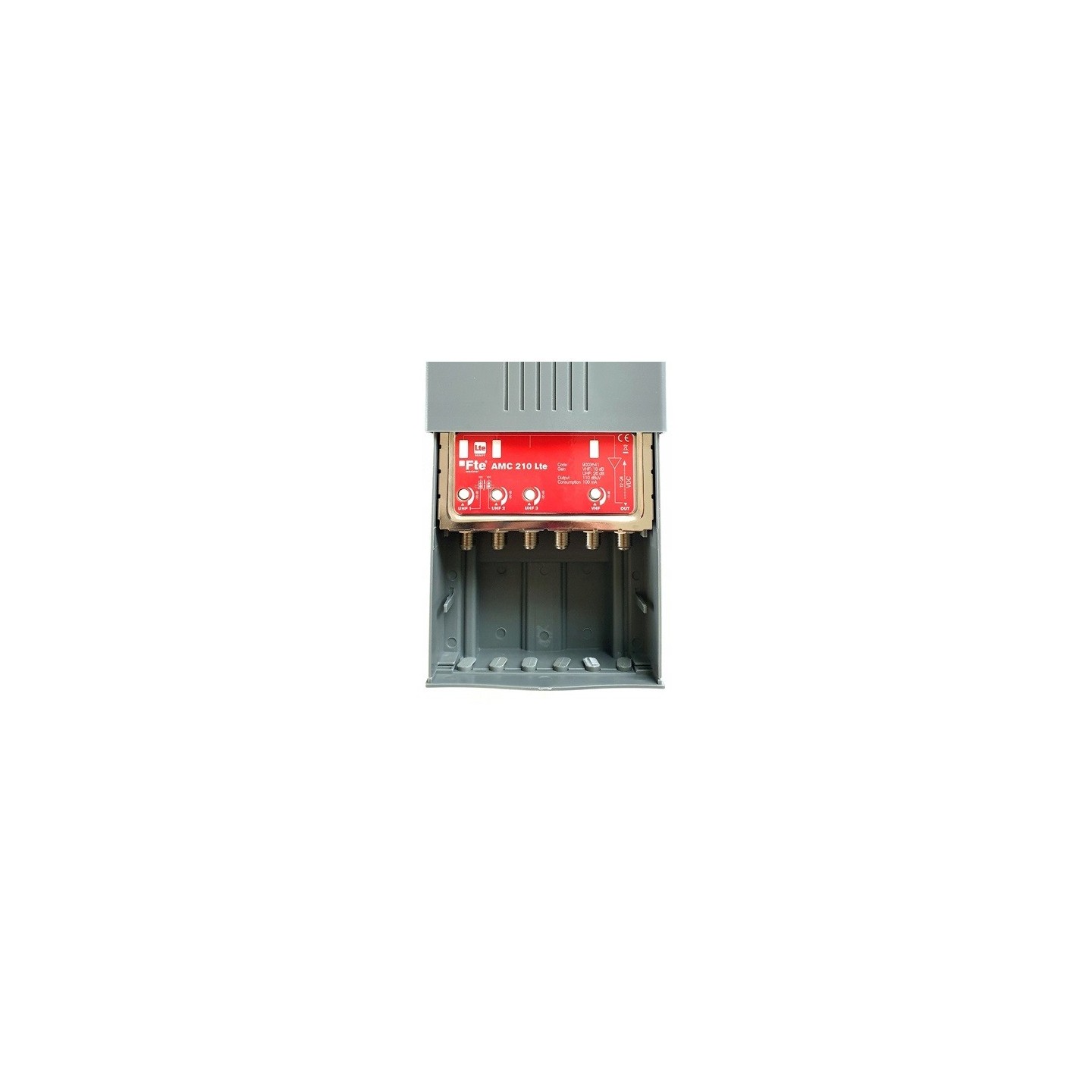

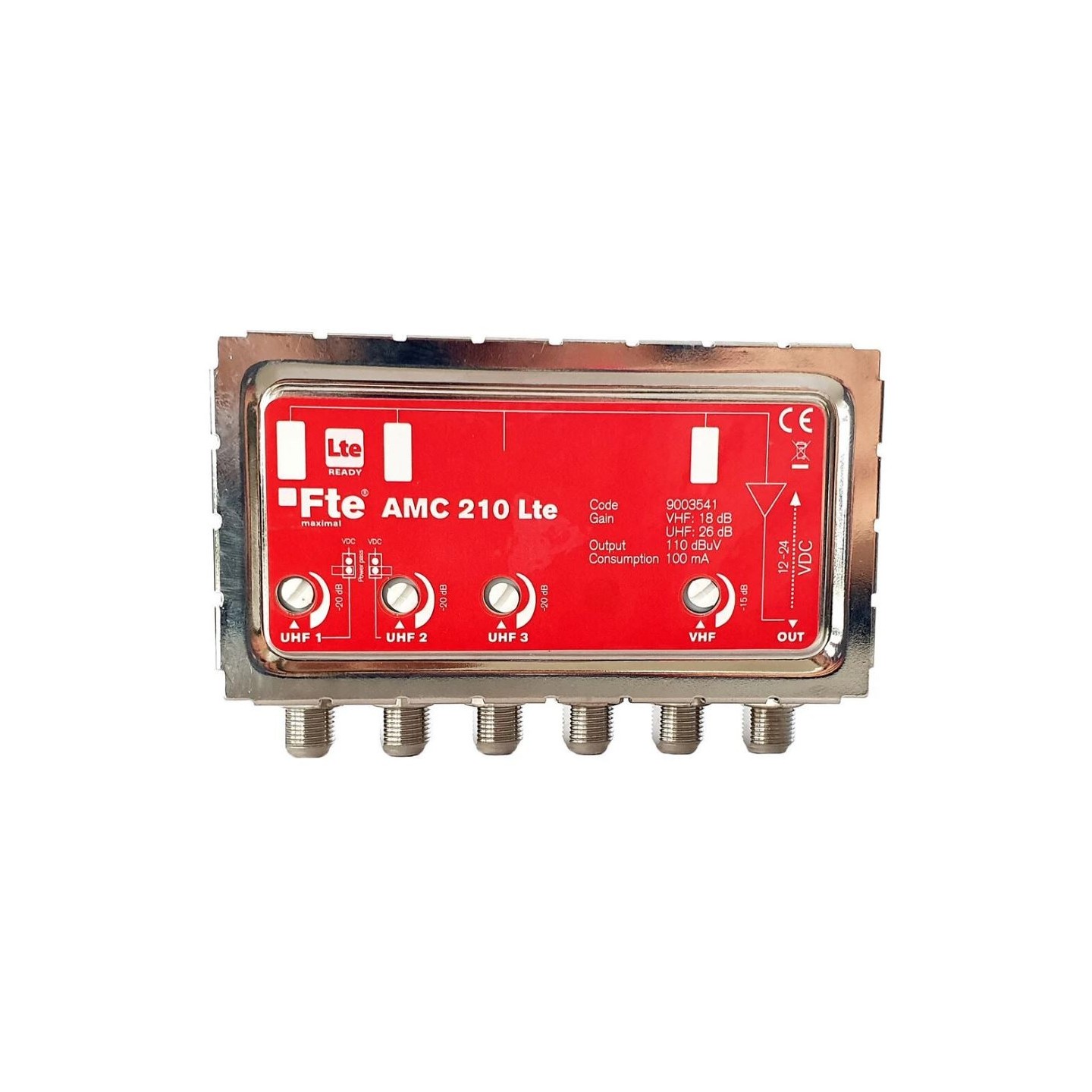

FTE Mast Amplifier - AMC210 - LTE Configurable VHF UHF
Mast amplifier for VHF/UHF with 3 inputs (1 VHF, 3 UHF); LTE configurable. UHF gain 26 dB, VHF 18 dB; VHF NF 3 dB, UHF 4 dB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Inputs and bands: 1: VHF / 3: UHF (470-790 MHz)
- Gain: VHF: 18 dB / UHF: 26 dB
- Regulation: VHF: 15 dB / UHF: 20 dB
- Noise figure: VHF: 3 dB / UHF: 4 dB
- Output level: 110 dBµV
- Current consumption: 100 mA
- Power Supply: 12 to 24 VDC
- Feeding (VDC): Yes / 2 UHF
| Type | Mast Amplifier |
| Inputs | 3 |
| UHF Inputs | 3 |
| VHF Inputs | 1 |
| Outputs | 1 |
| Gain per output | 26db |
| Total Output | 110db |
