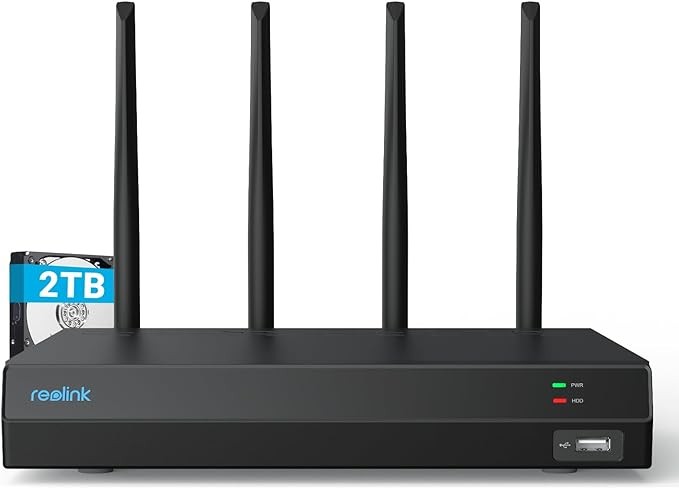

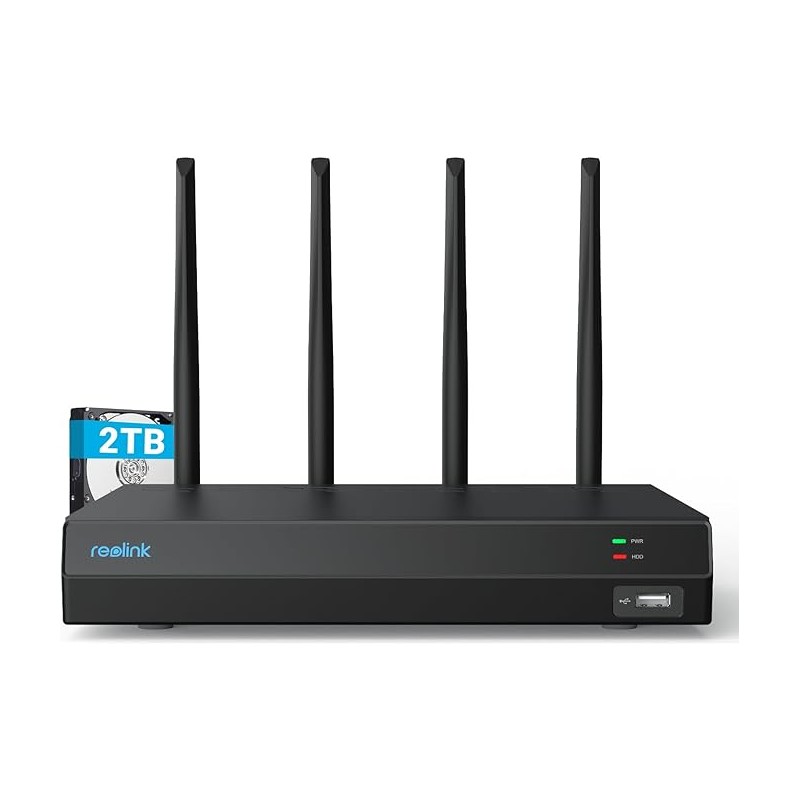

Reolink KIT WiFi NVR - 12 Channel 16MP WiFi6+4LAN+2TB HDD
Next-gen Wi-Fi 6 NVR with 12-channel recording, 16MP support, 4 LAN ports, and a 2TB HDD; enhanced stability, faster video, and WPA3 security.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Power | PoE |
|---|---|
| IP Cameras - Storage | NVR Only |
- NEXT-GEN WI-FI 6: Experience heightened stability, accelerated video transmission, and minimized latency with our cutting-edge Wi-Fi 6 NVR. Fortify your data security with the advanced WPA3 protocol, ensuring your information remains protected
- EASY SETUP & CAMERA MANAGEMENT: Simplify your setup with effortless installation, as WiFi cameras connect seamlessly to the NVR without the need for wiring. Enjoy ultimate convenience in managing all security cameras (Initial network configuration requires Ethernet cables.)
- 24/7 RECORDING & LOCAL STORAGE: Enjoy continuous recording with ample storage (expandable to 16TB). Keep your property secure around the clock, with no worries about storage capacity. Your peace of mind is assured as all recordings are stored locally
- LIVE VIEW & REMOTE ACCESS & NO EXTRA FEES: Stay worry-free about missing any motion events captured by your cameras. Enjoy the freedom to view live feeds and control your cameras from anywhere you are (For two-way audio, a speaker needs to be added.) No additional fees are necessary
- DIY SECURITY SYSTEM: RLN12W accommodates up to 12 cameras

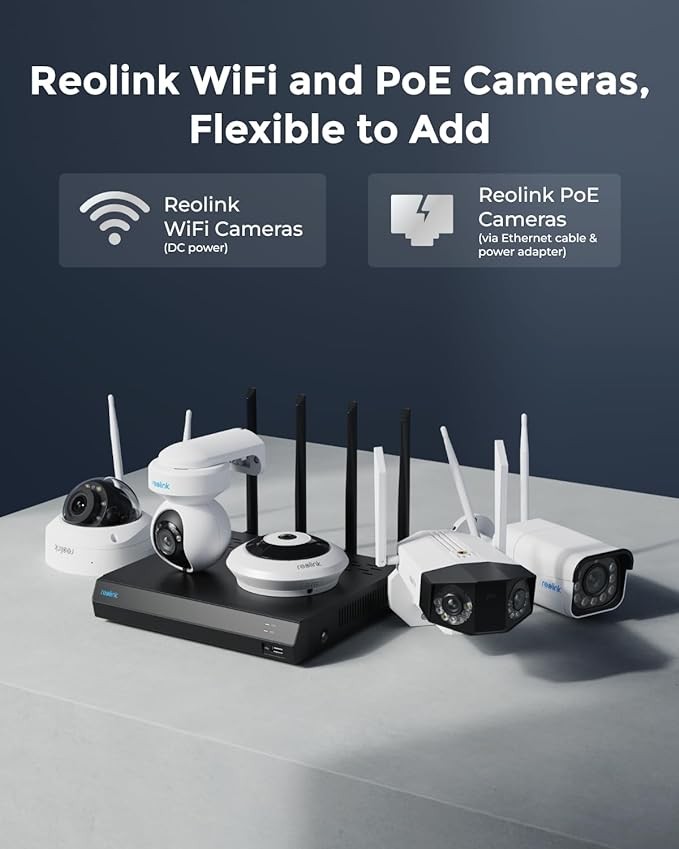

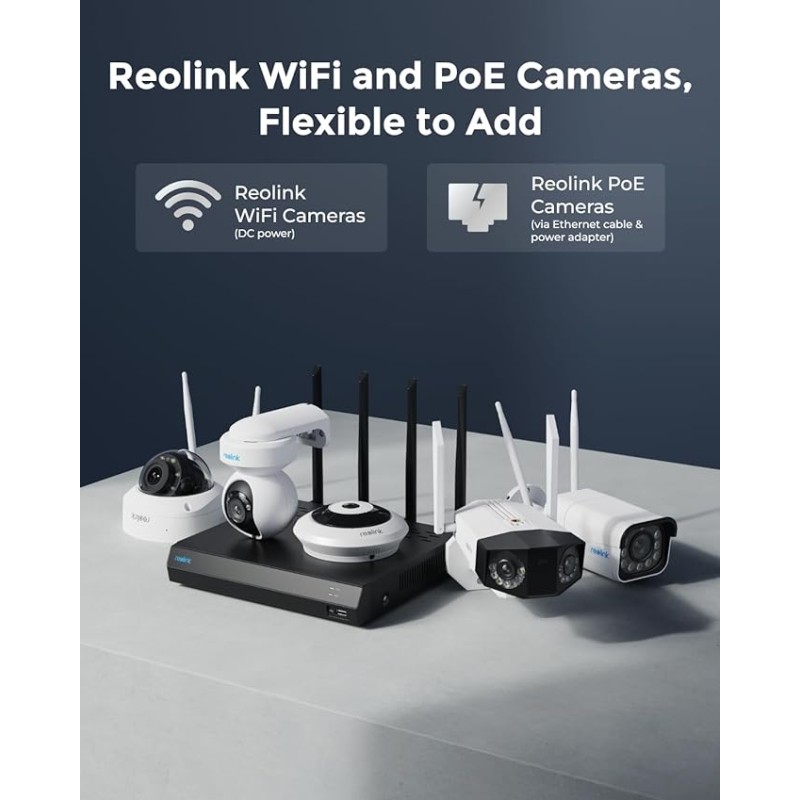

- This NVR is compatible with various Reolink IP cameras including plug-in Wi-Fi, battery-powered Wi-Fi, or PoE, and allows the connection of up to 12 cameras
- With numerous options, you now have the freedom and fun to build your own surveillance system. (Wired camera needs to be connected via an Ethernet cable and power adapter)
Video/Audio Input
- IP Video Input : Up to 12 IP Cameras (4XLAN)
- Audio Input : Cameras with built-in mic
Video/Audio Output
- Video Output : VGA, HDMI
- Display Resolution:HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 / VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
- Audio Output : 1-channel, RCA
Decoding
- Video Compression : H.265/H.264
- Live View / Playback Resolution : 7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p
- Synchronous Playback : Up to 4 channels
HDD
- SATA : 1 x SATA interface (1 x 2TB HDD included)
- Capacity : Up to 16TB
External Interface
- USB Interface : 2 x USB 2.0
- Network Interface : 4 x RJ-45, 10/100 Mbps self-adaptive (for IP cameras) / 1 x RJ-45, 10/100 Mbps self-adaptive (for LAN/WAN)
Wi-Fi
- Wireless Standard : IEEE 802.11a/ac/ax/ b/g/n
- Operating Frequency : 2.4 GHz/5 GHz
- Wireless Security : WPA/WPA2/WPA3
Network
- Network Protocols : HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- Browser Supported : Edge, Firefox, Chrome, Safari
- OS Supported : Windows, Mac OS; Smartphone: iOS, Android
- Max. User Access : Max. 20 users (1 admin & 19 user);
- Max. 12 simultaneous streams (10 sub & 2 mainstreams)
General
- Power Supply : DC 12V/2A
- Power Consumption : <10W (with 2TB HDD)
- Working Environment : Temperature: -10°C ~ +45°C (14°F ~ 113°F);
- Humidity: 10% ~ 90%
- Dimensions : 255mm(W) x 49.5mm(H) x 222.7mm(D)
- Weight : 1.4kg
| Channels | 12 |
| PoE Ports | 4 |
| Compression | H.265/H.264 |
| HDD | 1 Disk Up to 16TB |
| Wi-Fi | Yes |
