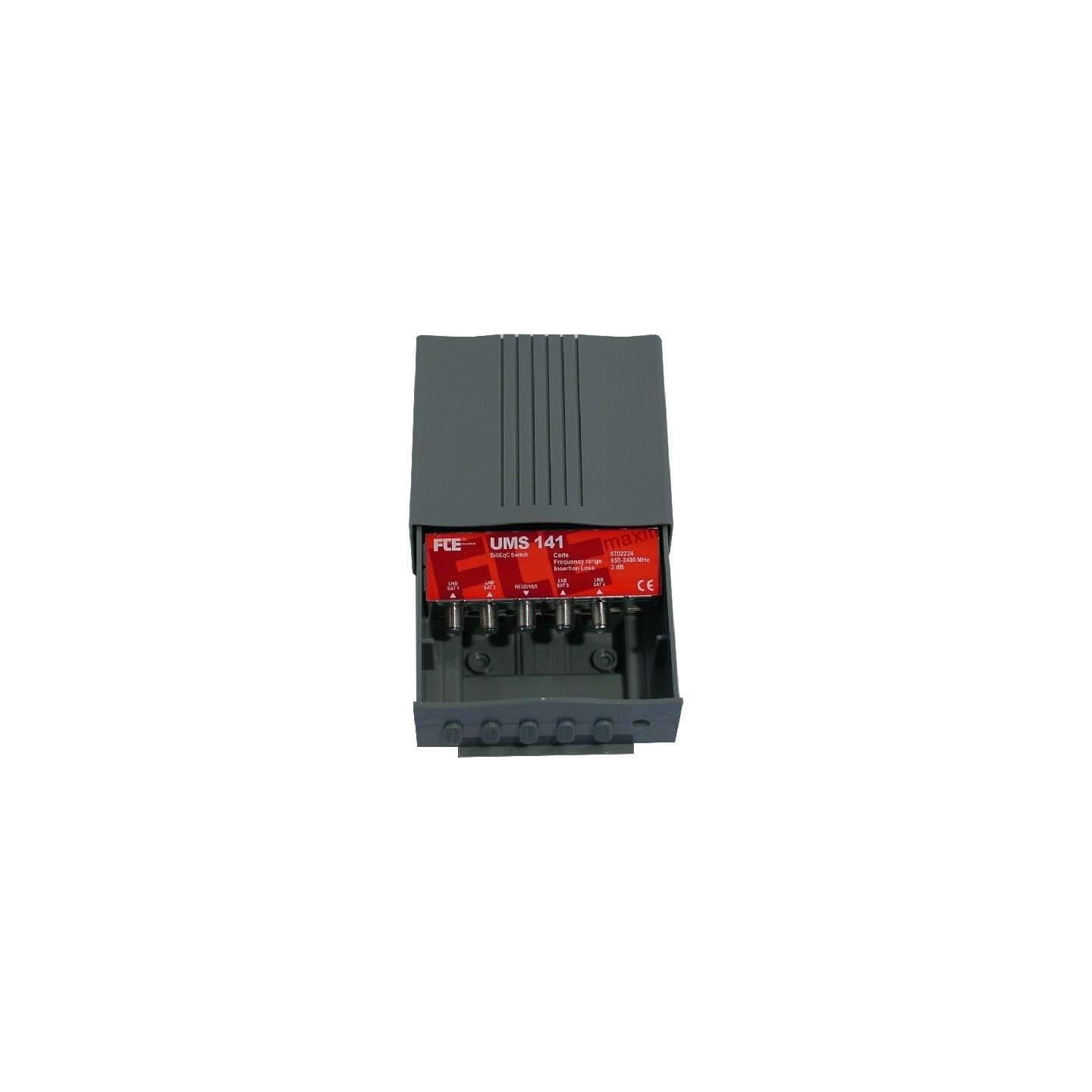

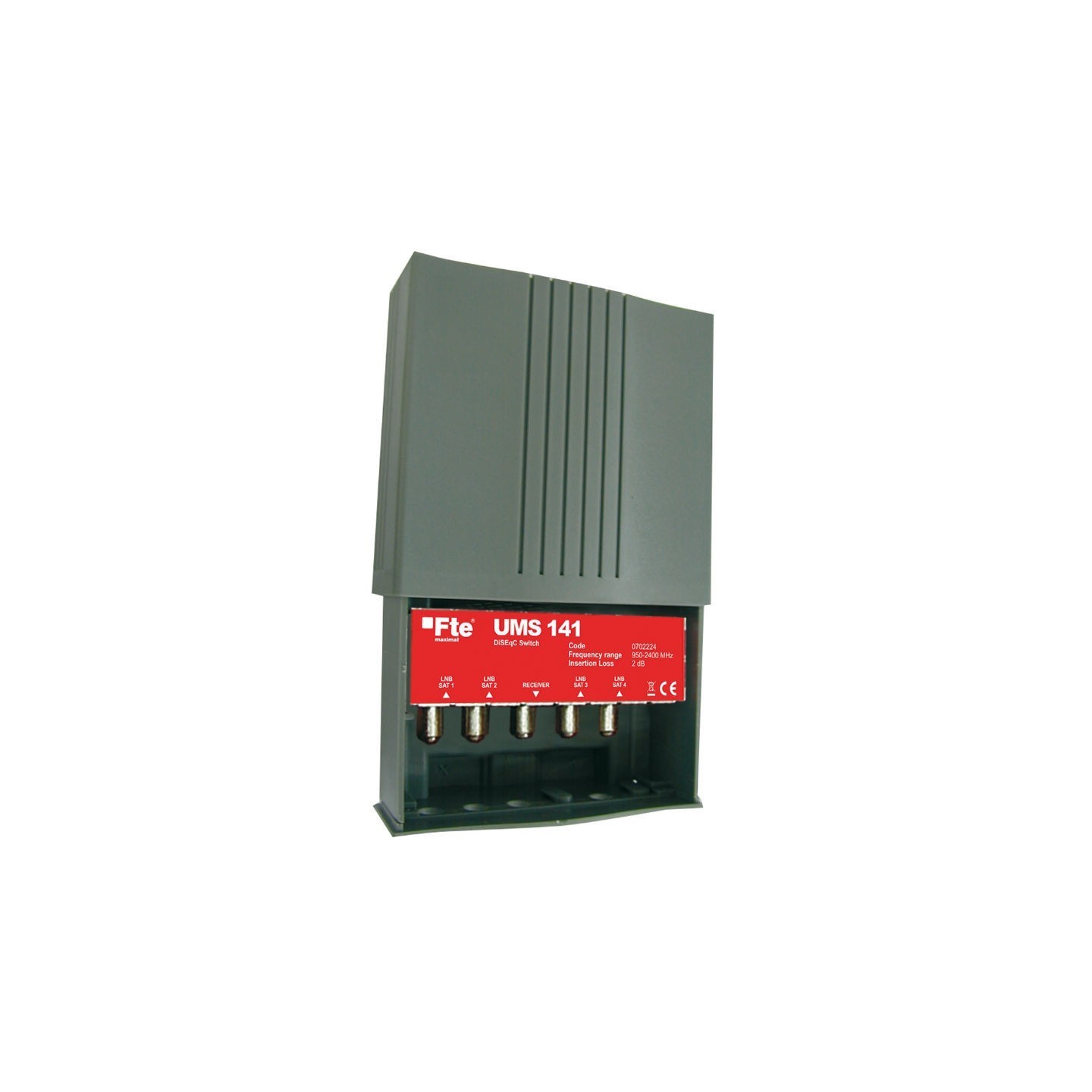

FTE DiSEqC Switch - UMS141 - 4-1
4-input DiSEqC switch with 1 output; 950-2400 MHz; insertion loss < 2 dB; isolation between inputs > 25 dB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Description: 4 inputs LNC switch
- Frequency margin: 950 - 2400 MHz
- Inputs number: 4
- Outputs number: 1
- Insertion loss: < 2 dB
- Decoupling Between Inputs: > 25 dB
- Switching Mode: DiSEqC 1.0
- Current Pass: 450 mA
- Connectors: F-female
- Installation Type: Mast
| Type | Diseqc Switch |
| Inputs | 4 |
| Outputs | 1 |
