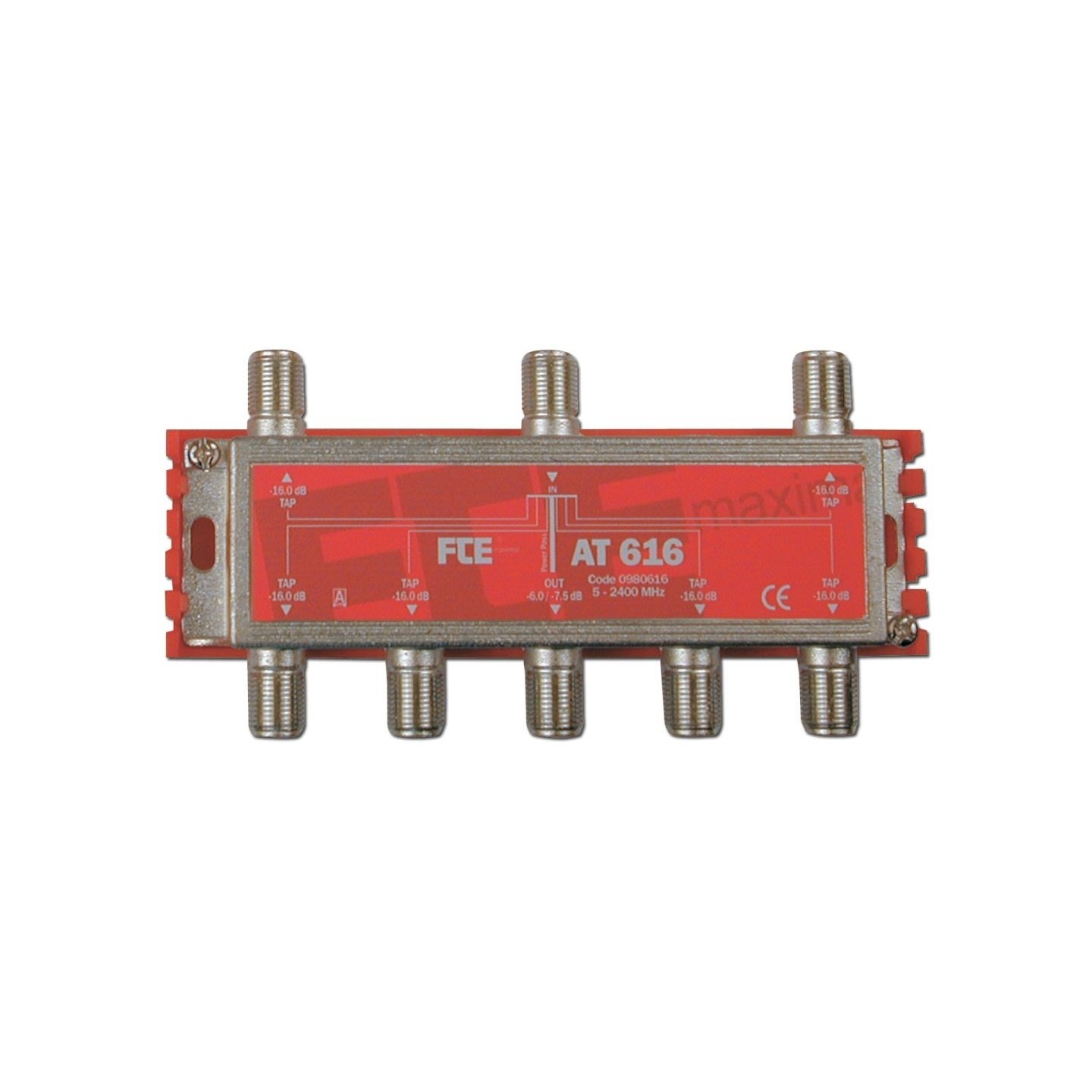

FTE Tap - AT616 - 6-Way Tap 5-2400MHz
Six-output RF tap for terrestrial and satellite bands 5-2400 MHz, with return line ranges 5-30/5-65 MHz, IN-OUT and OUT-IN configurations.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
This range of taps covers bands of terrestrial TV and satellite TV between 5 and 2400 MHz, including any frequency range of return line (5-30 or 5-65 MHz) as well in several directions (IN-OUT, OUT-IN, IN-TAP and TAP-IN). They have four tap outputs, F type connectors. Decoupling between outputs is very high (>XX dB) avoiding that problems generated in one of the outputs affect the rest of users. Availability of 5 values of tap attenuation let make a cascade perfectly compensated. All references have plastic wall support insertable and a ground connection.
- Covered Band (MHz) 5-2400
- Return band (MHz) 5-30 / 5-65
- Nr. of TAPS 6
- TAP attenuation (dB) Freq.(MHz) Typ Max 5-470 16,0 17,0 470-862 16,5 17,0 950-2400 16,5 17,5
- Distribution pass (dB) 5-470 5,0 6,0 470-862 5,2 6,0 950-2400 6,5 7,5
- Decoupl. between outputs (dB) 5-470 >40 470-862 >30 950-2150 >28
- Return loss (dB) IN > 20 OUT > 20 TAP > 18
- Screening factor (dB) > 100
- Impedance (Ω) 75
- Current pass IN - OUT
- Connectors F female
- Plastic support included
- Dimensions (mm) 10 pcs: 165 x 125 x 70 120 pcs: 330 x 250 x 210
| Type | Tap |
| Tap Outputs | 6 |
| Frequency | 5-2400Mhz |
| Series | AT |
