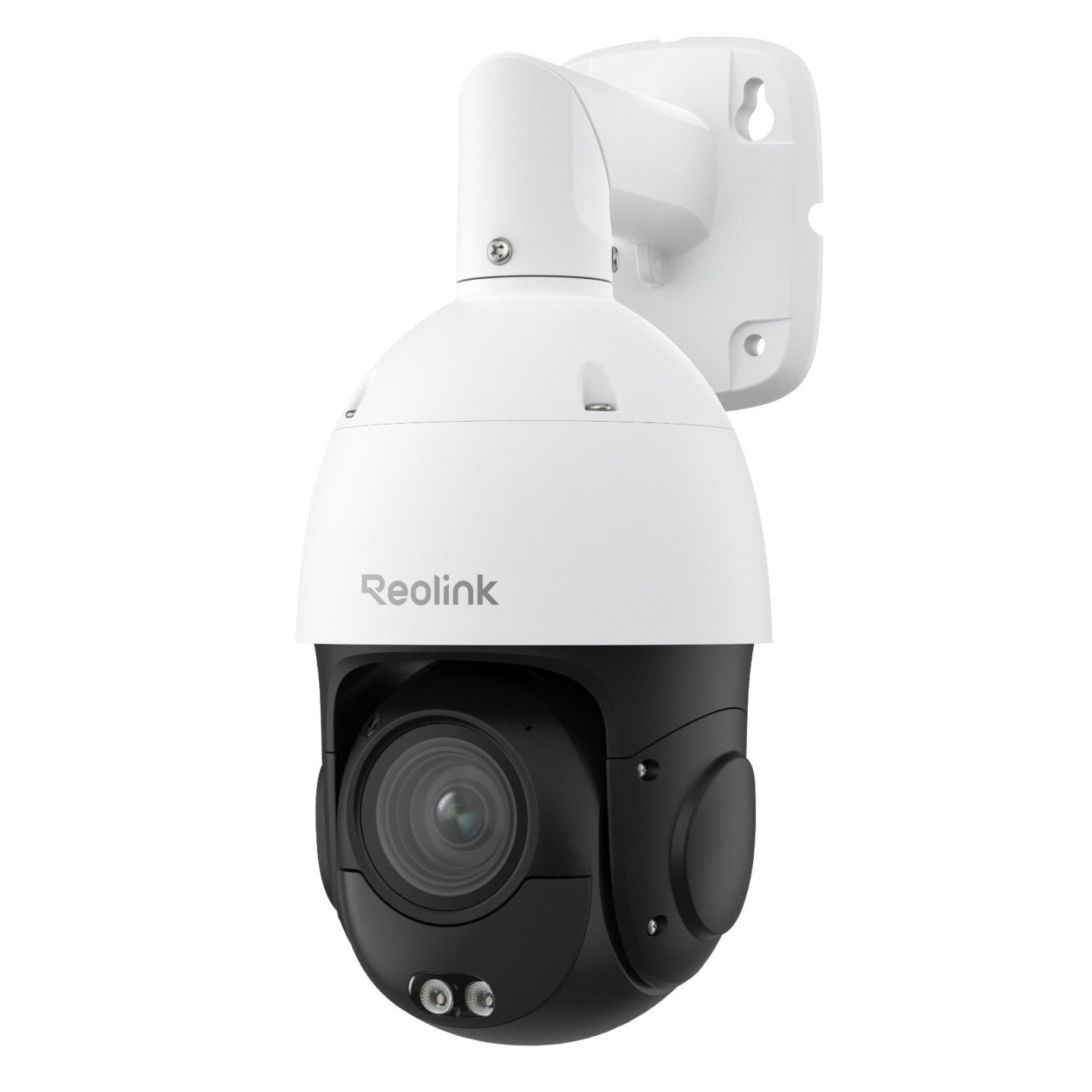

Reolink POE IP PTZ Camera - RLC-823S1 - 8MP 5x Optical Zoom
360° coverage with auto tracking; 8MP, 5x optical zoom, color night vision; motion, person, vehicle, and animal detection.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Form Factor | PTZ |
|---|---|
| IP Cameras - Resolution | 8 MP (4K) |
| IP Cameras - Power | PoE |
| IP Cameras - Audio | Mic + Speaker (2-way) |
| IP Cameras - Storage | microSD |
- 360° Coverage with Auto Tracking
- 4K UHD with 5X Optical Zoom
- Color Night Vision
- Person/Vehicle/Animal Detection
Video & Audio
- Image Sensor: 1/2.8" CMOS sensor
- Resolution: 3840 x 2160 (8 Megapixels) @ 25FPS
- Lens: f=2.7-13.5mm/Max. F1.6
- Video Compression: H.265 / H.264
- Zoom: 5X
- Field of View: Horizontal: 100°-31° / Vertical: 55°-17° / Diagonal: 123°-39°
- Infrared Night Vision: Up to 60 meters (260 ft); LED: 7 pcs / Max 5.5W / 850nm (Auto-switching with IR-cut filter)
- Color Night Vision: With spotlights: 2 pcs / 4W / 4000K (Adjustable)
- Audio: Two-way audio
Power

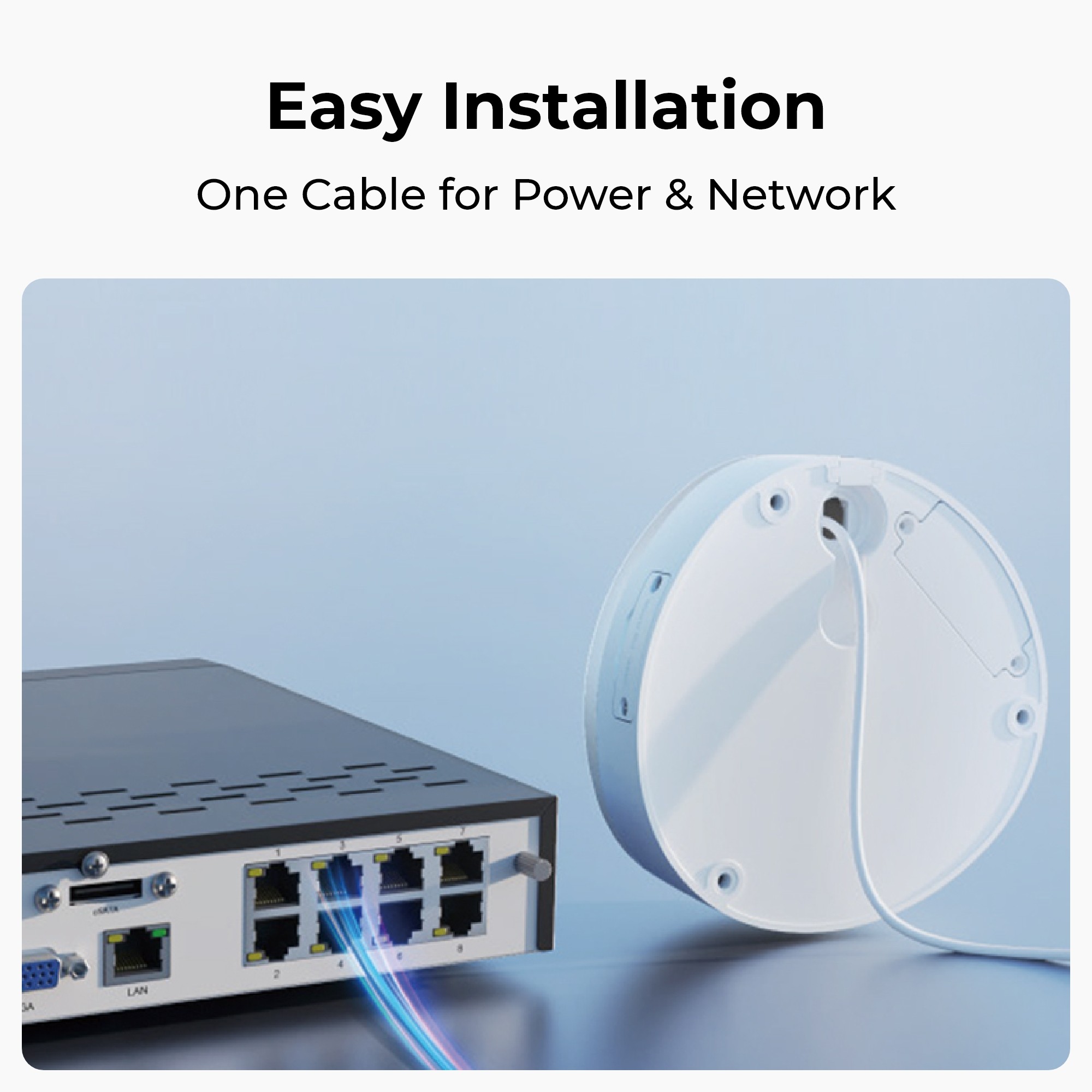

- PoE: IEEE 802.3at, 48V active
- DC Power: DC 12V⎓2A, < 24W
Interface
- Power: DC power port
- Ethernet: 1 × 10M/100Mbps RJ45

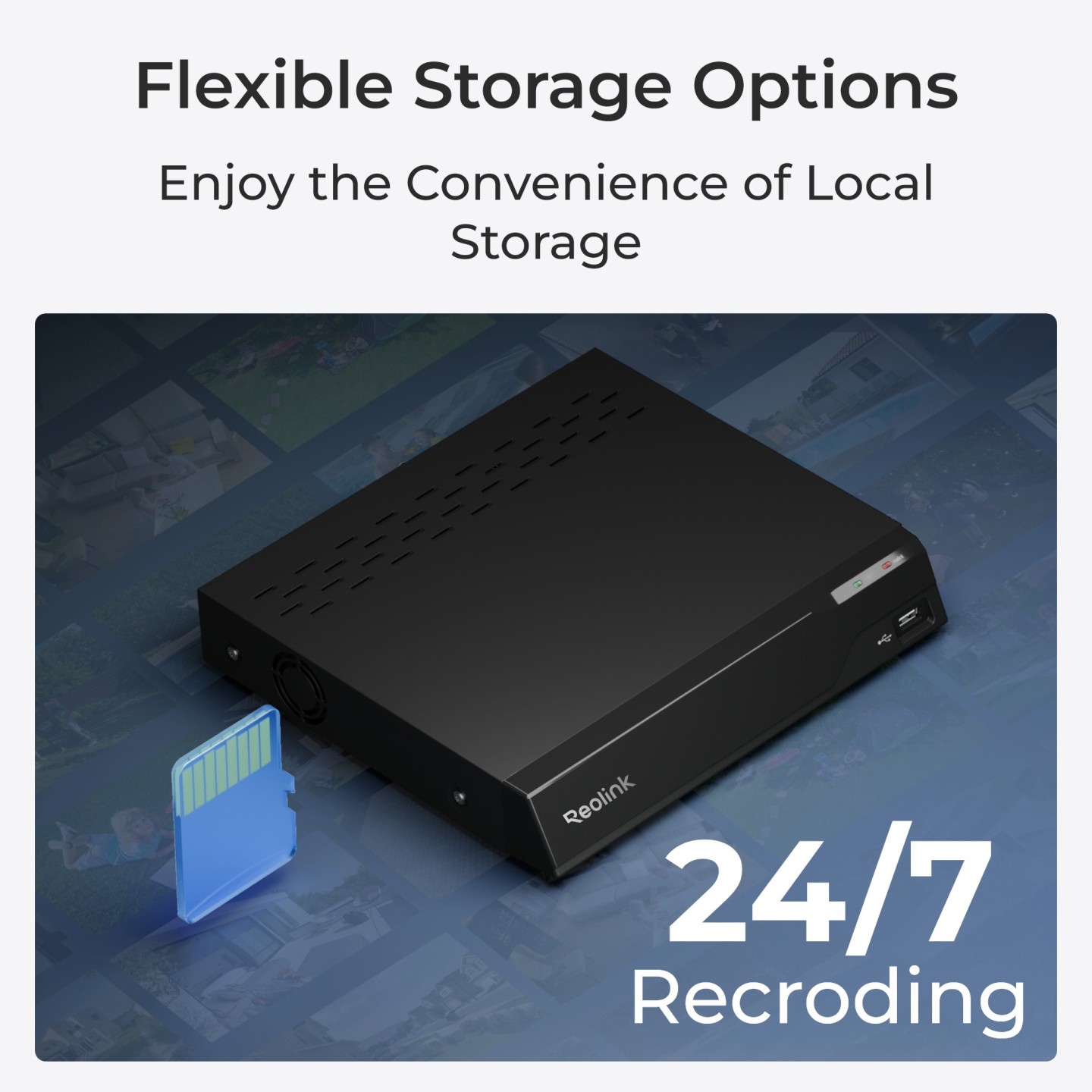

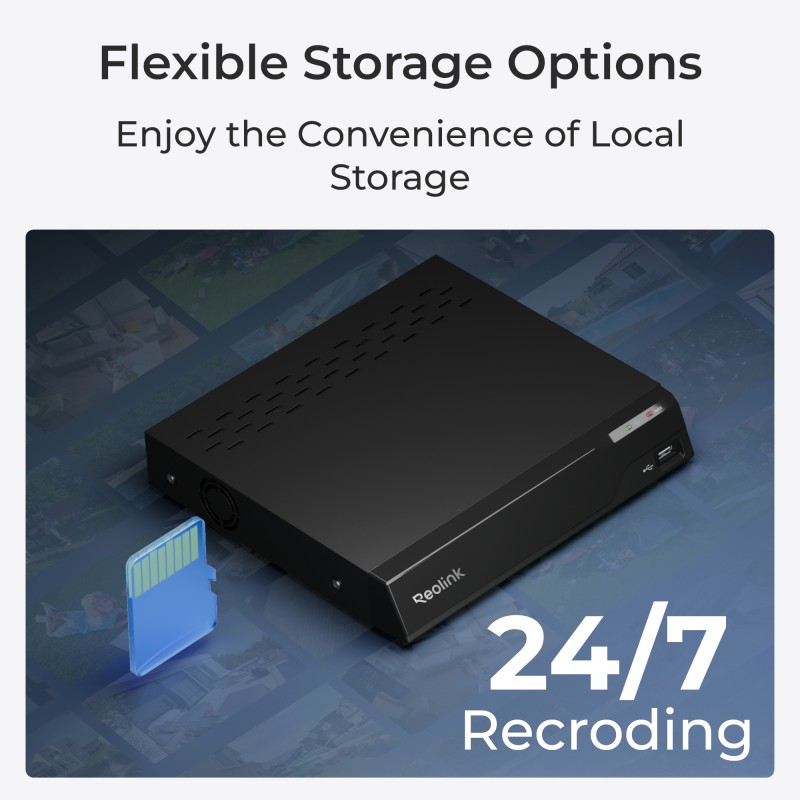

- Storage: Supports Max. 256GB microSD card
- System: Reset button
- Audio: Built-in microphone and speaker
Pan & Tilt
- Pan & Tilt: Pan: 360°, Tilt: 90°
- Pan Speed: 1.4° - 90°/s (configurable)
- Tilt Speed: 1.4° - 56°/s (configurable)
- Preset: Supports 1 guard position & up to 64 preset positions
- Patrol: Supports 1 patrol; up to 16 presets per patrol
- Power-off Memory Function: Yes
- Auto Tracking: Yes
Software Features
- Frame Rate:
- Mainstream: 2fps - 25fps (default: 25fps)
- Substream: 4fps - 15fps (default: 10fps)
- Code Rate:
- Mainstream: 2048Kbps - 8192Kbps (default: 6144Kbps)
- Substream: 64Kbps - 512Kbps (default: 256Kbps)
- Compatible Browsers: Edge, Chrome, Firefox, Safari
- OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
- Smart Alarm: Motion detection, person detection, vehicle detection, animal detection
- Time Lapse: Yes
- Recording Modes: Motion-triggered recording (default), Scheduled recording, 24/7 recording
- Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
- User Access: Max. 20 users (1 admin & 19 users); Max. 12 simultaneous streams (2 main & 10 substreams)
- Smart Home Compatibility: Google Assistant
Working Environment
- Operating Temperature: -10°C ~ +50°C (14°F ~ 126°F)
- Operating Humidity: 10% ~ 90%

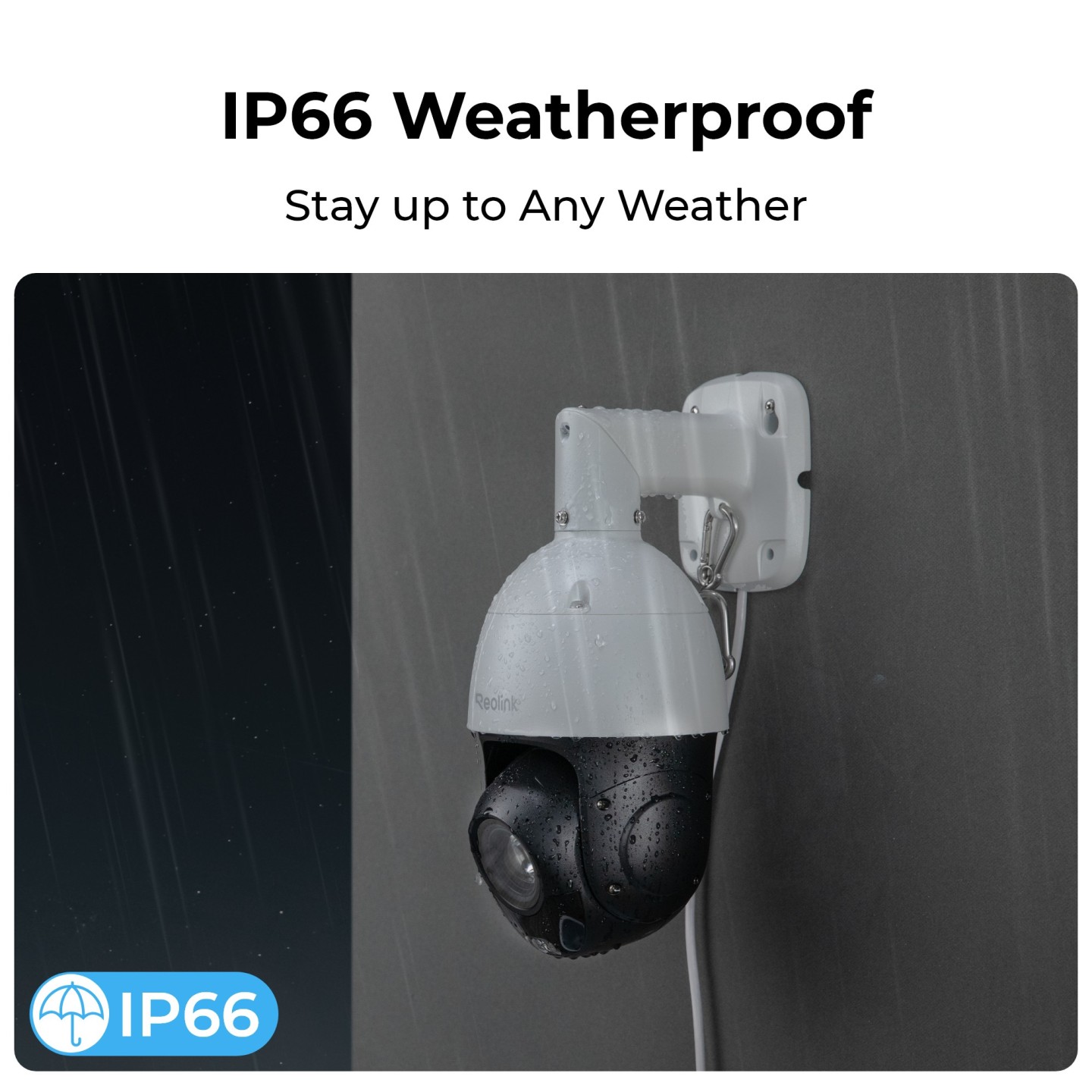

- Weatherproof: IP66
Size & Weight
- Dimensions: 373 × 177 × 140 mm (Ceiling Mount)
- Weight: 2.34 kg
| AI Features | Motion detection, person detection, vehicle detection, animal detection |
| Camera Resolution | 8.0MP |
| Housing Type | PTZ |
| Compression | H.265/H.264 |
| Full-Color | Yes |
| Lens | Motorised |
| Lens Size | 2.7-13.5mm |
| IR Distance | Up to 60m |
| Audio | Built-in Mic,Built-in Speaker |
| Others | Up to 256GB Micro SD |
