j5create Thunderbolt 4 Docking Station 15-in-1 - JTD568 - Supports 4 x 4K Displays 10Gbps with 135W PSU

This Thunderbolt™ 4 Quad display Docking Station turns your Windows® laptop or Mac® into a full workstation, with resolution support up to Quad displays at 4K60Hz or Triple display at 4K60Hz or dual display at 5K60 Hz or 8K60Hz on the single display. Supports up to 98W power delivery for providing charging to your laptop. The quad display output and five USB™ 3.2 ports, and a USB-C® 3.2 port, this docking station is perfect for Thunderbolt™ 4 laptop requiring many high-performance ports and high-resolution displays. This Thunderbolt™ 4 docking station is also equipped with an RJ45 2.5 Gigabit Ethernet port, SD™/microSD™ 4.0 memory card reader/writer, and combo audio jack for maximum productivity.

All 15 ports are combined into one slim docking station, so you will have all the connections you need to stay productive!

• Providing the ultimate connectivity for Thunderbolt™ 4 laptops
• Intel® Thunderbolt™ 4 certified for reliability and compatibility
• Providing ultimate connectivity and ultra-high data transfer speeds
• Supports dual 4K@60Hz displays or one high-resolution 8K display with crystal clear image quality
• Supports up to quad or triple 4K displays, dual 5K displays, or a single 8K display with crystal clear image quality
• Perfect for MacBook® and Windows® laptops that support Thunderbolt™ 4

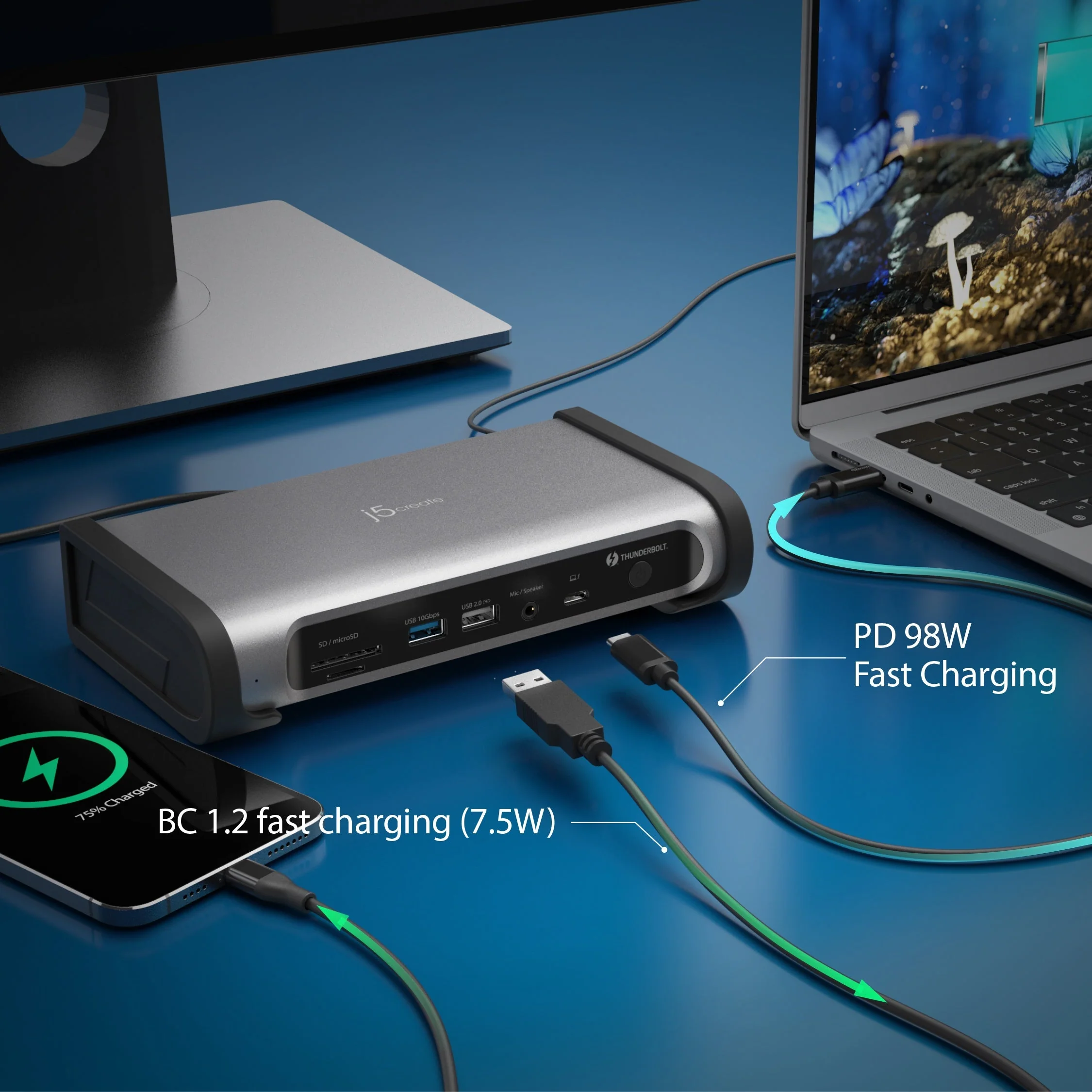

• Power adapter 135W AC adapter with up to 98W PD charge

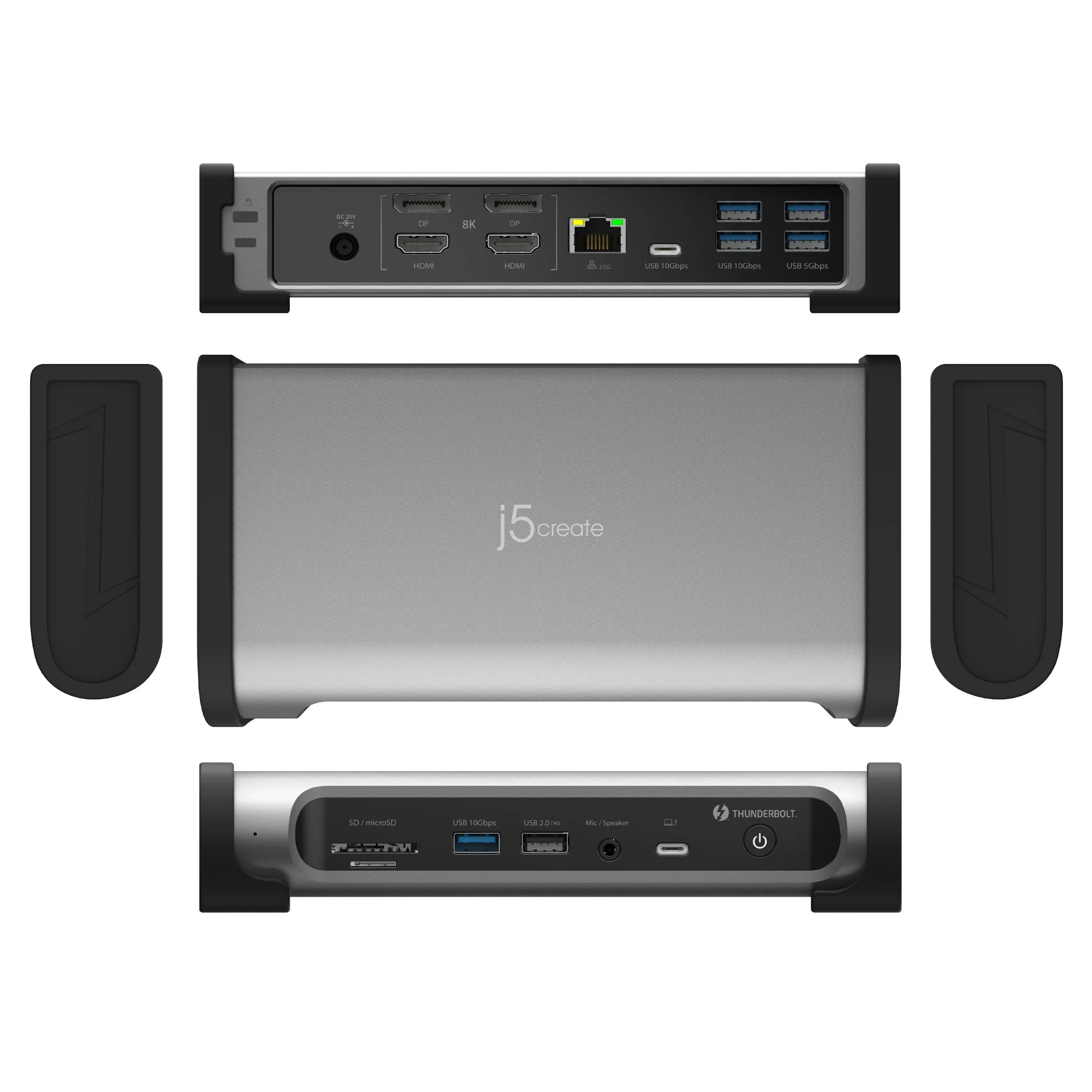

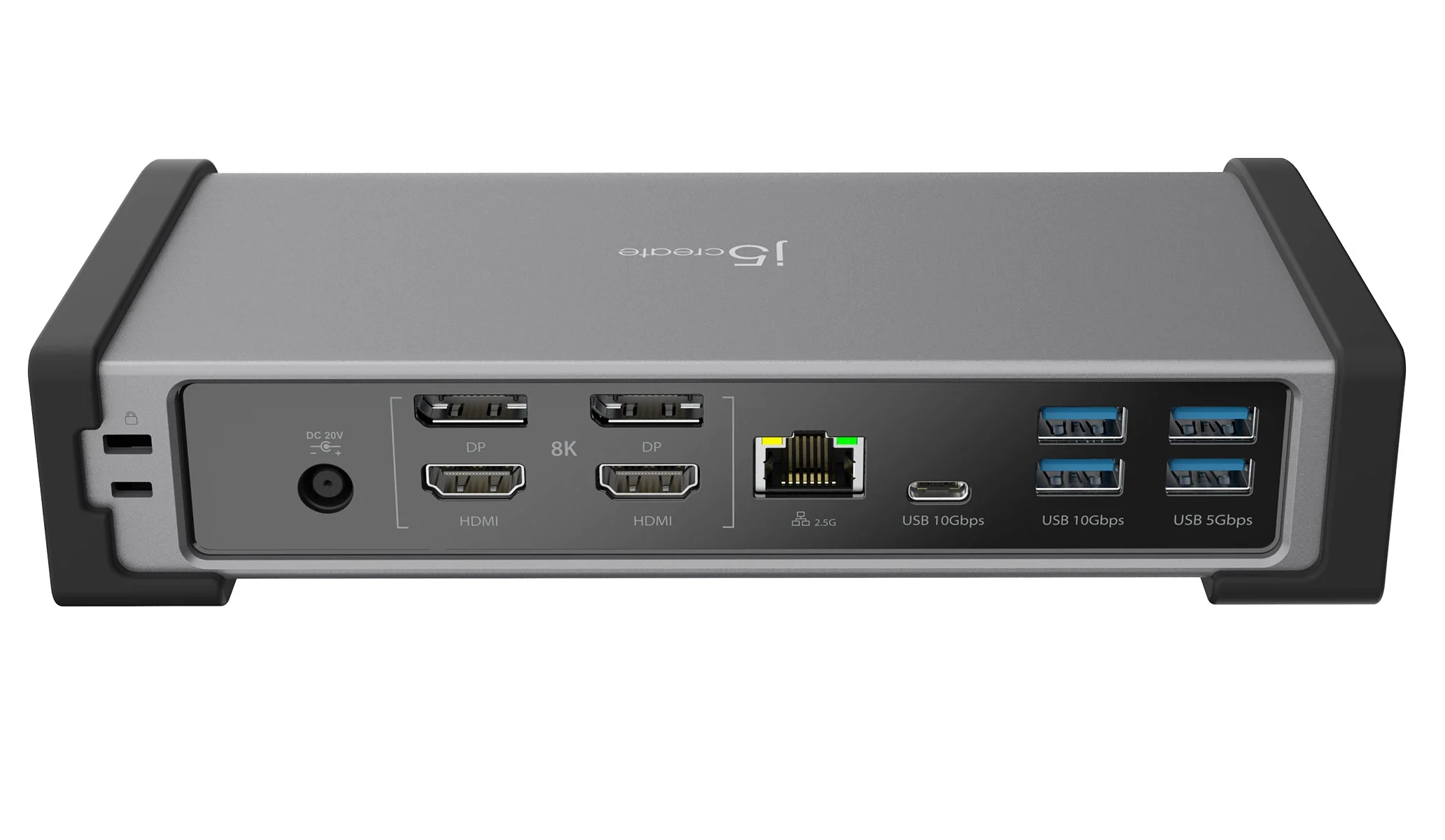

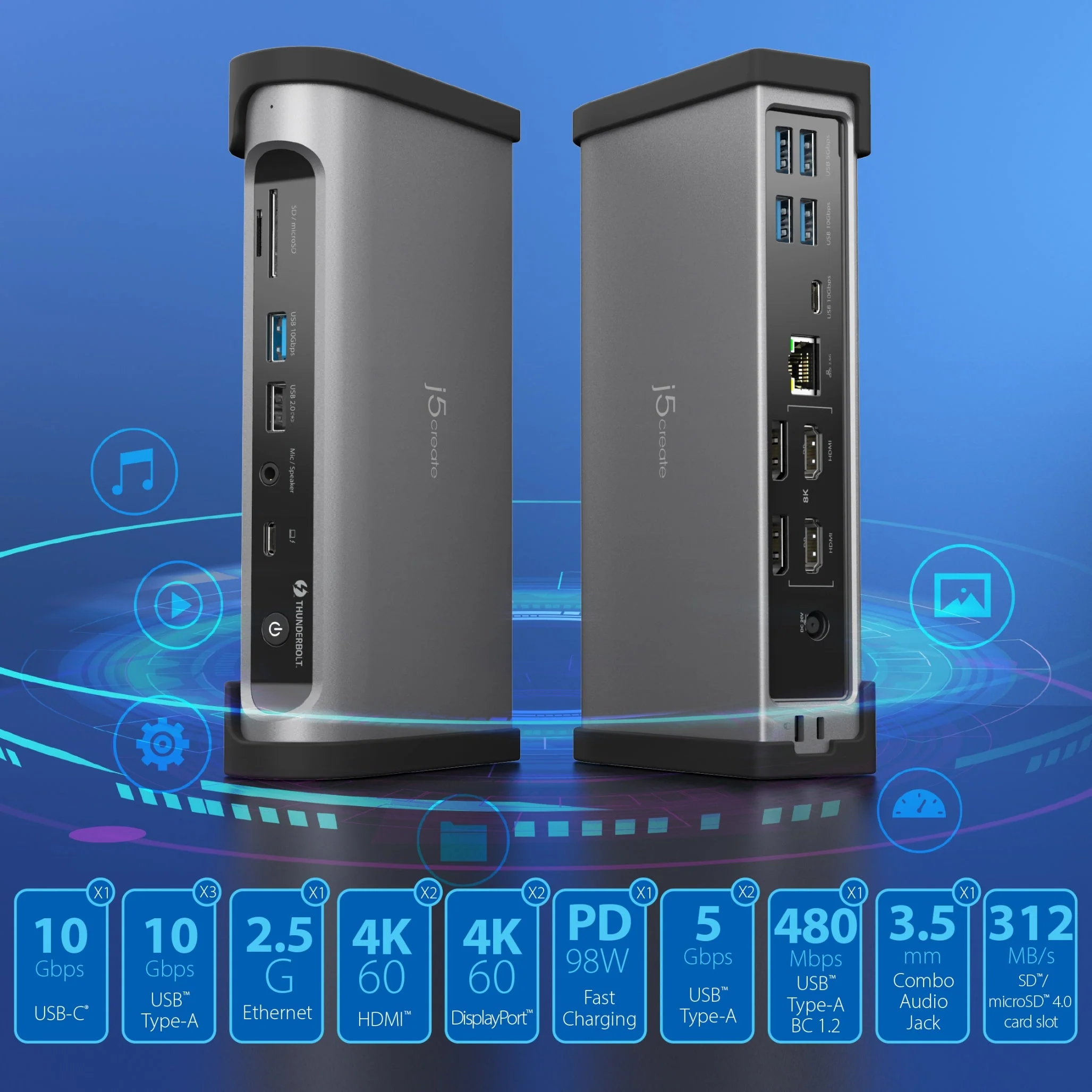

Ports

• 1 - USB-C® Power Delivery 98W (Host)
• 1x Thunderbolt™ 4 Female (Host)
• 2 - HDMI™ 2.1
• 2 - DisplayPort™ 1.4
• 1 - USB-C® 10Gbps
• 3 - USB™ 3.2 Type-A Gen 2 10Gbps
• 2 - USB™ 3.2 Type-A Gen 1 5Gbps
• 1 - USB™ 2.0 Type-A with BC1.2

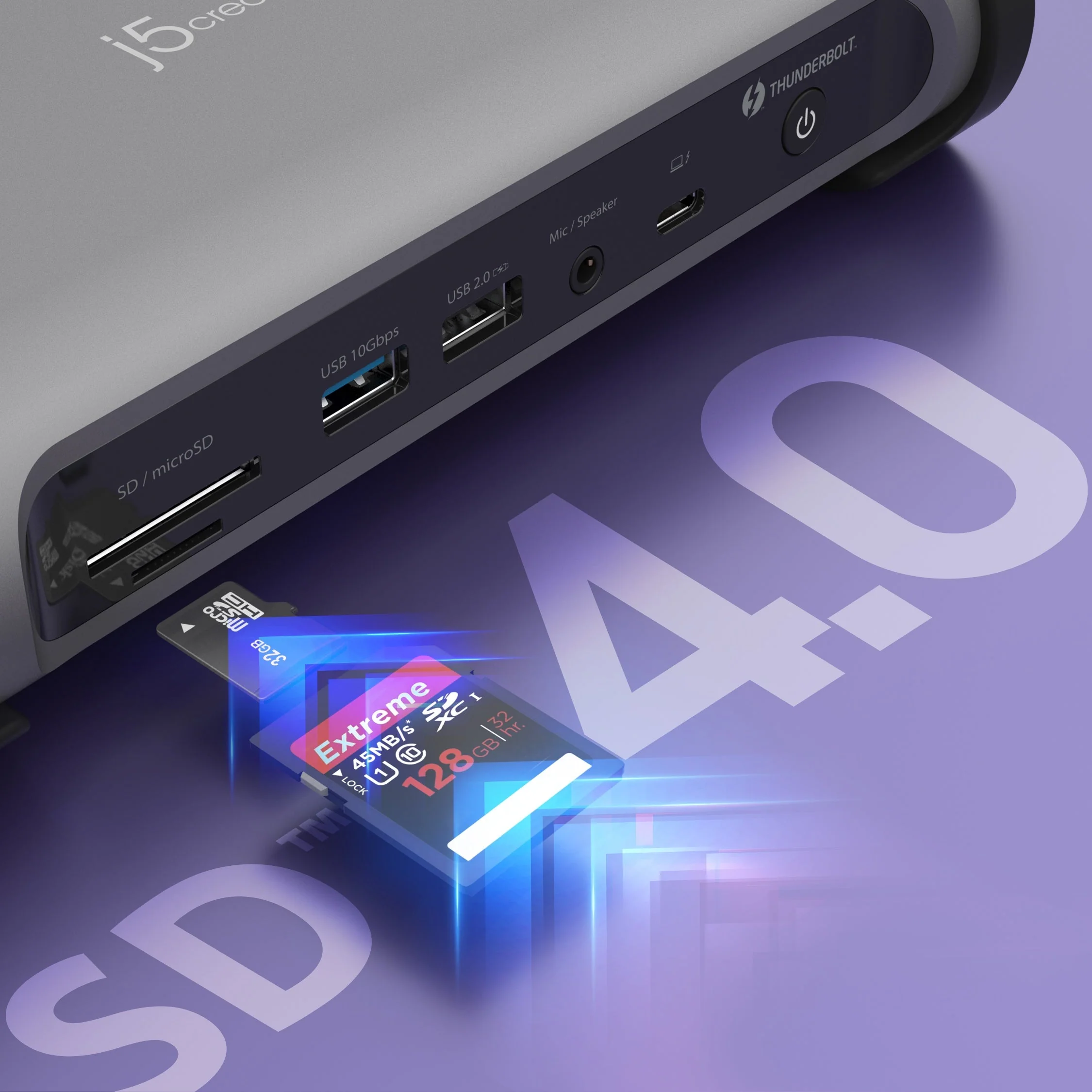

• 1 - SD™/microSD™ 4.0 UHS-II 312 MB/s memory card reader/writer
• 1 - 3.5 mm combo audio jack

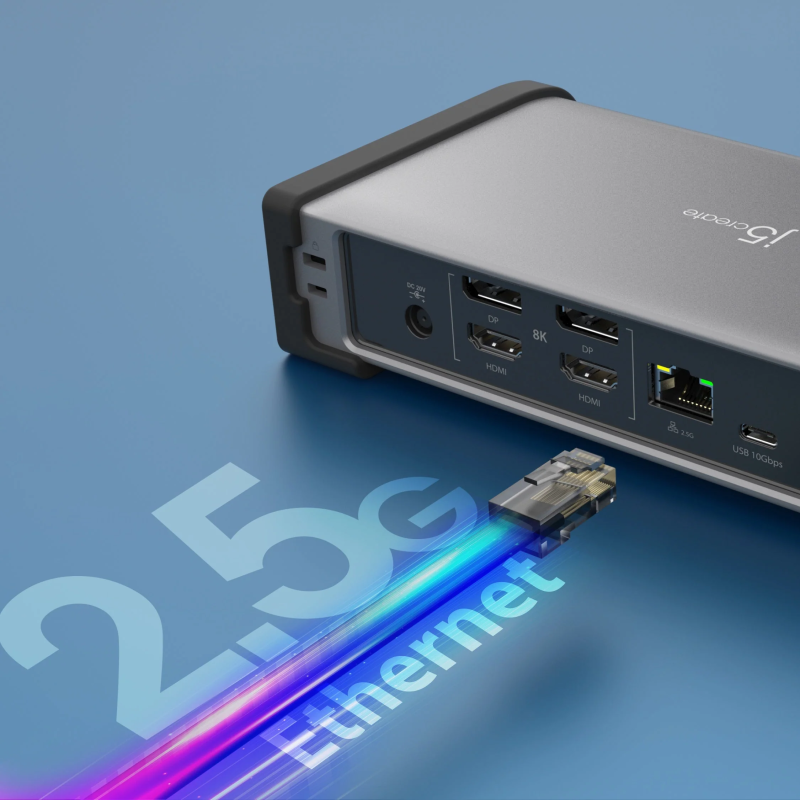

• 1 - RJ45 2.5 Gigabit Ethernet

Video output

• 2- HDMI™ 2.1
• 2- DisplayPort™ 1.4

Performance

• Audio channel: 3.5 combo audio jack / HDMI™ / DisplayPort™ Compatible
• Networks: 10/100/1000/2500 Base-T, Auto-negotiating
• Displays supported: 4
• Max data transfer rate: 40Gbps

Max display resolution:

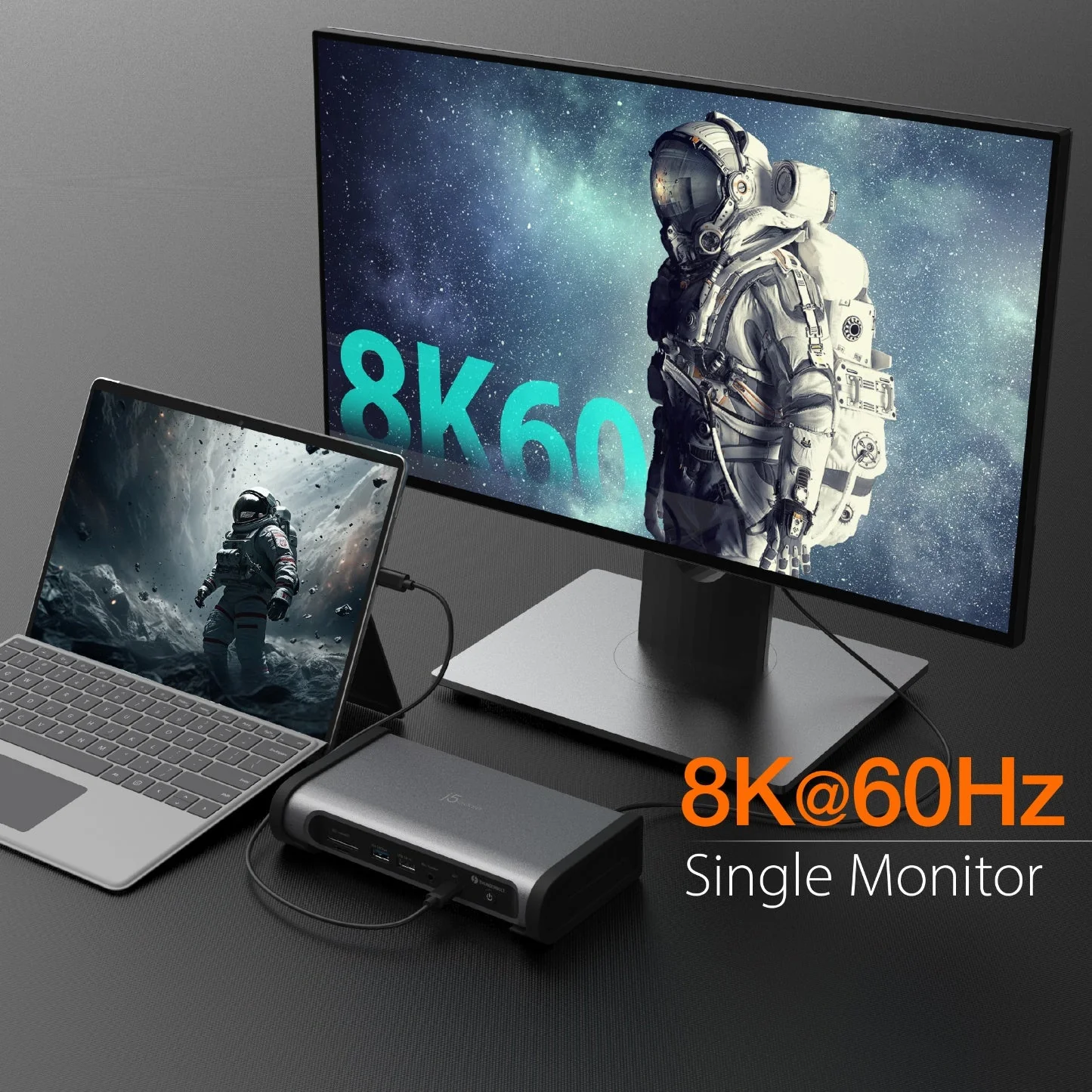

• Single Display: 7860 x 4320 @ 60 Hz, 5120 x 2880 @ 60Hz, 3840 x 2160 @ 120 Hz, 2560 x 1440 @ 170 Hz, 1920 x 1080 @ 240 Hz,
• Dual Display: 5120 x 2880 @ 60 Hz + 5120 x 2880 @ 60 Hz
• Triple Display: -3840 x 2160 @ 60Hz + 3840 x 2160 @ 60 Hz + 3840 + 3840 x 2160 @ 60 Hz
• Quad Display: 3840 x 2160 @ 60Hz + 3840 x 2160 @ 60 Hz + 3840 @ 60 Hz + 3840 x 2160 @ 60 Hz

Power

• Power Delivery: 98W (Max)
• AC Input: 135Wac
• Voltage: 20V
• AC Current: 6.75A

Physical Specifications

• Cable length: Thunderbolt™ 4 Cable: 80 cm
• Enclosure type: Aluminum
• Operating Humidity: < 85%
• Non-condensing Operating Temperature: 0 to 48°C
• Depth x Height x Width : 109 x 43 x 201 mm
• Product Weight: 681 gp
• Storage humidity: < 85%
• Non-Condensing Storage Temperature: -10 to 65°C

Package Contents

• 1 - JTD568 Thunderbolt™ 4 Quad Display Docking Station
• 1 - 135W AC adapter with up to 96W PD charge
• 1 - Thunderbolt™ 4 Cable (2.6 ft / 80 cm)
• 1 - Quick Installation Guide (QIG)
