Chord XU2-H - 171.014UK - Wireless True Diversity UHF System with 2x Handheld Microphones

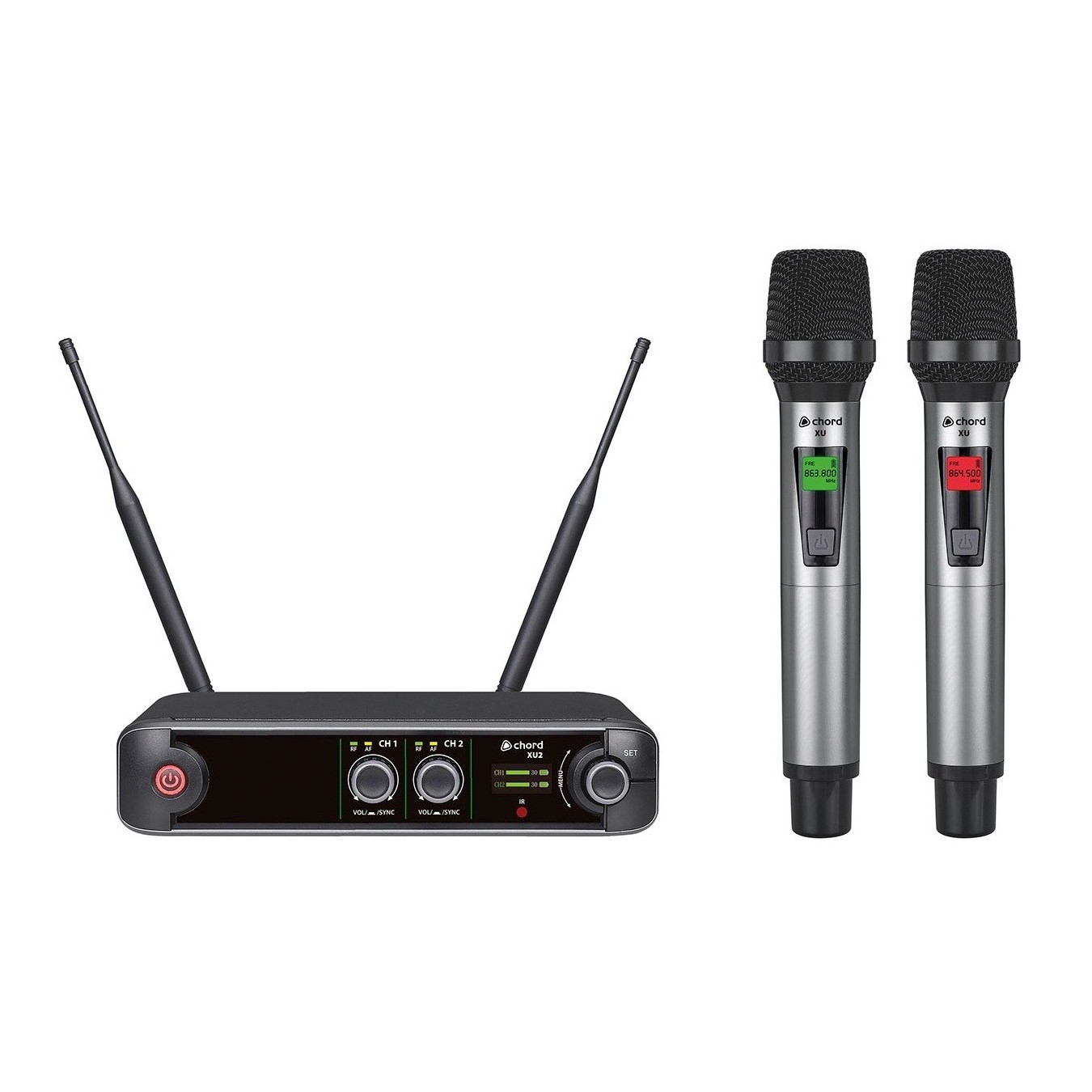

Chord XU2-H wireless true-diversity UHF system with two handheld microphones.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

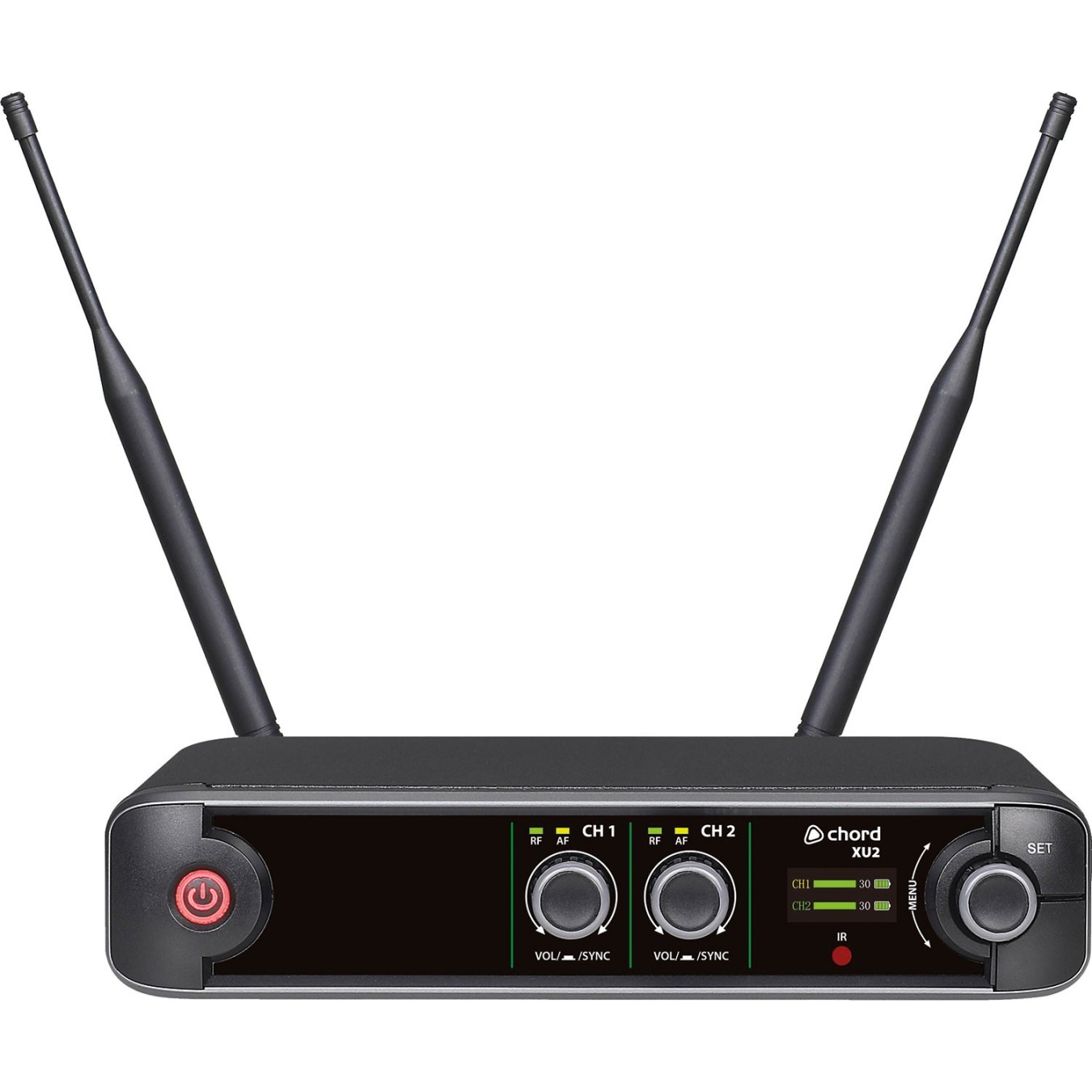

XU series wireless microphone systems offer pro-level features in a compact receiver with premium microphone transmitters. Supplied as a half-width 1U rack receiver of two handheld microphones. The receiver is a true diversity type with dual antennas and internal distribution for minimizing dropouts. The front panel has a volume control and indicator LEDs per channel alongside a colour TFT display with level indications for each channel and settings for channel frequencies and colours. Each transmitter also has its own LCD display for frequency and battery status, with a backlight that can be set to one of 6 colours for identification. Carrier frequencies are arranged in 10 groups with carriers in both the UK/EU license-free UHF and PMSE licensed duplex gap UHF bands. Each set is supplied with hardware for mounting into a 1U rack space with extension cables to enable front mounting of the antennas. For a wireless microphone system with straightforward operation and intuitive features, the XU series delivers freedom and reliable operation to vocalists, presenters and instructors in a compact and convenient package.
- Compact half-width rack receiver
- True diversity antennas with internal distro for reliable reception
- 10 groups of 9 selectable UHF carrier frequencies
- Selectable backlight colours for each channel

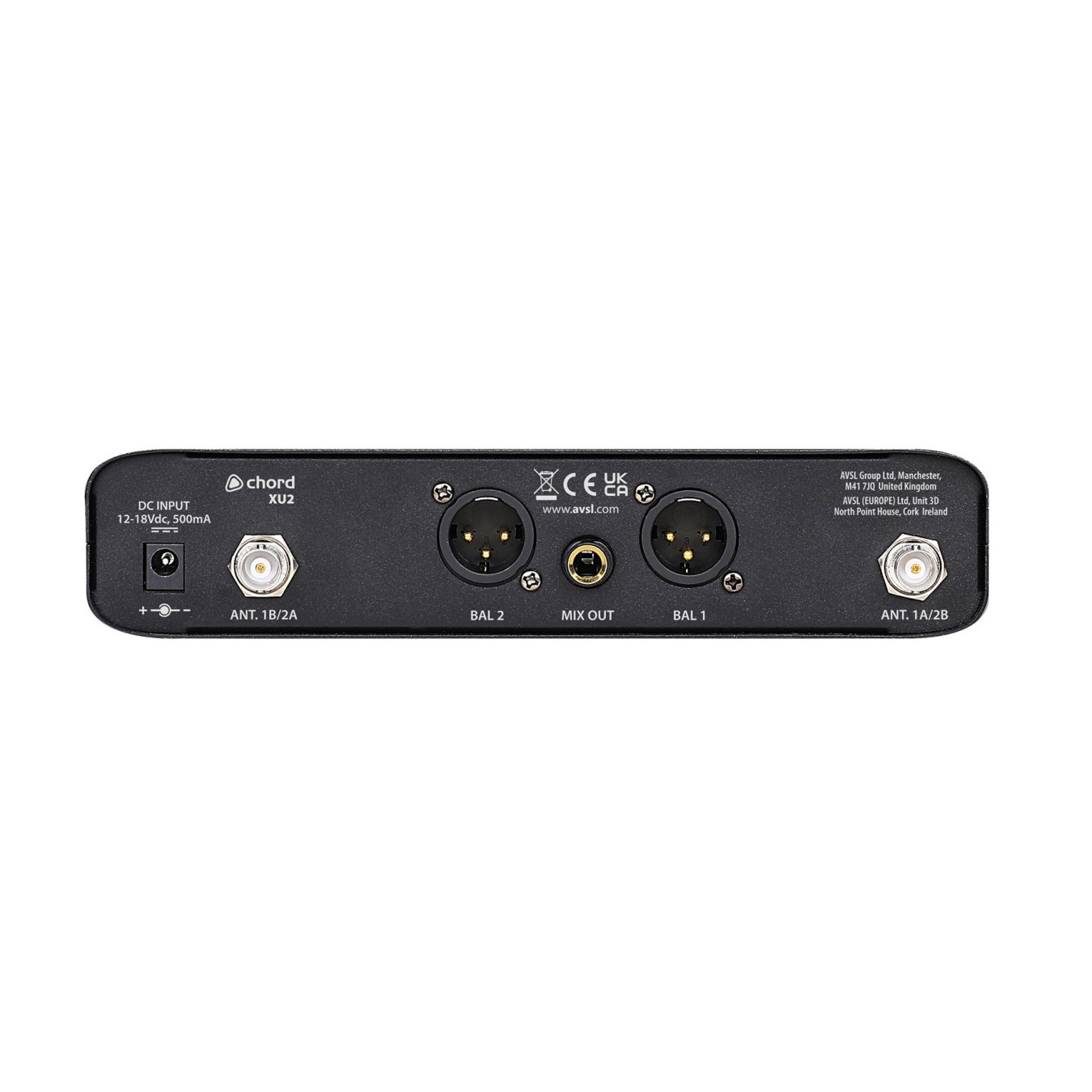

- 2 x XLR outputs + 1 x 6.3mm mix output
- Settings sync I.R. from receiver to transmitters
- Colour TFT display for settings menu
- Carrier frequencies: 823-832 / 863-865MHz
- Wireless range: Up to 60m
- Antenna connection: 2 x BNC
- Weight : handheld transmitter: 246g (without battery)
- Dimensions : handheld transmitter: 258 x 47mmØ
- Dimensions : receiver: 205 x 205 x 44mm
- Weight : receiver: 755g
- Power supply: 12-18Vdc, 500mA (mains adaptor supplied)
- Batteries: 2 x AA per transmitter
In the Box
- XU-series true diversity UHF receiver

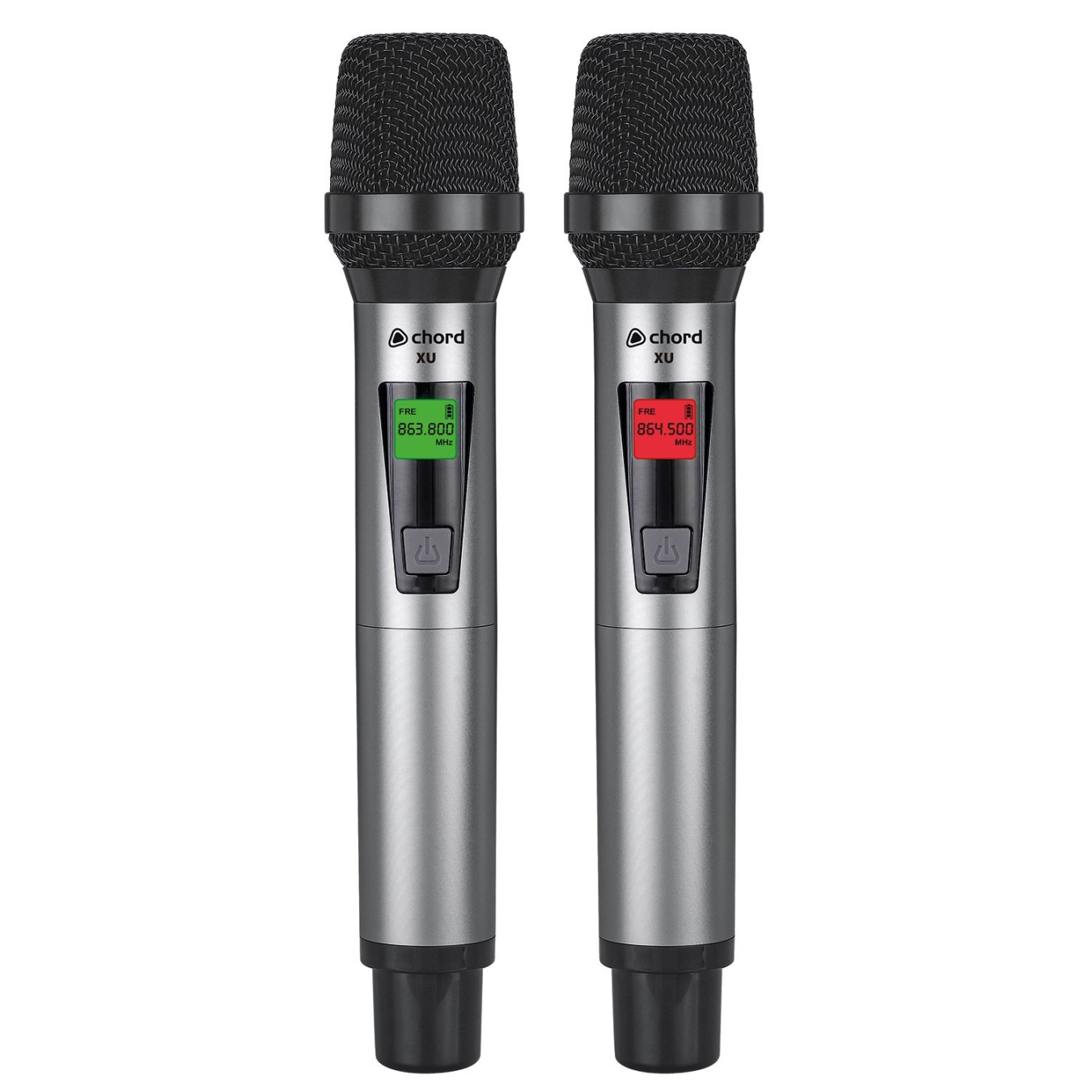

- 2 x Handheld Microphones
- 2 x UHF antennas
- 2 x BNC antenna extension leads
- Rack-mounting brackets for 1 or 2 receivers in a 19" 1U space
- UK power adaptor
- 6.3mm male to male cable
- 4 x AA batteries
| Type | Handheld |
| Band | UHF |
| Channels | Dual |
| Frequencies | 90 |
| Rack Mounted | Yes |
