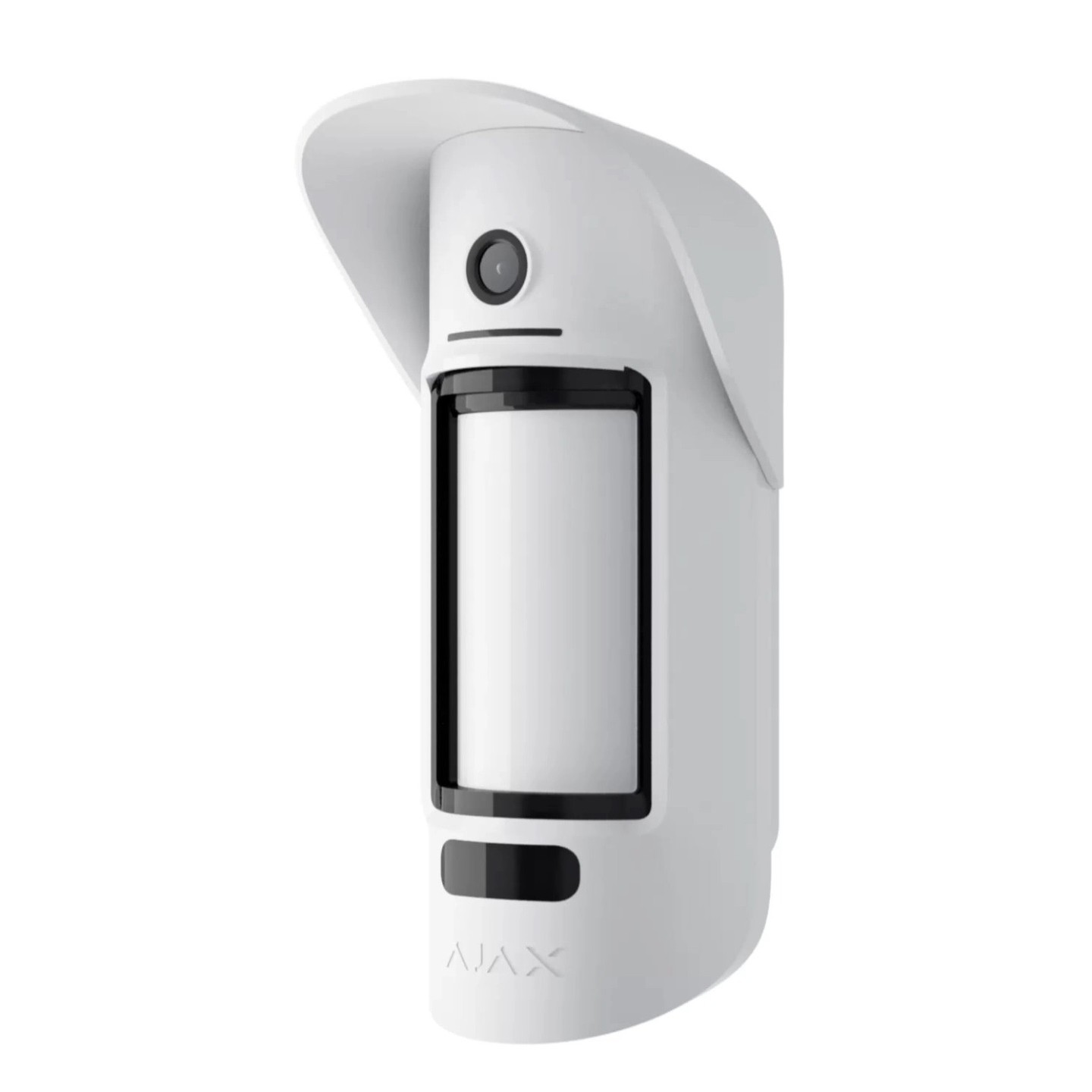

AJAX PIR MotionCam Outdoor - PhOD - PIR MotionCam Outdoor

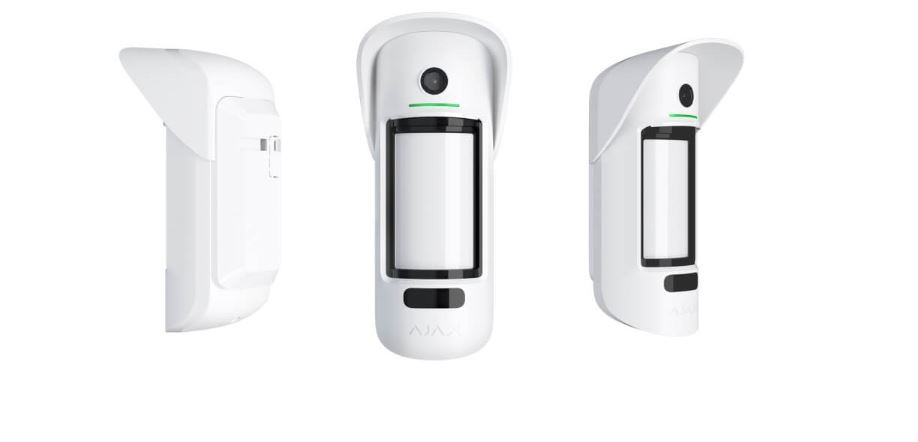

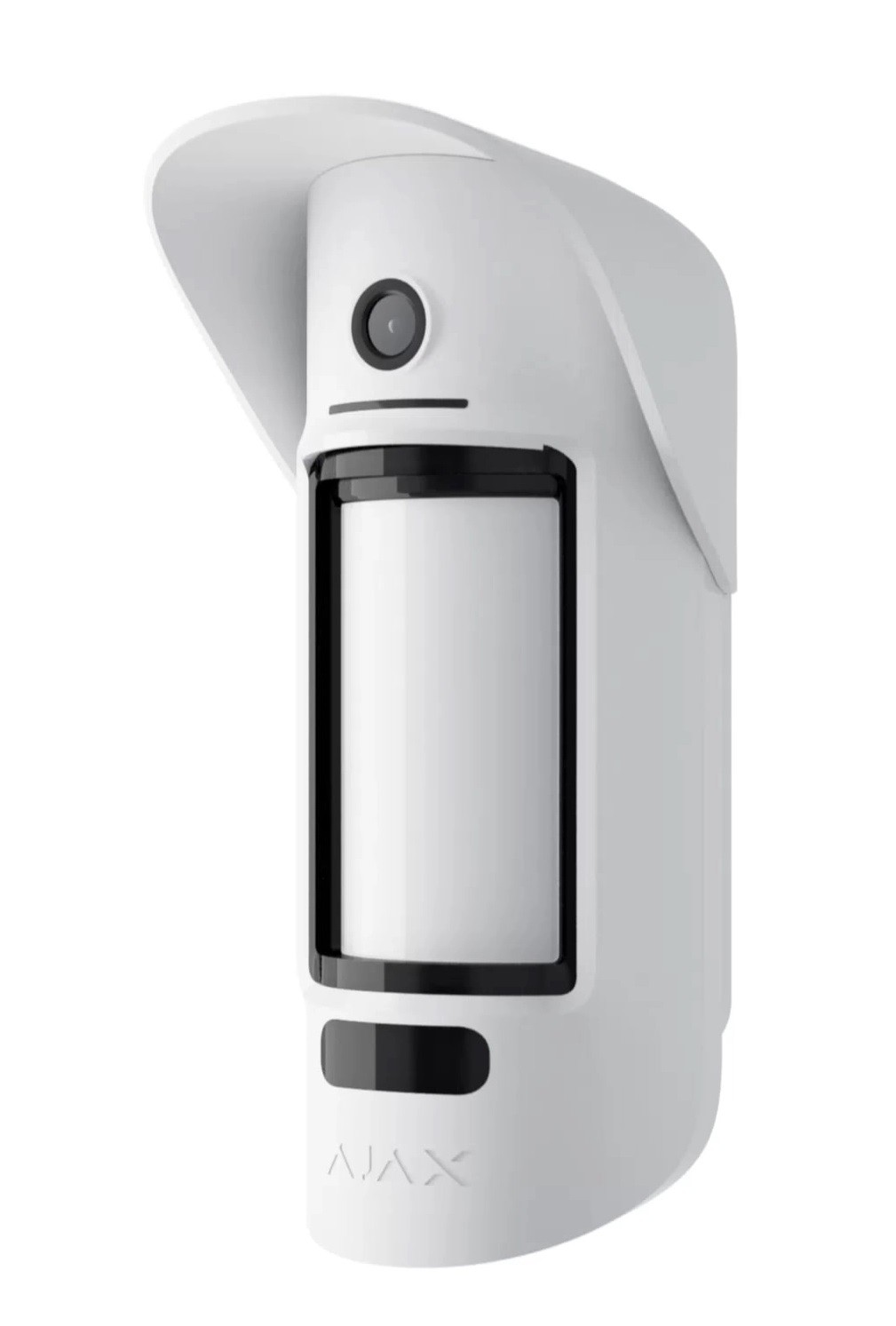

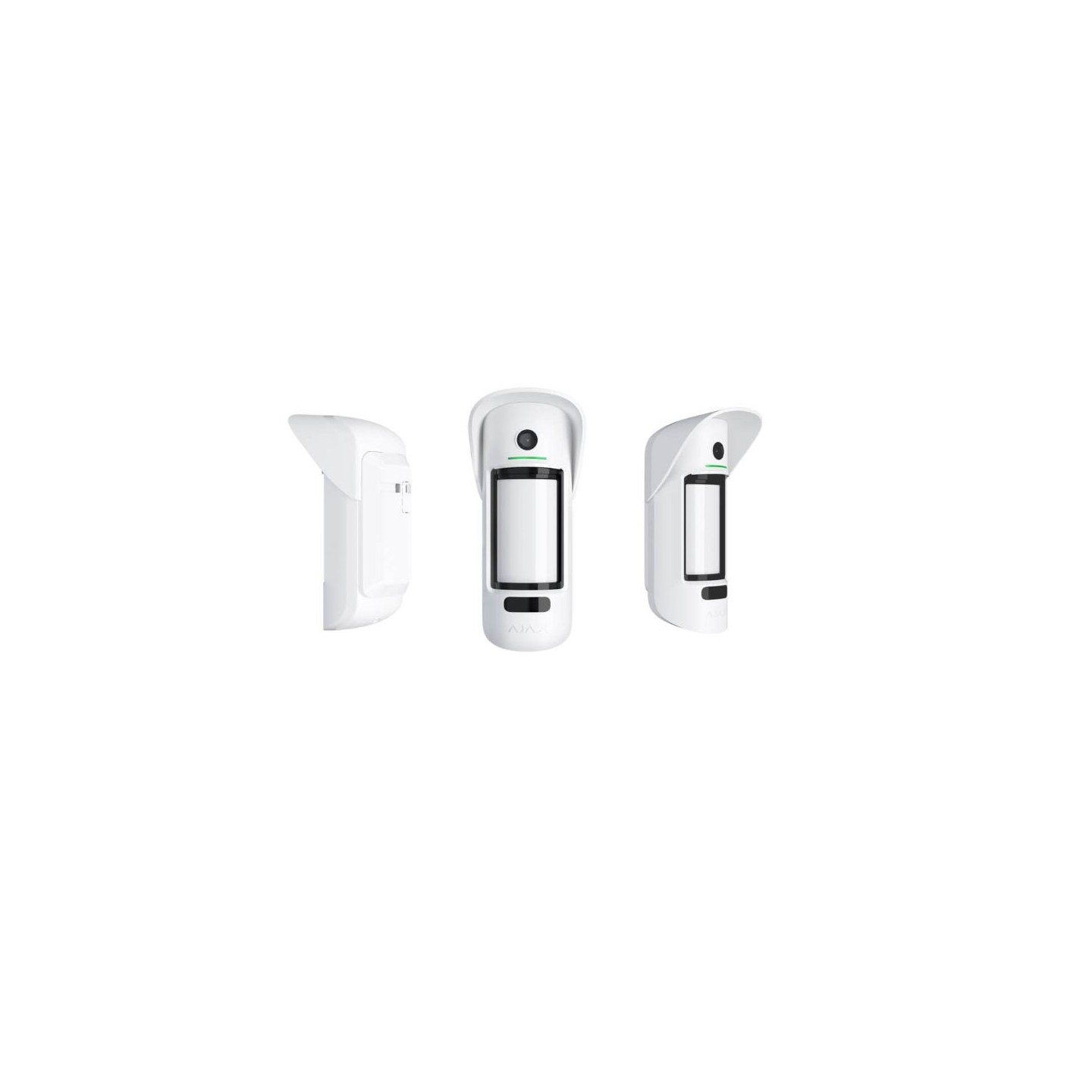

• MotionCam Outdoor (PhOD) Jeweller is a wireless outdoor motion detector supporting photo verification of alarms, Photo on Demand and Photo by Scenario features
• It has an adjustable range of motion detection up to 15 meters. The device detects attempts to block the view thanks to the anti-masking system. The detector does not react to animals up to 80 cm tall when installed and configured correctly
• MotionCam Outdoor (PhOD) Jeweller works as part of the Ajax security system, communicating with the hub over two secure radio protocols; the detector uses Jeweller to transmit alarms and events and Wings to transmit photos. The hub communication range is up to 1,700 meters in an open space

Compatibility

• Compatible hub models : Hub 2 (2G) / Hub 2 (4G) / Hub 2 Plus / Hub Hybrid (2G) / Hub Hybrid (4G)
• Compatible range extenders : ReX 2

Jeweller communication technology

•  Two-way communication
•  Advanced anti-sabotage
• Block encryption featuring a dynamic key
• Instant notifications
•  Remote configuration via the Ajax apps
• Frequency bands : 866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2 MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz /
• Maximum effective radiated power (ERP) : Up to 20 mW
• Radio signal modulation : GFSK
• Radio signal range : up to 1,700 m
• Encrypted communication
• Radio frequency hopping

Wings communication technology

• Two-way communication
• Block encryption featuring a dynamic key
• Advanced anti-sabotage
• Data package reloading in case of transmission errors
• Photo delivery check
• Frequency bands : 866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2 MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz
• Radio signal range : up to 1,700 m
• Encrypted communication
• Radio frequency hopping

Detection

• Sensitive elements : 2 × PIR sensor
• Motion detection distance : up to 3–15 m (When installed at a height of 0.8–1.3m)
• Motion detection angles : horizontal — 90° / vertical — N/A
• Motion detection speed : from 0.3 to 2.0 m/s
• Sensitivity : 3 levels
• Pet immunity : weight: not relevant  / height: up to 80 cm

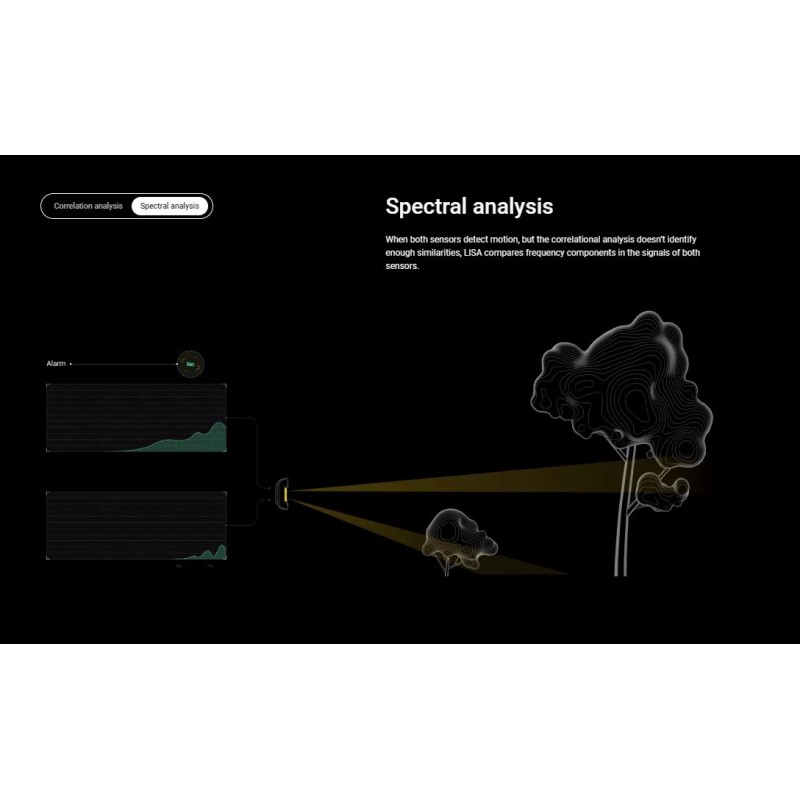

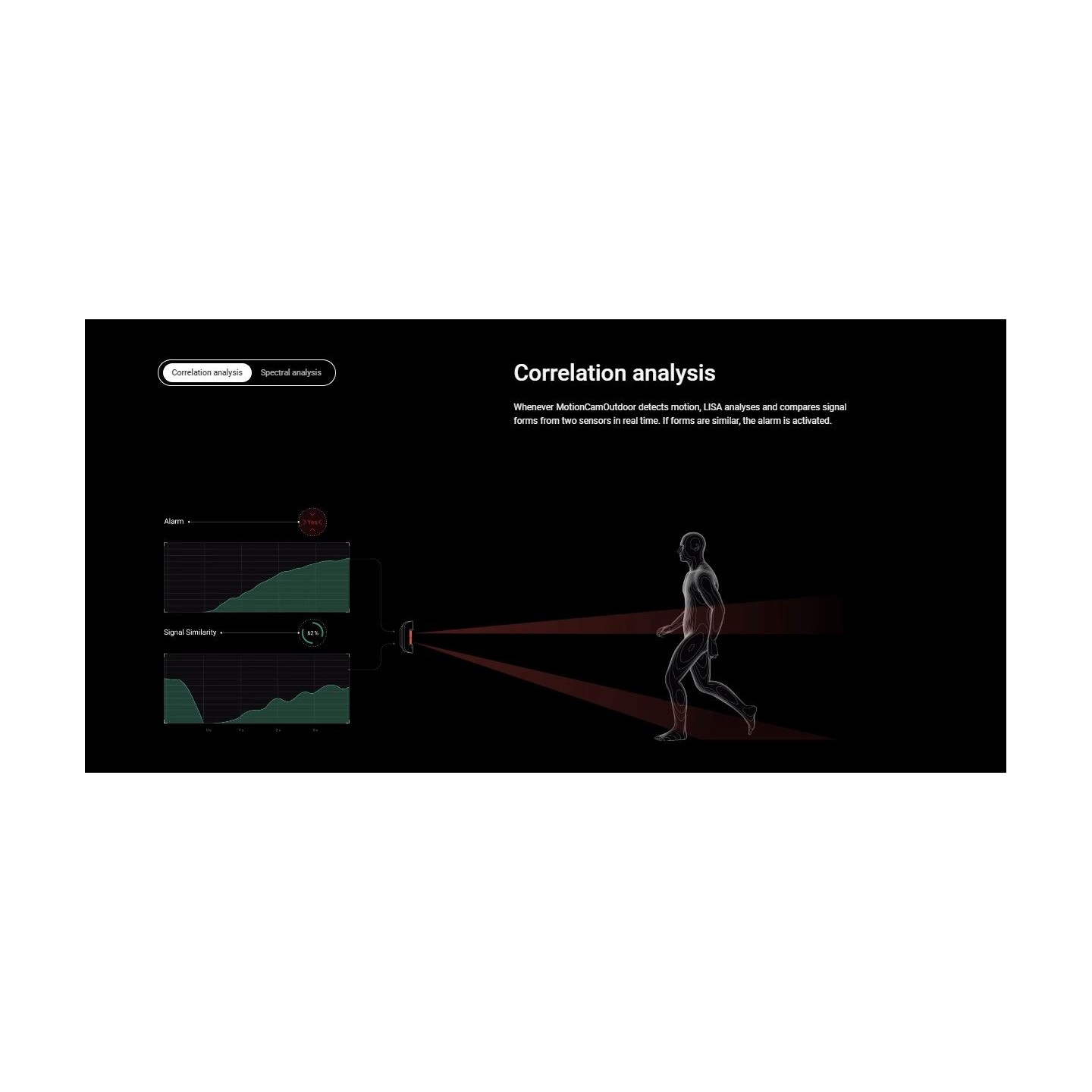

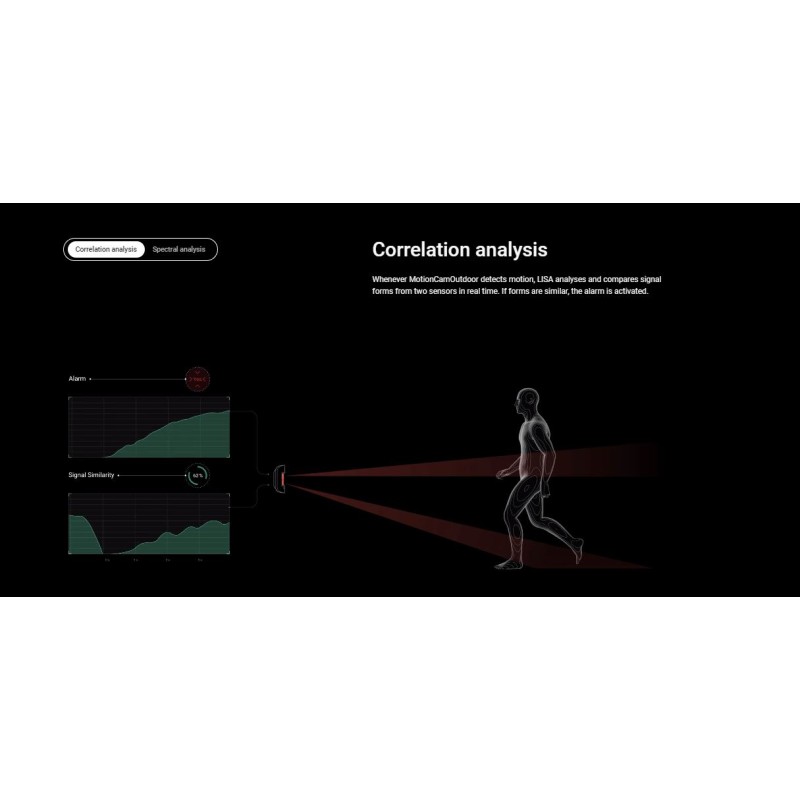

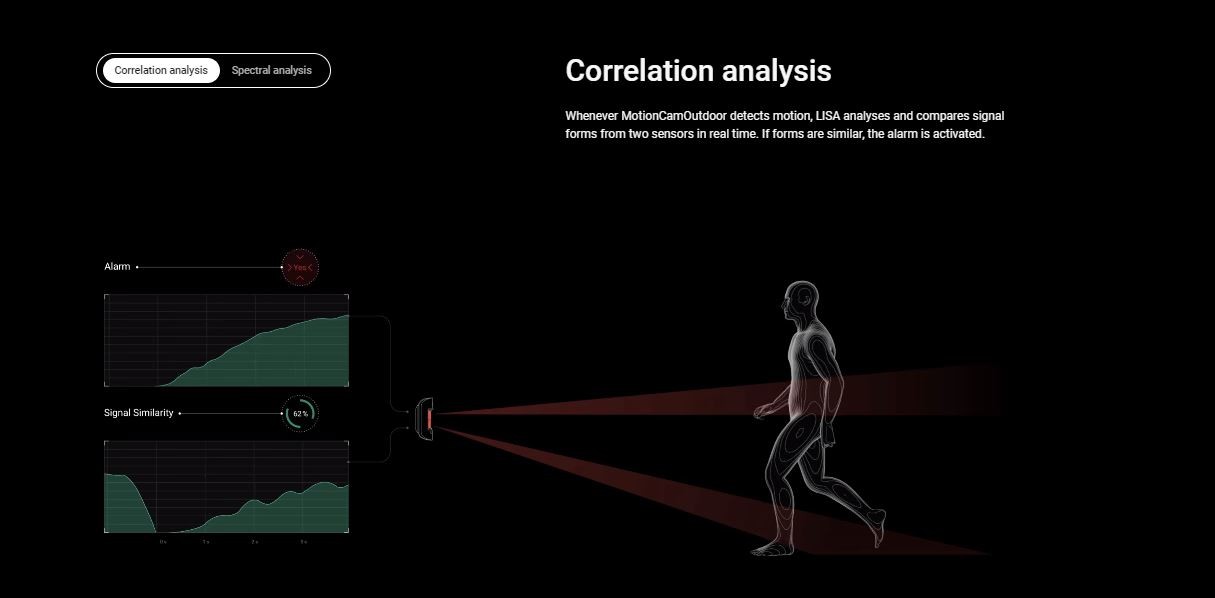

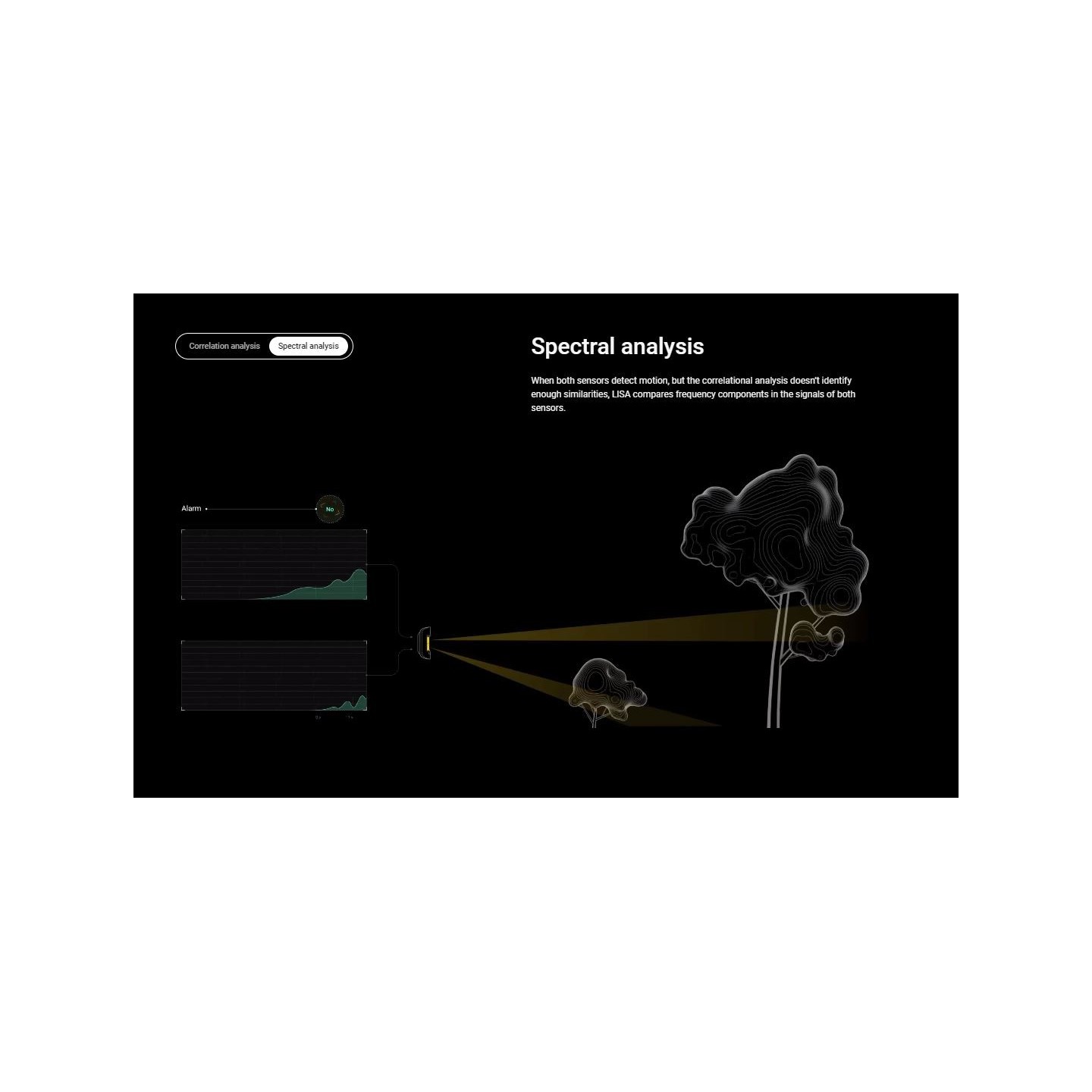

• False alarm prevention : LISA / SmartDetect / Software algorithms.
• Temperature compensation : Effective motion detection in temperatures from −25°C to +60°C.


Photo verification

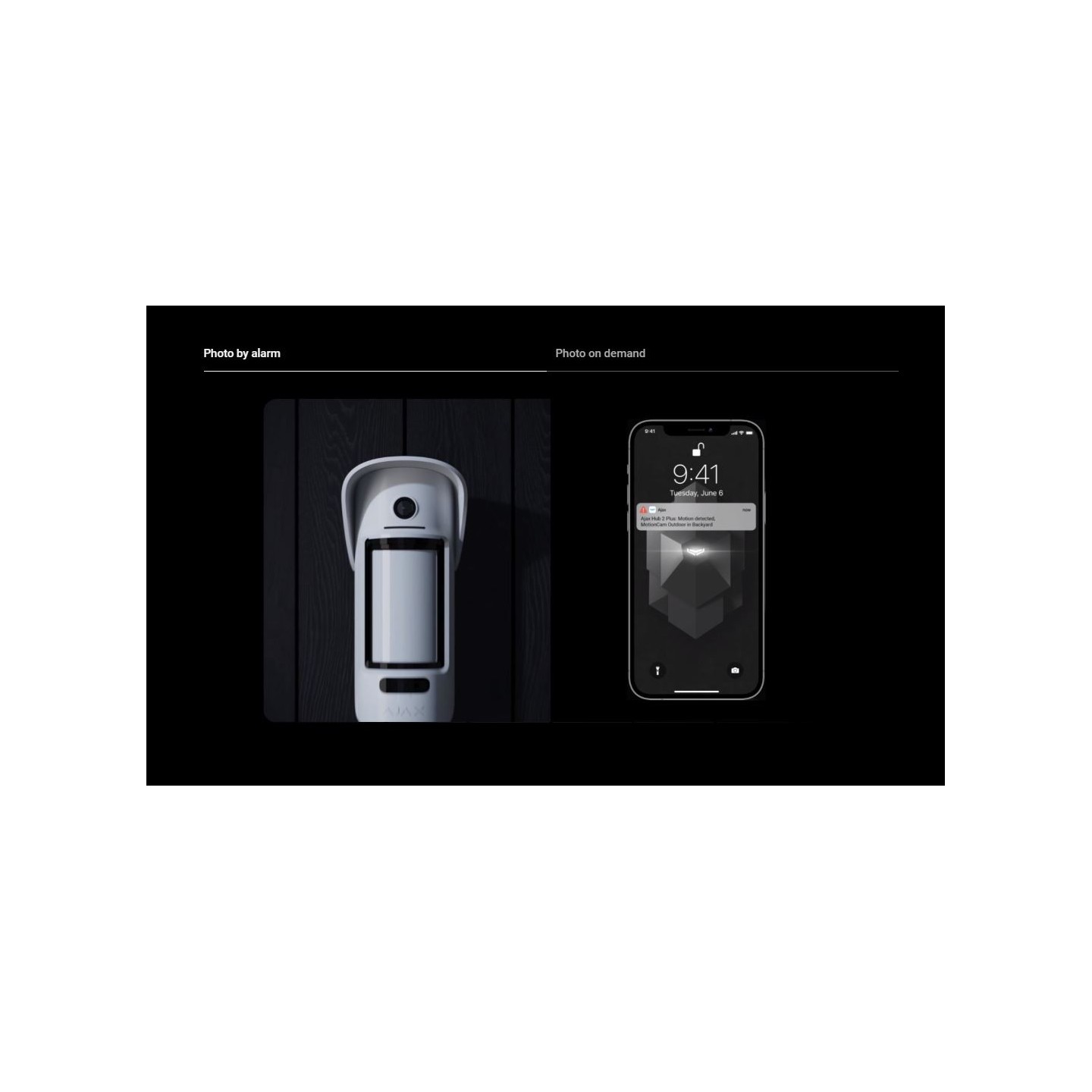

• Photo by alarm : A built-in camera is activated if the detector is armed, and motion is detected
• Photo on demand : User takes pictures at any time or when the detector is armed (depends on settings)
• Photo by scenario : A detector camera takes pictures automatically when Ajax fire detectors are triggered ( The feature is disabled by default)
• Photo resolution : 640 × 352 px / 320 × 176 px (by default)
• Camera viewing angles : horizontal — 105° / vertical — 50°

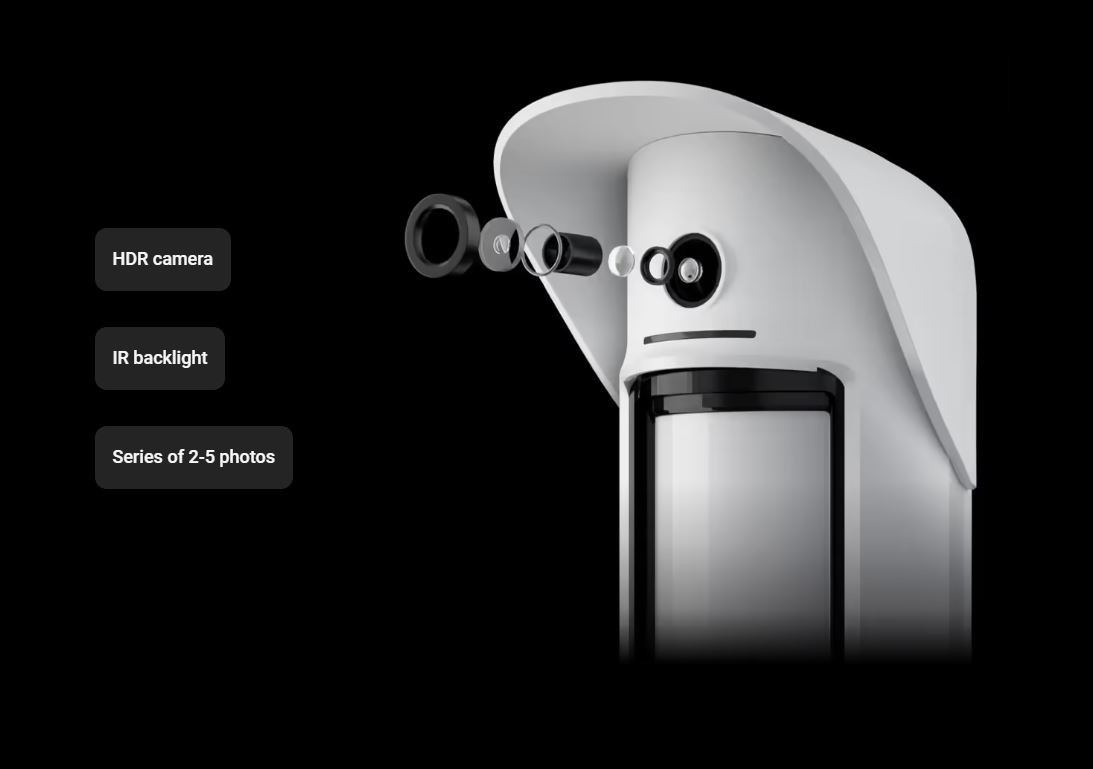

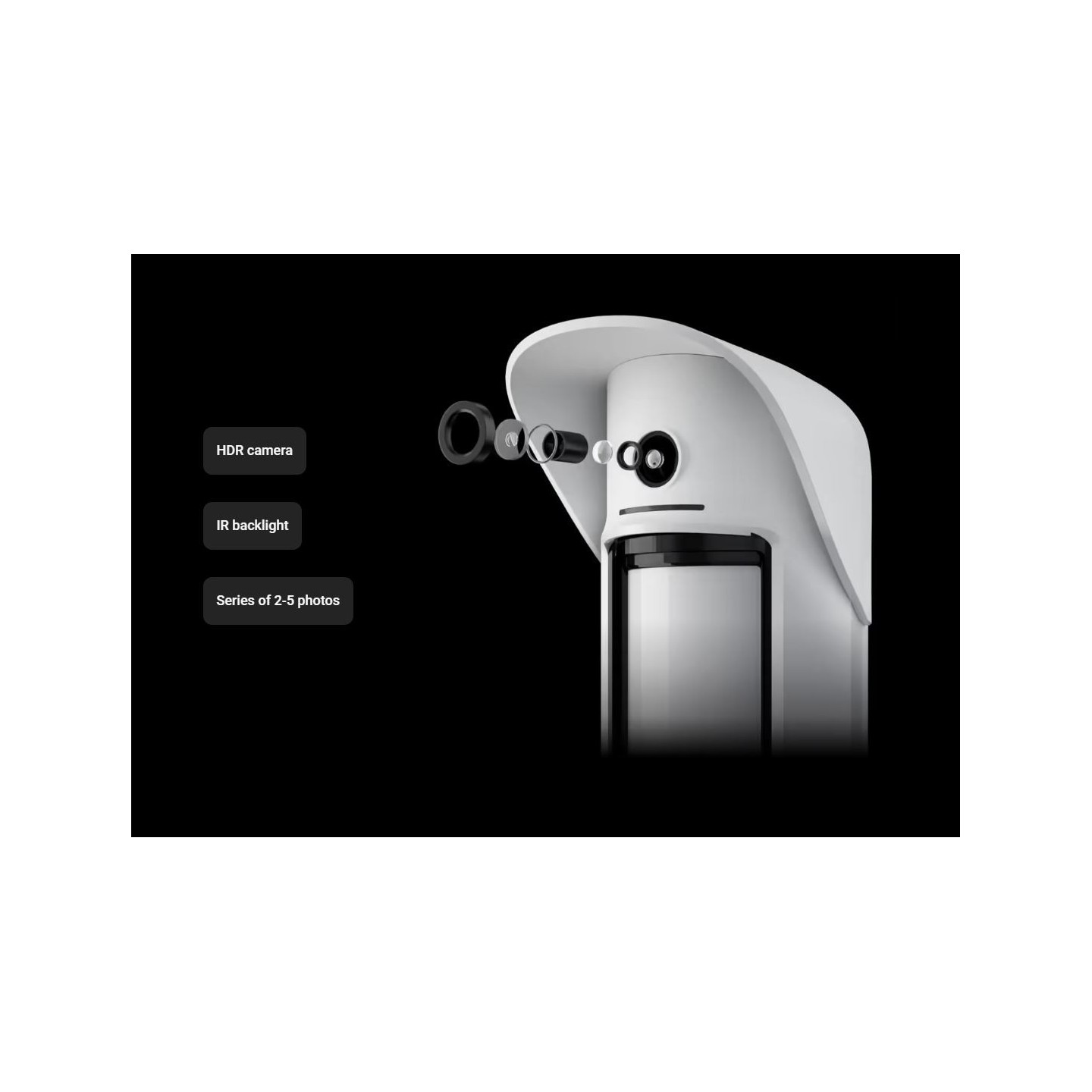

• IR backlight : For night photography and low light conditions.
• Pictures in a series : 1 to 5 images with resolution of 320 × 176 px / 1 to 3 images with resolution of 640 × 352 px
• Photo delivery time : up to 9 s — 320 × 176 px resolution / up to 20 s — 640 × 352 px resolution
• TV distortion (EBU standard) : barrel — 17%

Anti-sabotage protection

• Anti-masking system
• Tampering alarm
• Protection against forgery : device authentication
• Communication loss detection : within 36 s

Power supply

• 4 × CR123A battery / Up to 3 years of battery life.

Enclosure

• Dimensions : 206 × 108 × 93 mm
• Weight : 470 g
• Operating temperature range : from −25°C to +60°C
• Operating humidity : up to 95%
• Protection class : IP55
