Citronic Quad Power Amplifier - QP1600 - 4x400W@2ohms Quad Power Amplifier 172.241UK
Quad 4-channel power amplifier with 4 independent channels and individual volume controls; balanced inputs and parallel outputs for daisy-chaining.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Quad power amplifier with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.
- Fully balanced signal path
- Stable down to 2 Ohms
- 2U rack-mountable
- Speaker : output s4 x SPK connectors
- Power supply 230Vac, 50Hz (IEC)

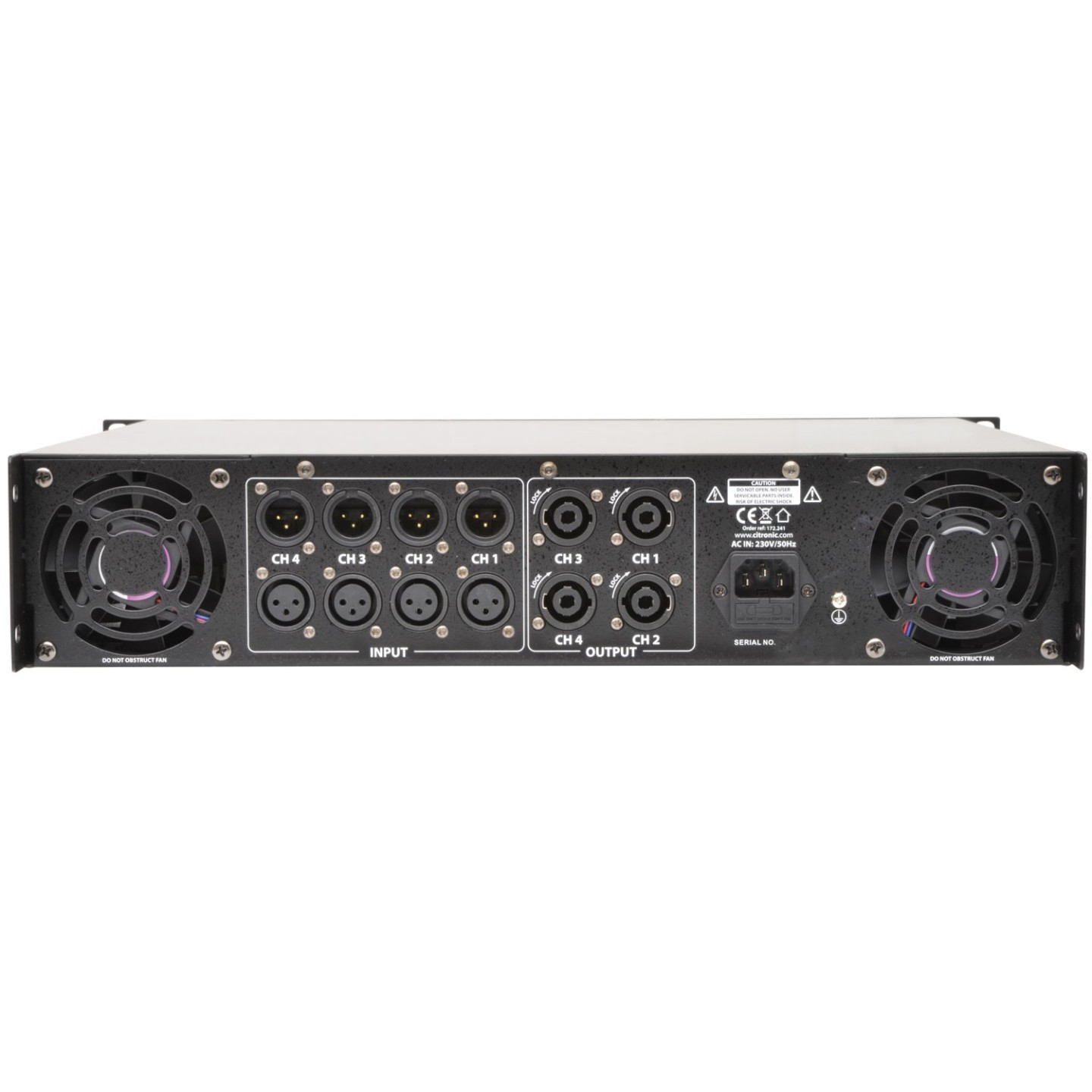

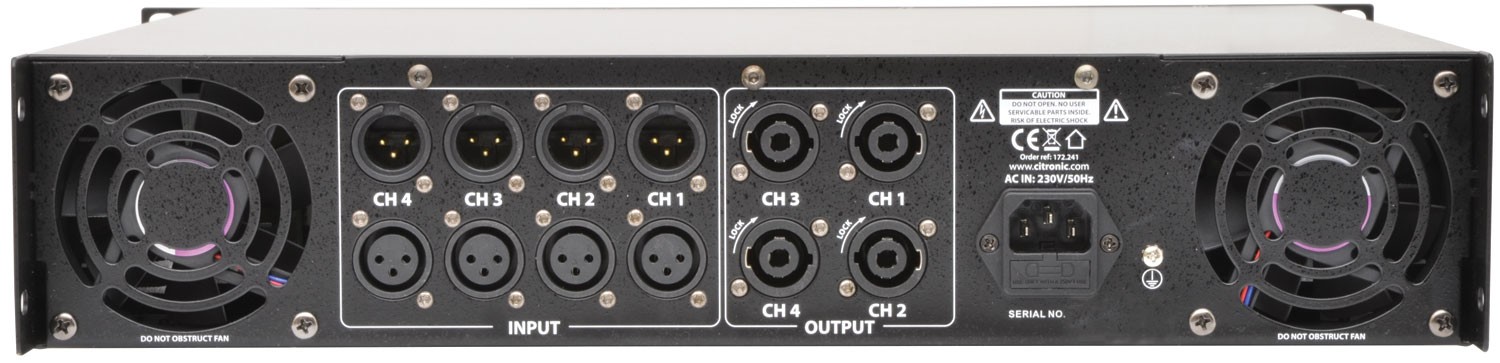

- Input : line 4 x XLRF balanced
- Output : line 4 x XLRM (parallel from inputs)
- Input impedance 20k Ohms
- Frequency response 5Hz - 50kHz
- THD 0.05%
- Slew rate 40V/usec
- S/N ratio 103dB

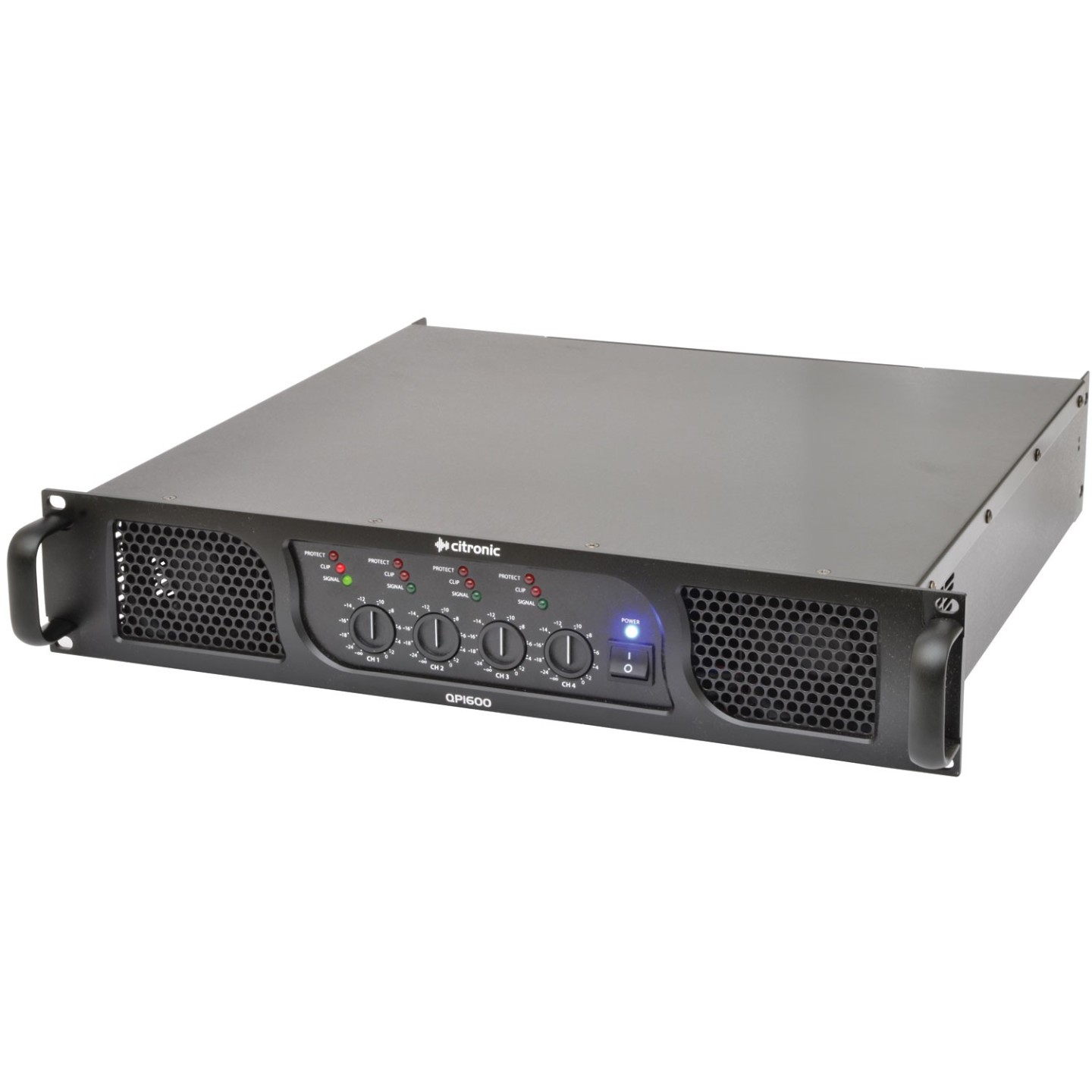

- Controls 4 x channel gain
- Circuit protection Short-circuit, DC, overload, soft-start
- Dimensions 483 x 439 x 88mm
- Fuse rating F8A
- Power rms @ 8 Ohms 4 x 200W
- Power rms @ 4 Ohms 4 x 300W
- Power rms @ 2 Ohms 4 x 400W
- Weight 22kg
| Channels | Quad |
| Power (8ohm) | 4 x 200 |
| Power (4ohm) | 4 x 300 |
| Power (2ohm) | 4 x 400 |
| Amplifier Class | Class A |
| 2ohm Stable | Yes |
| Warranty | 3 Years |
