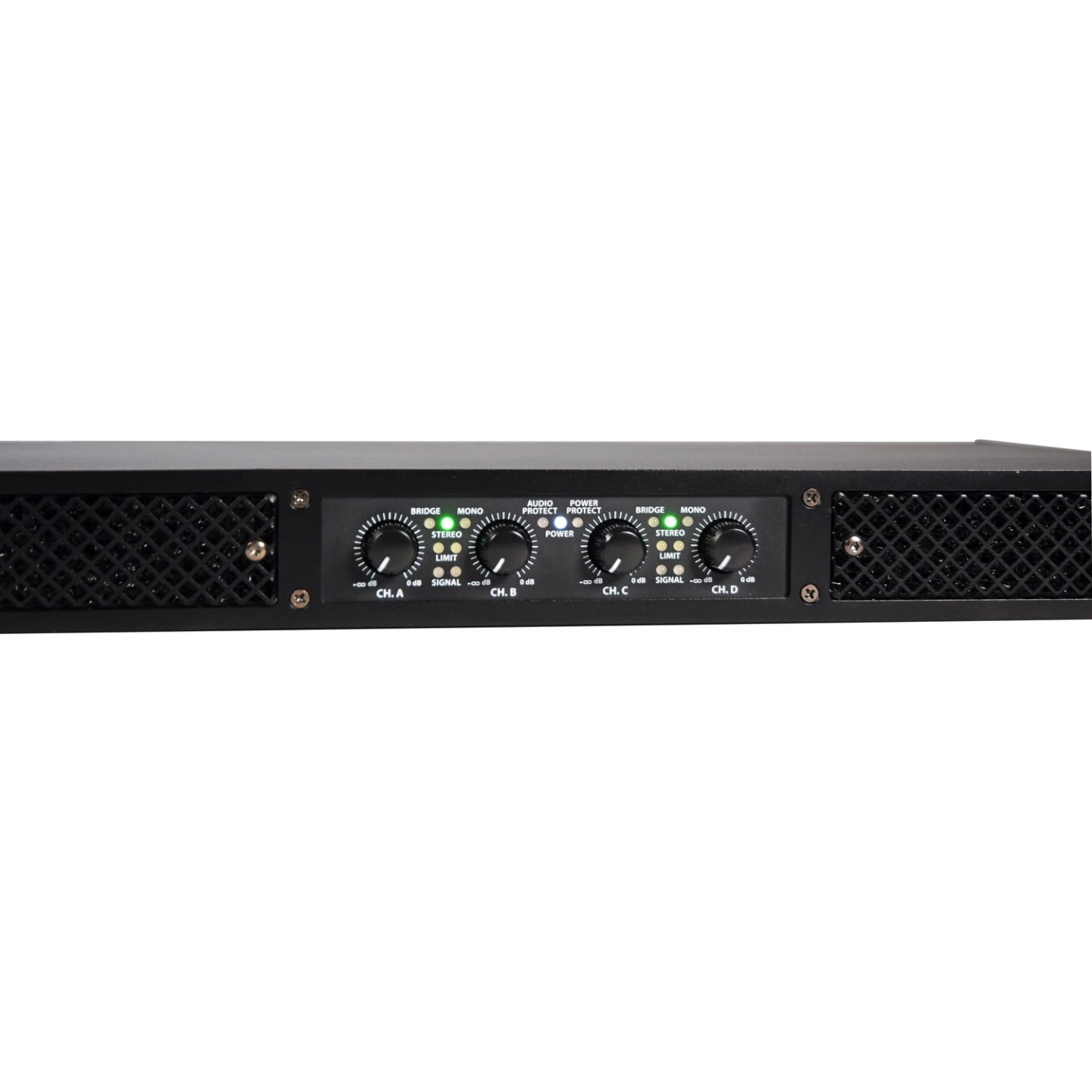

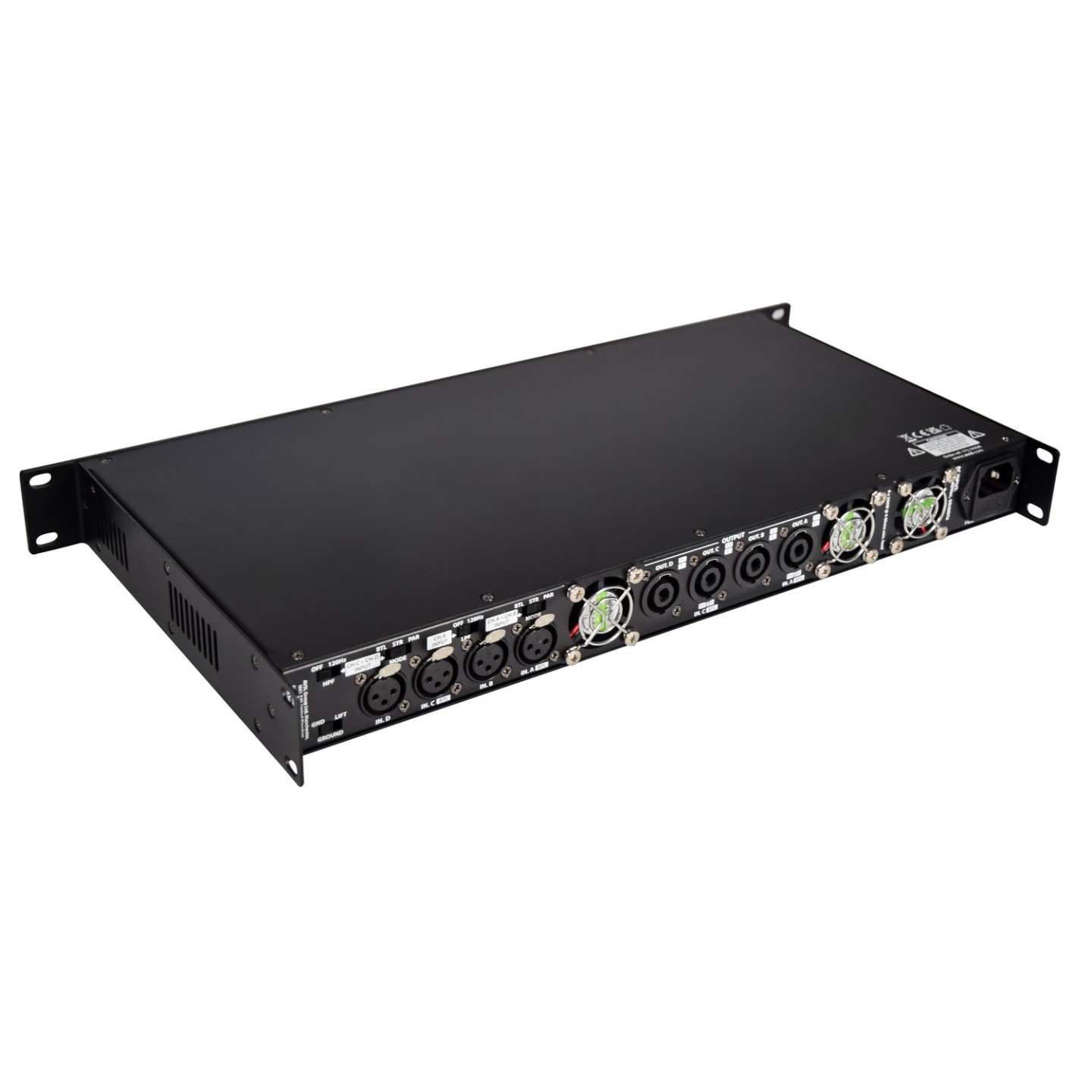

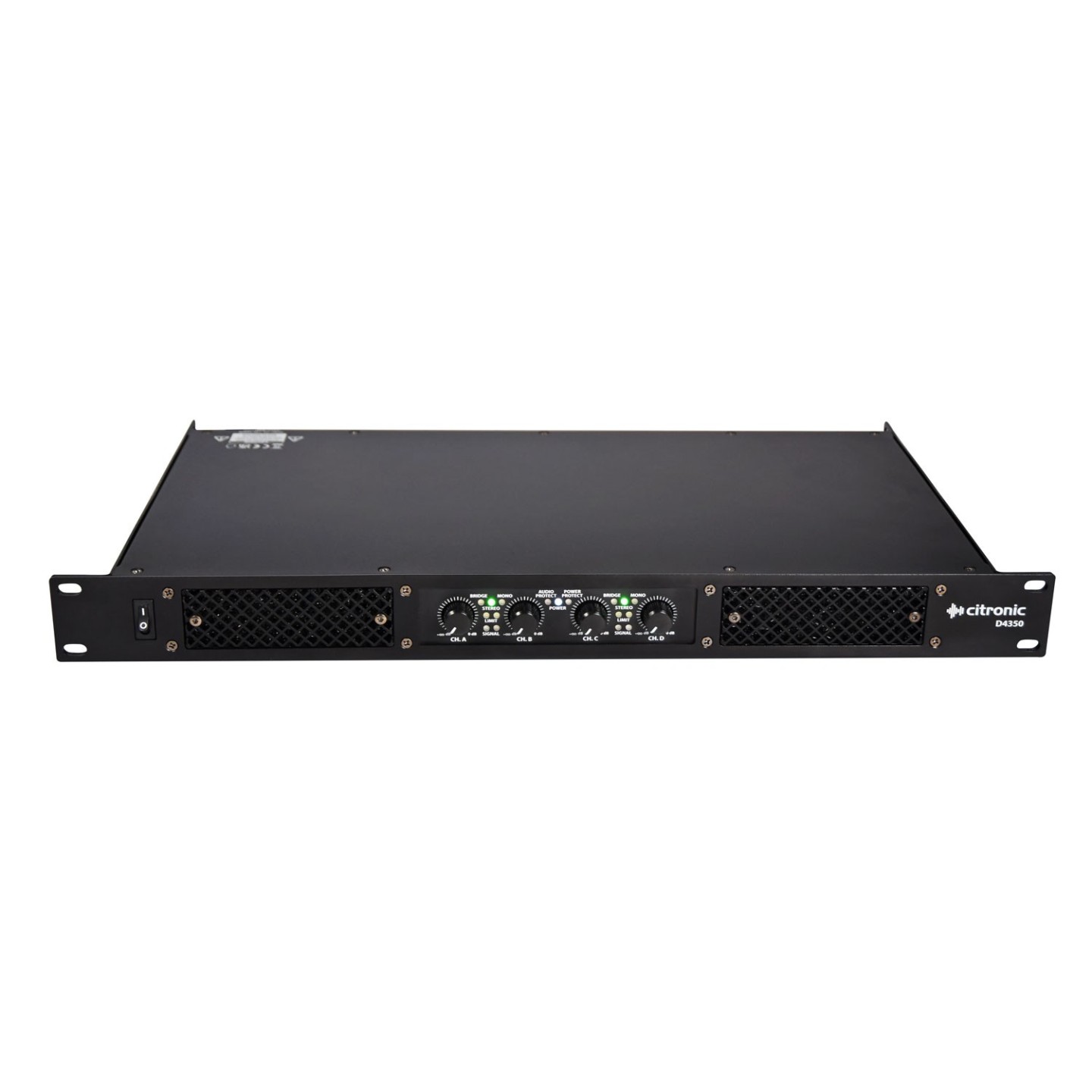

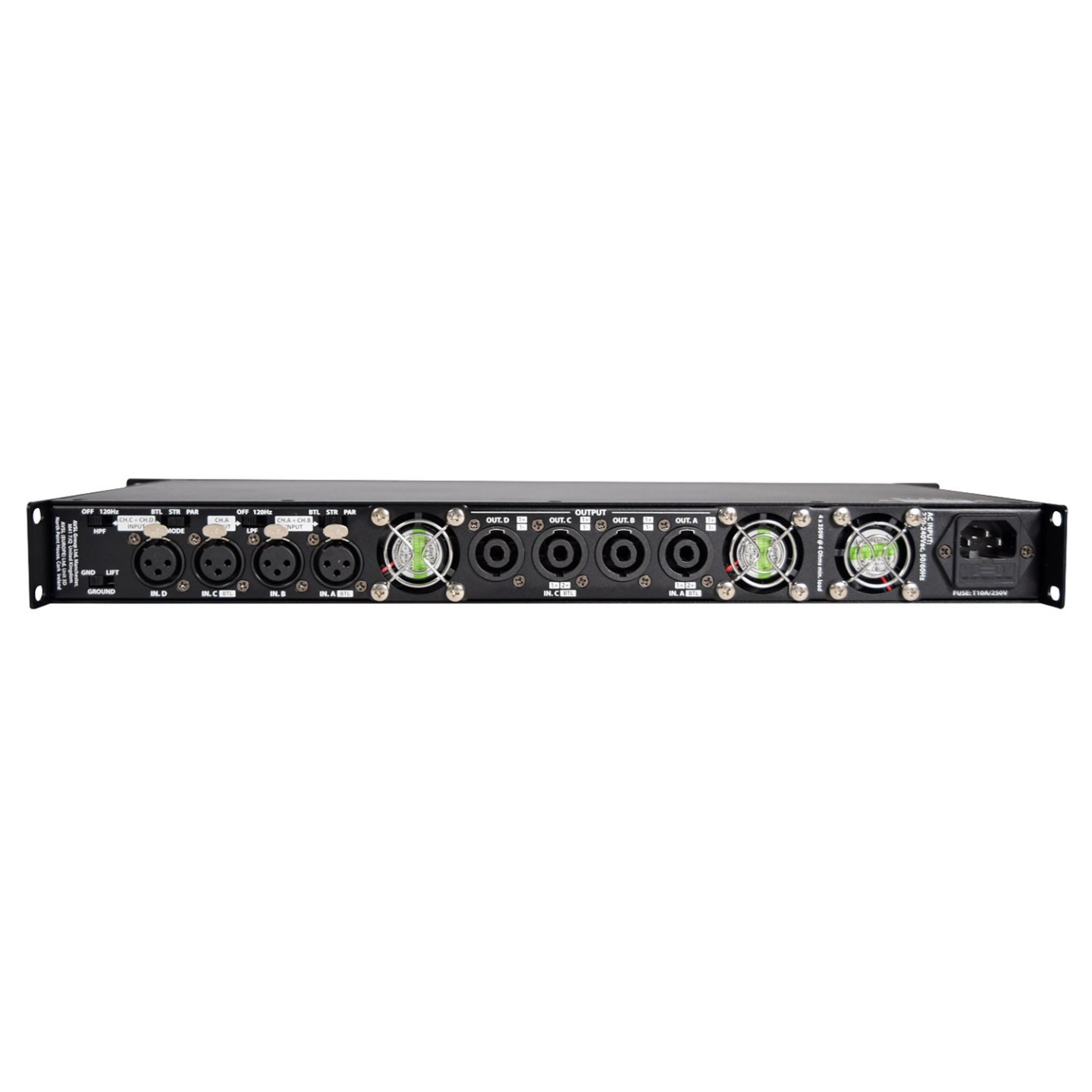

Citronic Amplifier - D4350 - 4x350W 4ohm Quad Power Class-D 172.144UK
Quad digital power amplifier (4x350W at 4ohm) in a lightweight 1U rack-mount chassis.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Quad digital power amplifier in a lightweight 1U rack-mountable format.
- An energy-efficient switch-mode power section and class-D amplifiication circuit delivers accurate power-on-demand to four independent speaker outputs.
- Proprietary cool guide technology provides stable temperature management for dependable operation.
- Each pair of output channels can be separately parallel switched or bridged as a full or part stereo amplifier configuration.
- For channel A, there is a switchable 120Hz low-pass filter for use with subwoofers and a channels C and D have a switchable stereo pair of 120Hz high pass filters to effectively focus power in full-range cabs operating as mid-tops in conjunction with sub-woofers.
- For permanent or mobile installations, the D-series offers an invaluable and flexible problem solver for audio designers and sound engineers.
- Output : rms @ 4 Ohms 4 x 350W
- Output : rms @ 8 Ohms 4 x 200W
- Bridge power @ 8 Ohms 2 x 700W (both pairs of channels bridged)
- Weight : 5.083kg
- Power supply : 220-240Vac, 50/60Hz (IEC)
- Modes: 2 x Stereo, Parallel (mono), Bridge (mono)
- Input sensitivity: 0dB = 0.775Vrms
- Crossover: Input A 120Hz LPF and C+D 120Hz HPF (all switchable)
- Input connections: 4 x XLR female
- Sound output: 4 x SPK connectors
- Switchable bridge or parallel mono modes
- Switchable high and low pass filters
- Configurable as a quad, stereo or 2.1 system
| Channels | Quad |
| Power (8ohm) | 4 x 200W |
| Power (4ohm) | 4 x 350W |
| Amplifier Class | Class D |
| Bridge Mode | Yes |
| Warranty | 3 Years |
