Chord DI-A1 Active Direct Injection Box - 173.293UK - Active Direct Injection Box
Active DI box converts high-impedance instrument outputs to low-impedance line signals; includes 3 pad settings and Ground-Float-Lift switch; phantom power capable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Active DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Internal buffer amplifier to boost the signal, avoiding losses in long cable runs and 3-way pad switch for level matching. Ground-Float-Lift selector enables signal ground isolation with or without RF/mains filtering.
- Powered by 9-52V phantom power, optional 9V battery or 12Vdc adaptor
- Ground float option for ground lift with RF/mains filter
- Ground lift option isolates signal ground without filter
- 3 pad settings for level matching
- Power supply : 9V battery (PP3 not supplied), 12Vdc adaptor (optional) or 9-52V phantom power

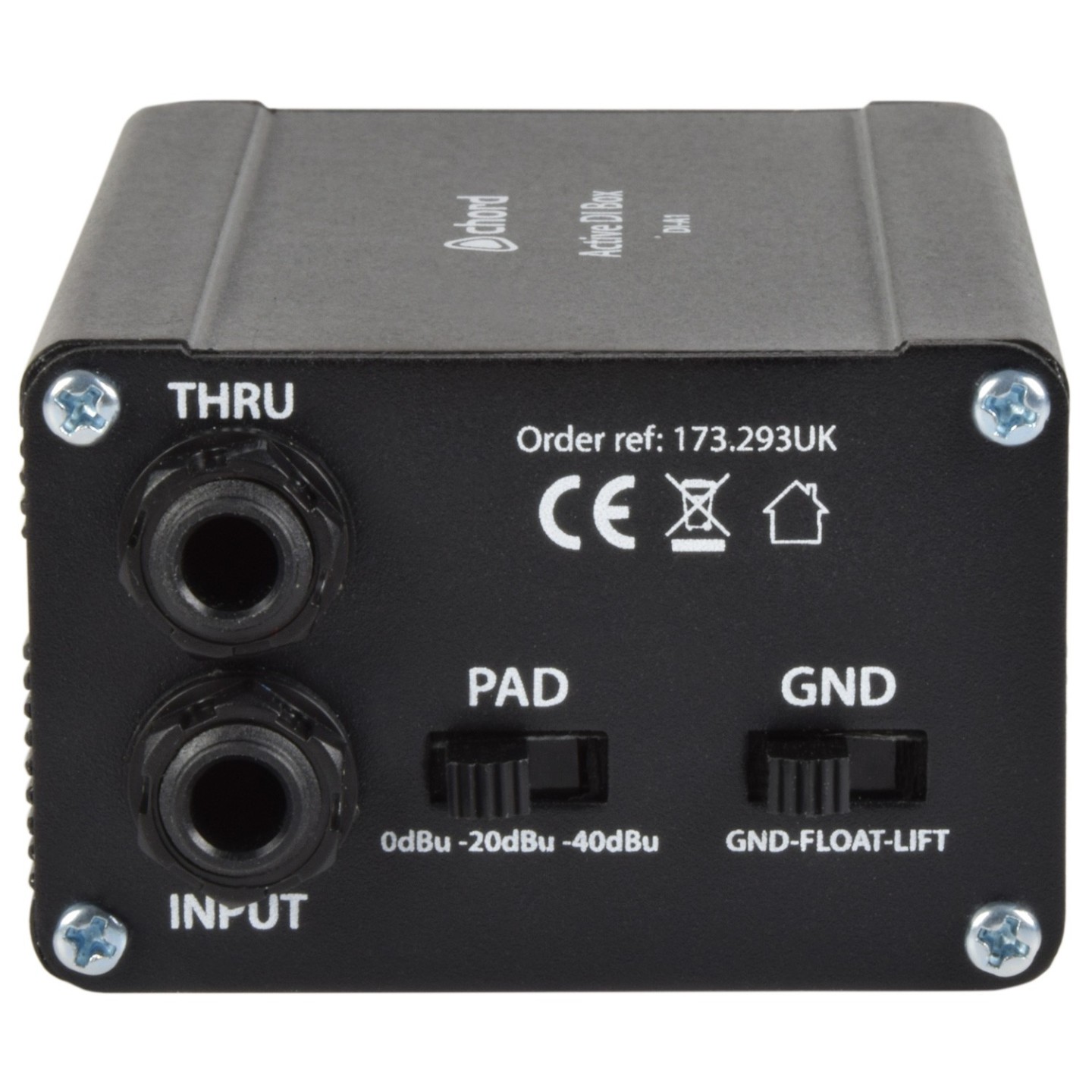

- Input : 6.3mm jack (unbalanced)

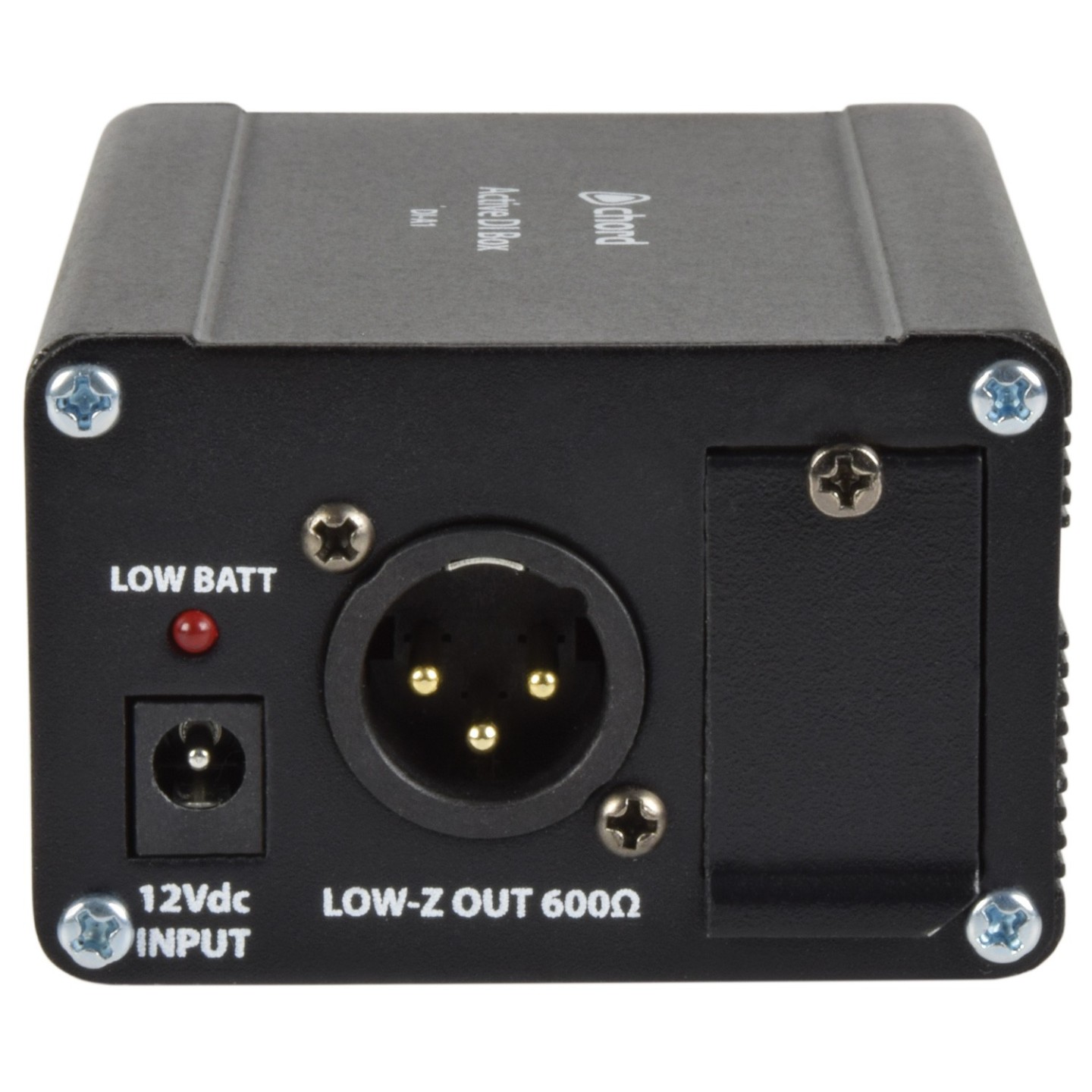

- Outputs : XLRM (balanced), 6.3mm jack through (unbalanced)
- Input impedance : >100k Ohms
- Output impedance : 600 Ohms
- Controls : 0/-20/-40dBu pad & Ground-Float-Lift switch

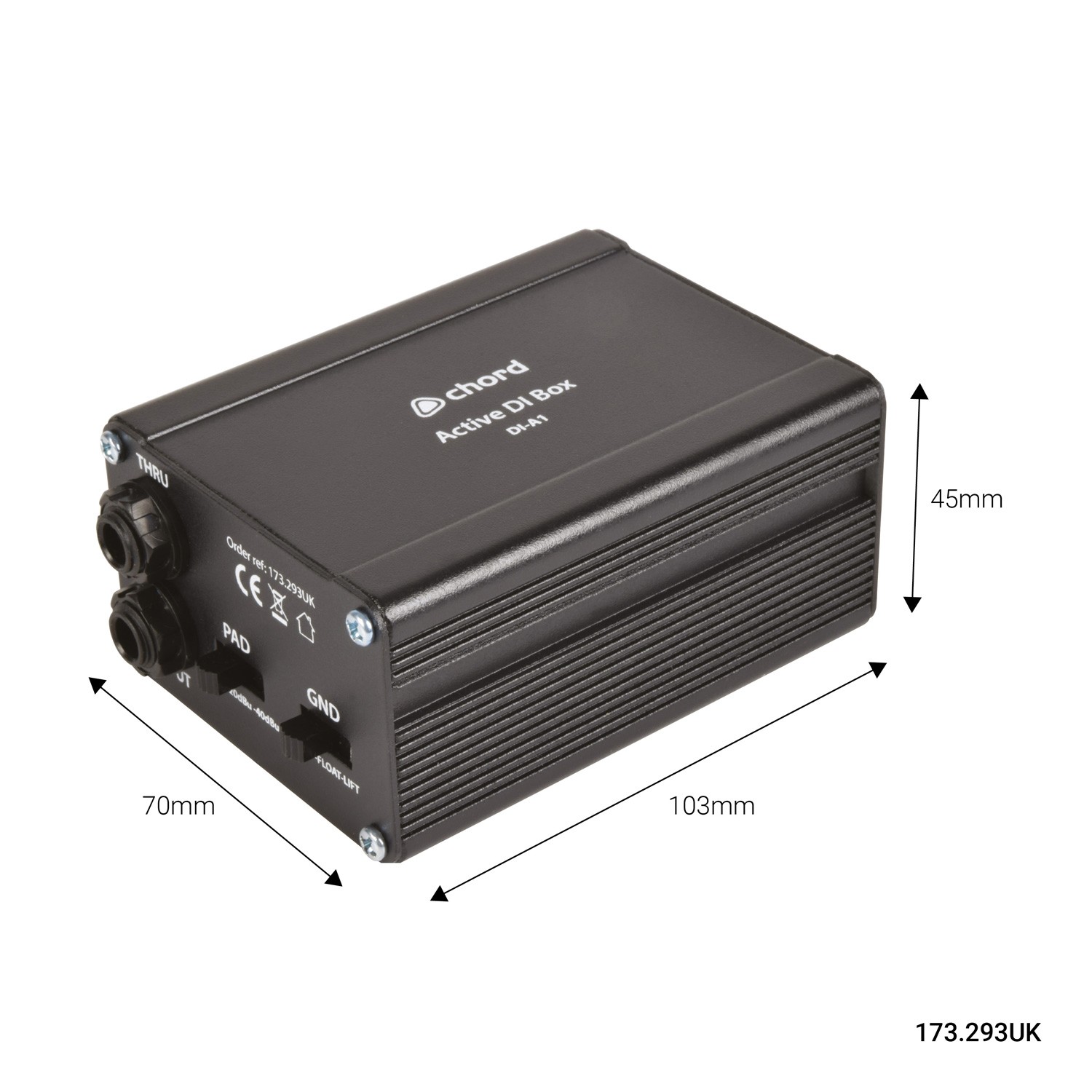

- Dimensions : 103 x 70 x 45mm
- Weight : 243g
In the Box
- Active direct injection box
