Adastra Remote Zone Audio Matrix - 953.045UK - RZ45 Remote Zone Audio Matrix
1U rack-mountable audio matrix with 4 inputs to 5 zones; built-in media player supports USB, 3.5mm aux, or Bluetooth; includes TR86 touch remote.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

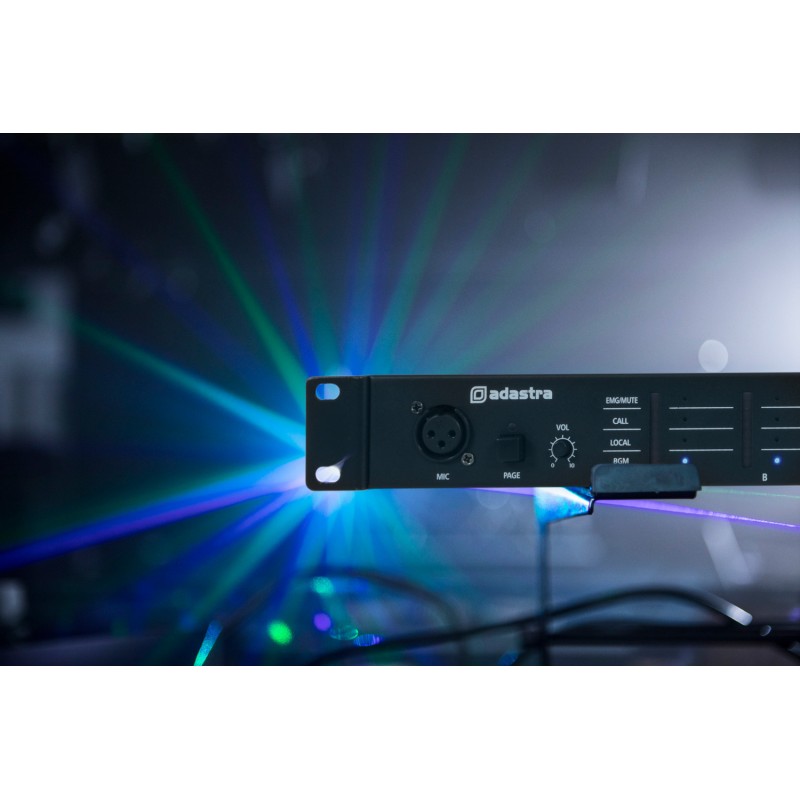

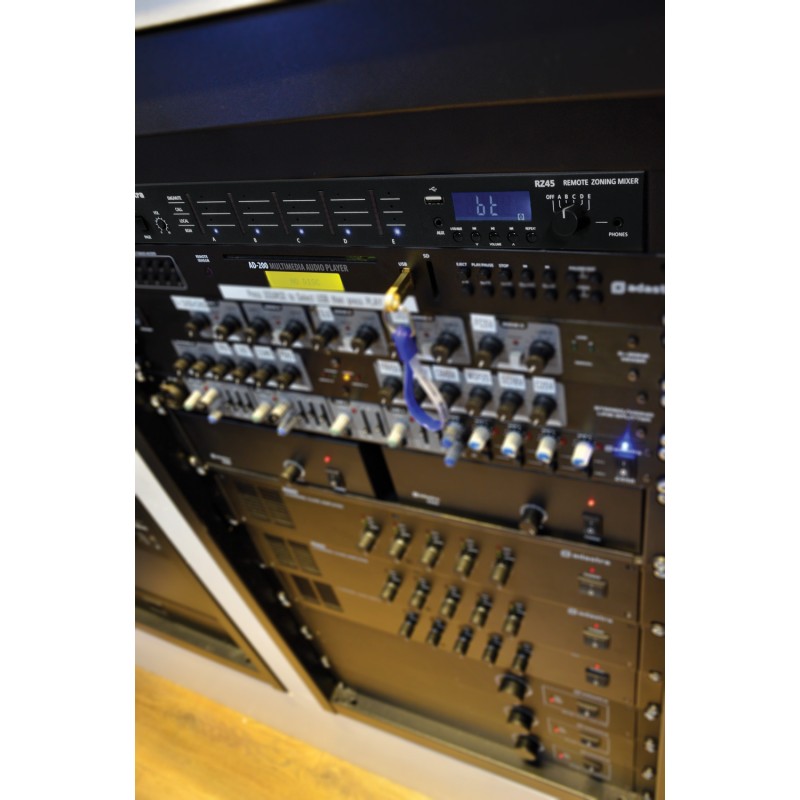

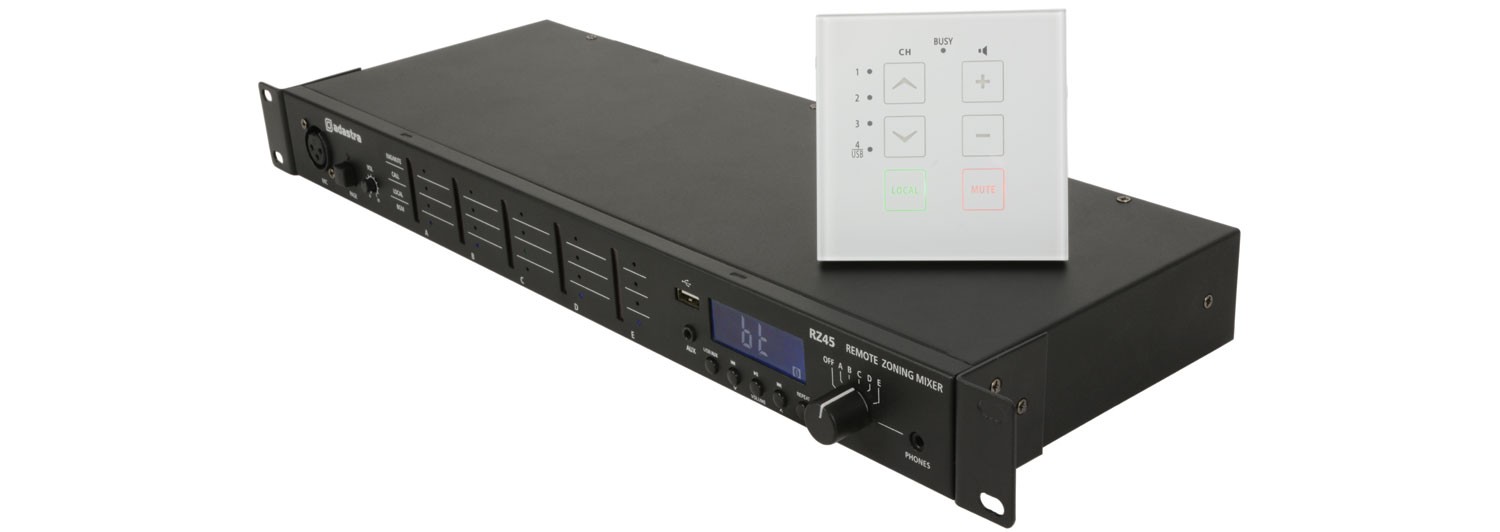

1U rack-mountable audio matrix with 4 selectable inputs to 5 output zones. An inbuilt media player section features playback from USB media, 3.5mm aux input or Bluetooth. A TR86 touch operated remote wall plate is included to control source and output level for one of the zones. Additional TR86 wall plates may be added up to the full 5 zones as required. Outputs to zones can be monitored via an assignable 3.5mm stereo headphone output. For global alerts and announcements, a front and rear XLR input is provided for a microphone, operated via a paging button that overrides the selected or local audio source for all zones. The RZ45 forms the command centre for installations ranging from basic remote control to a fully specified multi-room audio matrix.
- Up to 5 remotely operated zones
- Remote wiring via standard network type cable
- 4 selectable input sources or local audio to any zone
- Inbuilt USB audio player with Bluetooth
- Emergency mute and audio in contacts
- Supplied with one touch remote wall plate (expandable up to 5)
The box for this item contains :
- RZ45 remote zone audio matrix unit

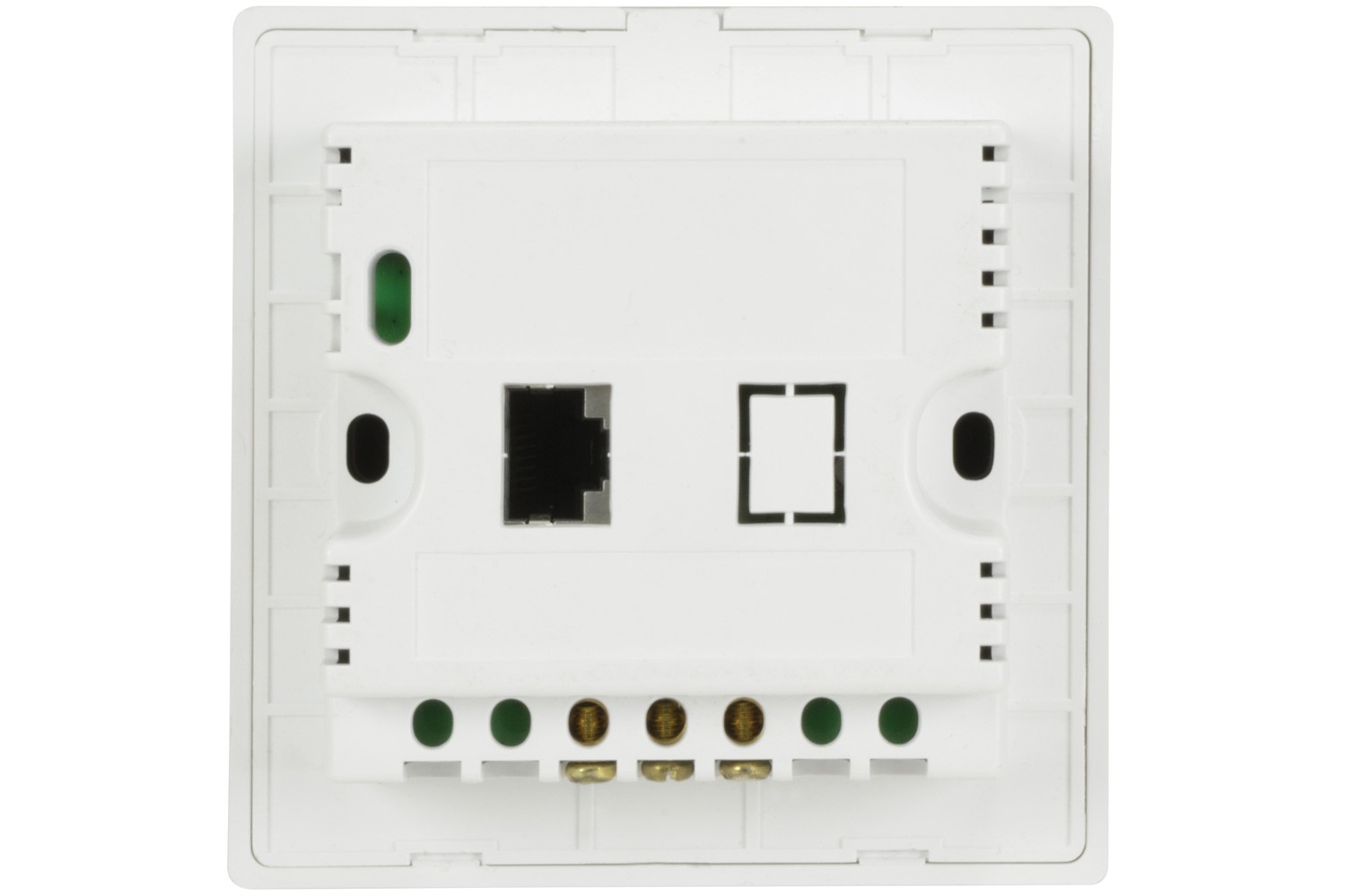

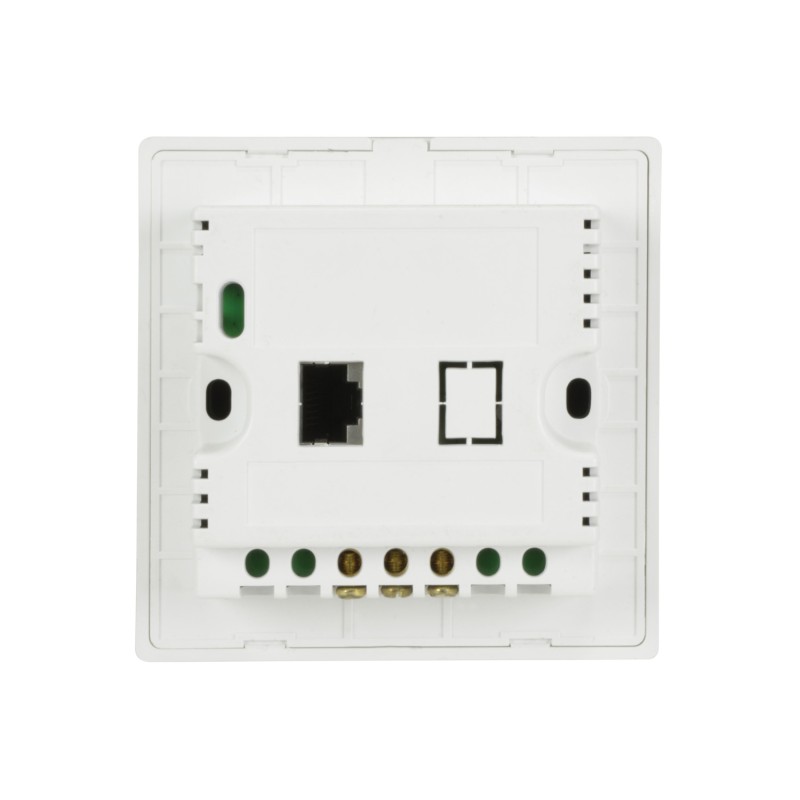

- TR86 remote touch panel
- 8-core RJ45 remote panel lead
- IEC mains power lead(s)
- Power supply: 100-240Vac, 50/60Hz (IEC lead included)
- Fuse: T1AL
- Audio source: USB/Bluetooth media player
- Bluetooth version: v2.0

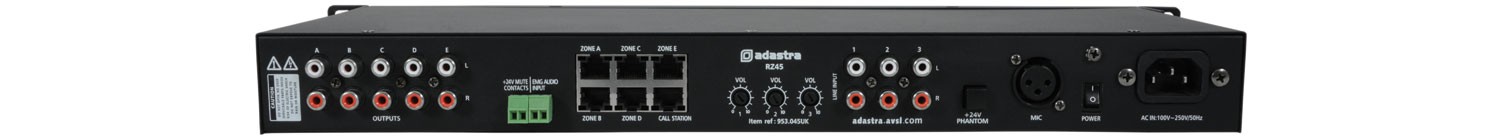

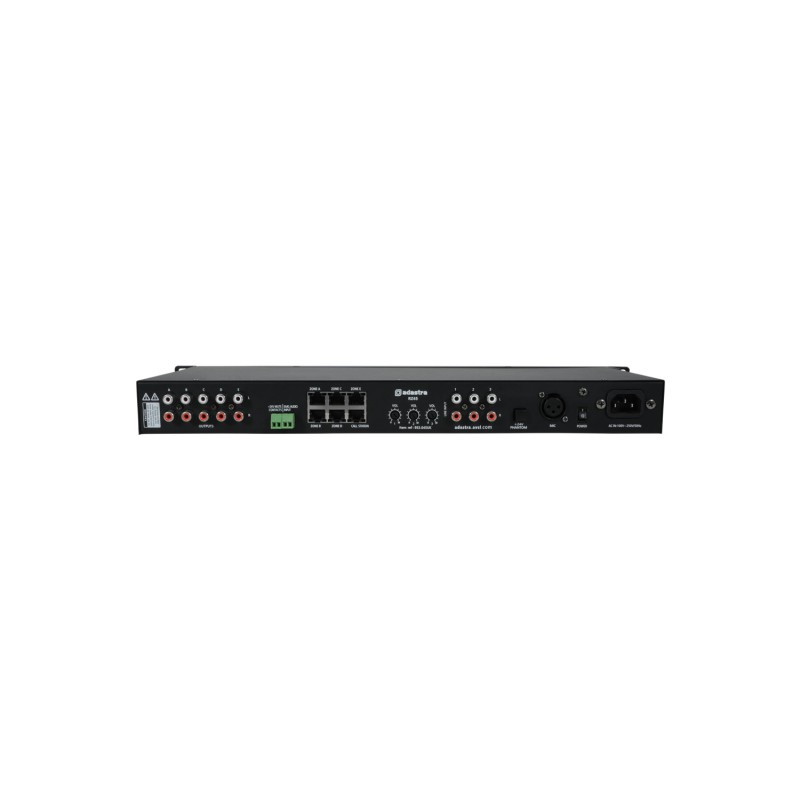

- Inputs: Paging mic. (XLR) + 3 x stereo line (RCA)
- Microphone: input sensitivity-41dBV
- Line input: sensitivity-12.5dBV
- Call station input: sensitivity+4dBV
- Emergency control: 24V mute contacts and emergency audio input
- EMG input: sensitivity-10dBV
- Signal to noise ratio: mic65dB
- Signal to noise ratio: line73dB
- Outputs: 5 x stereo zones (RCA)
- Output impedance: line600 ohms
- THD: +N<0.1% @ 1kHz
- Monitor outputs: Stereo 3.5mm headphone jack (assignable)
- Phantom power: +24V switchable for paging mic.
- Remote control connection: 8P8C (RJ45)
- Frequency response: ±3dB20Hz - 20kHz
- Attenuation: -30dB (paging)
- Dimensions: 483 x 177 x 44mm
- Weight: 1.76kg
| Amplifier Type | Matrix Amp |
| Zones | 5 |
| Zone Control | Wall Plate |
| USB / FM / BT | USB / BT |
| Rack Mountable | Yes |
