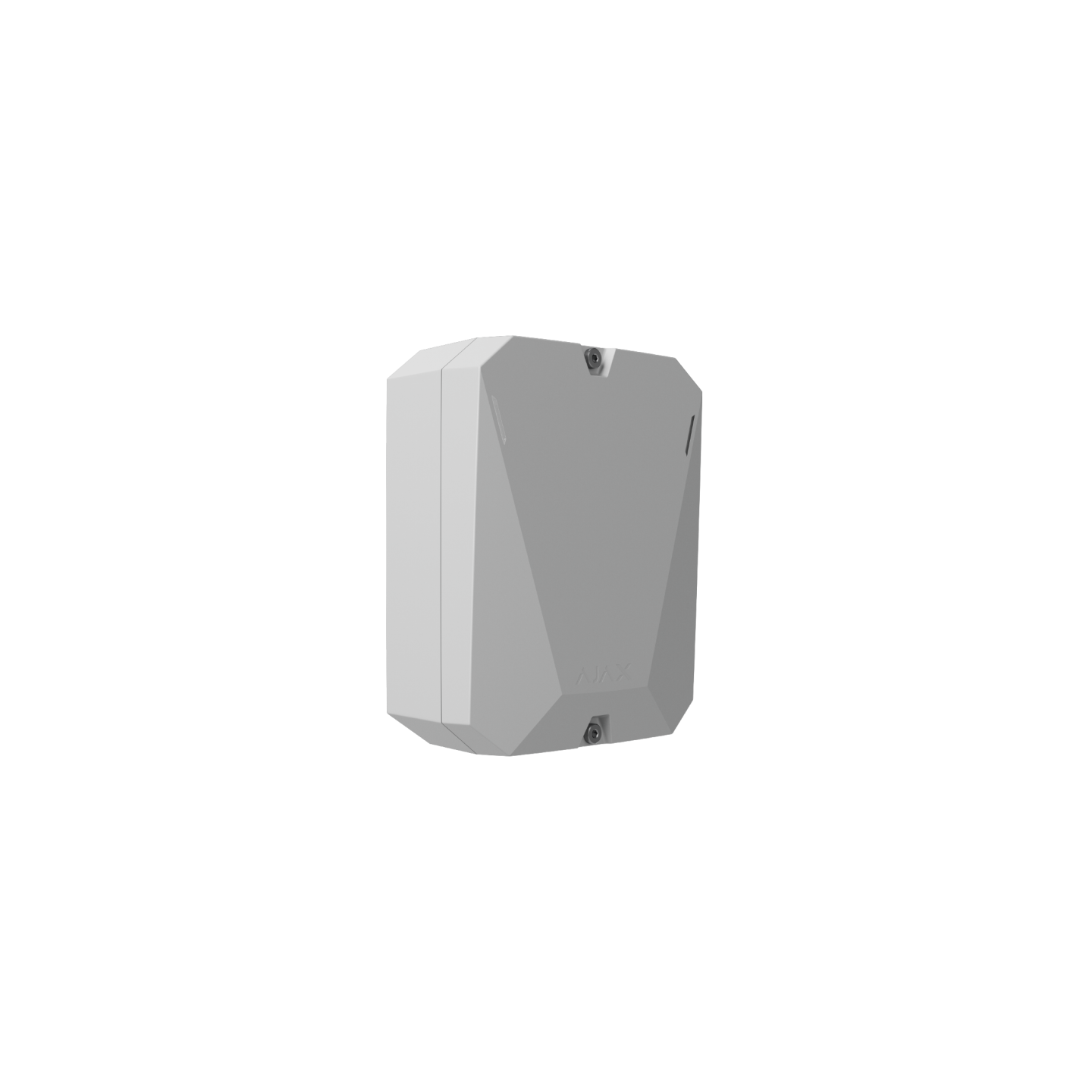

AJAX BASELINE Alarm Hub - BP - White

Off-grid security made simple

Hub BP Jeweller is an innovative security control panel designed to secure properties without a constant power supply. It's ideal for protecting vacant houses, construction sites, and temporarily unused offices. Unlike other control panels, Hub BP is powered by internal and external batteries, ensuring long-term autonomous operation. Hub supports event photo verification and features dual SIM connectivity, guaranteeing reliable communication. Thanks to its battery power saver feature, the device optimizes battery usage, providing continuous protection for extended periods.

Capacity

• Ajax devices
• up to 100
• Specifically, up to 10 sirens or keypads with a built-in siren and up to 5 range extenders.

Ajax NVRs

• up to 36

Ajax cameras

• up to 224 via Ajax NVRs and up to 492 standalone

Third-party IP cameras

• up to 10 when using RTSP via SDK
• up to 224 when using ONVIF via Ajax NVRs

Users

• up to 50
• Any number of admin users within the hub limit.
• PRO accounts for installers.
• PRO accounts for installation and monitoring companies.
• Access management for users.

Automation scenarios

• up to 32 : By alarm.By schedule./By arming/disarming./By temperature, humidity, CO2 concentration./By pressing Button./By touching LightSwitch.

Security groups

• up to 9

Rooms

• up to 50

Event log

• up to 1,000 events
• Events are saved on the non-volatile onboard flash memory.

Wireless communication

•  Jeweller communication technology
• Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Frequency bands

• 866.0–866.5 MHz
• 868.0–868.6 MHz
• 868.7–869.2 MHz

Maximum effective radiated power (ERP)

• up to 25 mW
• Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

• GFSK

Radio communication range

• up to 2,000 m
• Between a hub and connected devices (in an open space). The maximum range depends on the connected device.

Polling interval

• from 12 s to 300 s
• Adjusted by a PRO or user with admin rights in Ajax apps.

Encrypted communication

• All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

• To prevent radio interference and jamming.

 Wings communication technology

• Proprietary wireless communication technology to transmit photos.

Communication channels
Cellular

• 2 × micro SIM slot

Cellular bands

• 2G
• GSM900/DCS1800 (B3/B8)
• 3G
• WCDMA 850/900/2100 (B1/B5/B8)
• 4G (LTE)
• FDD B1/B3/B5/B7/B8/B20

Automatic switching between communication channels

• between SIM cards — up to 4 minutes

Communication channels prioritization

• Micro SIM slot 1
• Micro SIM slot 2

Auto APN

• The APN auto select feature allows setting access point automatically based on the installed SIM card.

External antenna connectors

• Jeweller
• Wings
• 4G (LTE)
• The system will notify of the damaged antenna.

Ajax ExternalAntenna is sold separately.

Alarm transmission system categories

• SP5

Control panel operation method

• pass-through

Signaling security

• S2
• Substitution security.

Information security

• I2

Notifications

• Push notifications
• SMS
• Calls
• Learn more
• Event types
• Alarms
• Malfunctions
• Security state change
• System events
• Non-security alerts
• Automation devices
• Notification types are configured individually for each user. Notifications can be customized for A–D schemes according to EN 50131 requirements.

Photo verification

• Photo verification types
• Photo by alarm
• Photo by scenario
• Photo on demand
• Photo by schedule

The Photo by Schedule feature is available for hubs with OS Malevich 2.19 firmware version or later.
Photo delivery time

• up to 9 s
• By default.

Photo resolution

• up to 640 × 480 pixels

Depends on the detector.

Number of photos in a series

• fro m 1 to 5 pictures

Monitoring
Supported protocols

• SIA DC-09 (SIA-DCS)
• SurGard (Contact ID)
• ​​ADEMCO 685
• Other proprietary protocols

Event types

• System alarms and events
• Panic button coordinates
• Photo verification

Power supply
External

• 4.2–16 V⎓, up to 2 A
• Zinc-air battery or external power source.

Internal

• 4.2–16 V⎓, up to 2 A
• Rechargeable lead-acid and LiFePO4 batteries (not included). Non-rechargeable LTC batteries (not included).

Device operating DC voltage range

• 3.5–16 V⎓

Autonomous operation

On external battery in full function mode

• up to 18 months
• On a 12 V⎓, 600 Ah, zinc-air non-rechargeable external battery (not included).

On external battery in Battery saving mode

• more than 5 years
• On a 12 V⎓, 600 Ah, zinc-air non-rechargeable external battery (not included).

On internal battery in a Battery saving mode

• up to 17 months
• On a 7.2 V⎓, 95 Ah, LTC non-rechargeable Internal battery NB (7.2V/95Ah) (not included).
• up to 4 months
• On a 6.4 V⎓, 27 Ah, LiFePO4 rechargeable Internal battery RB (6.4V/27Ah) (not included).
• up to 2 months
• On a 12 V⎓, 7 Ah, lead-acid rechargeable internal battery (not included).

Sabotage protection

• Tamper alarm
• Notifications on attempts to detach the device from the surface or remove it from the mounting panel.

Protection against spoofing

• device authentication

Frequency hopping

• The hub sends notifications to all users and the security company of jamming or losing connection with the devices.

Jamming alert

• Hub BP Jeweller analyzes the channel’s noise level and the quality of communication with added devices and sends an alert in 30 seconds.

Certifications : Grade2

Enclosure
Dimensions : 196 × 238 × 100 mm

Weight : 1,010 g

Operating temperature range : from −10 °C to +40 °C

Operating humidity : up to 75%

Protection class : IP40
