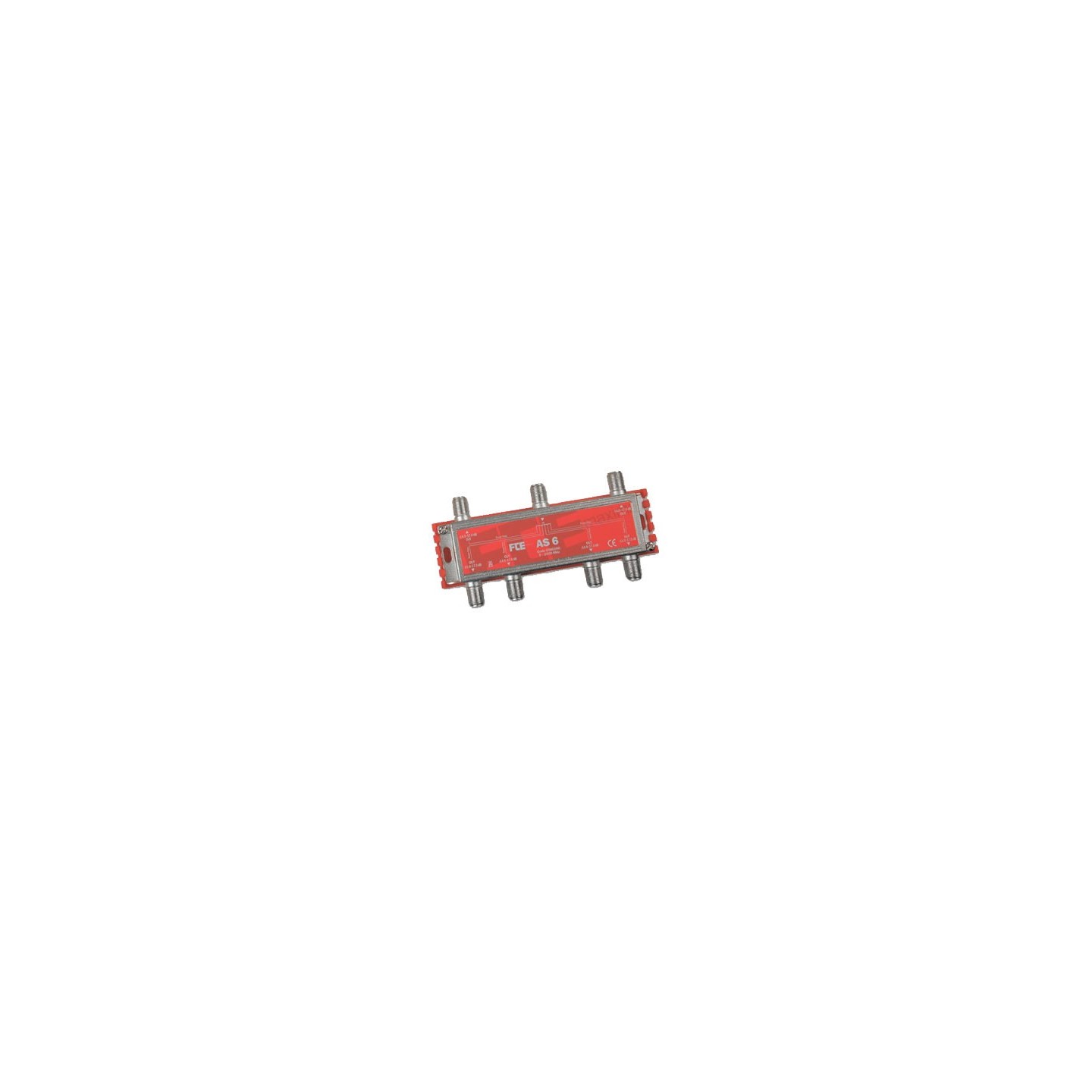

FTE Splitter - AS6 - 1-6 5-2400MHz Class A
Inductive shielded RF splitter for 5-2400 MHz with 6 outputs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Inductive Shieled Splitter 5-2400 MHz
- Covered Band (MHz): 5-2400
- Return band (MHz): 5-30 / 5-65
- Outputs Number: 6
- Insertion Loss (dB)(Typ/Max): 5-470MHz: 13/13.5, 470-862MHz: 13/14, 950-2150MHz 16/17
- Decoupling between outputs (dB) 5-470MHz > 25, 470-862MHz > 20, 950-2150MHz > 20
- Return loss (dB): IN > 20, OUT > 18
- Screening factor (dB) > 100
- Impedance (Ω): 75
- Current pass: Yes
- Connectors: F female
- Plastic support included
| Type | Splitter |
| Outputs | 6 |
| Frequency | 5-2400Mhz |
| Series | AS |
