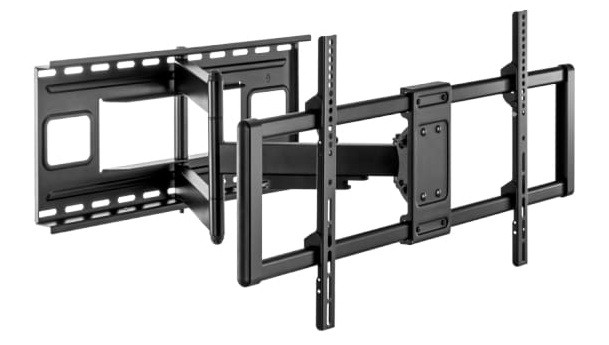

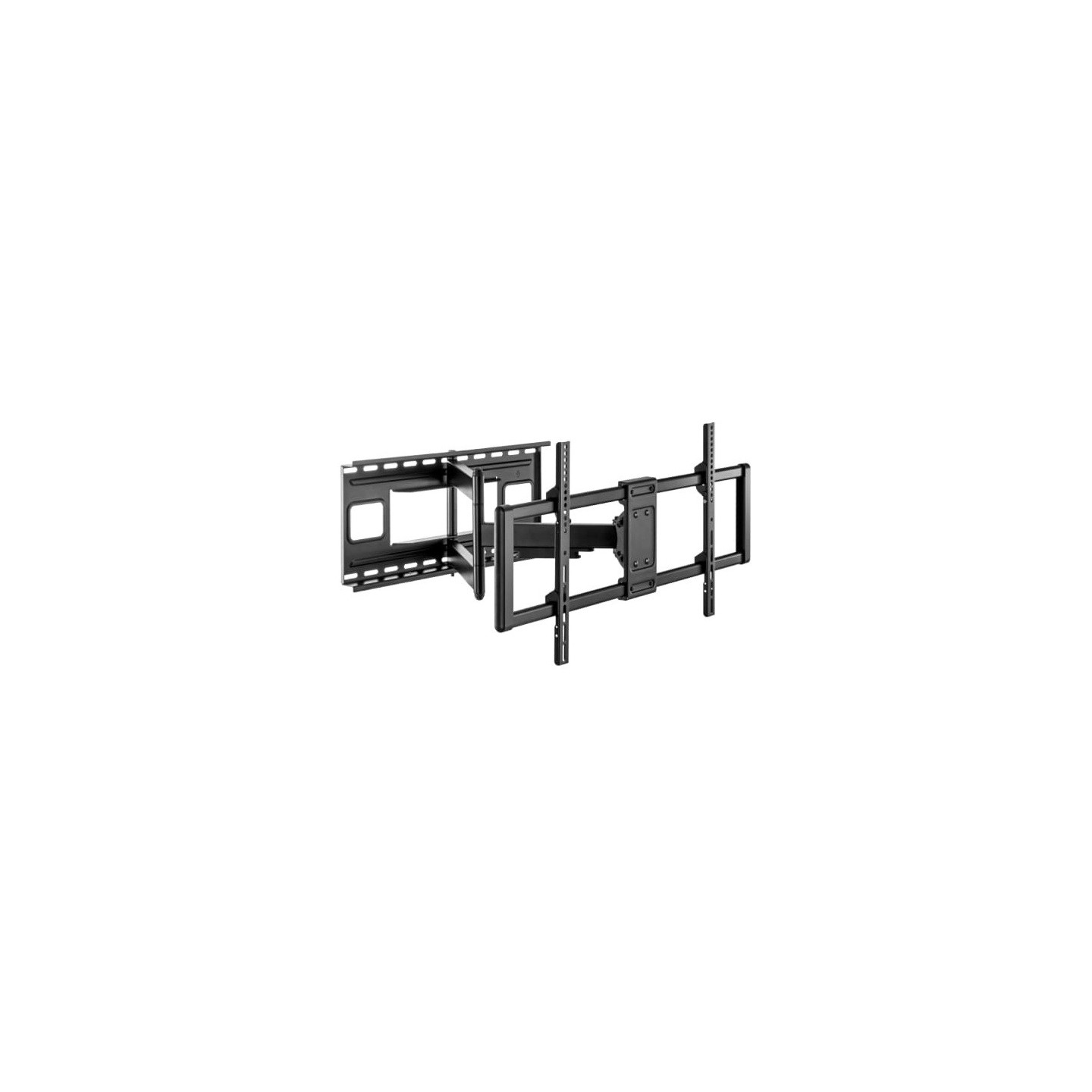

Brateck TV Mount - LPA77-483 - 80x40 Turn 2-Arm 72cm 80kg
Heavy-duty Brateck TV mount with 2-arm turn, 72 cm extension, supports up to 80 kg; fits 43-90 inch TVs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| TV Wall Mounts - Type | Full-Motion (Articulating) |
|---|

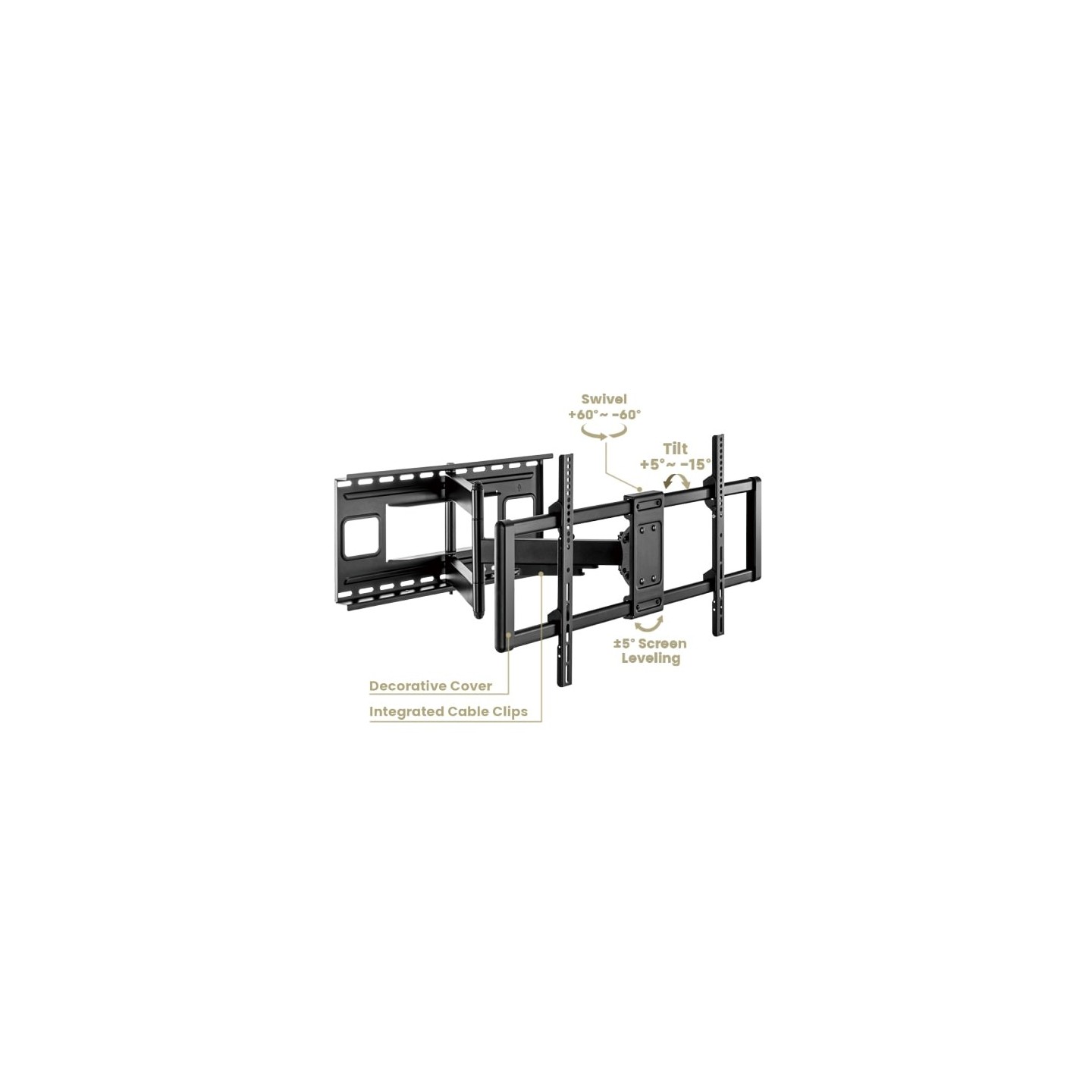

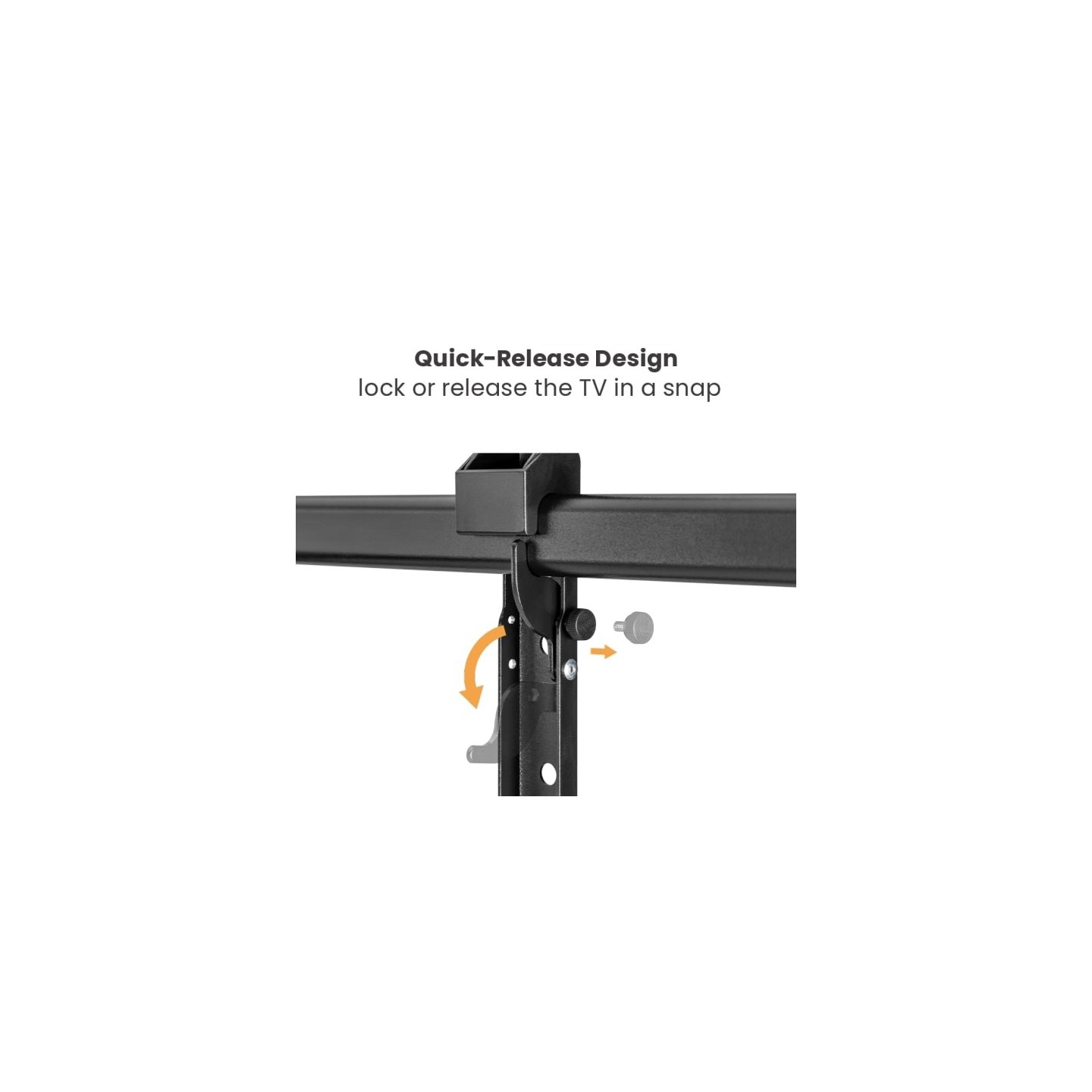

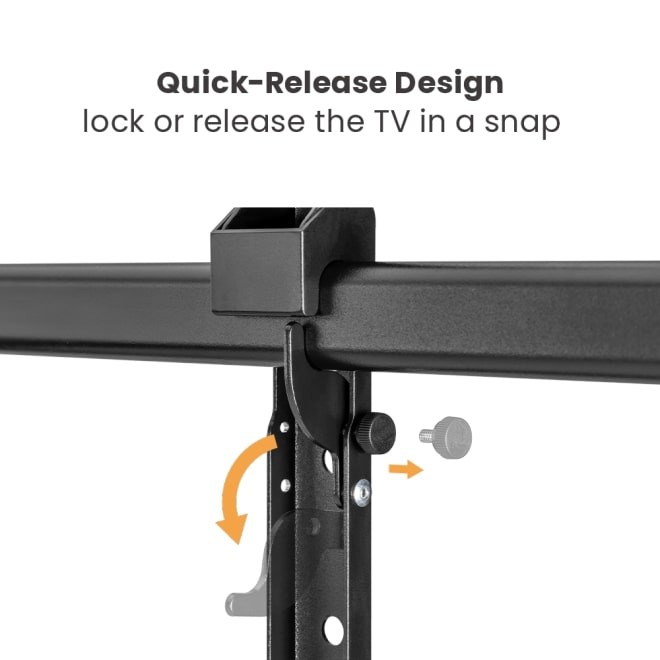

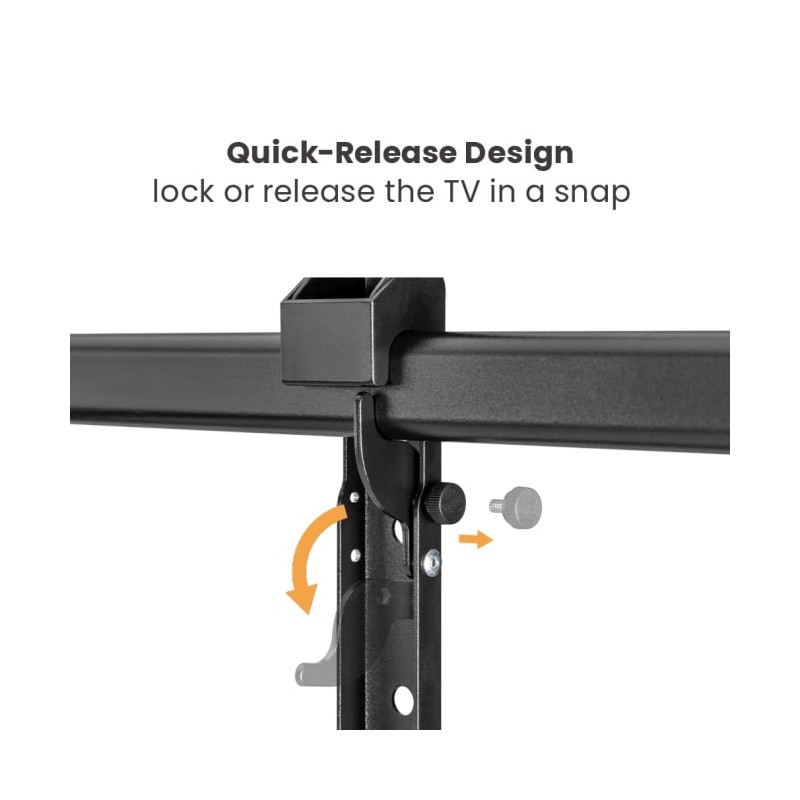

Heavy-duty arms provide strong support for larger and heavier TVs up to 80kg,it basically holds all types of TVs from 43”-90” . TV installation and removal are made easy through a unique quick-release mechanism. Toolless tilting delivers optimal viewing angles. Integrated cable management creates a clean appearance.
- Product Category: Full-motion TV Wall Mount
- Rank: Standard
- Material: Steel
- Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)
- Pipe Size: 50x25x1.5mm Square Steel Tube (2"x0.98"x0.059" Square Steel Tube)
- Surface Finish: Powder Coating
- Color: Fine Texture Black

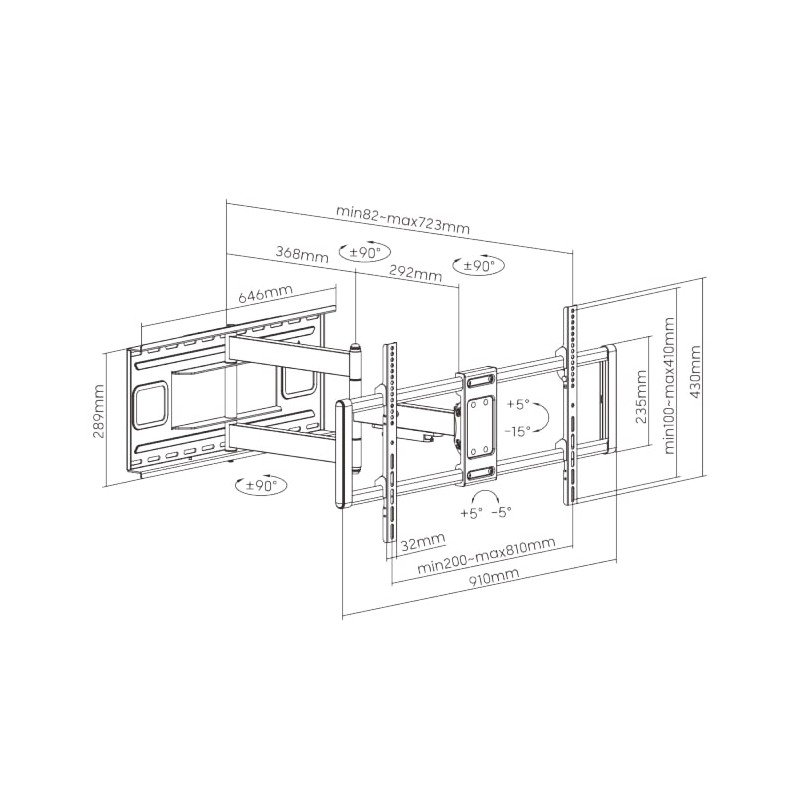

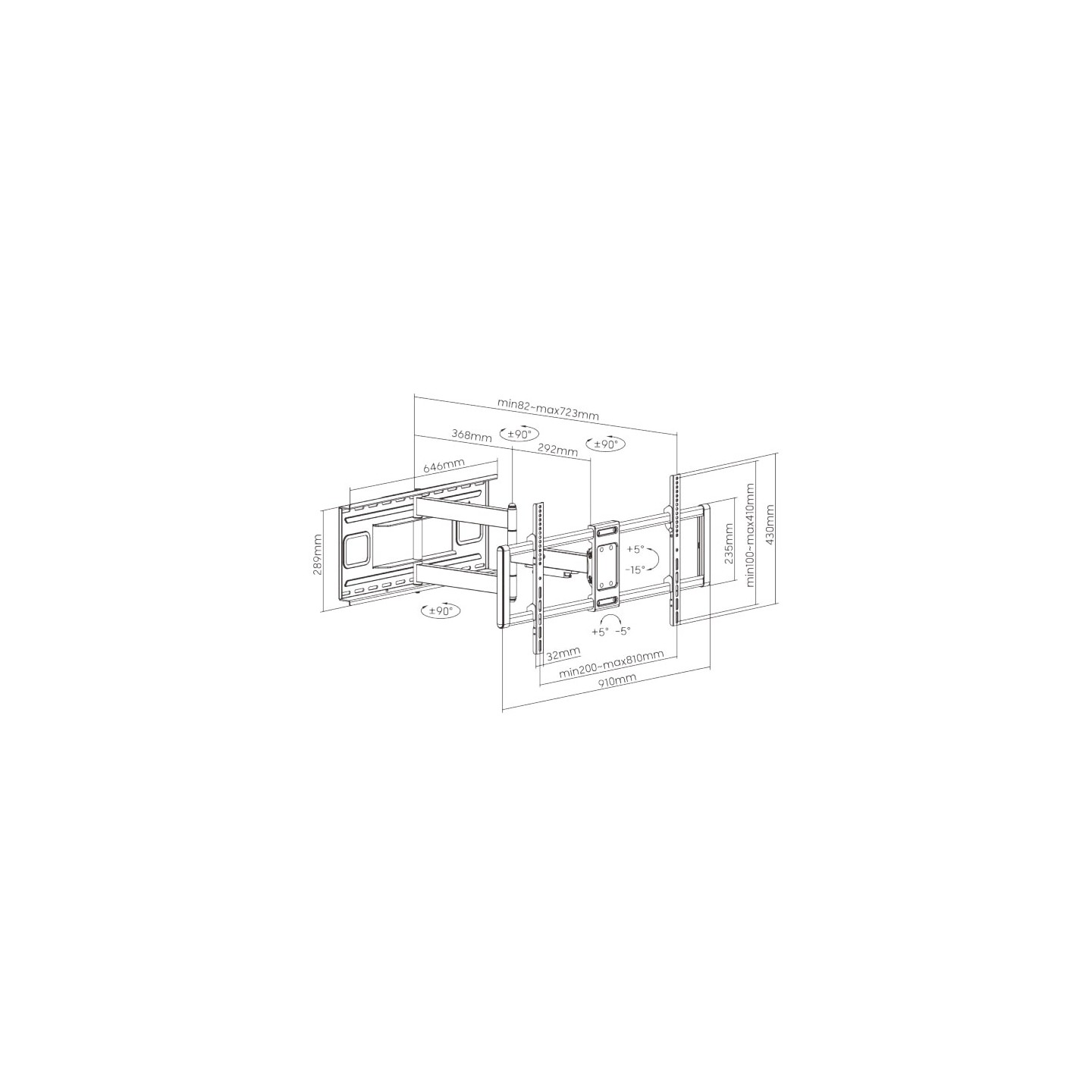

- Dimensions: 723x910x430mm (28.5"x35.8"x16.9")
- Fit Screen Size: 43"-95"
- Fit Curved TV: Yes
- Mounting Hole Pattern: VESA Only
- VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400
- Max. Mounting Hole: 810x410
- Weight Capacity: 80kg (176lbs)
- Strength Tested: 4 Times Approved
- Profile: 82~723mm (3.2"~28.5")

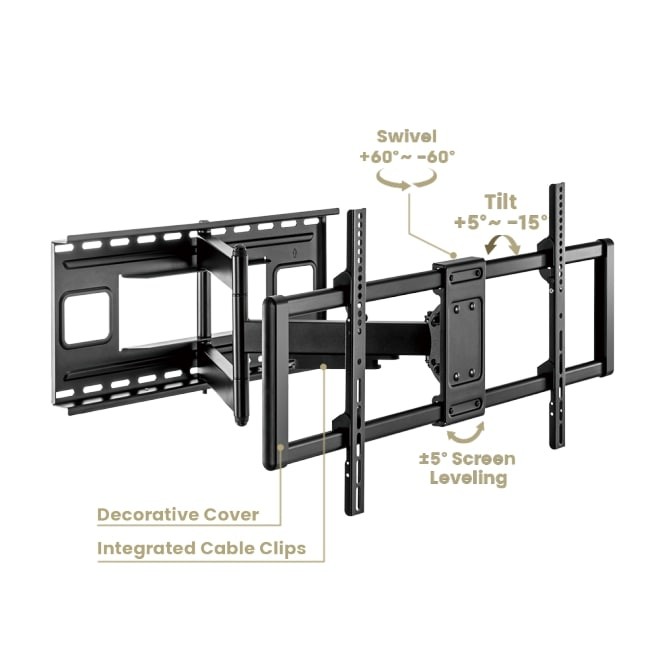

- Tilt Range: +5°~-15°
- Swivel Range: +90°~-90°
- Screen Level: +5°~-5°
- Screen Freely Tilting: Yes
- Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
- Panel Type: Detachable Panel
- Wall Plate Type: Fixed Wall Plate
- Direction Indicator: Yes
- Cable Management: Yes
- Bubble Level: Hook-on Bubble Level(Included in Components Package)
- Accessory Kit Package: Compartment Polybag
- Product Category: Full-motion TV Wall Mount
- Rank: Standard
- Material: Steel
- Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)
- Pipe Size: 50x25x1.5mm Square Steel Tube (2"x0.98"x0.059" Square Steel Tube)
- Surface Finish: Powder Coating
- Color: Fine Texture Black
- Dimensions: 723x910x430mm (28.5"x35.8"x16.9")
- Fit Screen Size: 43"-95"
- Fit Curved TV: Yes
- Mounting Hole Pattern: VESA Only
- VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400
- Max. Mounting Hole: 810x410
- Weight Capacity: 80kg (176lbs)
- Strength Tested: 4 Times Approved
- Profile: 82~723mm (3.2"~28.5")
- Tilt Range: +5°~-15°
- Swivel Range: +90°~-90°
- Screen Level: +5°~-5°
- Screen Freely Tilting: Yes
- Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
- Panel Type: Detachable Panel
- Wall Plate Type: Fixed Wall Plate
- Direction Indicator: Yes
- Cable Management: Yes
- Bubble Level: Hook-on Bubble Level(Included in Components Package)
- Accessory Kit Package: Compartment Polybag
| Function | Turn |
| Max Vesa | 800x400 |
| Max. Weight | 80kg |
| Arm Extension | 72cm |
