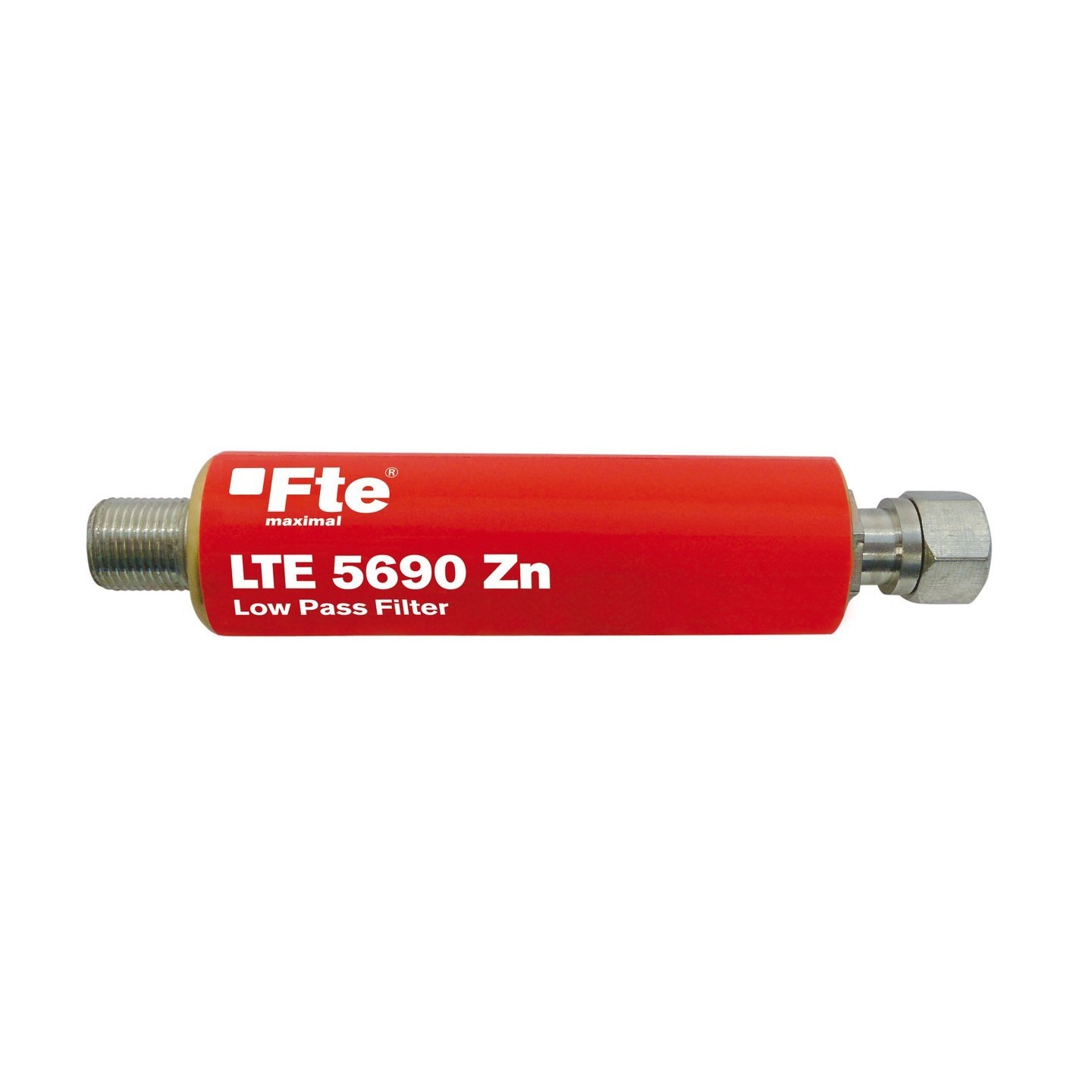

FTE Filter - LTE5690Zn - LTE2 Filter 5-694MHz
Through band 5-694 MHz; pass-band attenuation: 5-628 ≤1 dB, 628-686 ≤2.5 dB, 686-694 ≤4 dB; return loss ≥12 dB; LTE attenuation ≥55 dB; power pass: Yes; 89 x Ø18.5 mm; Zinc.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Through band: 5..694 MHz
- Pass band attenuation through loss: 5-628 MHz ≤1 dB, 628-686 MHz ≤2.5 dB, 686-694 MHz ≤4 dB
- Return loss: ≥12 dB
- Lte band attenuation rejection: ≥ 55 dB
- Power pass: Yes
- Dimensions: 89 x Ø 18,5 mm
- Material: Zinc
