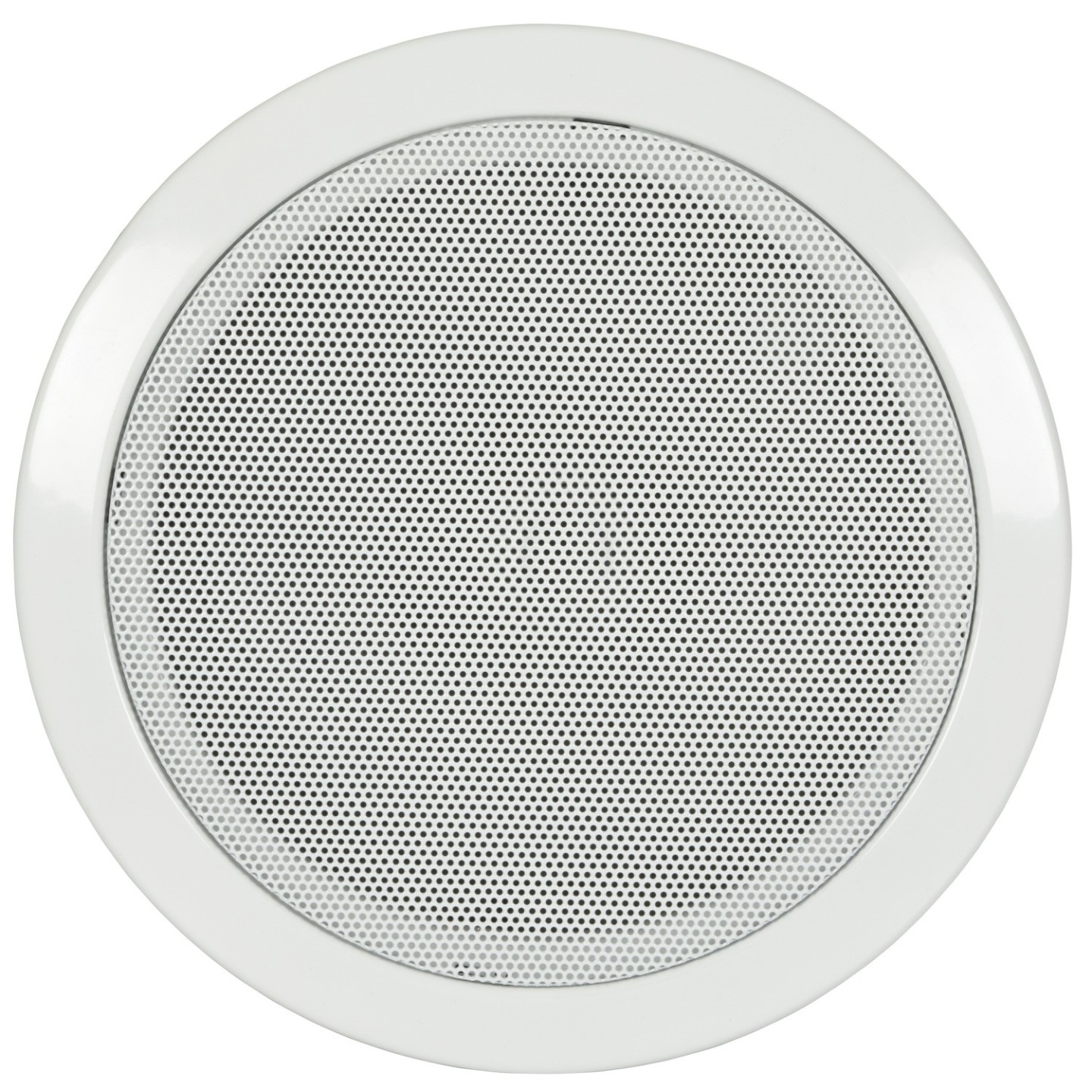

Adastra CF-5D Fire Rated EN54-24 100V Ceiling Speaker 5'' 6W 952.205UK
100V ceiling speakers with a rear dome housing to provide an effective barrier against fire. The dome can be removed from the speaker unit for convenient installation into a ceiling cavity, and is fit...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Speakers - Type | Other |
|---|---|
| Speakers - Mounting | Ceiling |

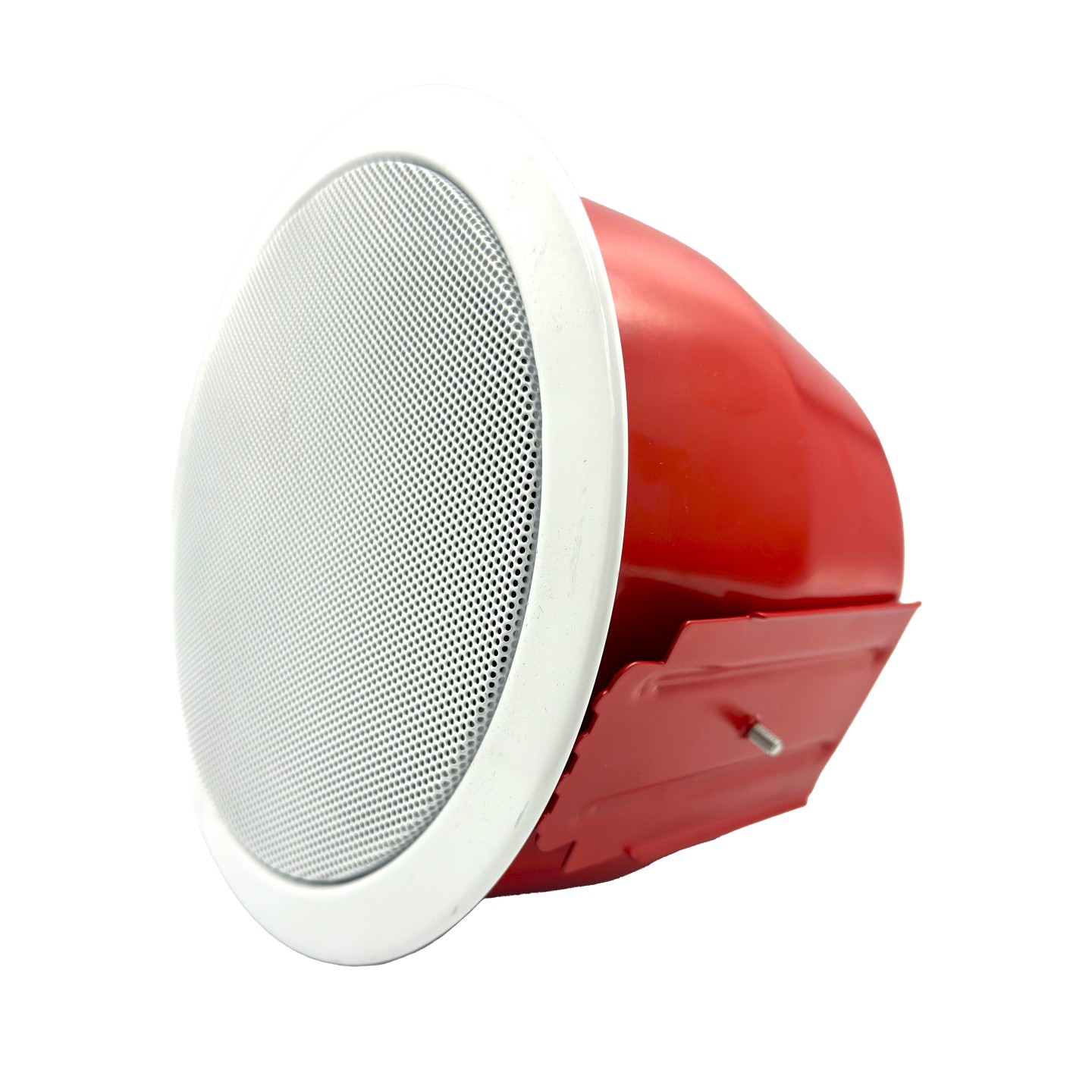

100V ceiling speakers with a rear dome housing to provide an effective barrier against fire. The dome can be removed from the speaker unit for convenient installation into a ceiling cavity, and is fitted with a spring loaded mechanism for the speaker unit to pull into position for a neat flush fit. Screw terminals on the speaker unit offer 4 volume tappings at 100V. Certified to EN54 standard for compliance with fire detection and alarm systems requirements.
- EN54-24 certified
- Supplied with flush mount fire dome
- 4 x 100V volume tappings
- Spring loaded speaker retainers
- All metal frame and basket
- Fire-resistant cable to 95°C
- Ceramic screw terminals
- 100V line tappings: 0.75W, 1.5W, 3W, 6W
- Fire rating: EN54-24
- SPL @ 1W/1m: 92dB
- Frame material: Steel (powder coated)
- Frequency response 130Hz - 15kHz
- Cutout 160mmØ
- Driver 135mmØ (5.25") reinforced paper cone

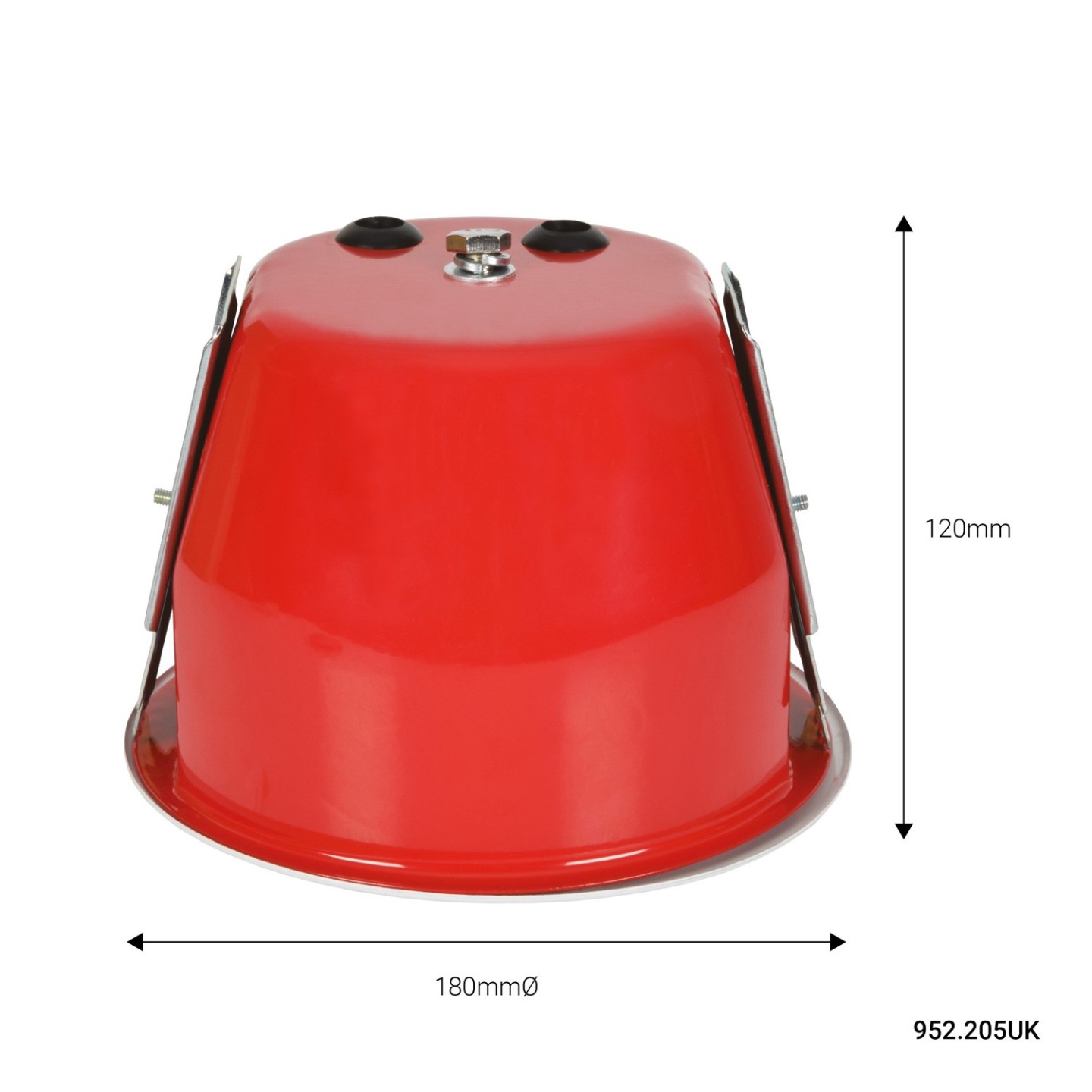

- Dimensions 120 x 180mmØ
- Weight 1.23kg
| Woofer Size | 5.25 |
| Fire Rated (EN54-24) | Yes |
| Power (100V) | 6W |
