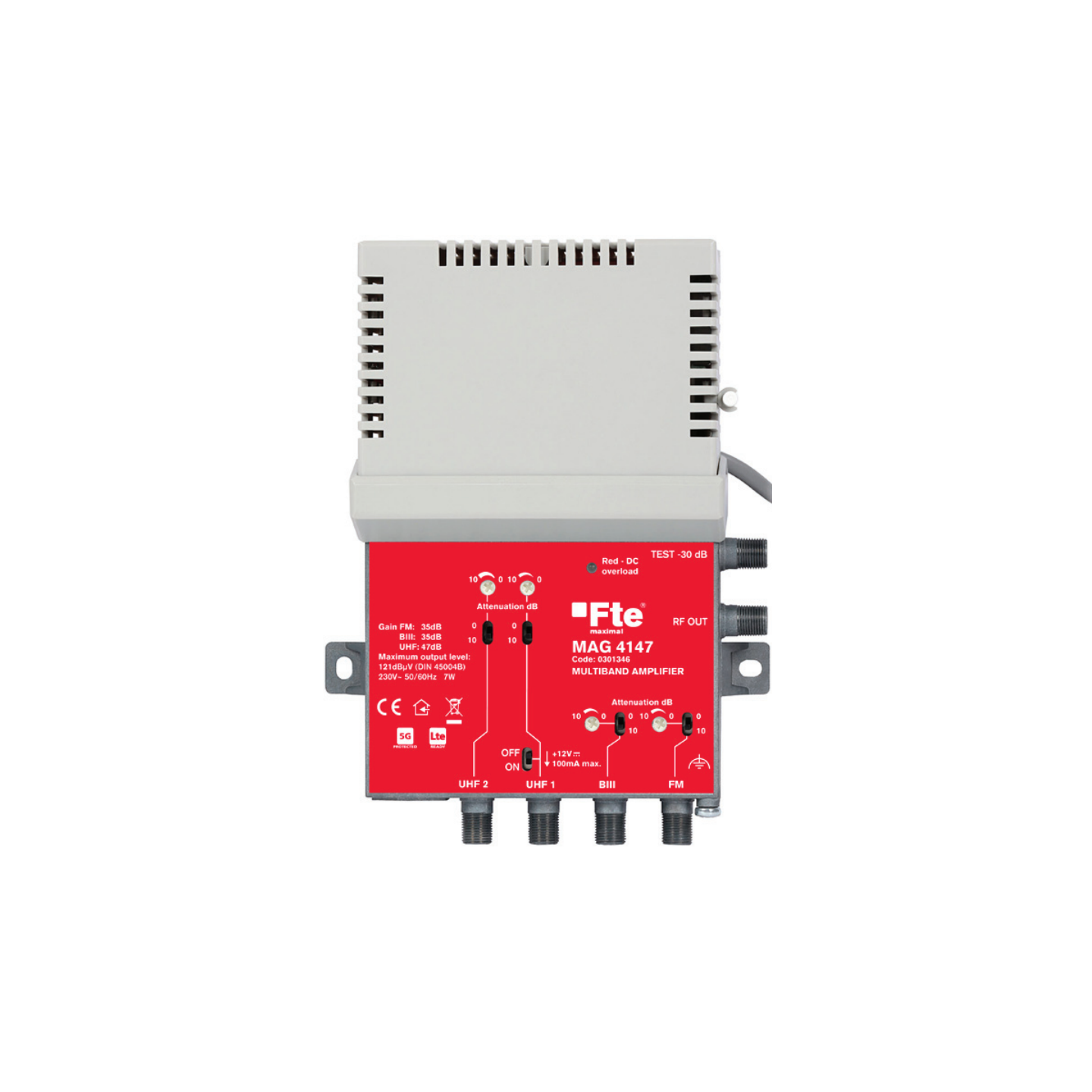

FTE Multiband Amplifier - MAG4147 - 2xUHF VHF FM 47 121dB
Multiband amplifier with 4 inputs (FM, Band III, 2x UHF) and 1 output (+ test -30 dB); FM 88–108 MHz, Band III 174–230 MHz, UHF 470–694 MHz; gains: FM 35 dB, Band III 35 dB, UHF 47 dB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Inputs: 4 (1x FM, 1x BIII, 2x UHF)
- Outputs: 1 + 1 Test (-30dB)
- Frequency range: FM+BIII: (88..108MHz), (174..230 MHz), UHF: 470..694 MHz
- Gain: FM:35 dB, BIII: 35 dB, UHF 47 dB
- Noise figure, typical FM: < 5 dB, UHF: <3.5 dB
- Maximum output level : IMD3=60dB 121 dBμV, (DIN45004B) IMD3=60dB 118 dBμV
- Gain adjustment : 0 / -20 dB
- Return loss : >10 dB
- Preamplifiers feeding: 12V : 100 mA Max.
- Supply voltage limit values and power consumption (without external DC loading): 200-250V~ 50/60 Hz / 7W
- Operative temperature range -20º / +50ºC
- Dimensions 135 x 180 x 52 mm
- Dimensions of the unit box 203 x 151 x 58 mm
- Box dimensions of 20 pieces 416 x 315 x 308 mm
- Weight (packed) 0.72 Kg
| Type | Multiband Amplifier |
| Inputs | 4 |
| UHF Inputs | 2 |
| VHF Inputs | 1 |
| Outputs | 1 |
| Gain per output | 47db |
| Total Output | 121db |
