Citronic Class-D Power Amplifier - D1000 - 2x500W @4ohm 172.110UK
Stereo power amplifier in a lightweight 1U rack-mountable chassis; Class-D delivers 2x500W at 4Ω.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Stereo power amplifier in a lightweight 1U rack-mountable housing. Class-D circuit architecture efficiently converts power into impactful audio for driving medium to large speaker cabinets. Custom cool guide technology ensures consistent and reliable operation and an inbuilt limiter circuit engages at peak output to prevent speaker overload. Options for parallel and bridge mode with selectable input levels and 75Hz low cut filter allow for different confgurations to handle even the most demanding of sound reinforcement duties.
- Cool and efficient operation even at high output
- Compact and lightweight 1U rack format
- Switchable parallel and bridge modes
- Power supply: 220-240Vac, 50/60Hz (IEC)
- Modes: Stereo, Parallel (mono), Bridge (mono)
- Input sensitivity: 0.775V - 1.0V - 1.44V switchable
- Low-cut filter: 75Hz switchable

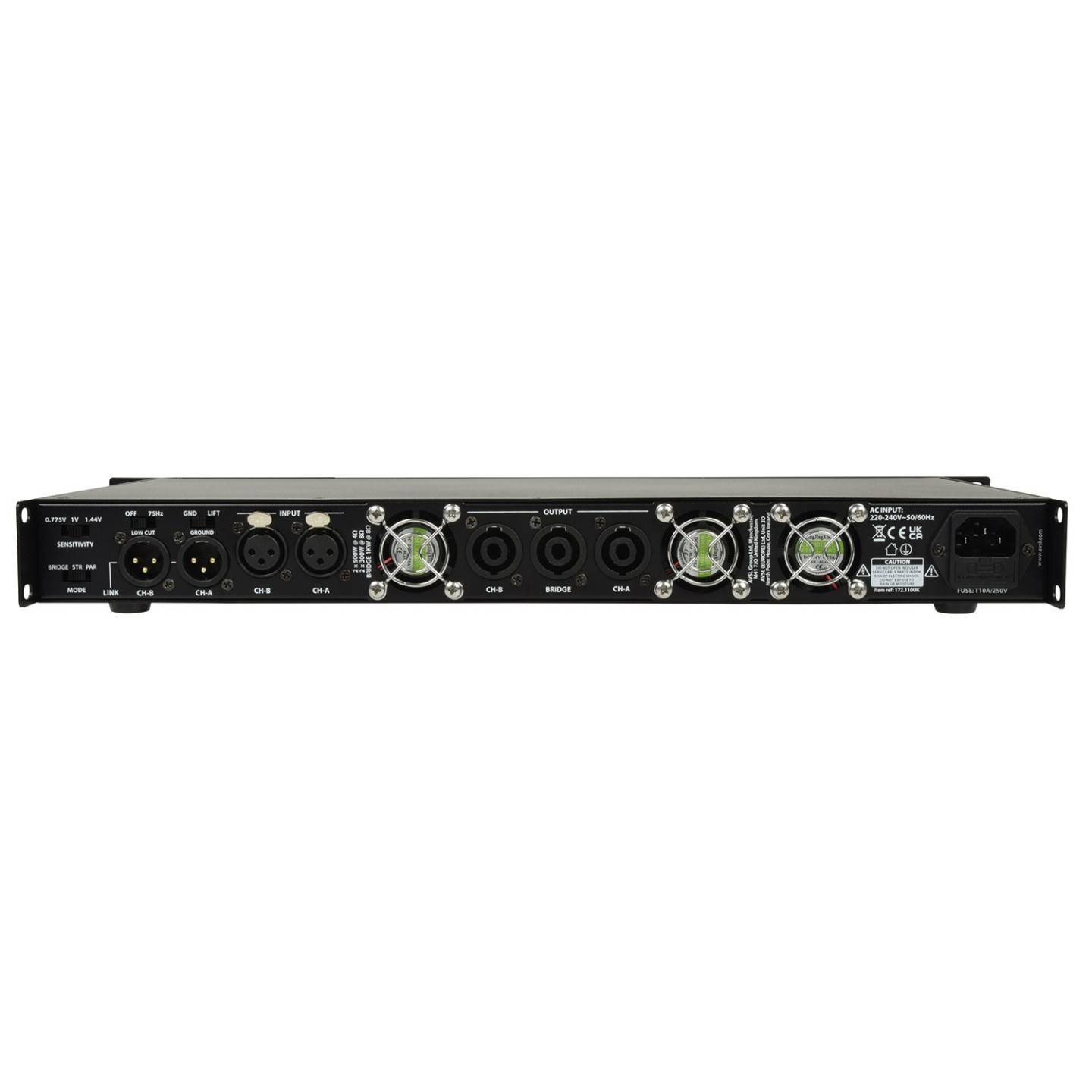

- Input connections: L+R XLR female (L+R XLR male through)
- Output connections: L+R SPK connectors (+1 for bridge mode)
- Dimensions: 482 x 245 x 44mm
- Power rms @ 4 Ohms: 2 x 500W
- Power rms @ 8 Ohms: 2 x 300W
- Bridge power @ 8 Ohms: 1 x 1000W
- Fuse: T10A (20 x 5mm)
- Weight: 3.93kg
| Channels | Dual |
| Power (8ohm) | 2 x 300 |
| Power (4ohm) | 2 x 500 |
| Amplifier Class | Class D |
| Bridge Mode | Yes |
| Warranty | 3 Years |
