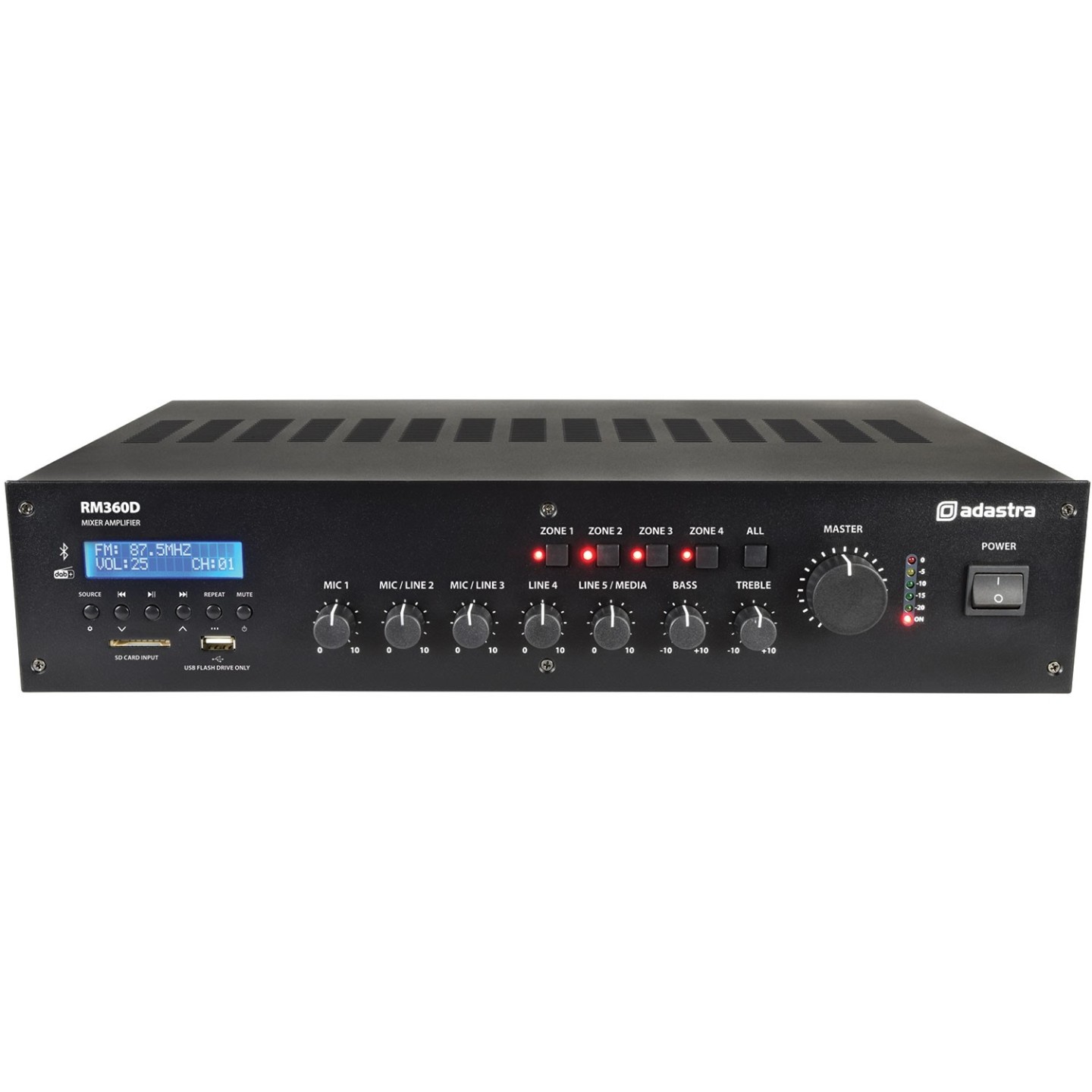

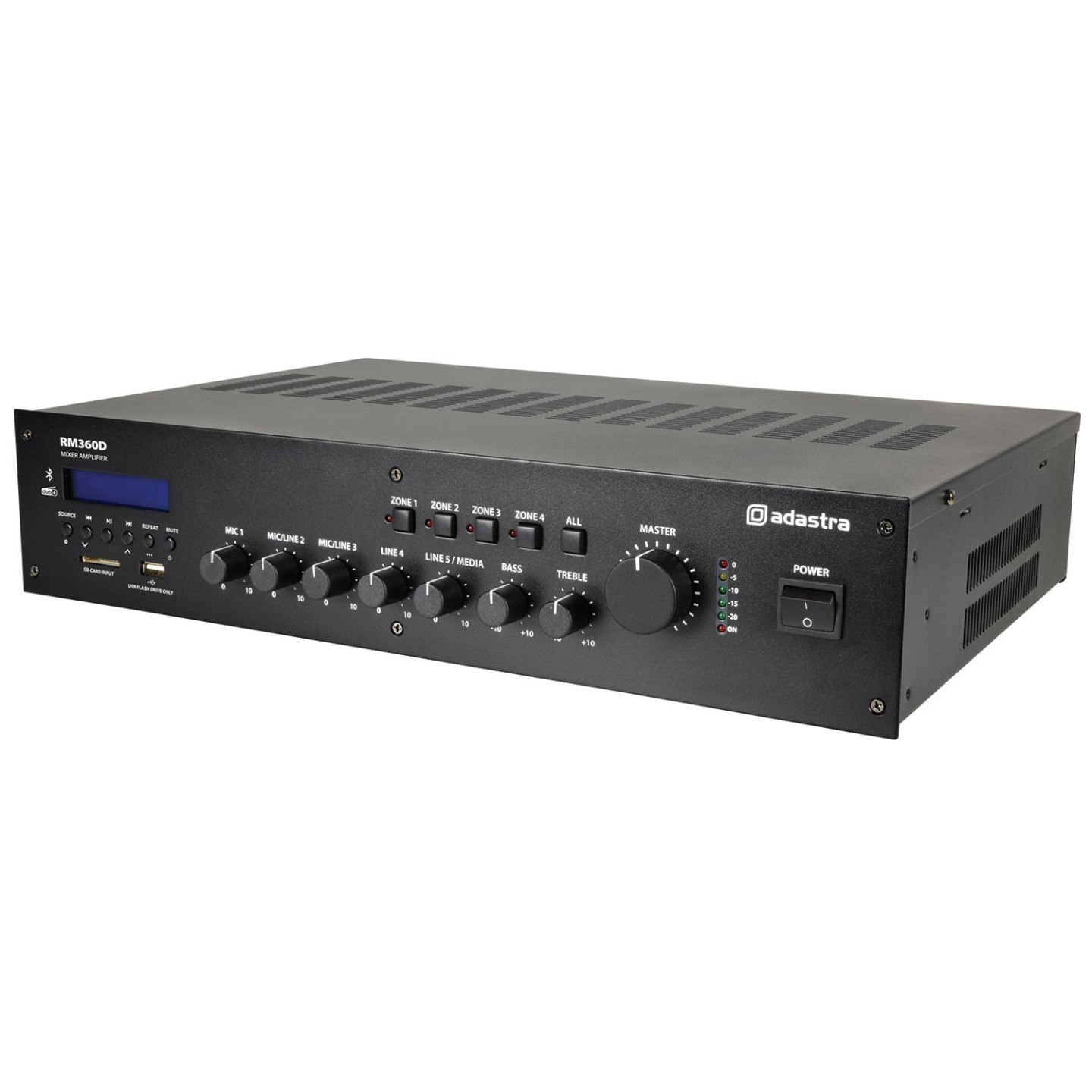

Adastra - RM360D - 100V 360W FM DAB USB BT 4Z 953.226UK
5-channel, 19" rack-mount mixer-amplifier for commercial installations; powers 100V line or standard speakers down to 4 Ω, with USB, FM, DAB, and Bluetooth.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| AV Receivers - Channels | 5.1 |
|---|
5-channel 19" rack-mountable mixer-amplifier, tailored to commercial sound installations to power 100V line speakers or standard speakers down to a 4 Ohm load. Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt DAB+/FM radio tuner, front-mounted SD/USB ports, and Bluetooth® connectivity, all controlled via an integrated media player for hassle-free playback. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1, and rear panel 24V contacts can mute all except mic input 1 when triggered. Outputs on screw terminal are via 4 switchable zones with a separate "always on" output for priority alert speakers.
- DAB+/FM radio tuner
- Bluetooth receiver with unique serial ID
- USB/SD audio player
- 4 switchable 100V outputs and 1 unswitched output
- Optional 4-16 Ohm output
- XLR input with switchable +20V phantom power
- 2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
- Switchable VOX voiceover feature
- 2U 19" rack mountable (rack ears supplied)
- 24V emergency mute contacts
- Mains 230Vac or 24Vdc power option
- Output power : rms : 360W
- Inputs : Mic XLR, 2 x mic/line jack, 2 x RCA line
- Input sensitivity : mic 1 (balanced) : -53dBV
- Input impedance : mic 1 : 5k Ohms
- Input sensitivity : line (unbalanced) : -15dBV (-18.5dBV line 5)
- Input impedance : inputs 2-5 : 1k Ohms
- Line output : RCA

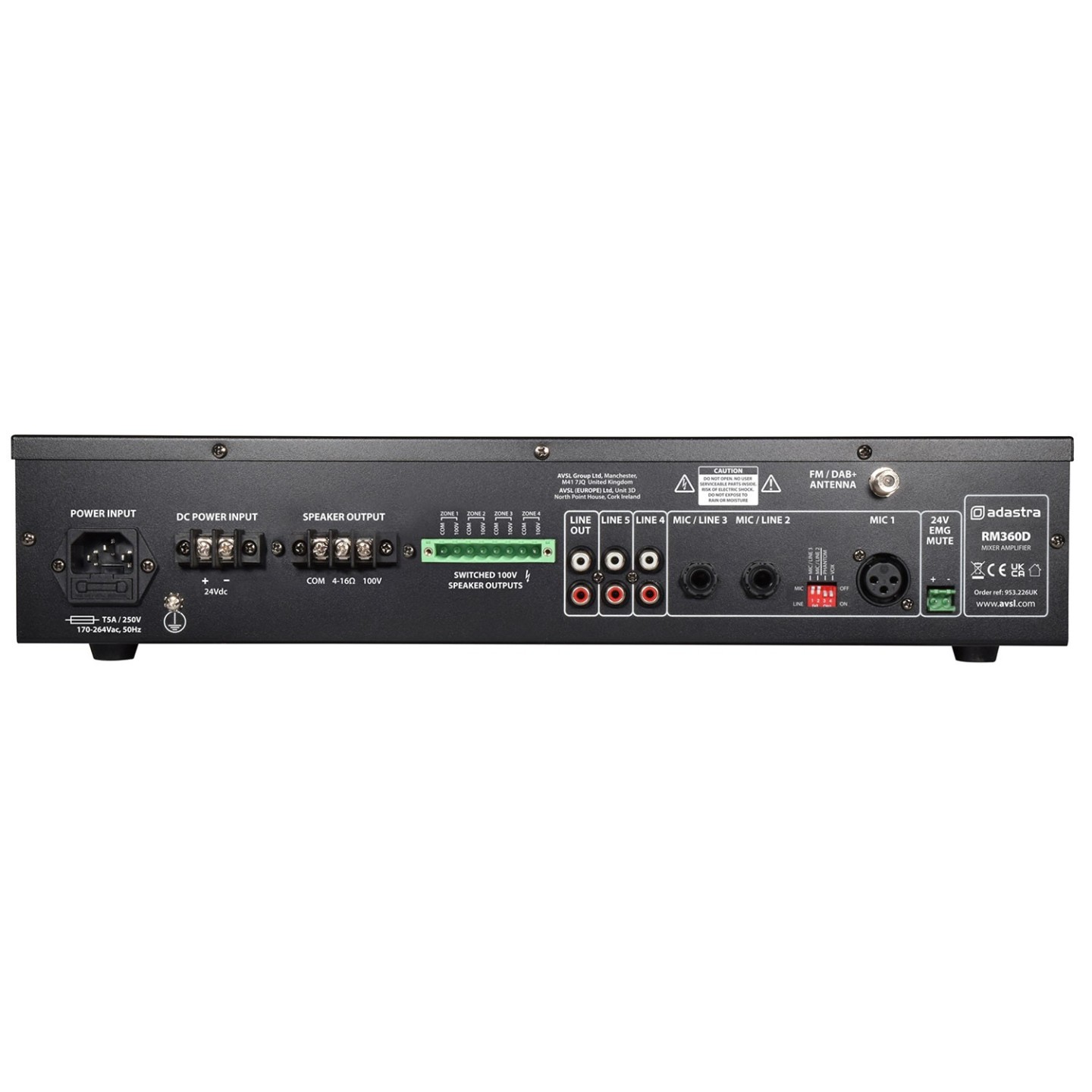

- Speaker outputs : 4 switched + 1 non-switched 100V / 4-16 Ohms / COM
- Bluetooth version : 5.0
- Controls : Mic1, mic/line2+3, line4+5, bass, treble, master volume
- Equaliser : bass : 100Hz ±10dB
- Equaliser : treble : 10kHz ±10dB
- Rear panel switches : Phantom, Vox, Mic/Line (2 + 3)
- Phantom power : +20V (mic 1 XLR, switchable)
- Audio source : DAB+/FM tuner, USB/SD player, Bluetooth receiver
- Emergency control : 24V contacts - mute all except Mic.1 when triggered
- THD : <1.0%
- Power supply : 170-264Vac, 50Hz (IEC)
- DC power : 24Vdc (screw terminals)
- Weight : 9.14kg
- Dimensions : 433 x 410 x 88mm
- Fuse : T5A
| Amplifier Type | Mixer Amp |
| Power | 360W |
| Zones | 4 |
| Zone Control | On-Off |
| USB / FM / BT | Yes |
| Rack Mountable | Yes |
