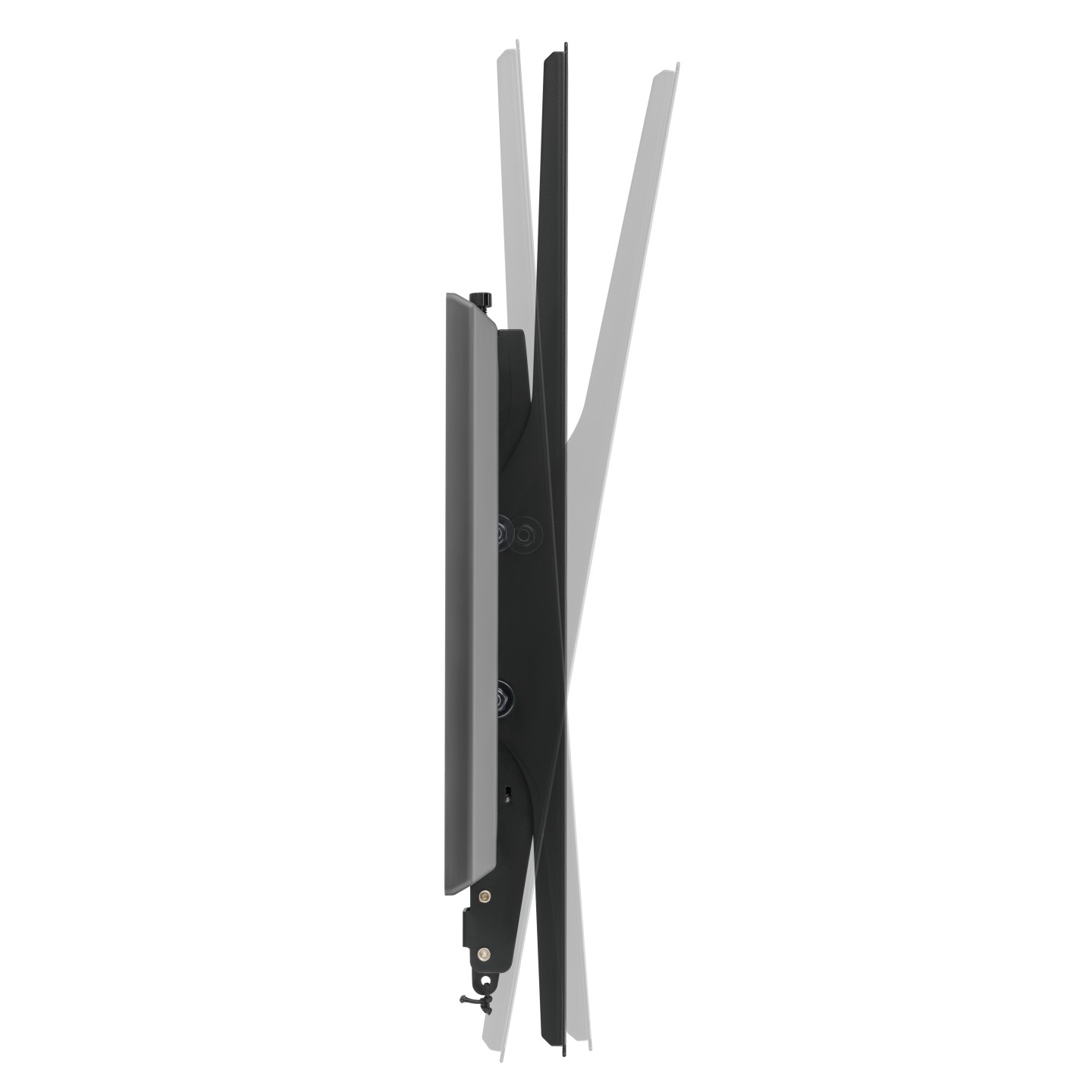

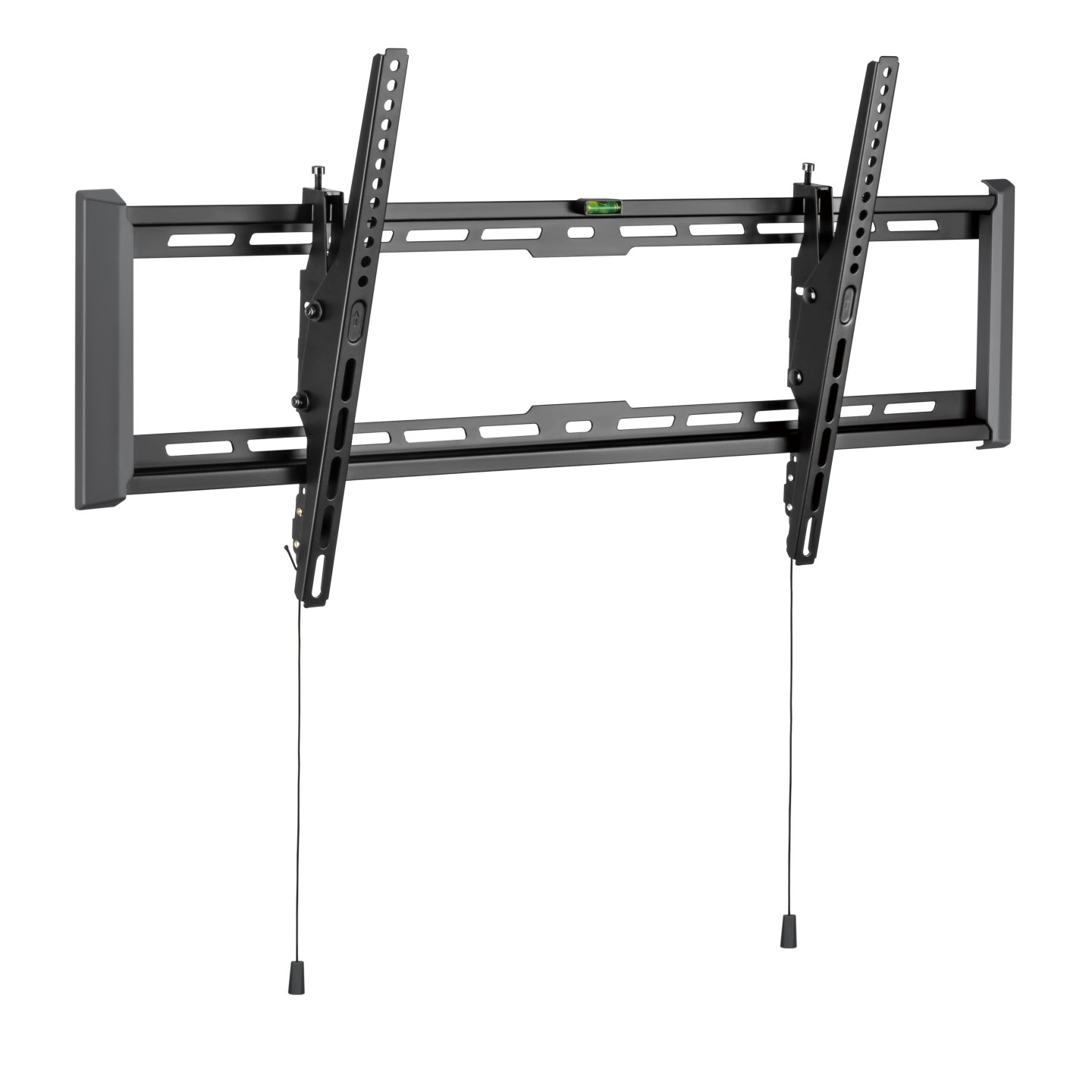

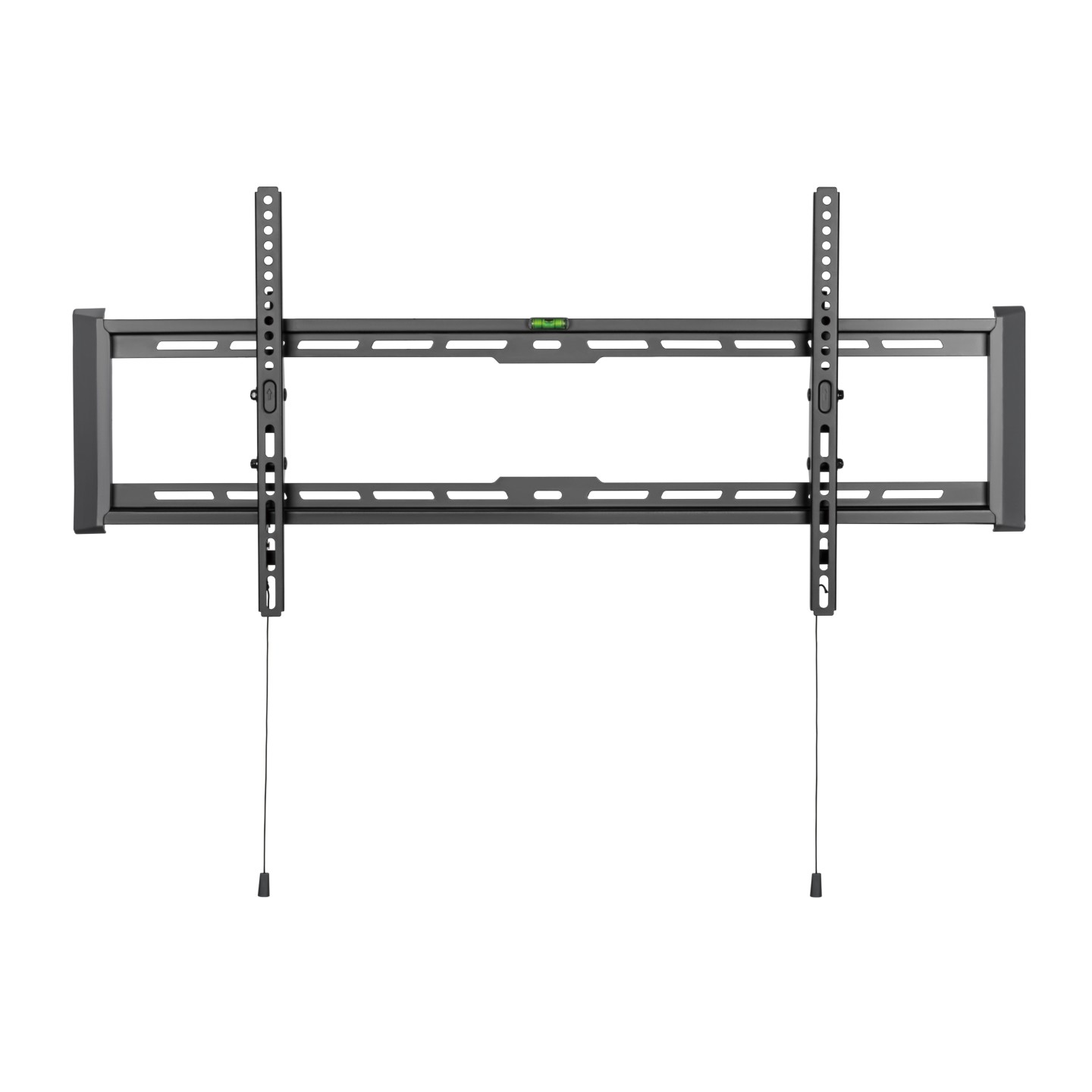

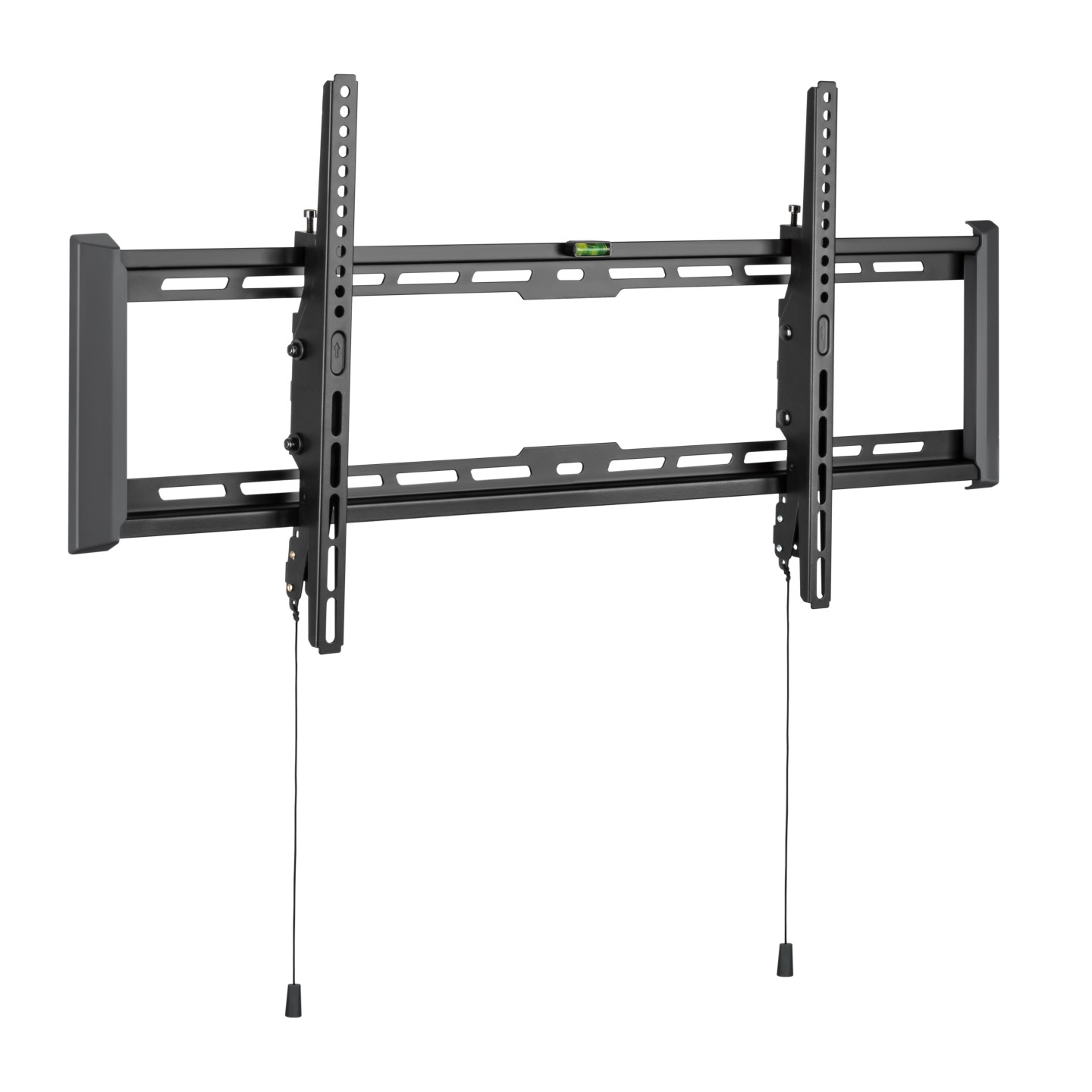

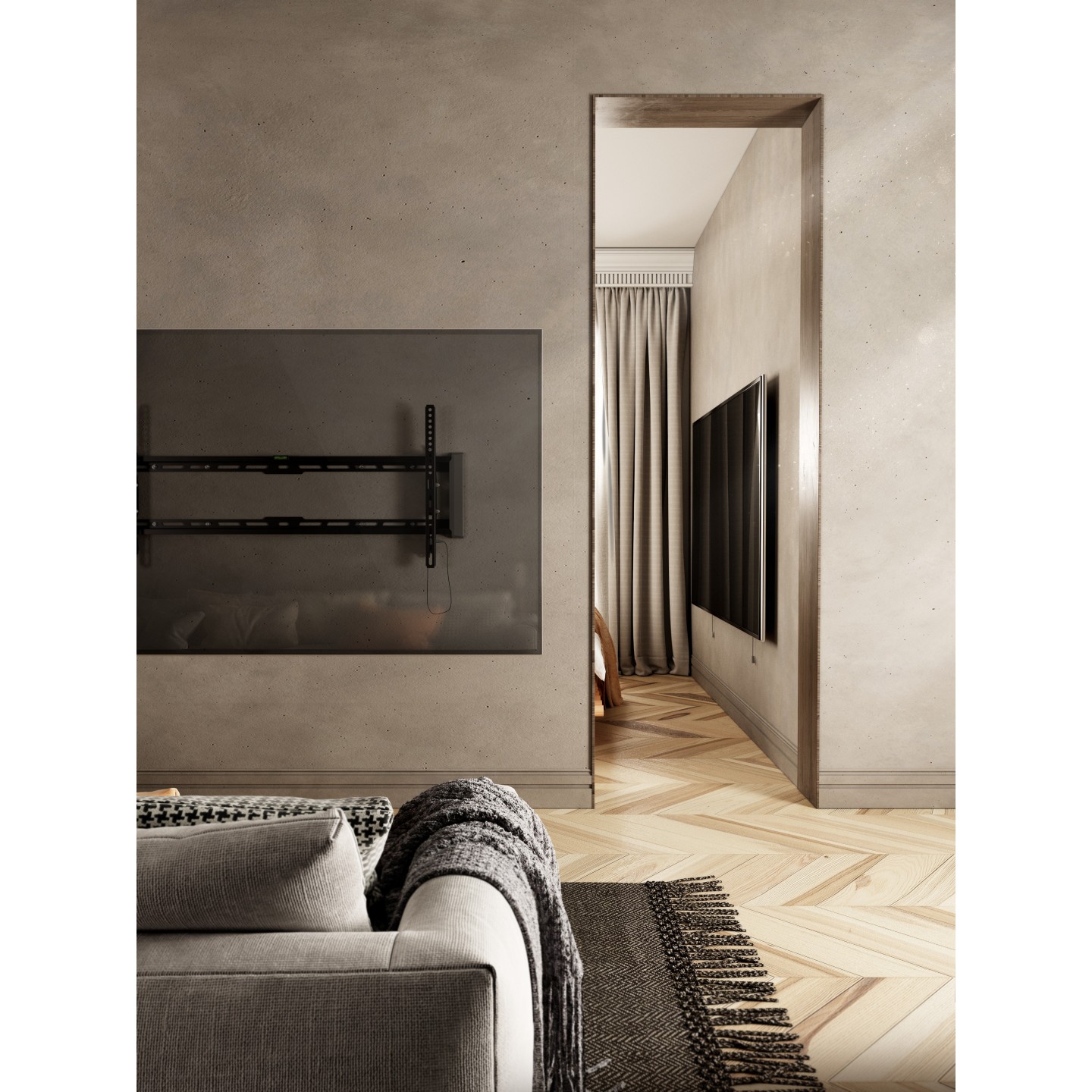

Brateck TV Mount - LP77-48T - 80x40 Tilt 75kg
Free-tilting TV mount with easy forward/backward tilt, ultra-slim profile, and heavy-duty steel construction for durability.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| TV Wall Mounts - Type | Tilt |
|---|---|
| TV Wall Mounts - Max Load | 75 kg |
- Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
- Ultra-slim design
- Heavy-Duty Steel Construction: provides extra strength and durability
- Leveling adjustments: allow TV to be perfectly positioned after hanging
- Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
- Magnetic Strap End: hides itself when not in use.
- Decorative Covers: for a more elegant look
- Bubble level included
- Product Category: Tilt TV Wall Mount
- Rank: Standard
- Material: Steel,Plastic
- Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Wall Plate THK=0.059" cold-rolled sheet,Bracket Arm THK=0.059" cold-rolled sheet)
- Surface Finish: Powder Coating
- Color: Matte Black & Dark Grey,Matte White & Light Grey
- Dimensions: 47x970x430mm (1.9"x38.2"x16.9")
- Fit Screen Size: 43"-90"
- Fit Curved TV: Yes
- Mounting Hole Pattern: VESA & Universal
- VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400
- Max. Mounting Hole: 850x405
- Weight Capacity: 75kg (165lbs)
- Strength Tested: 4 Times Approved
- Profile: 47mm (1.9")
- Tilt Range: +4°~-10°
- Screen Level: 8mm
- Screen Freely Tilting: No
- Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
- Panel Type: Detachable Panel
- Wall Plate Type: Fixed Wall Plate
- Direction Indicator: Yes
- Cable Management: No
- Anti-theft: No
- Bubble Level: Hook-on Bubble Level(Included in Components Package)
- Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
| Function | Tilt |
| Max Vesa | 800x400 |
| Max. Weight | 75kg |
