Adastra Touch Wall Plate - 953.050UK - for RZ45 Matrix
Remote control for the RZ45 audio matrix; single-gang 86x86 mm wall plate with an illuminated touchscreen.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

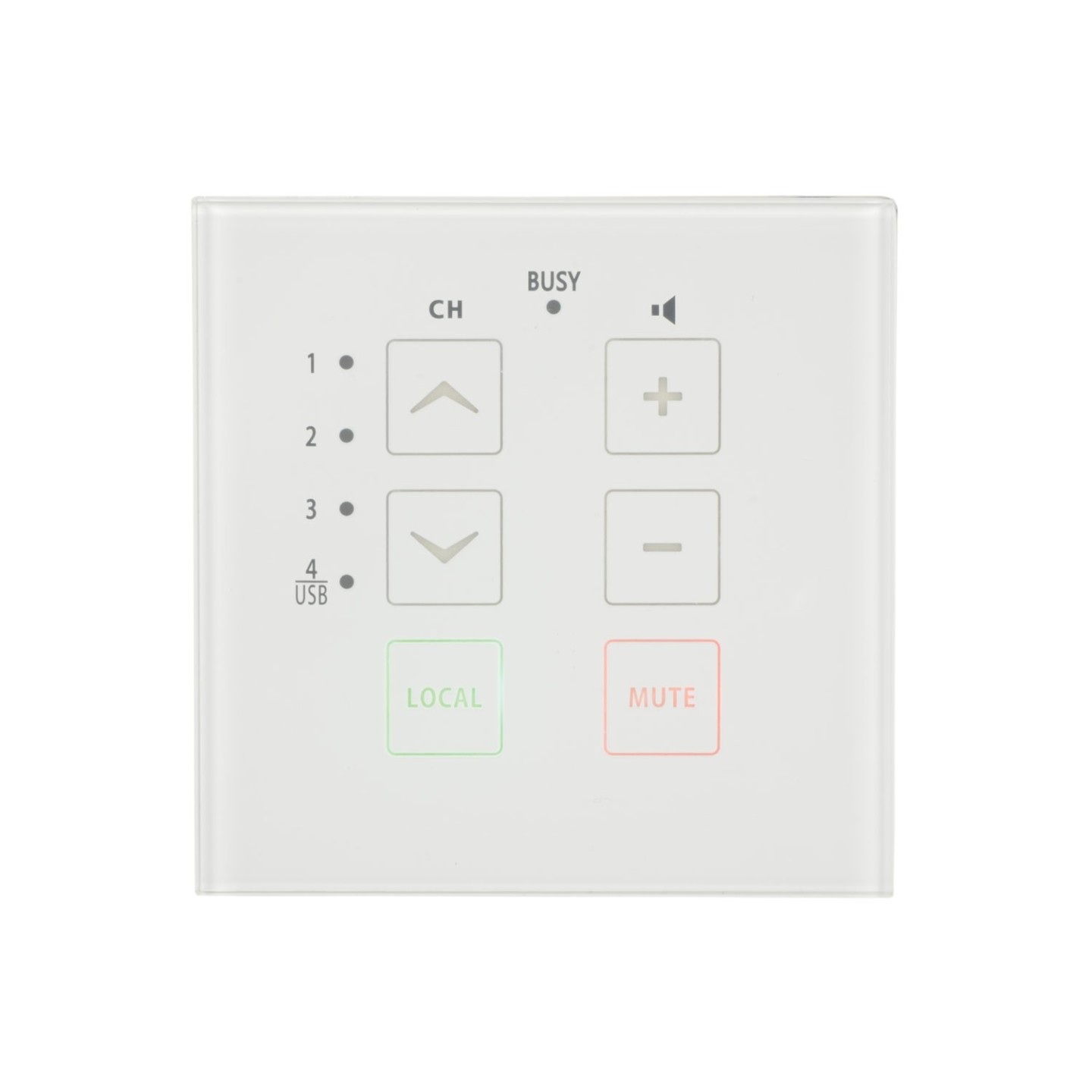

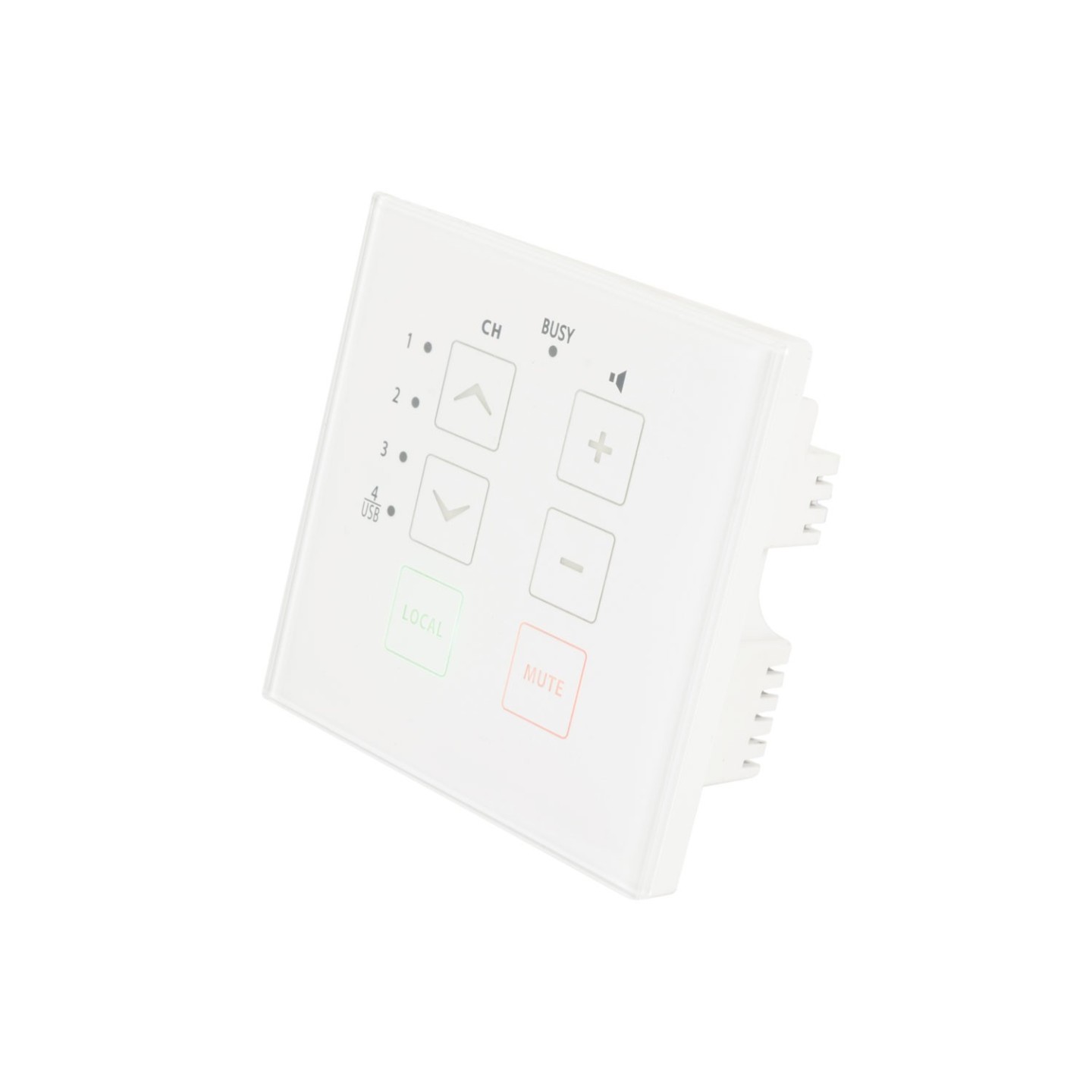

Remote control for the RZ45 audio matrix system built into a single gang 86 x 86mm wall plate. The illuminated acrylic touch-operated surface selects between 3 stereo audio sources or the inbuilt media player on the RZ45 and controls the output level to its zone. Connection by standard network cable carries signal and power to the TR86 panel up to 100m away from the RZ45 or signal up to 1km away with a separate 24Vdc power input. Additionally, a mono line level signal can be wired internally to the panel via screw terminals to provide an independent local audio source. Up to 5 TR86 remote panels may be used with a single RZ45 unit controlling up to 5 independent zones.
- Hygienic acrylic touch operated surface
- Illuminated with colour coded indicators
- Easy installation via RJ45 connection
- Up to 5 remote panels per RZ45 audio matrix
- Up to 100m powered directly from RZ45 or 1km with +24V power
The box for this item contains:
- TR86 remote control wall plate
- Power supply: 24Vdc (from RZ45 or externally)
- Connection: 8P8C (RJ45)

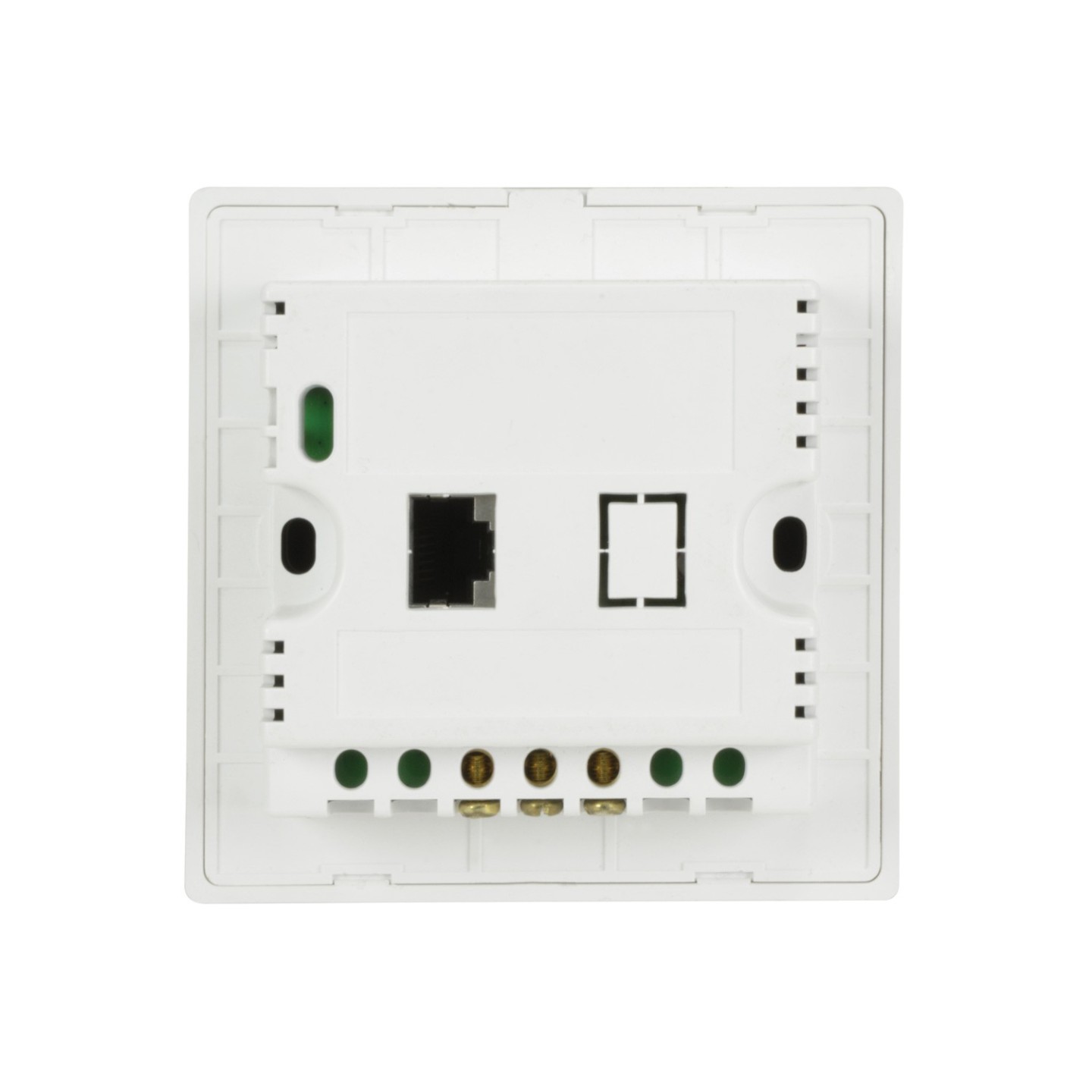

- Terminals: Local +24V, Ground, Local line input
- Controls: Sources 1-4 (USB), Local, Mute, Level +/-
- Mounting depth: 38mm
- Dimensions: 86 x 86 x 38mm
- Weight: 128g
| Amplifier Type | Matrix Amp |
