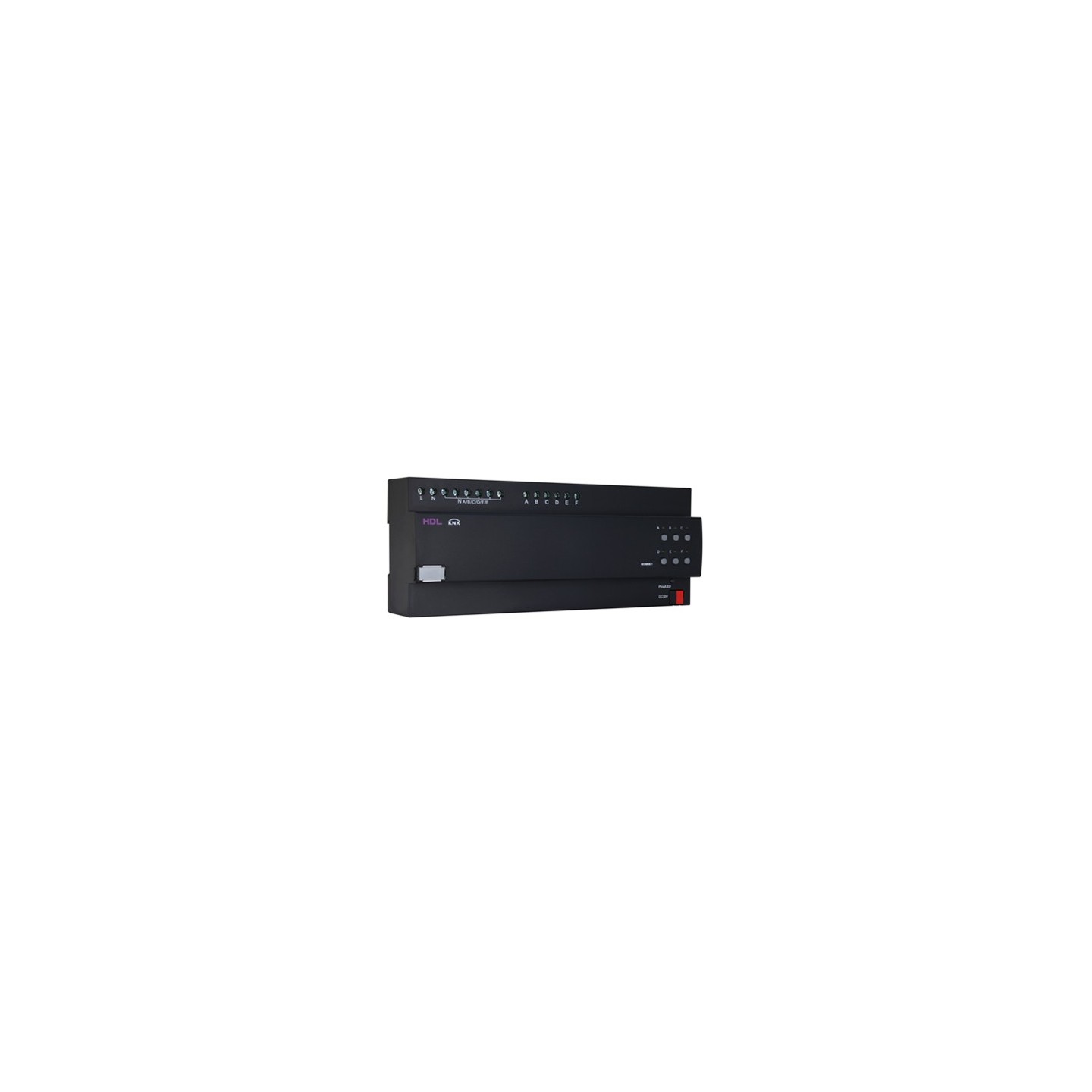

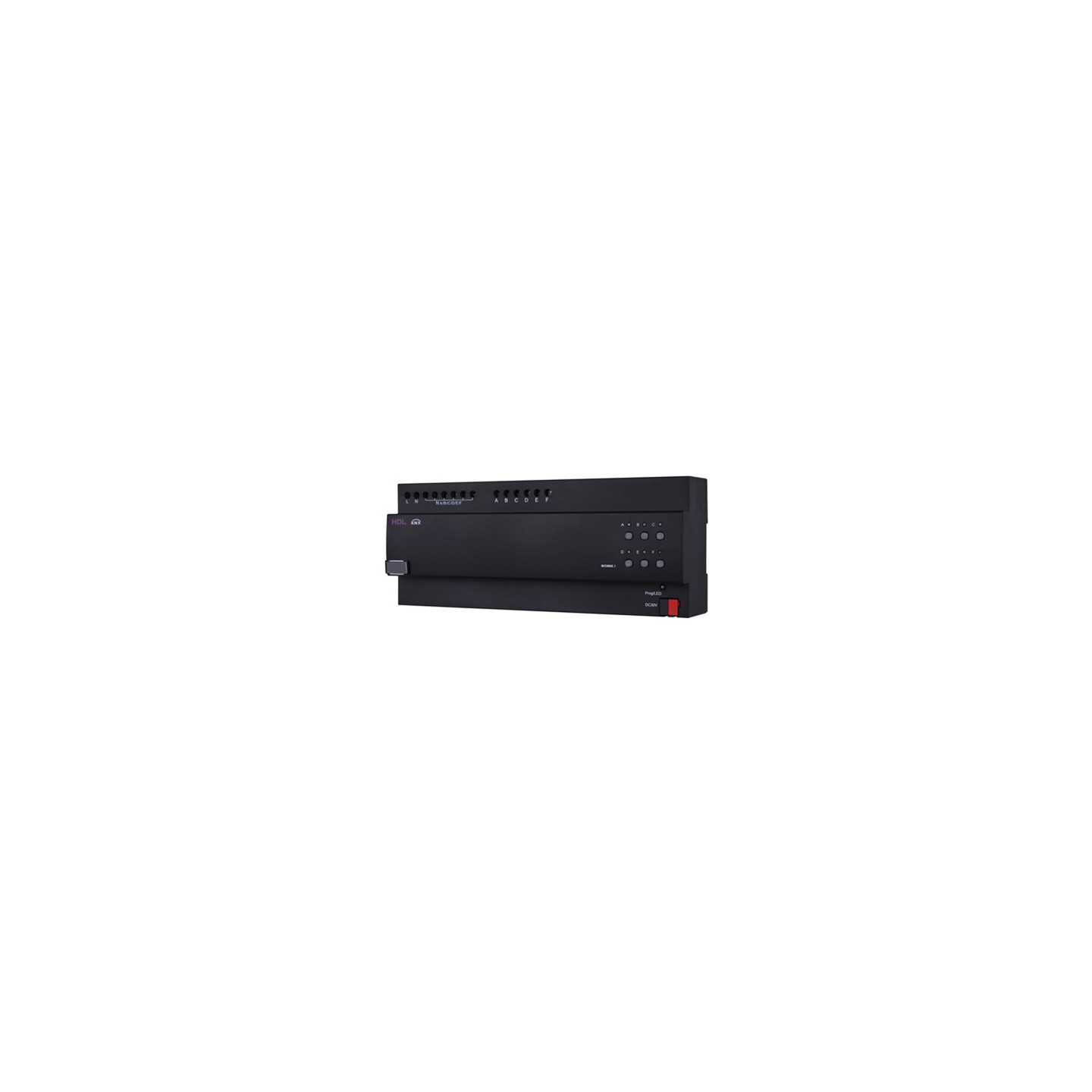

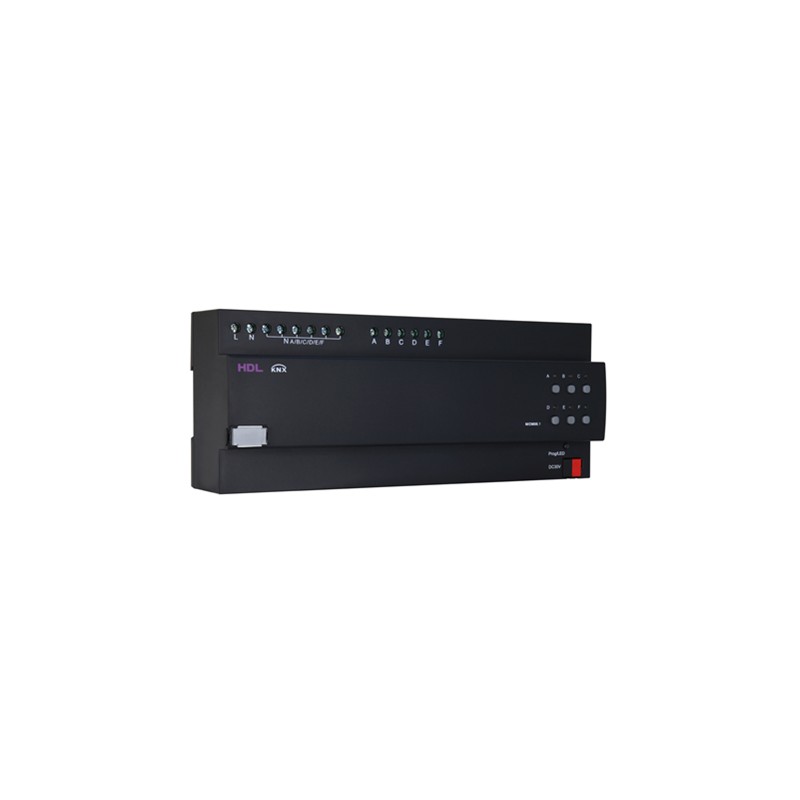

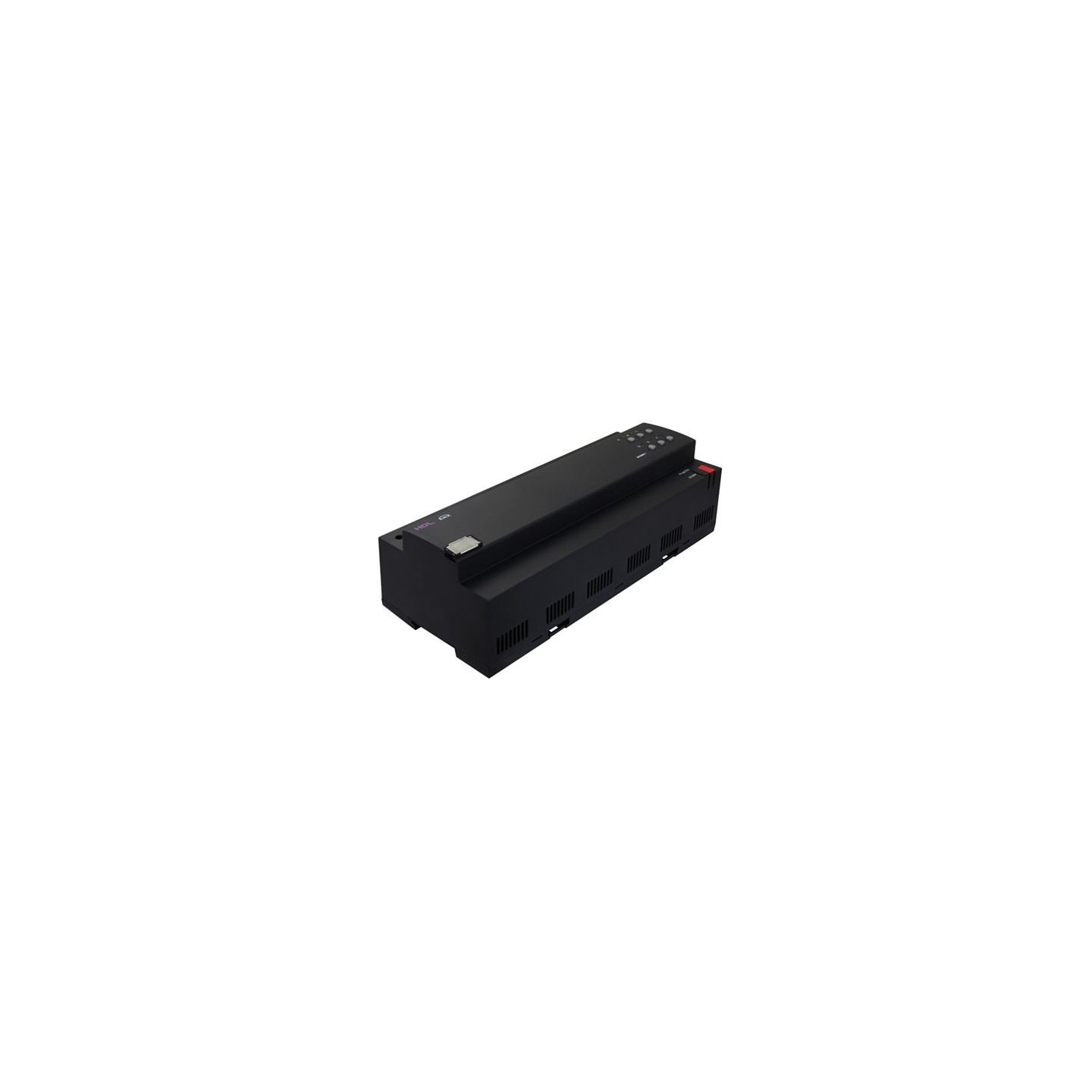

HDL Trailing Edge Dimming Actuator - 6CH 1.5A
6-channel 1.5A trailing edge dimming actuator with DIN-rail mount; 3A per channel (9A total), 110/220 VAC, 50-60 Hz, LED indicators and bypass button per output.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Smart Switches - Type | Dimmer |
|---|
6CH 1.5A Trailing Edge Dimming Actuator, DIN-Rail Mount, 3A per channel and totally 9A, both 110/220 VAC, 50-60Hz, LED status indicator and bypass button for each output, parallel channels can form heavy current output.
- 3 types of output circuits: 2, 4 and 6 channels of dimming actuator.
- Supports leading and trailing edge mode. It is recommended to adopt the leading edge dimming mode
- for inductive loads, and the trailing edge dimming mode is recommended for other load types.
- Parallel channels can form heavy current output.
- Manual control: Manual switching, dimming for each channel.
- Application functions: Statistics ON time, Status response, Status recovery, Short-circuit protection,
- Overload protection, Overheat protection, Staircase light, Flashing light, Scene control, Scene dimming,
- Read temperature, Overheat alarm, Dimming higher limit control, Dimming lower limit control, Sequence control, Heating control (PWM).
| Channels | 6Ch |
| Current | 1.5A |
