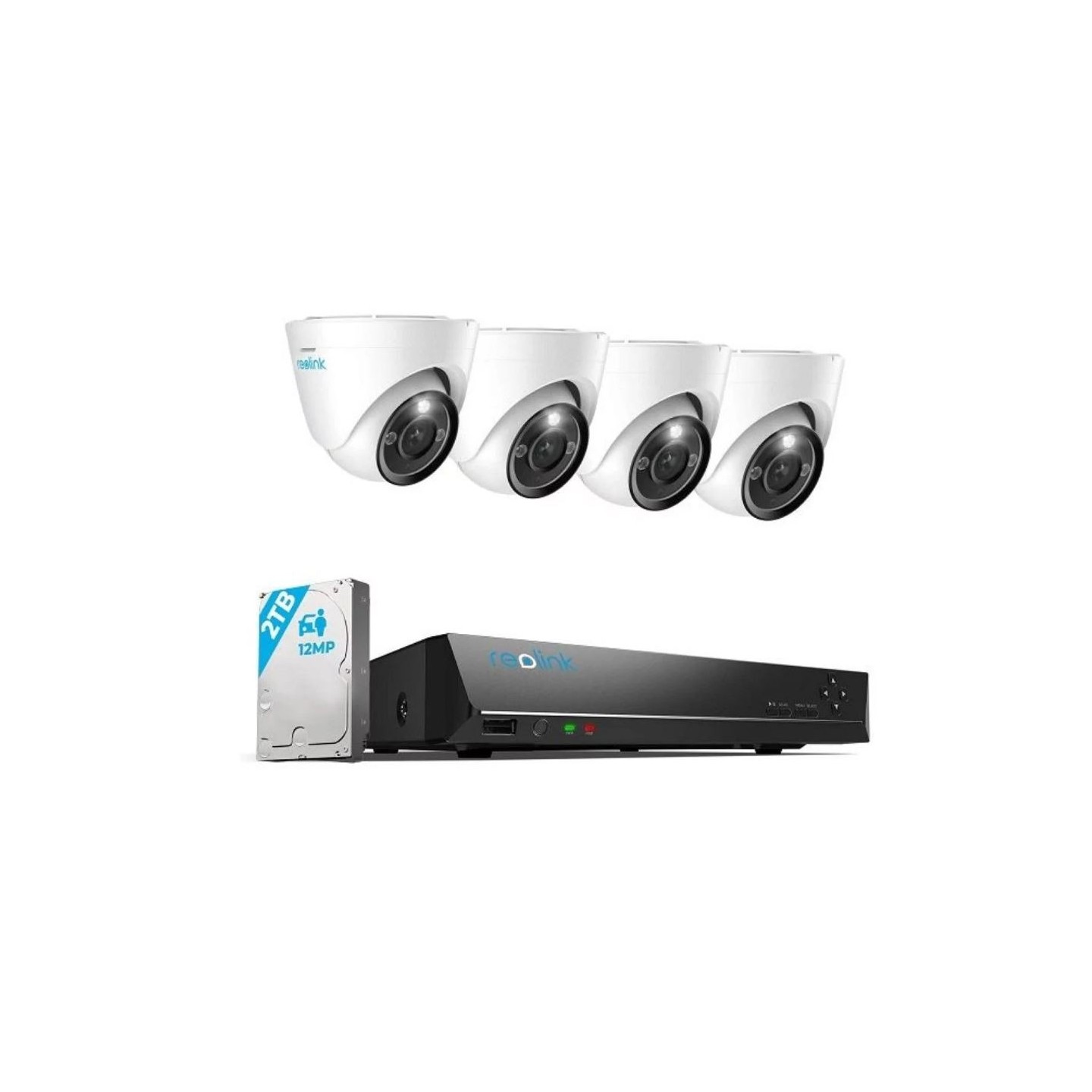

Reolink KIT - RLK8-1200D4-A - 8xChNVR+4x12MP Dome+2TB NVR
8-channel NVR kit with 4x12MP dome cameras and 2TB storage; PoE; AI features: person/vehicle/pet detection.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Form Factor | Dome |
|---|---|
| IP Cameras - Power | PoE |
| IP Cameras - Audio | Mic |
| IP Cameras - Storage | NVR Only |
- Person/Vehicle Detection
- 12MP Ultra HD
- Power over Ethernet
- 8-Channel NVR
RLN8-410
- Hardware : V2
Video/Audio Input
- IP Video Input : PoE IP camera x 8
- Audio Input : Cameras with built-in mic
- Video/Audio Output
- Video Output : VGA, HDMI
- Display Resolution : HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 / VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
- Audio output : 1-channel, RCA
Decoding
- Video Format : H.264, H.265
- Live View/Playback Resolution : 7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p
- Synchronous Playback : Up to 4 channels
HDD
- SATA : 1 x SATA interface (1 x 2TB HDD included)
- External HDD : 1 eSATA interface for HDD
- Capacity : Up to 12TB (max. 6TB capacity for each HDD)
External Interface
- USB Interface : 2 x USB 2.0
- Network Interface : 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN / 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
PoE
- Max. Power Per Port : 25W
- Supported Standard : IEEE 802.3af/at
Network
- Network Protocols : HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- Browsers Supported : Edge, Firefox, Chrome, Safari
- OS Supported : PC: Windows, Mac OS; smartphone: iOS, Android
- Max. User Access : 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
- Power Supply : DC 48V~53V
- Power Consumption : <10W (without HDD & PoE)
- Working Environment : Temperature: -10°C~+45°C, humidity: 10%~90%
- Dimensions : 260 x 41 x 230mm
- Weight : 1.4kg
Note: The cameras of the kit cannot work without the NVR.
D1200 (4.0mm)
- Video & Audio
- Image Sensor : 1/2.49" CMOS Sensor
- Video Resolution : Default: 4512X2512 (12 megapixels) at 20 frames/sec
- Lens : f=4.0mm; F=1.6, with IR-cut filter
- Video Format : H.265
- Field of View : Horizontal: 93° / Vertical: 49°
- Day & Night : Auto-switching with IR-cut filter
- Infrared Night Vision : 30 meters (LED: 2pcs/28mil/850nm)
- Color Night Vision : Spotlight: 1pcs/4.3W/6500K/700 Lumens
- Audio : Two-way audio (via Reolink App/Client)
Power
- PoE : IEEE 802.3af, 48V Active
- DC Power : DC 12.0V⎓1A, <12W
Interface
- Power : DC power port
- System : Reset button
- Ethernet : One 10M/100Mbps; RJ45
- Audio : Built-in microphone and speaker
Software Features
- Frame Rate : Mainstream: 2fps - 20fps (default: 20fps) / Substream: 4fps - 20fps (default: 10fps)
- Code Rate : Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps) / Substream: 128Kbps - 1024Kbps (default: 768Kbps)
- Smart Alarm : Motion detection; person detection; vehicle detection; pet detection
- Record Mode : Motion-triggered recording (default); scheduled recording; 24/7 recording
Working Environment
- Temperature : Operating temperature: -10°C~+55°C
- Humidity : Operating humidity: 10% ~ 90%
- Waterproof : IP67
Size & Weight
- Dimension : Φ117.4*103.7mm
- Weight : 510g
| AI Features | Person,Vehicle Detection,Pet Detection |
| Camera Resolution | 12.0MP |
| Housing Type | Dome |
| Channels | 8 |
| PoE Ports | 8 |
| Compression | H.265/H.264 |
| HDD | 2 Disk Up to 6TB |
| Lens | Fixed |
| Lens Size | 4.0mm |
| IR Distance | Up to 30m |
| Audio | Built-in Mic |
