Adastra RACK-IT Wall Counter Brackets - 853.081UK - 1U pair
Wall-mount brackets (pair) for vertical rack equipment; 485 mm spacing; screws, plugs and M6 hardware included; option to add rear pair for under-counter installations.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Rack Cabinets - Type | Wall Mount |
|---|

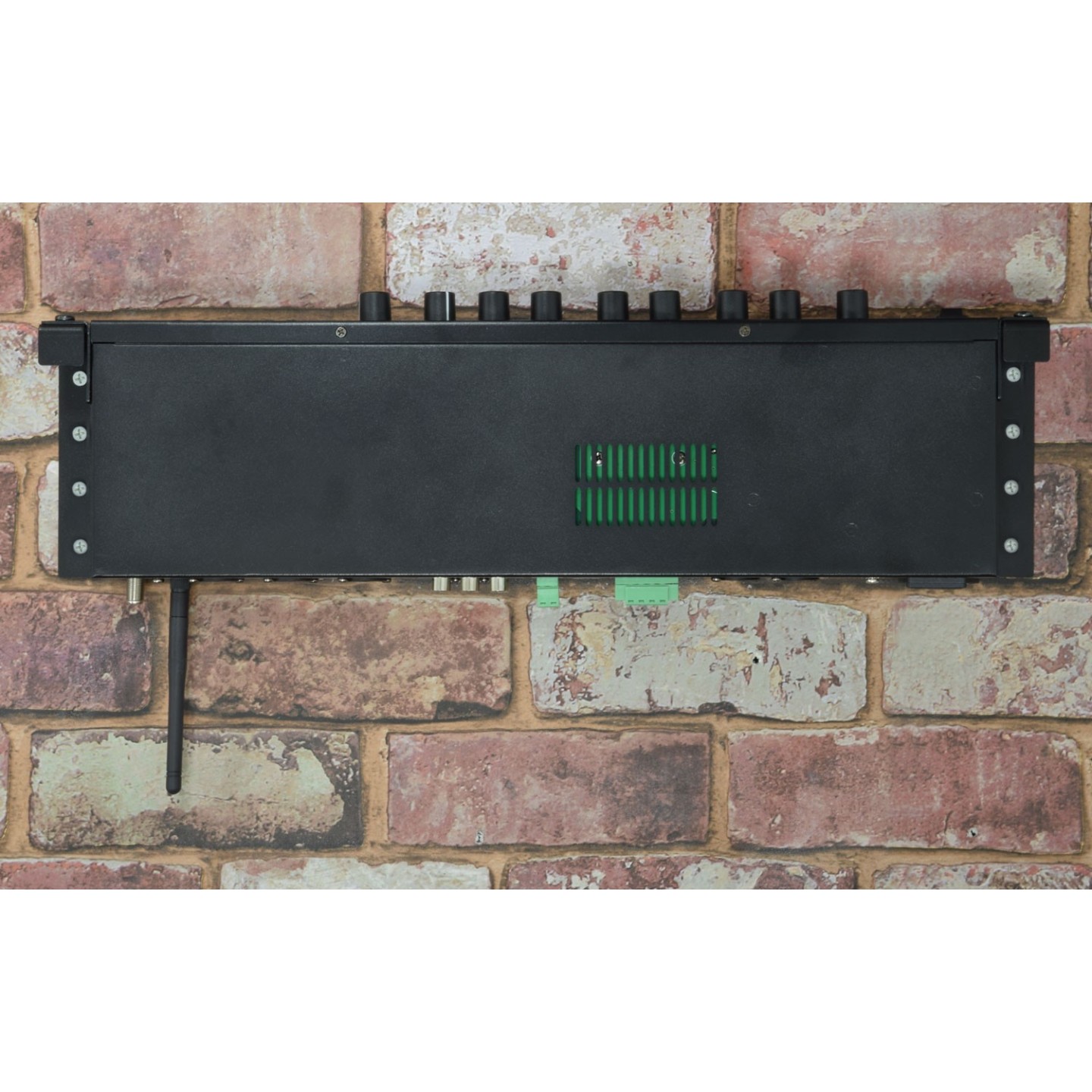

RACK-ITs are a straightforward solution for fixing rack-mount equipment vertically against a wall or even under a counter-top. Save the additional cost and bulk of rack cabinets and simplify installation work for individual rack-mountable equipment. Supplied in pairs - one for each side - an appliance can be simply suspended by its own rack-ears by measuring 485mm between the outer edge of each of the RACK-ITs and fixing at level height to a wall or upright surface. Screws and wall plugs are provided for fixing each bracket and M6 screws and nuts are provided for mounting the rack equipment to each bracket. Alternatively, use an additional pair of RACK-ITs to support the rear of deeper or heavier rack equipment, enabling installation under a counter top or work surface. A cost-effective solution for mounting rack units whilst keeping all controls and connections accessible.
- Supplied as a pair for suspended wall mounting
- Add another pair for rear support in under-counter installation
- Supplied with 4 screws and wall plugs per bracket
- Supplied with M6 screws and nuts for rack mounting to each side
- Saves cost, space and installation time compared with cabinets
- Weight (each) 59g
- Dimensions (each) 122 x 50 x 22mm

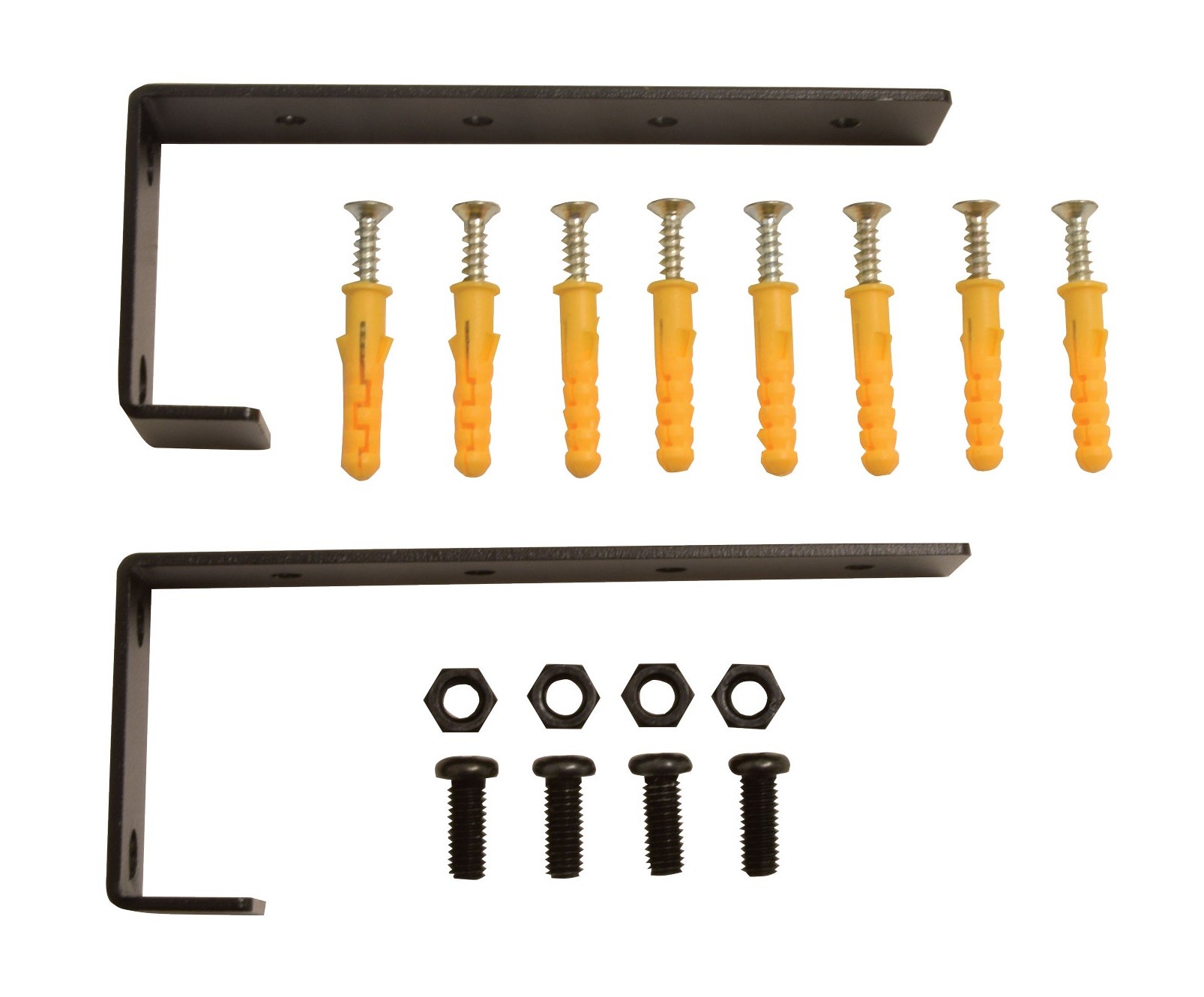

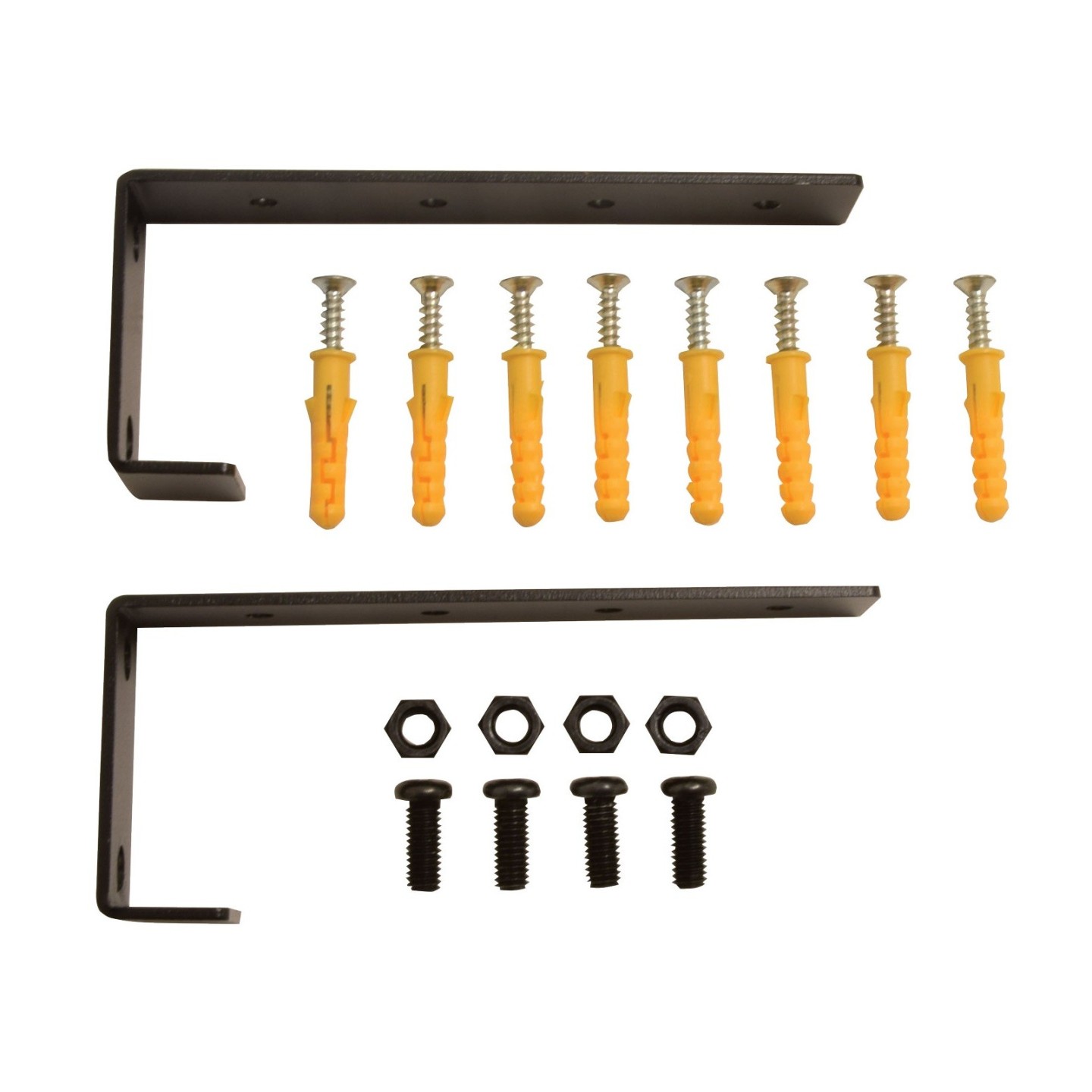

The box for this item contains :
- 2 x mounting brackets
- 8 x 25mm screws & wall plugs
- 4 x M6 rack-mounting screws
- 4 x M6 rack-mounting nuts
