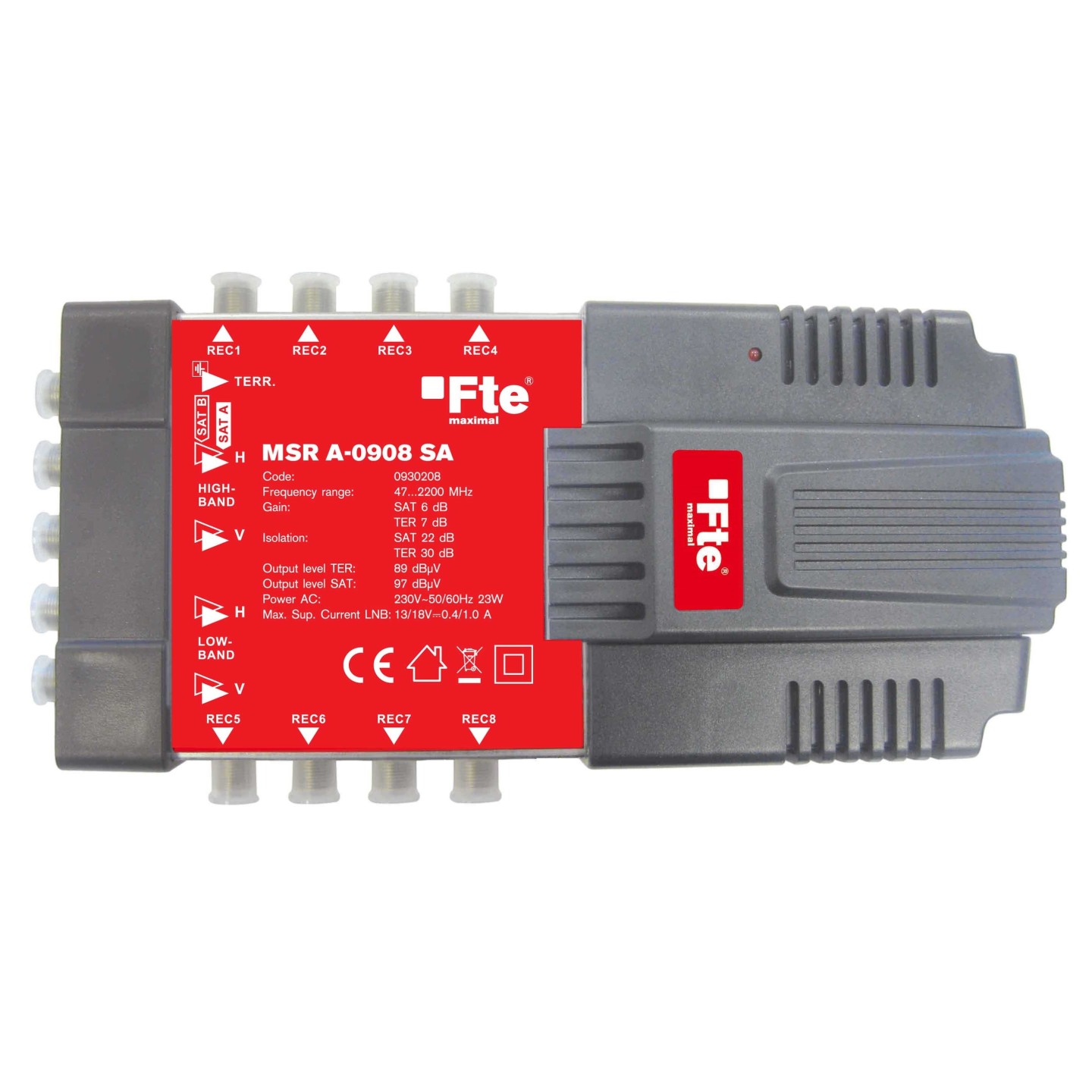

FTE Multiswitch - MSRA0908 - 9 8 Active Sat Ter Multiswitch
9 inputs (8 SAT, 1 TER), 8 outputs; Active terrestrial multiswitch. SAT 950-2200 MHz; TER 47-862 MHz; Isolation TER-to-SAT ≥30 dB, SAT-to-TER ≥28 dB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Number of inputs: 8 SAT, 1 TER
- Subscriber outputs: 8
- Connectors (F-con): female
- Frequency range (MHz): SAT 950-2200, TER 47-862
- Isolation: TER to SAT ≥ 30 dB, SAT to TER ≥ 28 dB
- Isolation cross polarisation H/V: ≥ 25 dB
- Isolation: out - out TER ≥30 dB, out - out SAT ≥ 22 dB
- Return loss: SAT inputs ≥ 10dB, SAT outputs ≥ 8dB, TER inputs ≥ 10dB, TER outputs ≥ 8dB
- Output level: SAT (IMD- 35 dB) 97 dBμV, TER (IMD- 60 dB) 89 dBμV
- Impedance input/output: 75 Ohm
- Max current to LNB: 13 VDC: 400 mA / 18 VDC: 1000 mA
- Mains: ~230V ± 15%, 50/60Hz, 23W
- Dimensions: 248x129x64 mm
| Type | Multiswitch |
| Inputs | 9 |
| Outputs | 8 |
| Active Terrestrial | Yes |
| Series | MSR |
