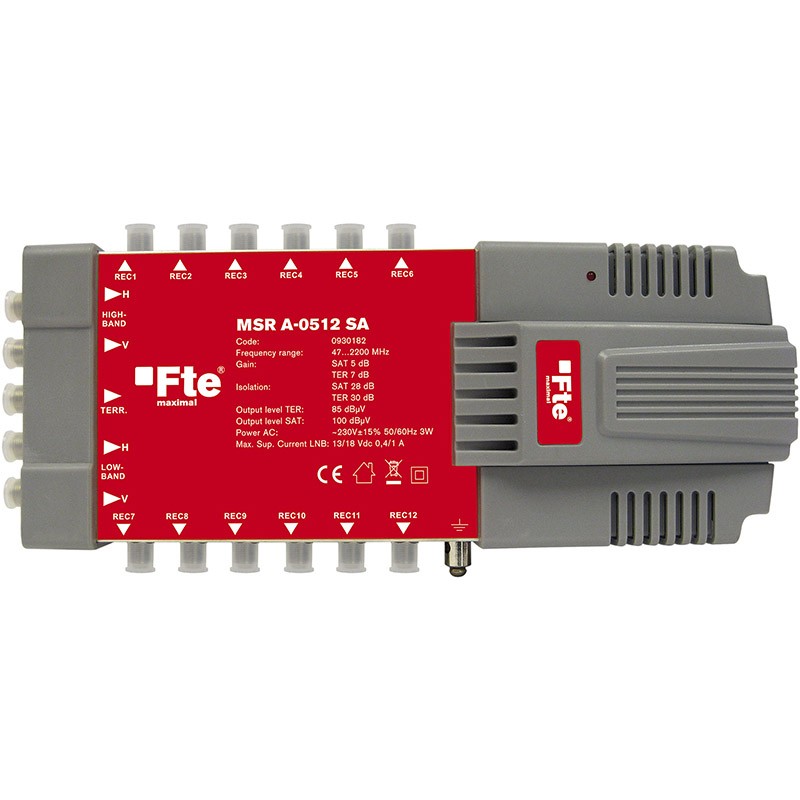

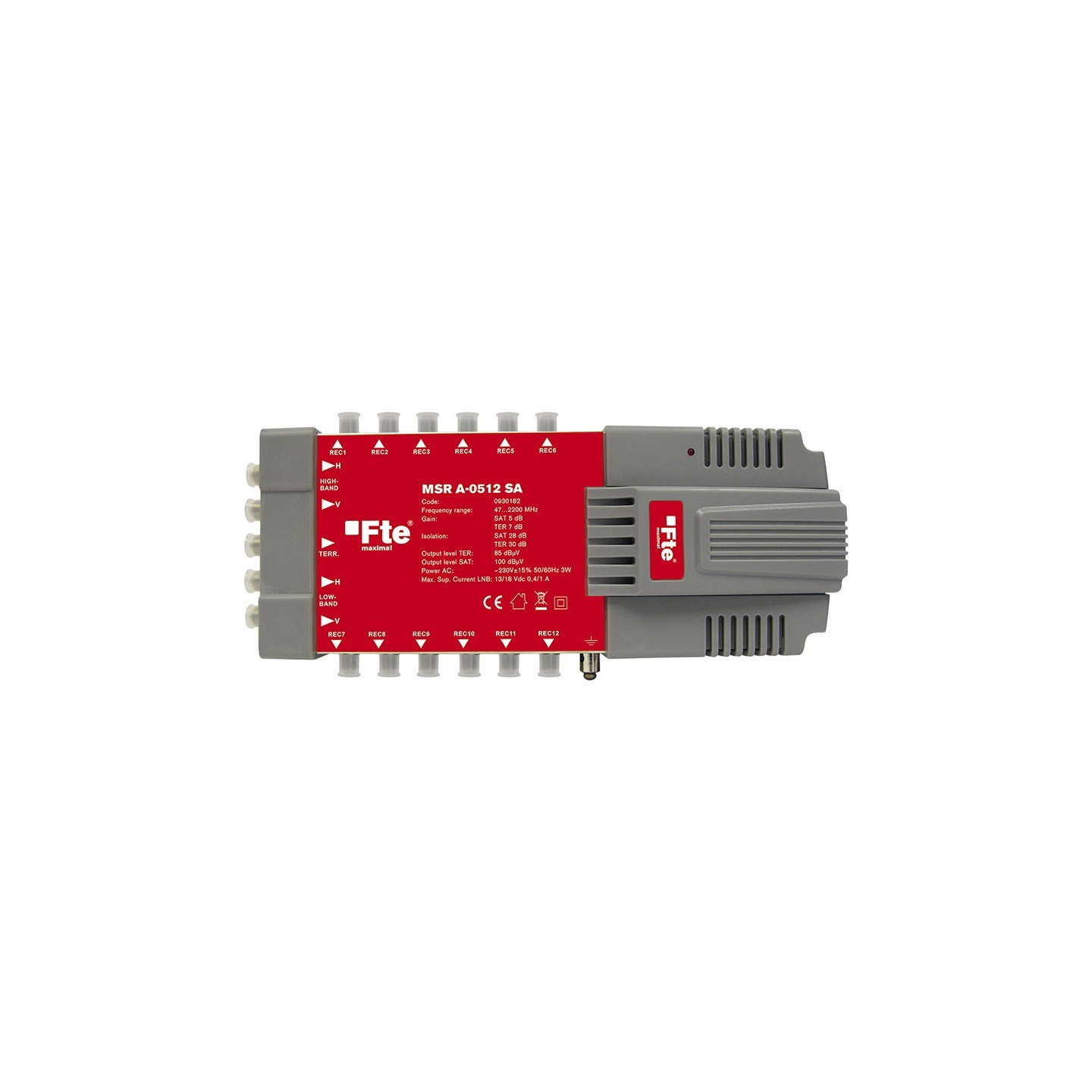

FTE Active Satellite Terrestrial Multiswitch - MSRA0512 - 5 12
5-input 12-output multiswitch with 4 SAT + 1 TER inputs; F-con female connectors; SAT 950-2200 MHz, TER 47-862 MHz; Gains: SAT 5±1.5 dB, TER 7±1.5 dB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Number of inputs: 4 SAT, 1 TER
- Subscriber outputs: 12
- Connectors: (F-con)female
- Frequency range(MHz): SAT 950-2200, TER 47-862
- Gain : SAT 5 ±1.5 dB, TER 7 ±1.5 dB
- Output level: SAT (IMD3 - 35 dB)100 dBμV, TER (IMD3 - 60 dB)85 dBμV
- Impedance input/output: 75 Ohm
| Type | Multiswitch |
| Inputs | 5 |
| Outputs | 12 |
| Active Terrestrial | Yes |
| Series | MSR |
