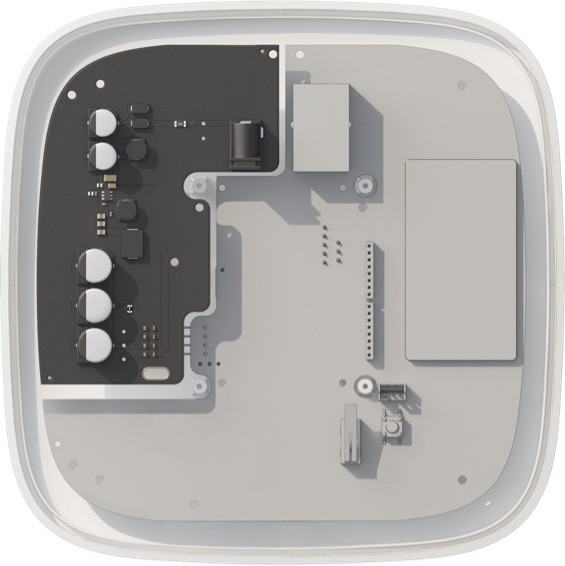

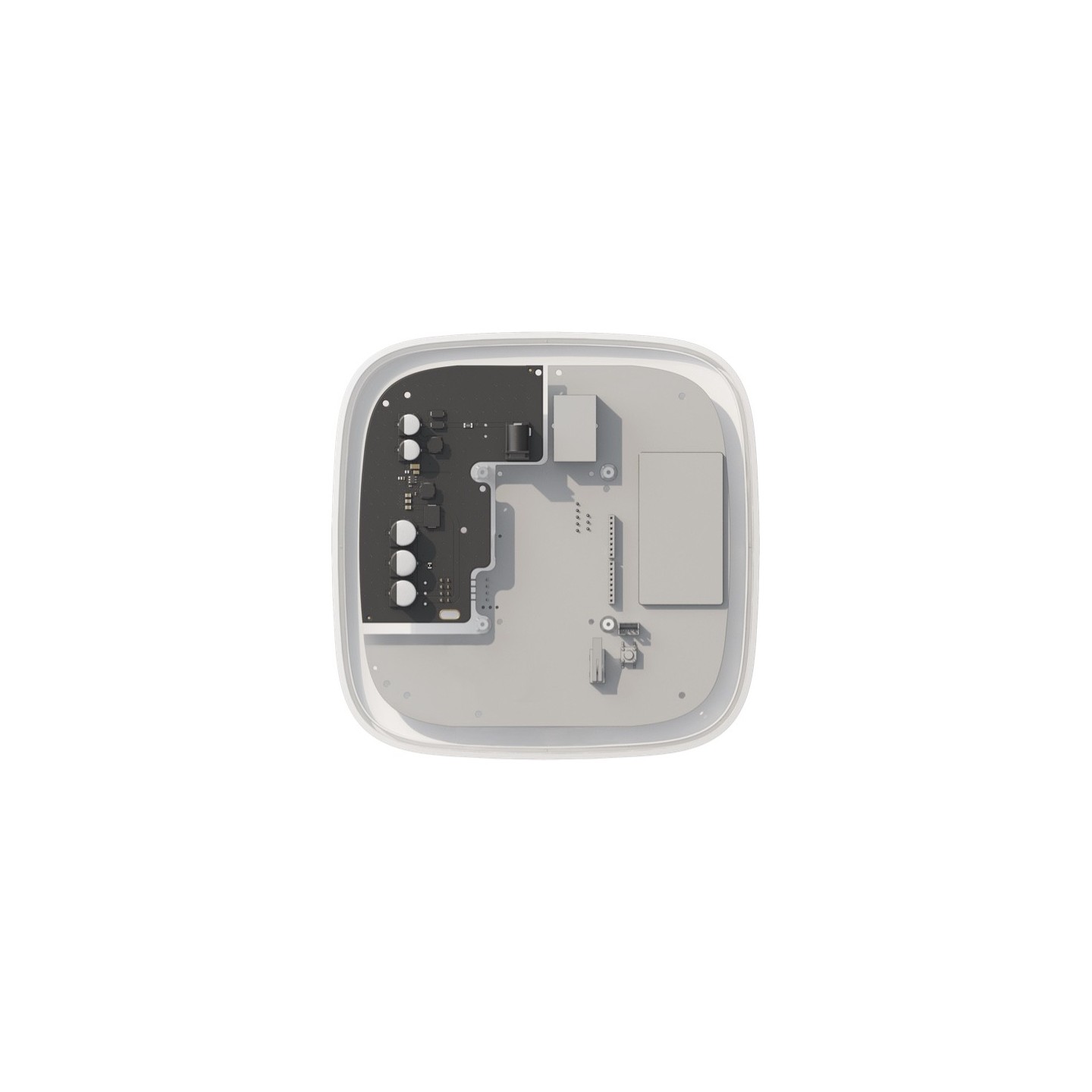

AJAX Power Board - Hub2-Hub2 Plus - 6V
Power supply board for Hub 2/Hub 2 Plus to a low-voltage source; supports 6V external supply option.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Power supply unit for connecting Hub 2 / Hub 2 Plus control panels to a low-voltage power source
- With an alternative 6 V power supply unit, your hub can operate from an external battery for years — without being connected to the facility's power grid — and is ready to protect buildings in critical condition, construction sites, or abandoned properties from burglars, vandals, and unauthorized occupation
- The power supply unit is only compatible with Hub 2 and Hub 2 Plus control panels. It has a standard power jack plug to connect the power cable and is supplied with a terminal adapter
- Compatibility : Hub 2 and Hub 2 Plus
- Recommended batteries : Zinc air and alkaline batteries with 4.2-16 V operating power
- Input voltage : 4.2-16 V
- Output voltage : 4.8 V ± 5%
- Switch-on voltage : 4.2 V ± 2.5%
- Switch-off voltage : 3-3.4 V (depending on the load)
- Maximum input current : 2.2 A at 4.2 V; 0.5 A at 16 V
- Maximum output current : 1.5 A
- Plugging in : Plug socket: 6.5 x 2 mm / Plug: 5.5 x 2.1 mm
- Operating temperatures range : From -10°С to +40°С
- Operating humidity : Up to 75%
- Dimensions : 98 × 70 × 17 mm
- Weight : 26 g
- Warranty : Warranty service for 24 months from the date of sale
- Service life : 10 years
- Complete set : 6V PSU for Hub 2/Hub 2 Plus
