Brateck TV Mount - LPA77-466 - 60x40 Turn 4-Arm 54cm Ext
Brateck Full Motion TV Mount with 60x40 turn, 4-arm design and 54 cm extension; supports up to 60 kg with a lateral-shift wall plate for off-center stud alignment.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| TV Wall Mounts - Type | Full-Motion (Articulating) |
|---|---|
| TV Wall Mounts - VESA | 600x400 |
| TV Wall Mounts - Max Load | 60 kg |
With practical detailed features, the target of LPA76-466 Full Motion TV Mount is to help you stand out in the middle market. The lateral shift wall plate perfectly fits off-center studs, ensuring the TV is at the center of wall or any desired position. Essential adjustment including +5°~-10° tilt, +60°~-60° swivel and +3°~-3° screen level is smoother and stable than before. 63~536mm (2.5"~21.1") profile ensures a better positioning experience. Strong arms securely hold up to 60kg/132lbs. New gray covers even add a dash of freshness while serving as cable management. It’s time to get it and win more market share!
- Product Category: Full-motion TV Wall Mount
- Rank: Standard
- Material: Steel,Plastic
- Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.071" cold-rolled sheet,Wall Plate THK=0.098" pickling sheet)
- Pipe Size: 40x20x1.2mm Square Steel Tube (1.6"x0.79"x0.047" Square Steel Tube)
- Surface Finish: Powder Coating
- Color: Matte Black,Matte White

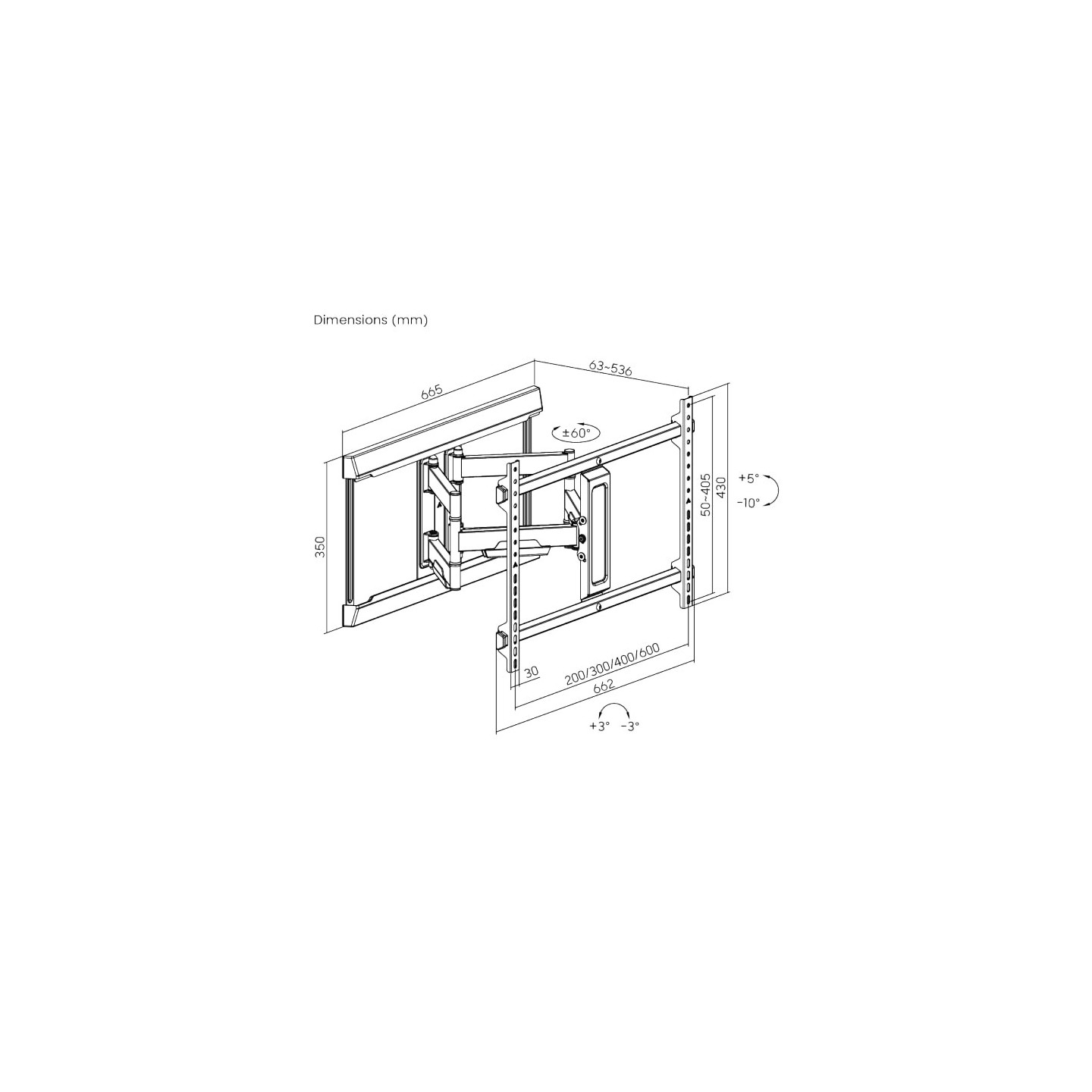

- Dimensions: 536x665x430mm (21.1"x26.2"x16.9")
- Fit Screen Size: 37"-86"
- Fit Curved TV: Yes
- Mounting Hole Pattern: VESA & Universal
- VESA Compatible: 200x100,200x200,300x200,400x200,300x300,400x300,400x400,600x400
- Max. Mounting Hole: 600x405
- Weight Capacity: 60kg (132lbs)
- Strength Tested: 4 Times Approved

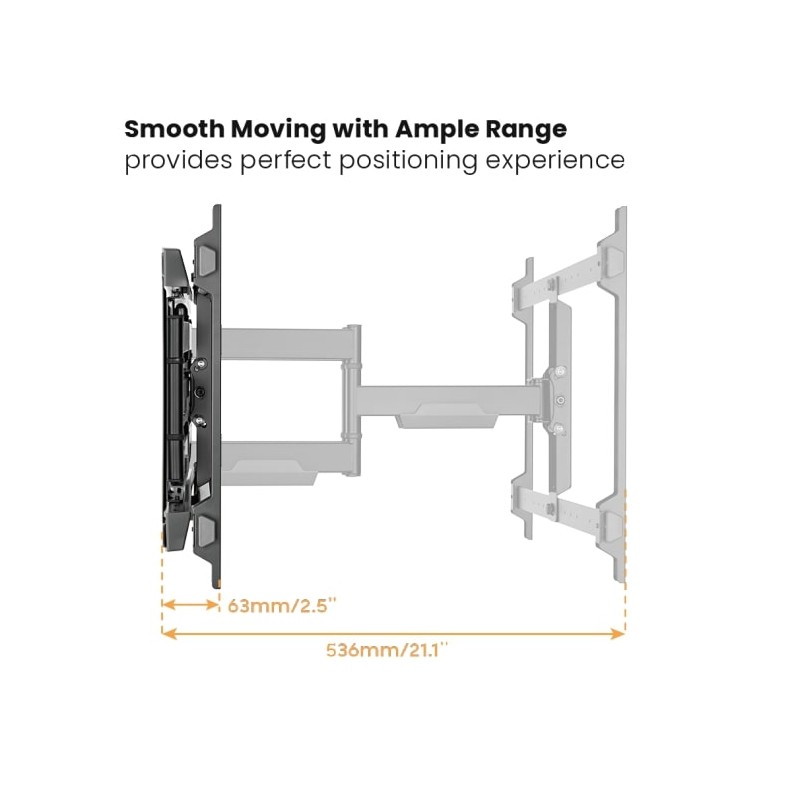

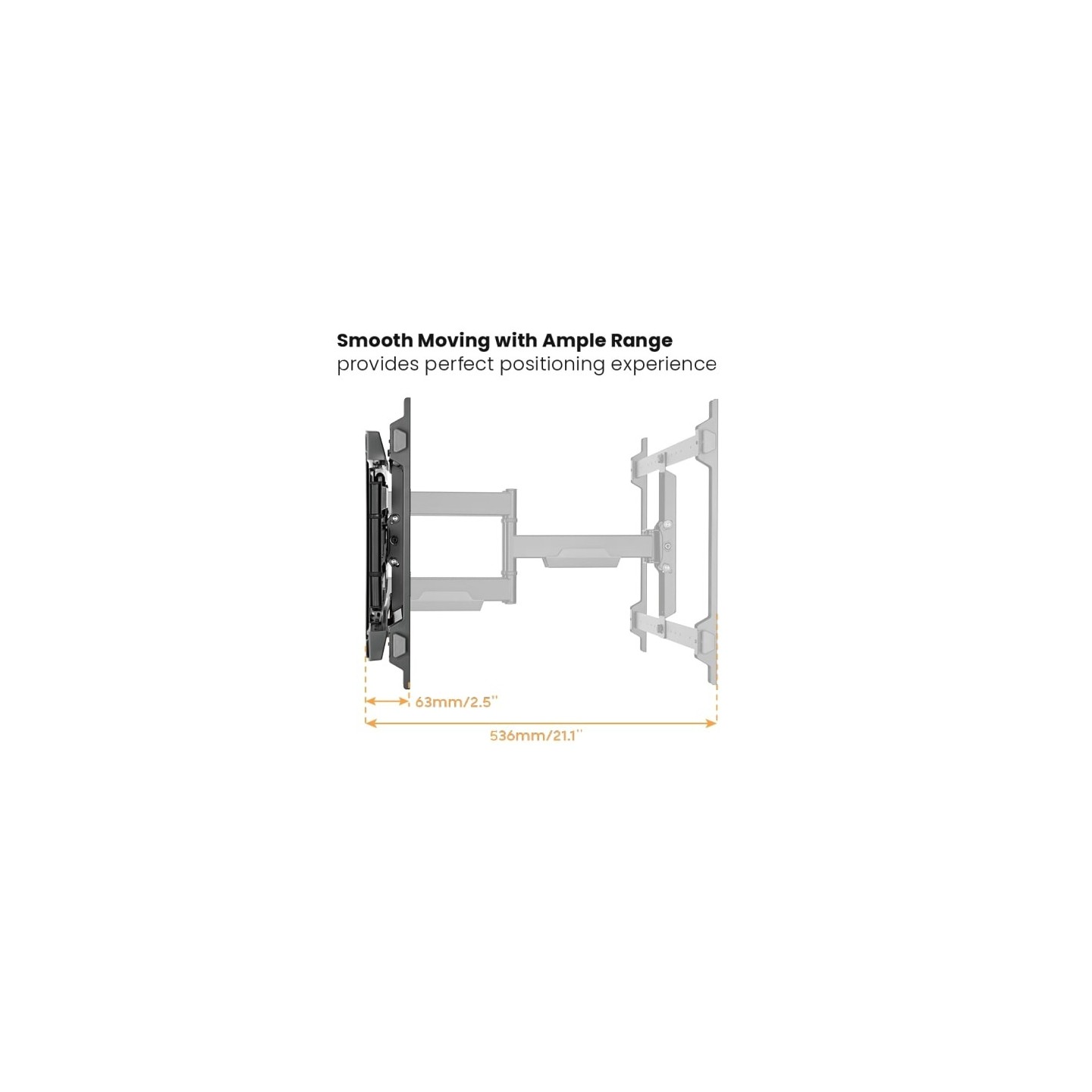

- Profile: 63~536mm (2.5"~21.1")

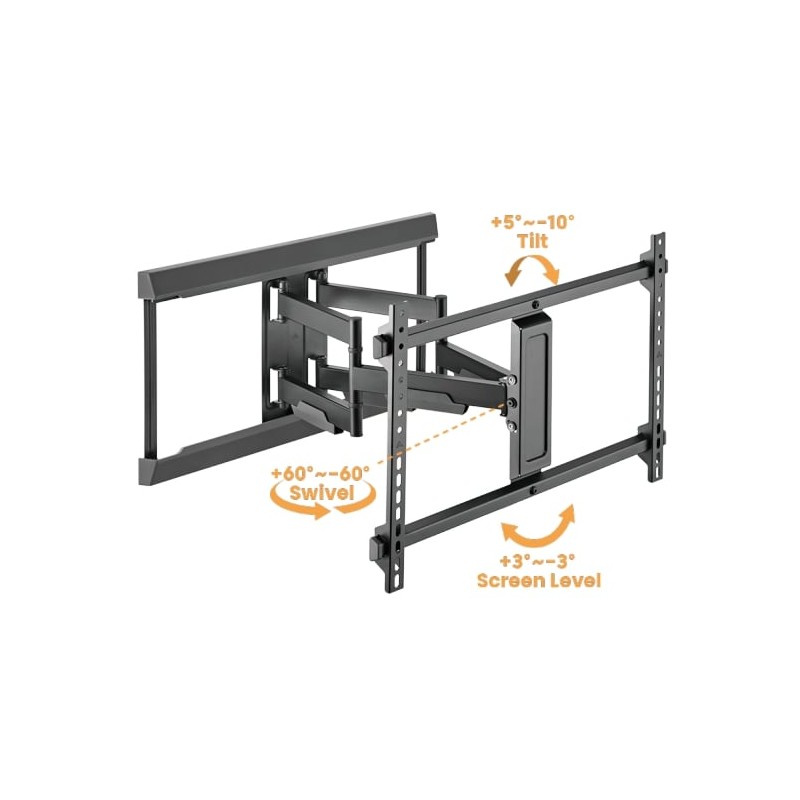

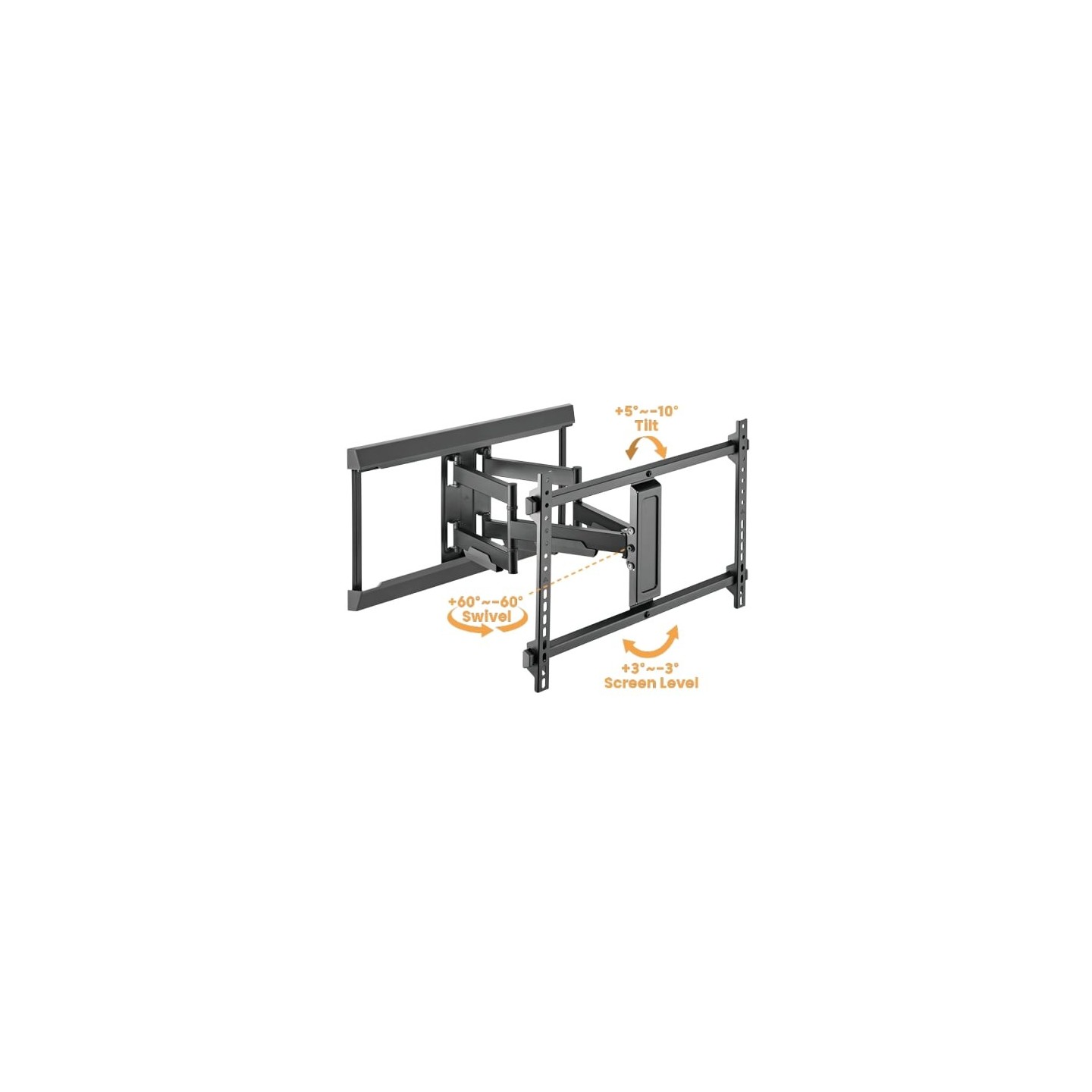

- Tilt Range: +5°~-10°
- Swivel Range: +60°~-60°
- Screen Level: +3°~-3°
- Screen Freely Tilting: Yes
- Installation: Solid Wall,Double Stud(406mm/450mm/600mm)

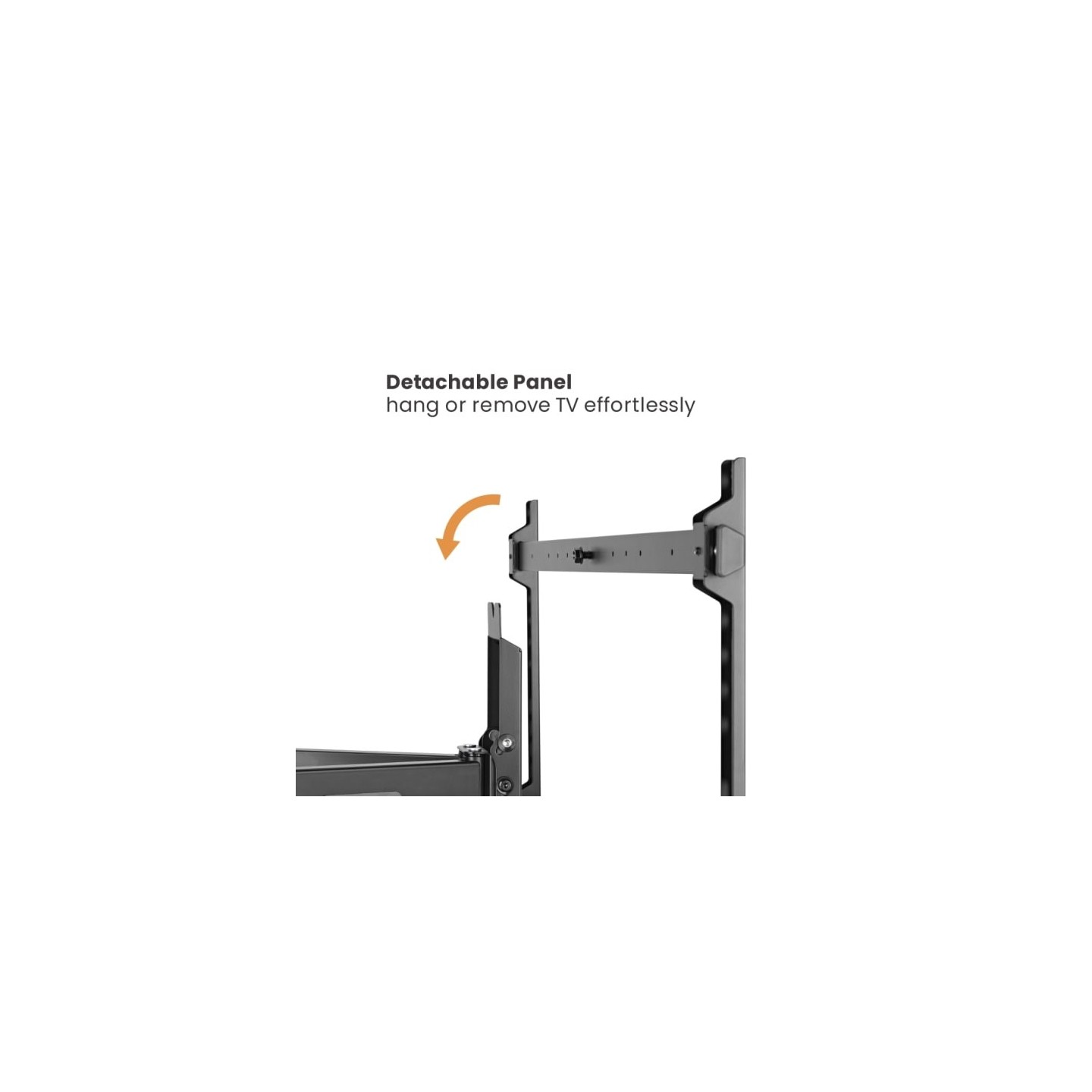

- Panel Type: Detachable Panel

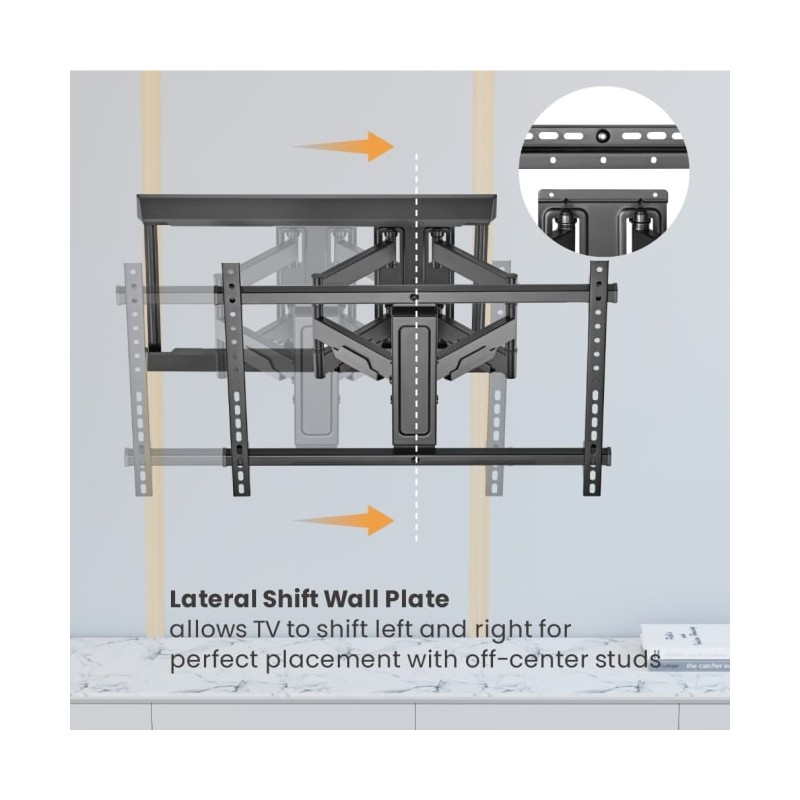

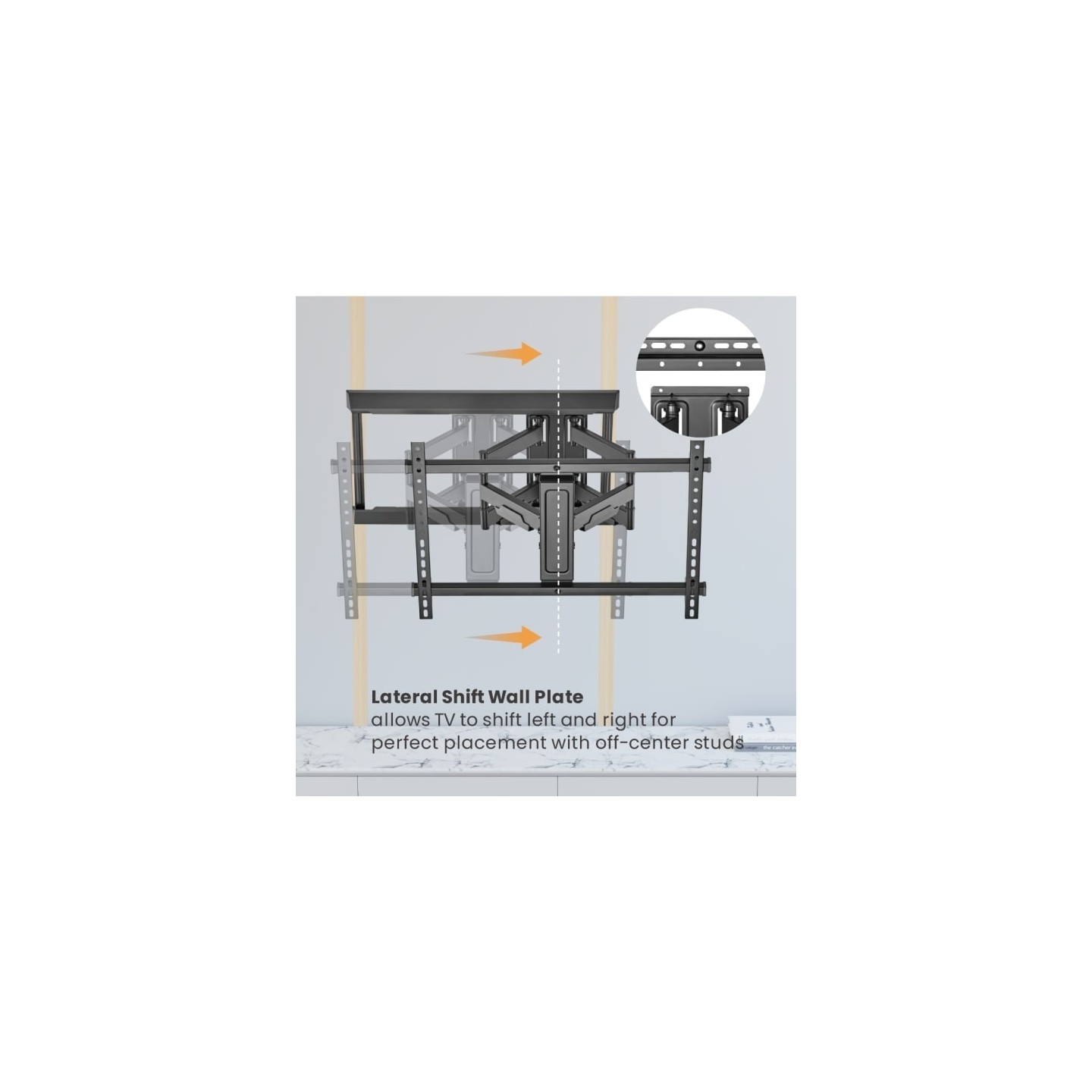

- Wall Plate Type: Lateral Shift Wall Plate
- AV Component Shelf: No
- Direction Indicator: Yes

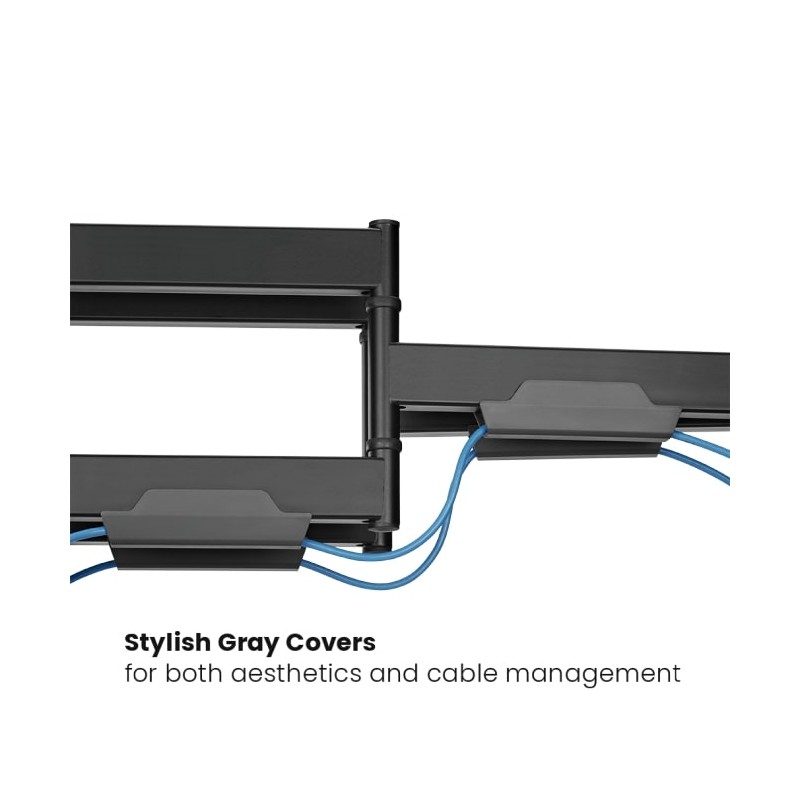

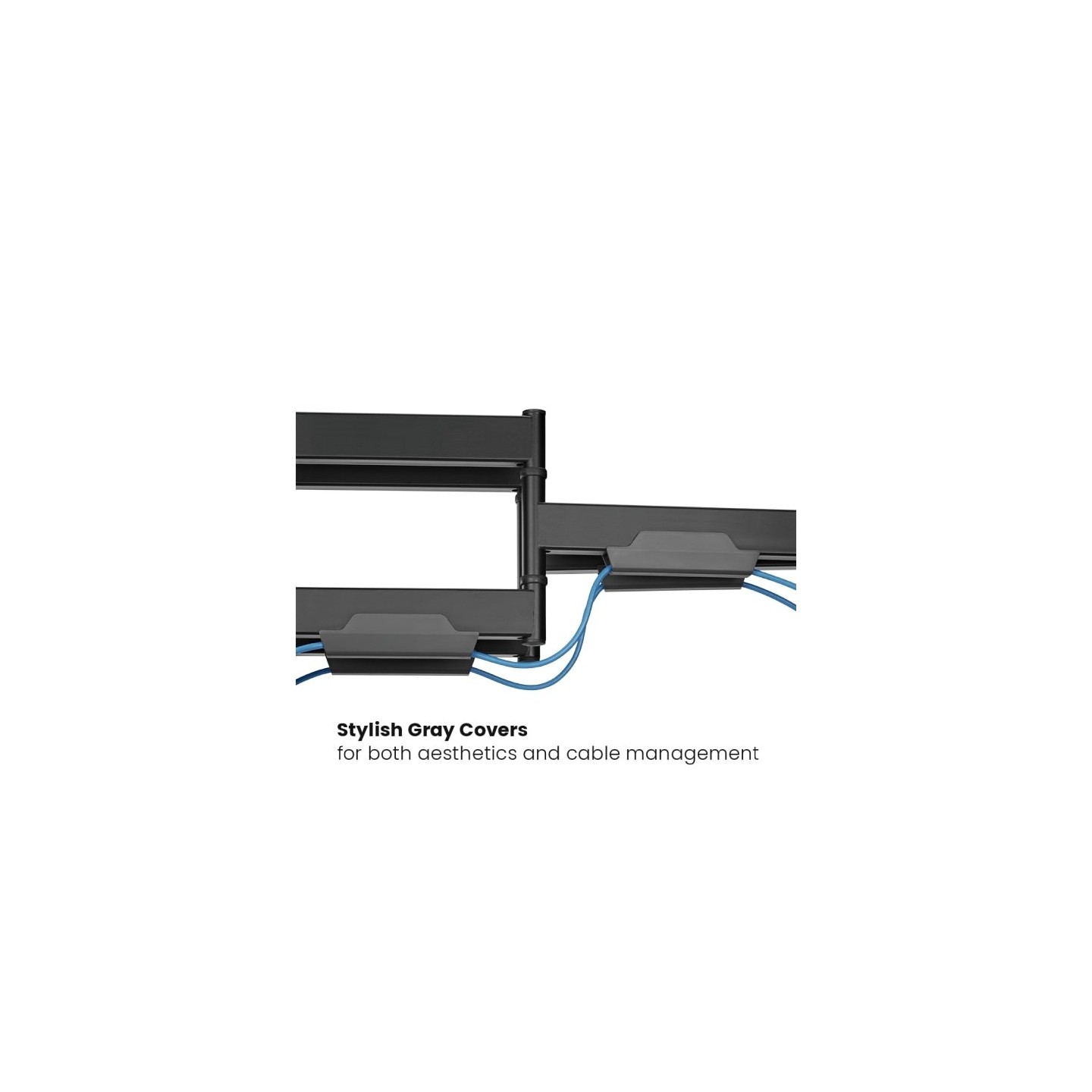

- Cable Management: Yes
- Anti-theft: No
- Bubble Level: Hook-on Bubble Level(Included in Components Package)
- Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
- Certification: UL
- Silk Screen: Can be silkscreen printed
| Function | Turn |
| Max Vesa | 600x400 |
| Max. Weight | 60kg |
| Arm Extension | 54cm |
