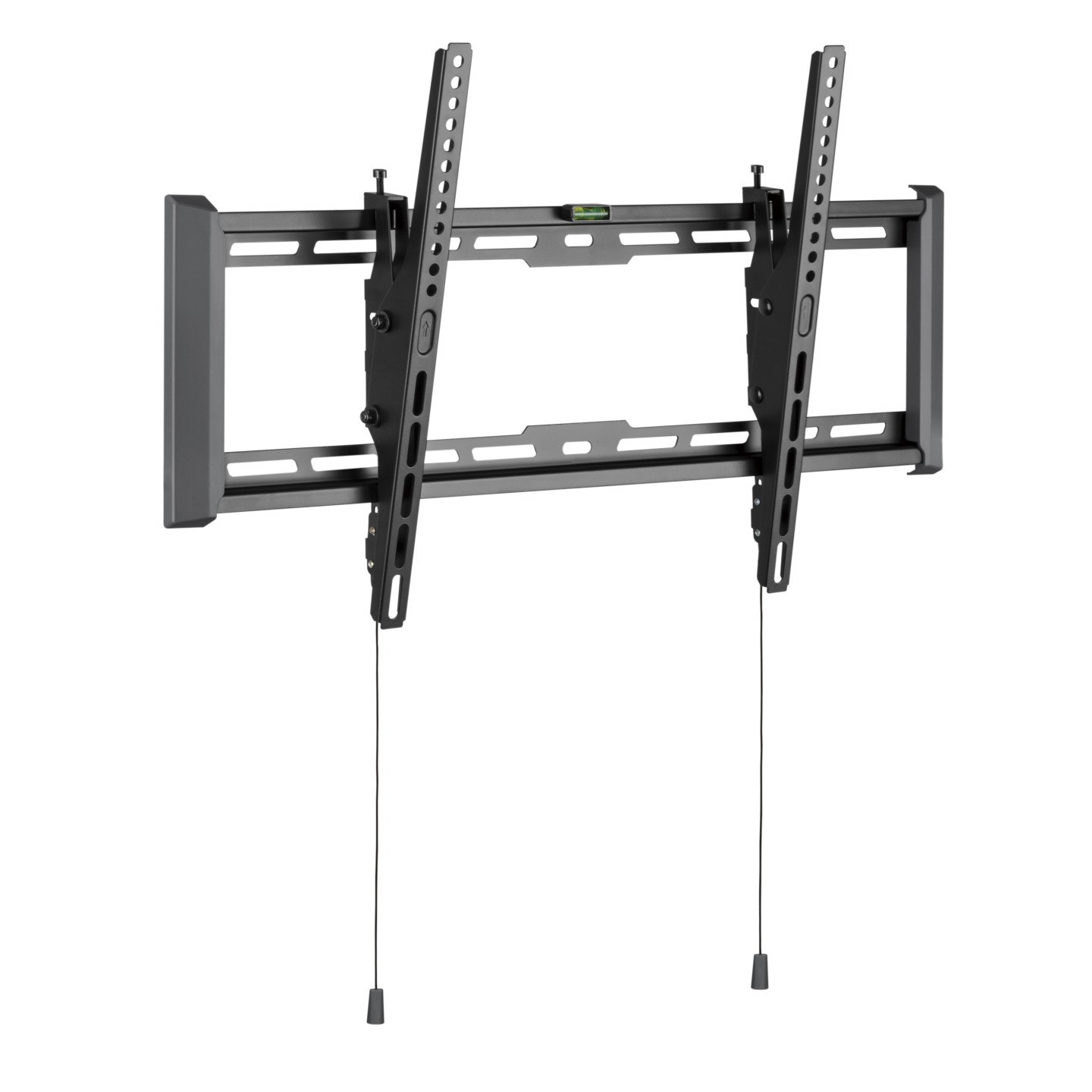

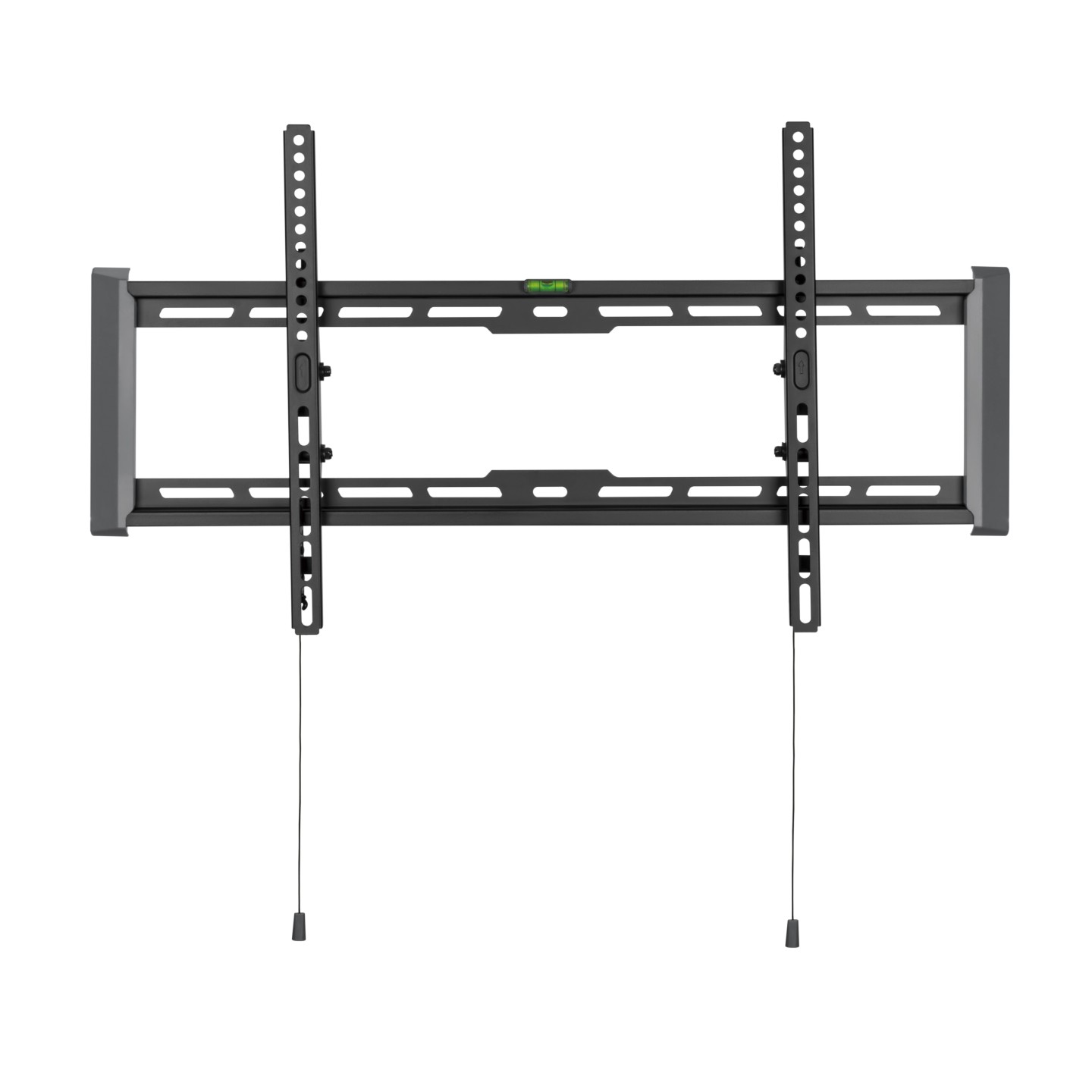

Brateck TV Mount - LP77-46T - 60x40 Tilt 75kg
Brateck TV mount with 60x40 tilt, supports up to 75 kg; ultra-slim design with leveling adjustments for precise hanging.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| TV Wall Mounts - Type | Tilt |
|---|---|
| TV Wall Mounts - VESA | 600x400 |
| TV Wall Mounts - Max Load | 75 kg |

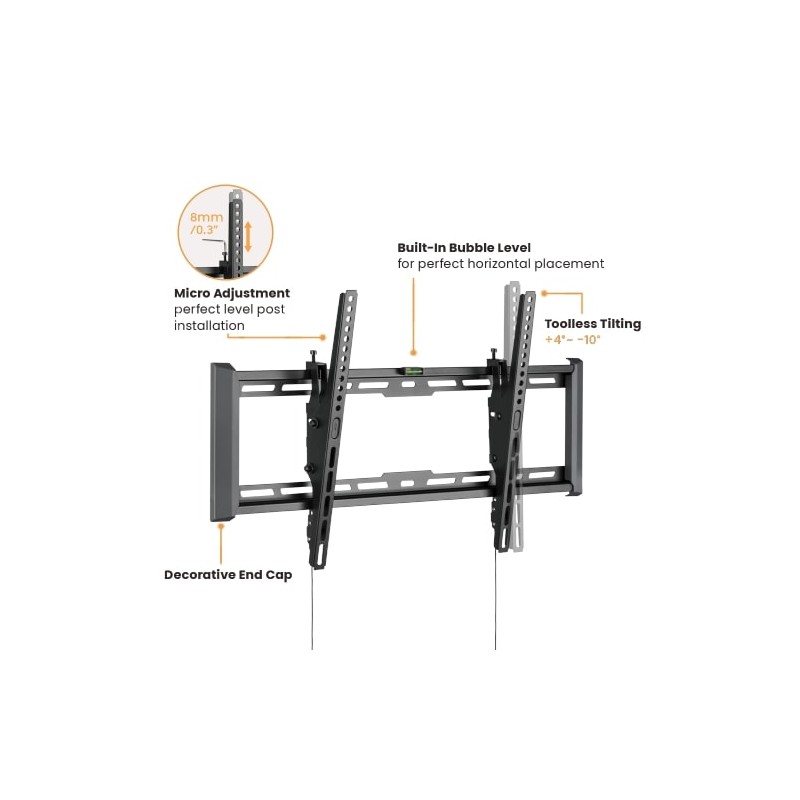

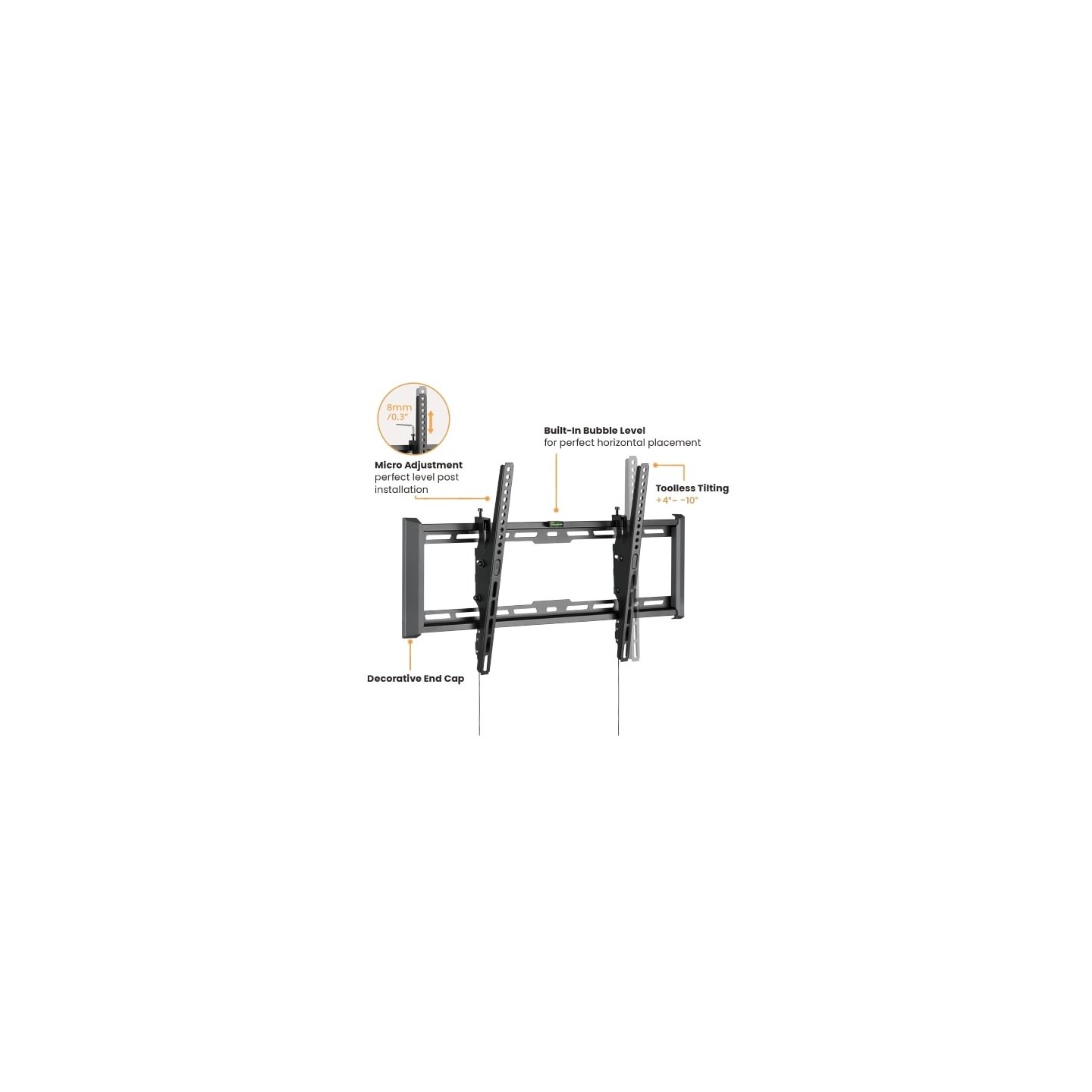

- Leveling adjustments: allow TV to be perfectly positioned after hanging
- Magnetic Strap End: hides itself when not in use.
- Bubble level included
- Ultra-slim design
- Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
- Decorative Covers: for a more elegant look
- Heavy-Duty Steel Construction: provides extra strength and durability

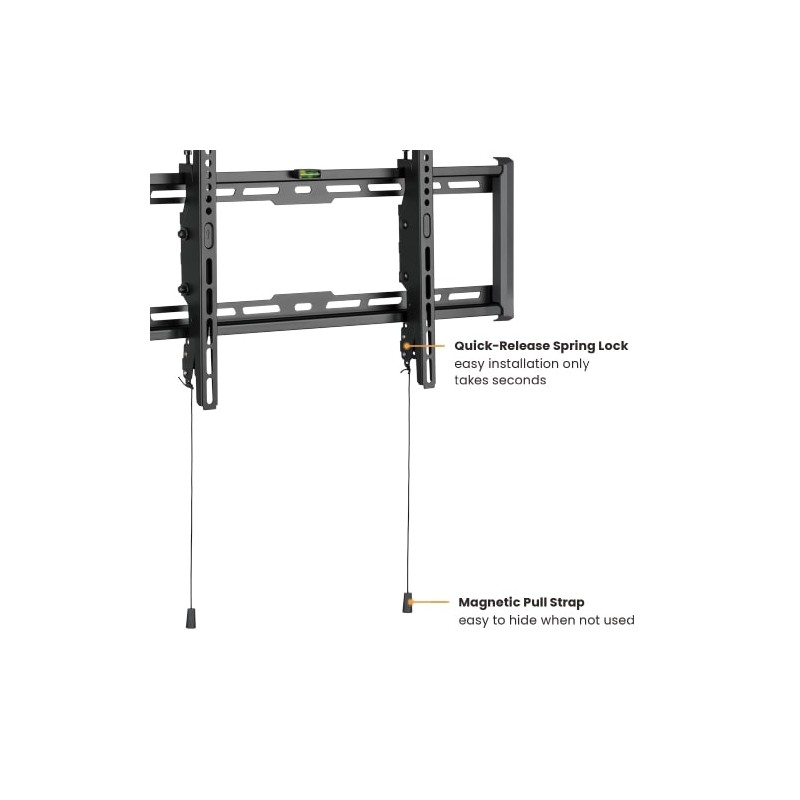

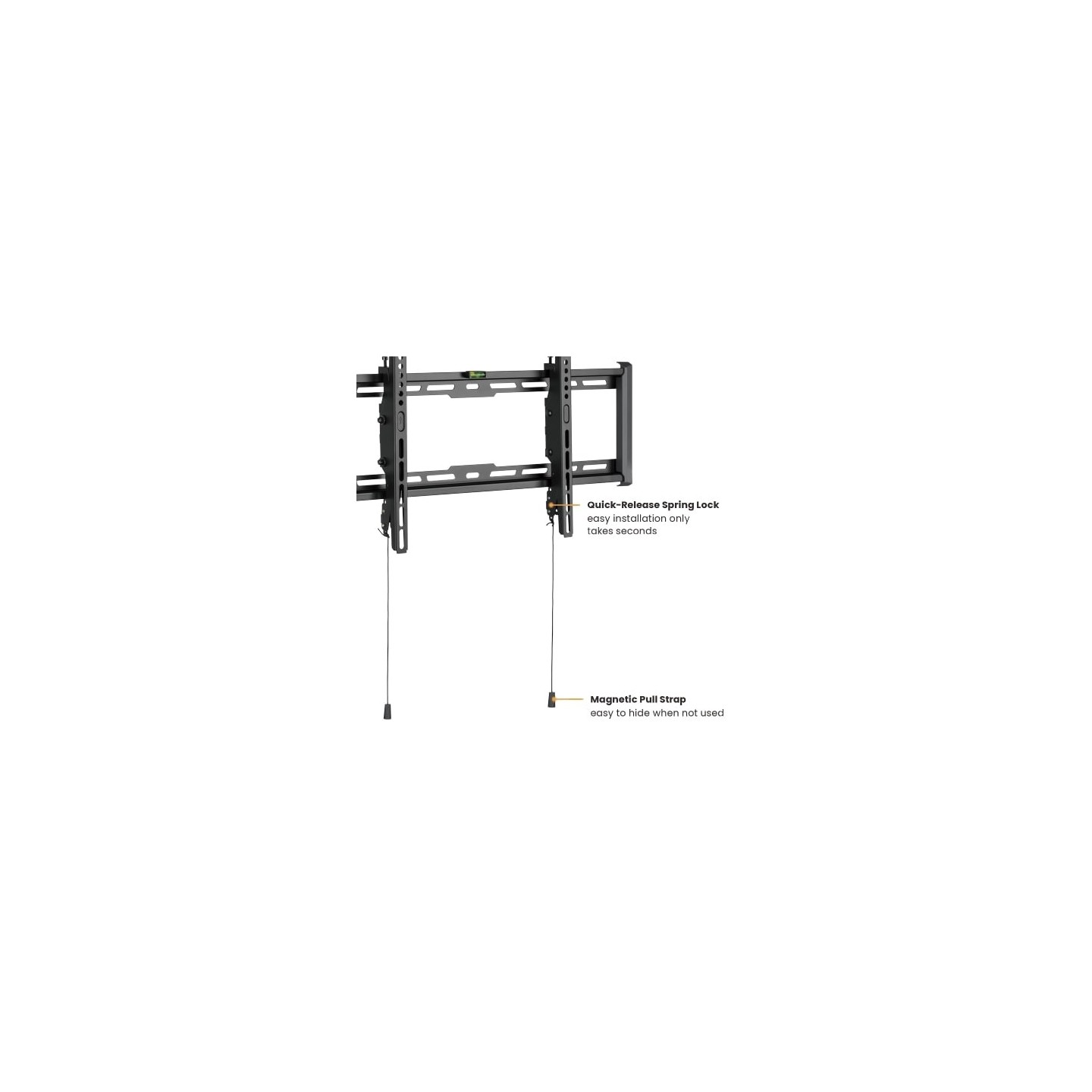

- Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel,Plastic
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Wall Plate THK=0.059" cold-rolled sheet,Bracket Arm THK=0.059" cold-rolled sheet)
Surface Finish: Powder Coating
Color: Matte Black & Dark Grey,Matte White & Light Grey

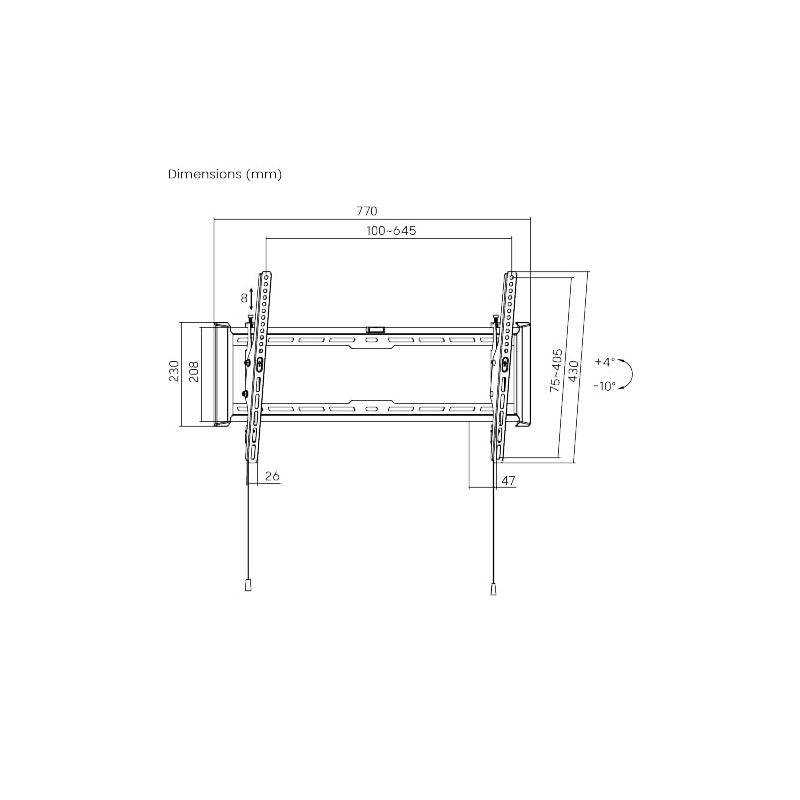

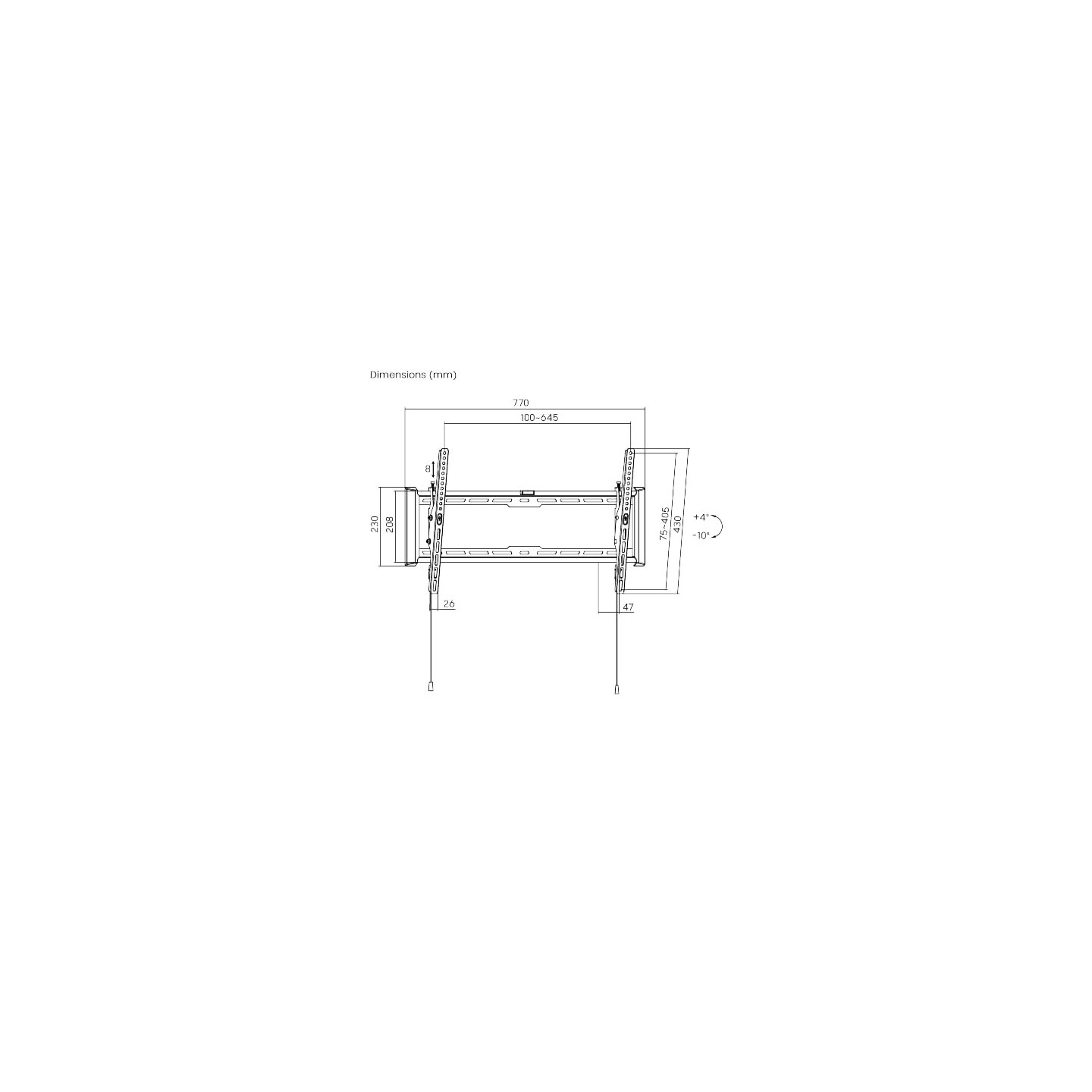

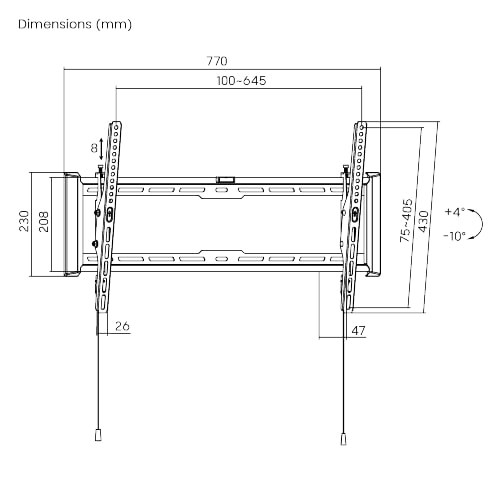

Dimensions: 47x770x430mm (1.9"x30.3"x16.9")
Fit Screen Size: 37"-80"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400
Max. Mounting Hole: 650x405
Weight Capacity: 75kg (165lbs)
Strength Tested: 4 Times Approved
Profile: 47mm (1.9")

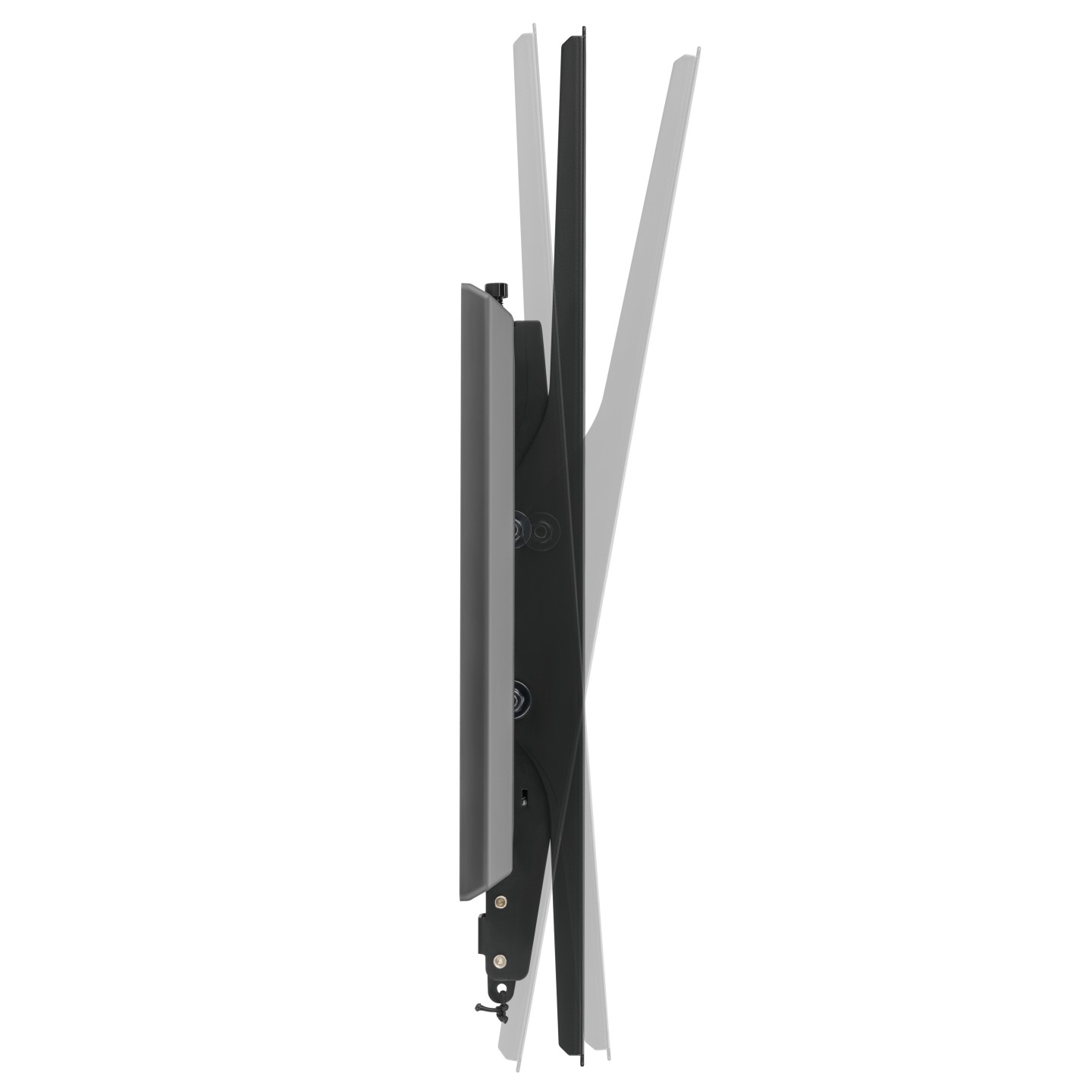

Tilt Range: +4°~-10°
Screen Level: 8mm
Screen Freely Tilting: No
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Cable Management: No
Anti-theft: No
Bubble Level: Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
| Function | Tilt |
| Max Vesa | 600x400 |
| Max. Weight | 75kg |
