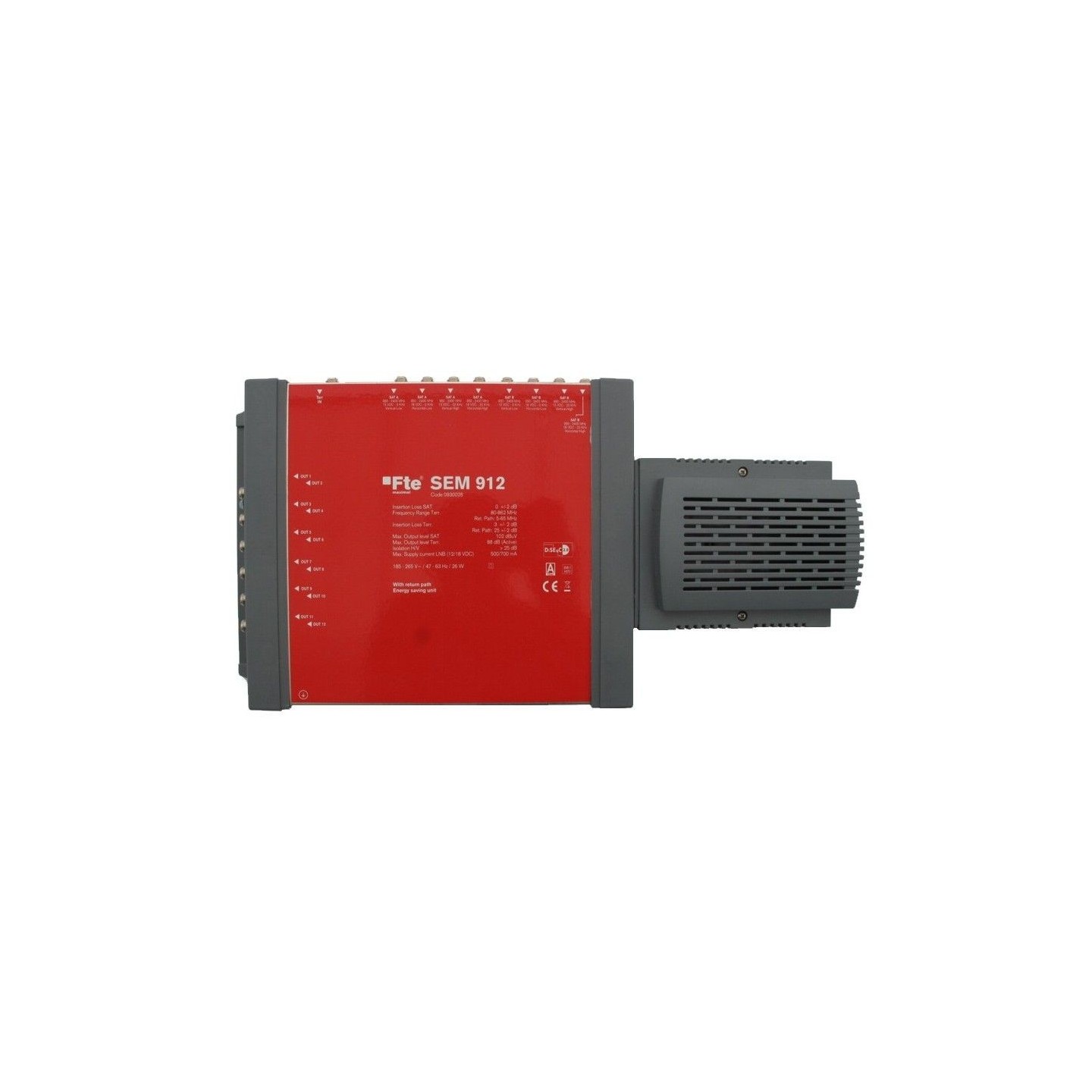

FTE SEM Series 9 12 Active Multiswitch - SEM912 - SEM Series 9 12 Active Multiswitch
9-input, 12-output active terrestrial multiswitch from the SEM Series.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Input SAT / Input TER 8/1
- Ouput receiver 12
- Frequency (MHz) 5-65
- Loss (dB) 23+/-2
- Frequency (MHz) 80-862
- Loss (dB) 0+/-2
- Output level (dBuV) DIN 45004 B 93
- Band frequencies SAT (MHz) 950-2400
- Loss (dB) 0+/-2
- Output Level SAT.(-35 dB IMA) (dBuV) 105
- Feeding 94-265VAC / 47-63Hz
- Maximum comsumption 12/18V (mA) 500/700
- Switching 22 KHz LNC Universal Yes
- Dimensions (mm) 400x190x80
- Weight (grs.) 1.600
| Type | Multiswitch |
| Inputs | 9 |
| Outputs | 12 |
| Active Terrestrial | Yes |
| Series | SEM |
