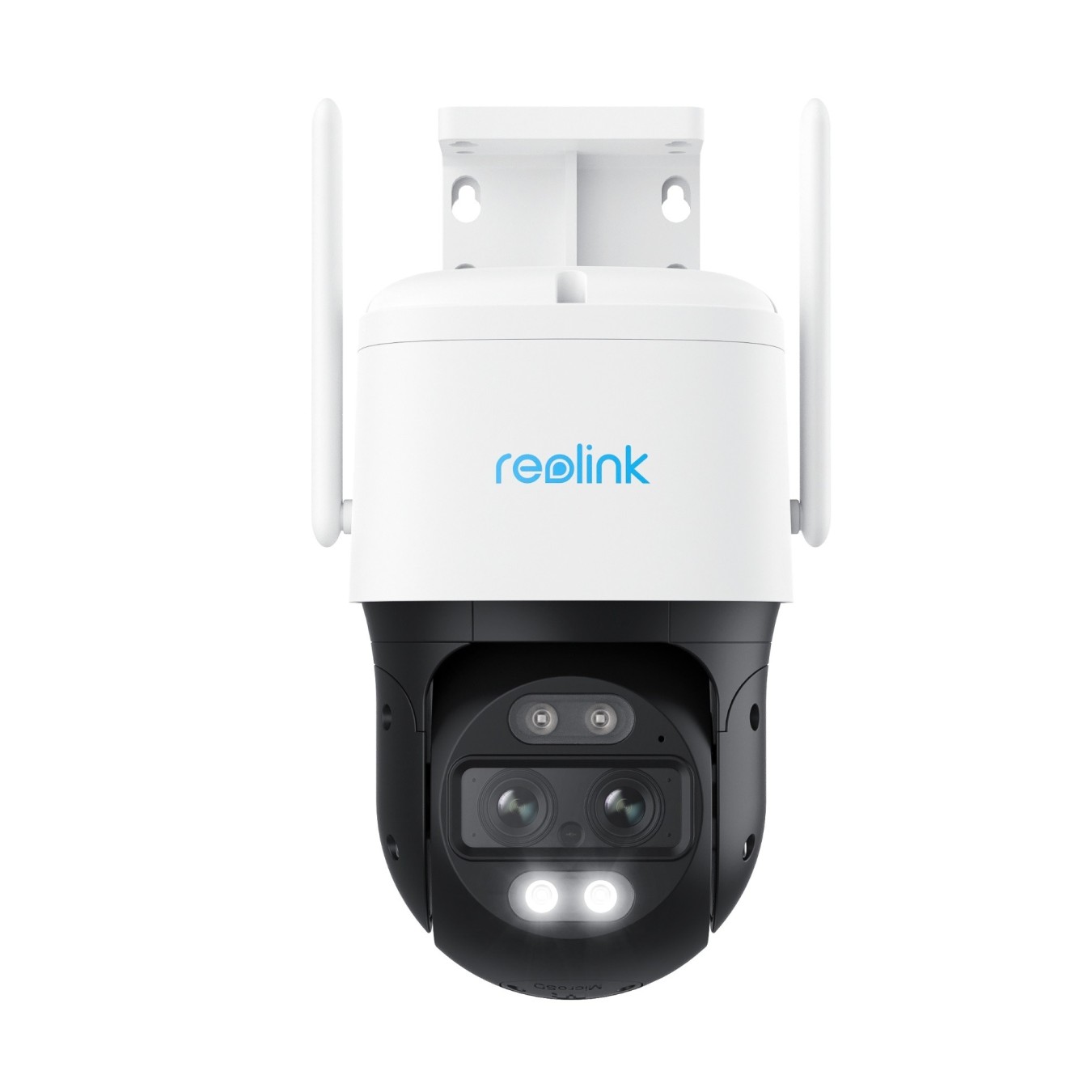

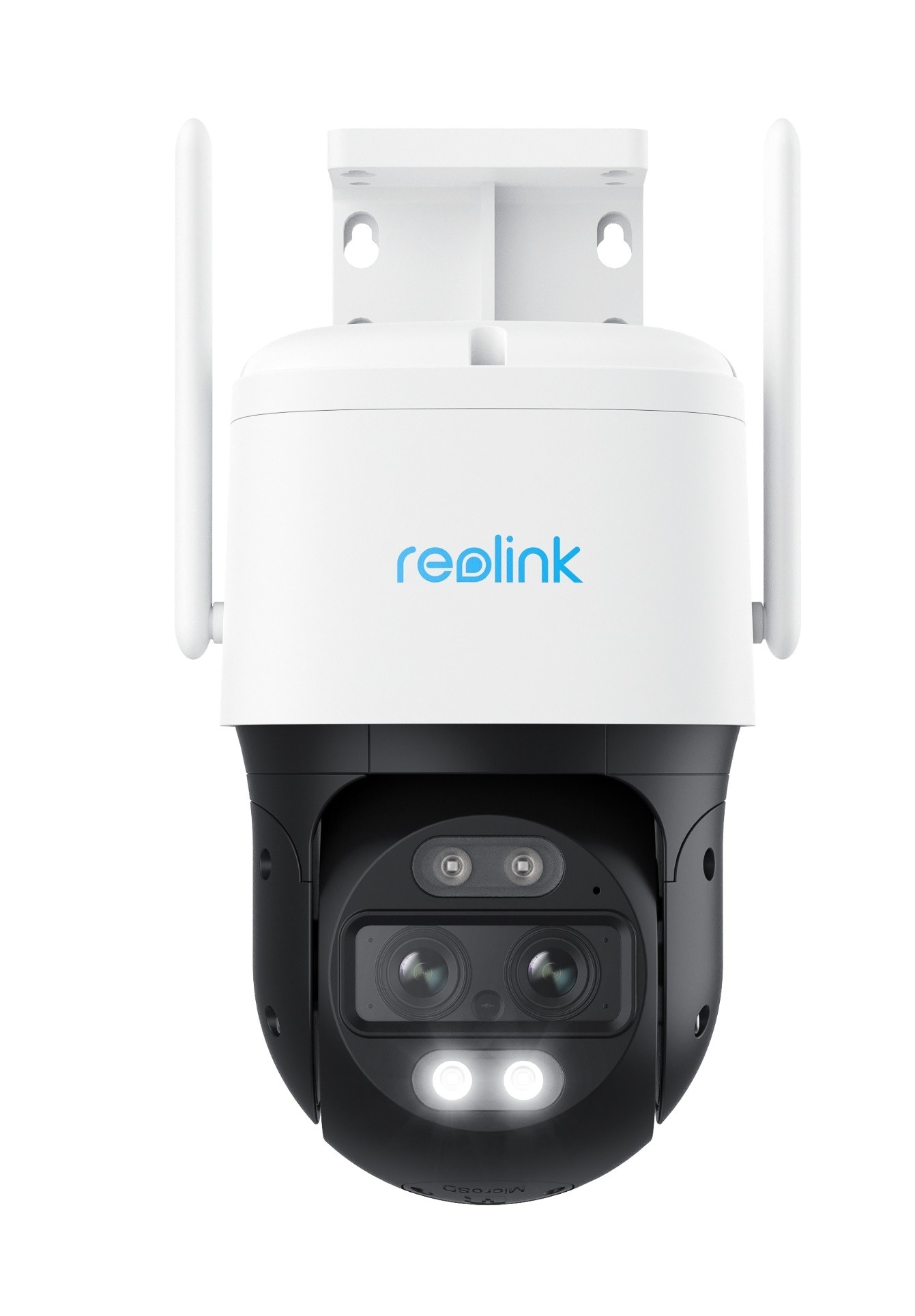

Reolink WIFI Outdoor PTZ Camera 4K Dual Lens Trackmix - W760 -
Outdoor PTZ camera with 4K dual-lens, dual view and dual tracking; 2.4/5 GHz WiFi.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Form Factor | PTZ |
|---|---|
| IP Cameras - Resolution | 8 MP (4K) |
| IP Cameras - Audio | Mic + Speaker (2-way) |
| IP Cameras - Storage | microSD |
- Wide-Angle & Telephoto Lenses
- Dual View, Dual Tracking
- 4K 8MP Ultra HD
- 2.4/5Ghz Dual-Band WiFi
Video & Audio
- Image Sensor : 1/3"+1/2.8"CMOS Sensor
- Video Resolutio : Up to: 3840 x 2160 (8.0 megapixels) at 25 frames/sec
- Lens : f=2.8mm@F=1.6，f=8mm@F=1.6
- Video Format : H.264,H.265
- Field of View : • Horizontal: 104°-38° / Vertical: 60°-21°
- Zoom Mode : 6X hybrid zoom
- Day & Night : IR-cut filter with auto-switching
- Infrared Night Vision : Up to 15 meters (LED: 2pcs/850nm)
- Color Night Vision : Spotlights: 2pcs/6500K/450 lumens
- Audio : Two-way audio
Power
- DC Power : DC 12.0V⎓2A, <12W
Interface
- Power : DC power port
- System : Reset button
- Ethernet : One 10M/100Mbps RJ45
- Storage : Micro SD card slot (Max. 256GB)
- Audio : Built-in microphone and speaker
Pan&Tilt
- Pan &Tilt Range : Pan: 355°, Tilt: 0°~90°
- Pan Speed : 2.5°-90°/s (Speed can be set)
- Tilt Speed : 1.5°-60°/s (Speed can be set)
- Preset : 32
- Auto Tracking : Support
Wi-Fi
- Wireless Standard : IEEE 802.11a/b/g/n
- Operating Frequency : 2.4GHz/5GHz
- Wireless Security : WPA-PSK/WPA2-PSK
Software Features
- Frame Rate : Mainstream: 2fps - 25fps / Substream: 4fps - 20fps
- Code Rate : Mainstream: 4096Kbps -8192Kbps / Substream: 128Kbps -1228Kbps
- Browsers Supported : Edge, Chrome, Firefox, Safari
- OS Supported : PC: Windows, Mac OS; Smartphone: iOS, Android
- Smart Alarm : Motion detection; person detection; vehicle detection; pet detection (beta)
- Record Modes : Motion/scheduled recording (default: motion recording)
- Tracking Method : Digital Tracking; Pan/Tilt Tracking First; Digital Tracking First
- Protocols & Standards : HTTP, HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP,RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P
- Maximal User Access : Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams) / 20 users (1 admin account & 19 user accounts)
- Work with : Google Assistant
Working Environment
- Temperature : Operating temperature: -10°C~+55°C
- Humidity : Operating humidity: 10% ~ 90%
- Waterproof : Support
Size & Weight
- Dimension : 228*147*129mm
- Weight : 1.211kg
| Type | Outdoor |
| Battery Powered | No |
| Resolution | 4K |
| Lens Type | PTZ |
| Spotlight | Yes |
| AI | Human Detection,Vehicle Detection |
| Siren | Yes |
| Two-Way Audio | Yes |
| Capacity | Up to 256GB SD |
