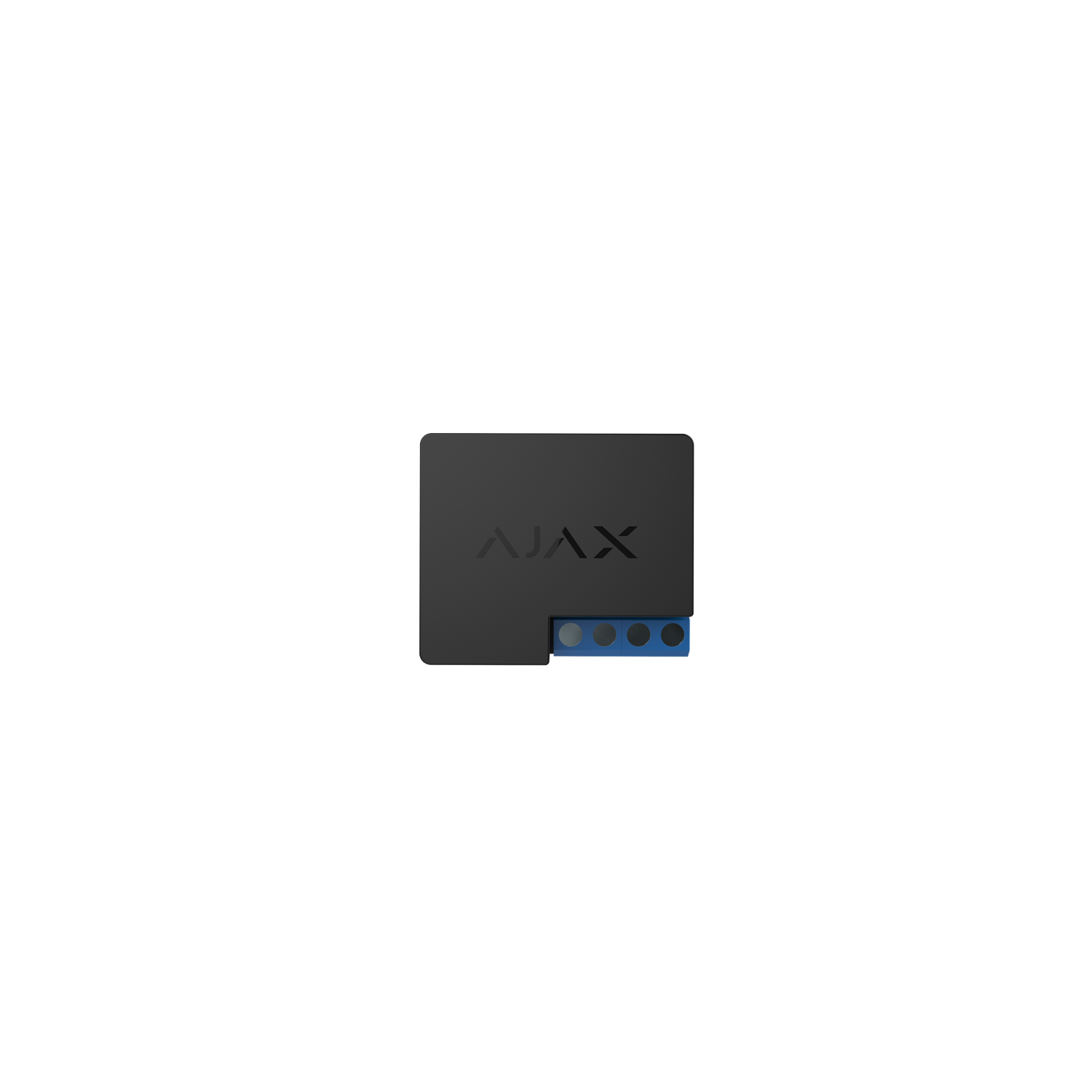

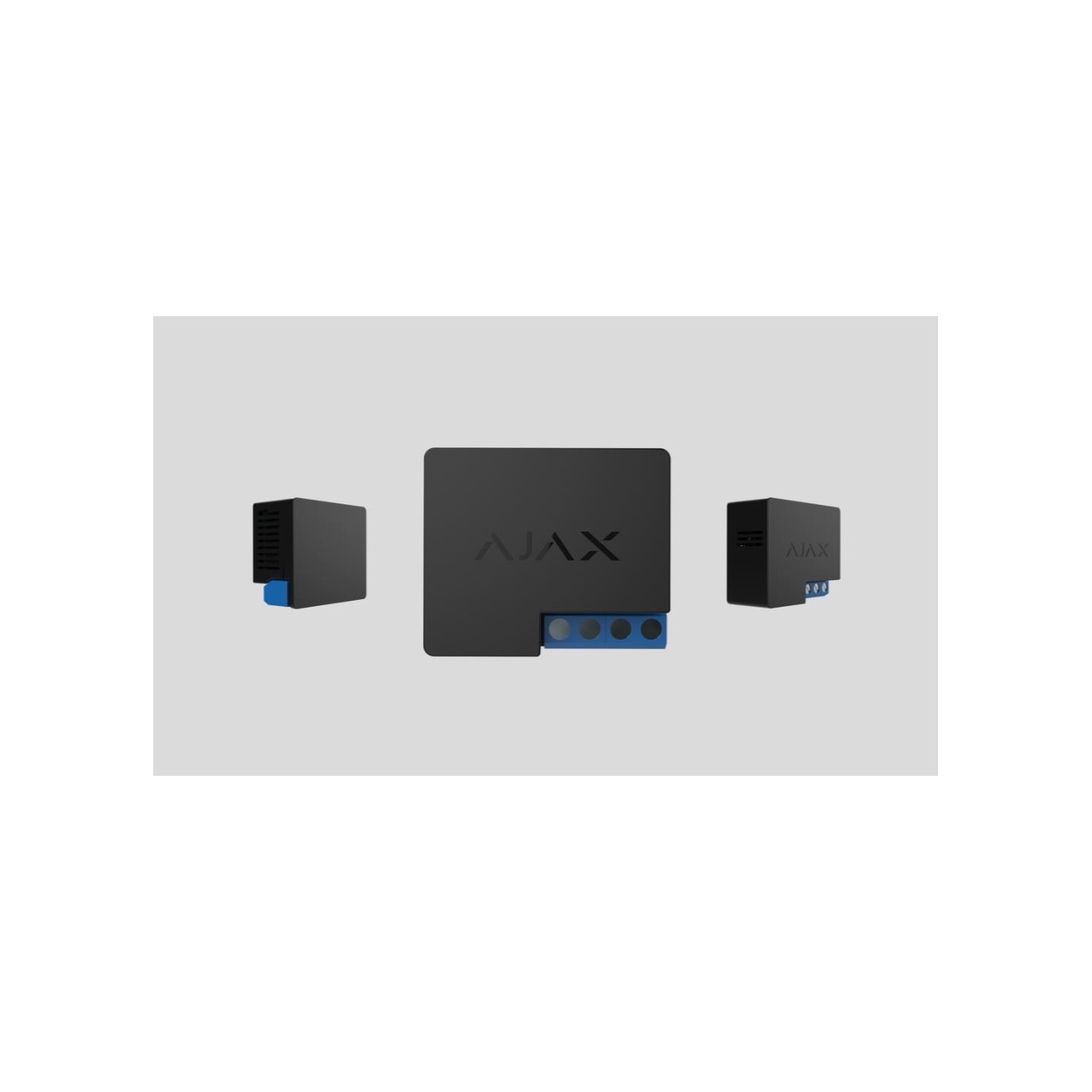

AJAX WallSwitch - Black
Remote radio channel controller to switch appliances on/off; relay-based power control; scenarios continue if Ajax Cloud is lost.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- The radio channel controller allows to control domestic appliances remotely. It is used to switch on/off irons, garage gates, water heaters and heat-insulated floors

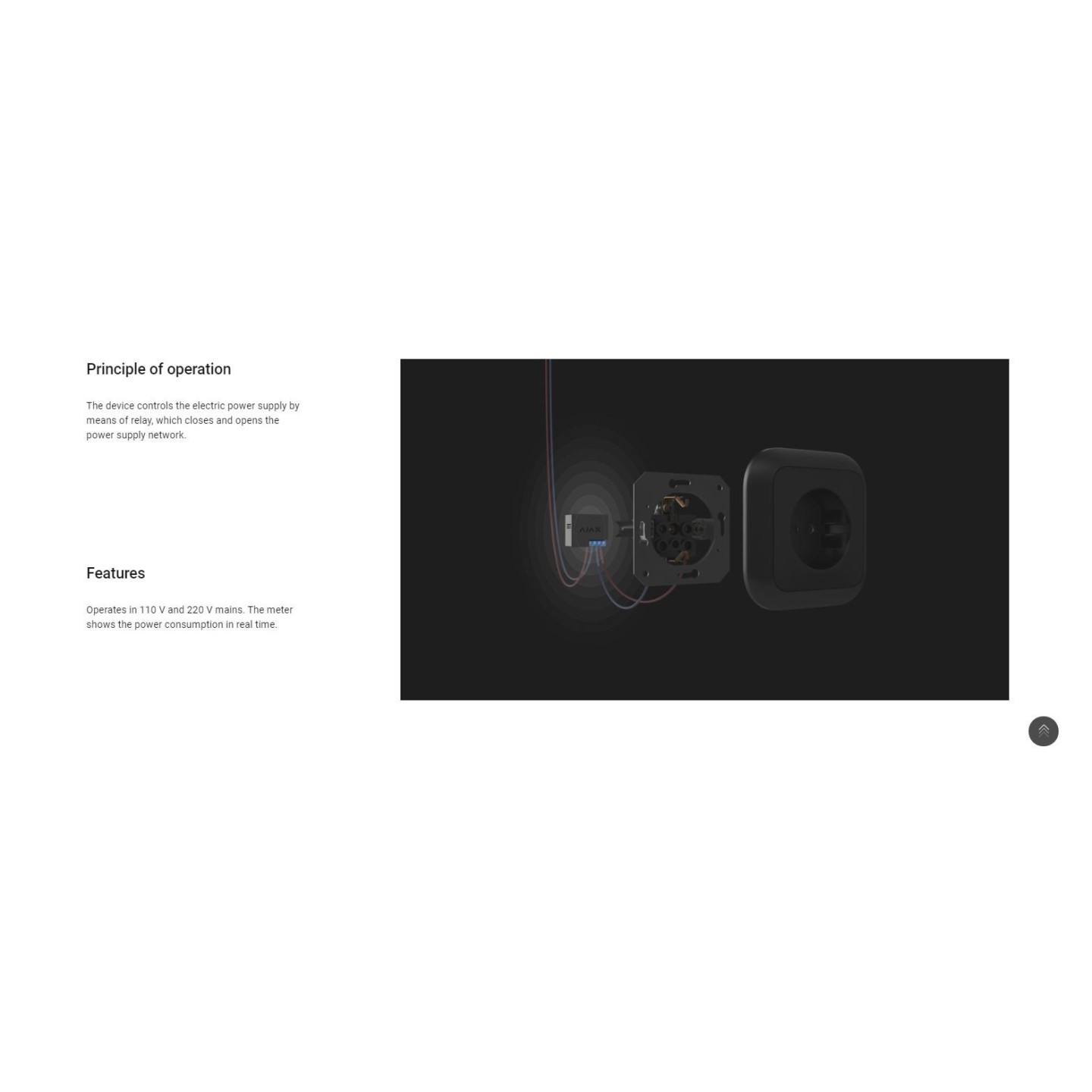

- The device controls the electric power supply by means of relay, which closes and opens the power supply network
- Boost the potential of your security system with scenarios to actively resist the threats it detects and automate your routines. Set up a Night mode activation on schedule; turn off all the office lights automatically by arming the system; program the outdoor lights to spotlight trespassers when they trigger an outdoor motion detector; or install a sustainable anti-flood system. The system continues to execute scenarios even if the connection with Ajax Cloud is lost
- Actuating element : Electromagnetic relay
- The service life of the relay : 200,000 switching-ons
- Supply voltage : 110 – 230 V AC ± 10% 50/60 Hz
- Voltage protection For 230 V mains : max 253 V, min 184 V
- Maximum load current : 13A
- Maximum current protection : Yes, 13 A
- Power output (resistance load 230 V) : Up to 3 kW
- Electricity meter function : Yes
- Power consumption parameters control Yes: current, voltage, consumed power
- The power consumption of the device in the standby mode : Less than 1 W⋅h
- Frequency band : 868.0 – 868.6 MHz or 868.7 – 869.2 MHz depending on the region of sale
- Compatibility Operates only : with Hub, Hub Plus, Hub 2 and ReX
- Maximum RF output power : Up to 25 mW
- Modulation : GFSK
- Radio signal range : Up to 1,000 m (any obstacles absent)
- Shell protection rating : IP20
- Operating temperature range : From 0°C to +64°C
- Maximum temperature protection : Yes, 65°C
- Operating humidity : Up to 75%
- Overall dimensions : 39 x 33 x 18 mm
- Weight : 30 g
