Adastra - UA60 - 100V Compact Amplifer Mixer 60W 953.186UK
100V mixer-amplifier with a 5-input mixer in a half-width 1U housing; 3 switchable mic/line inputs, RCA line input, and a 3.5mm AUX input with front-panel volume controls.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

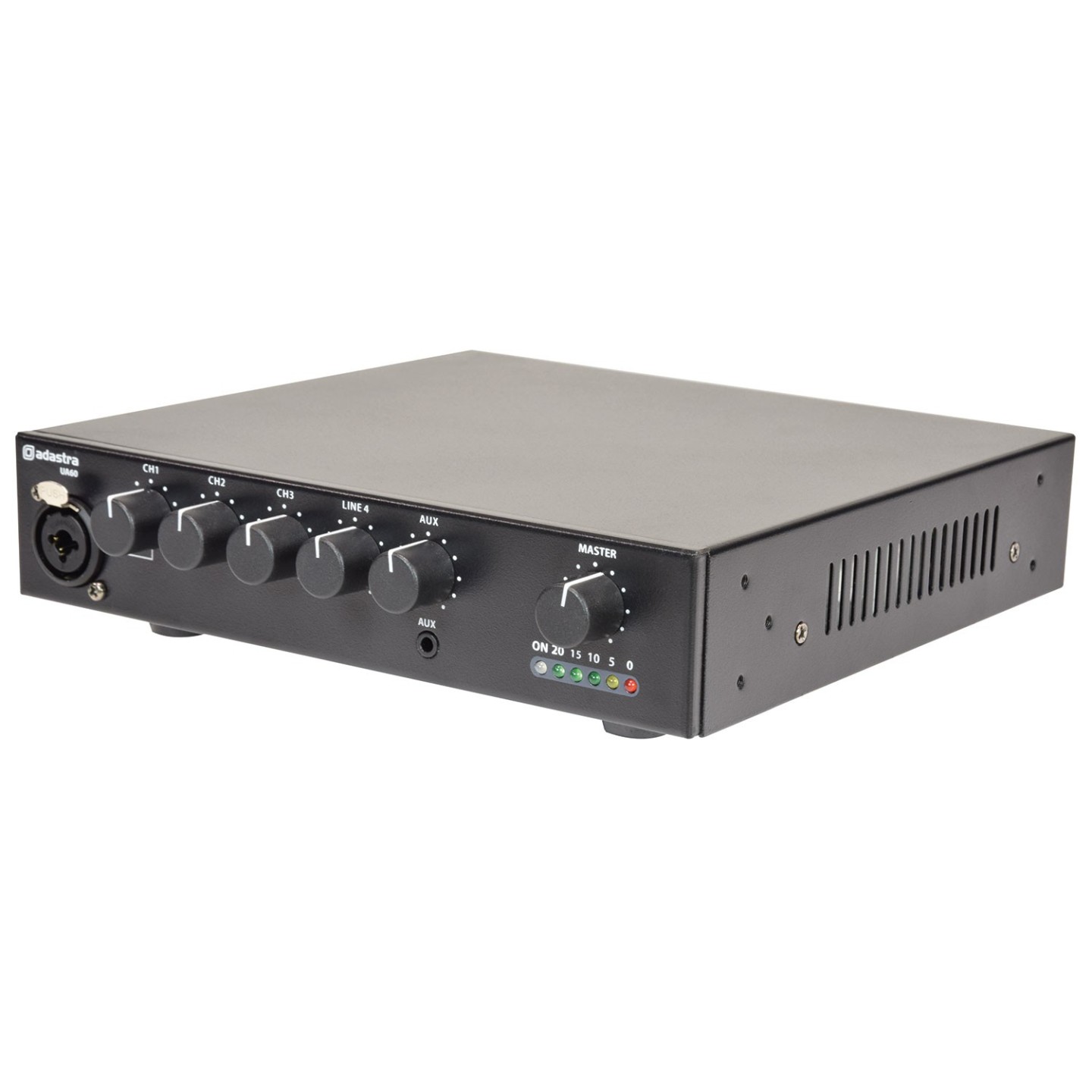

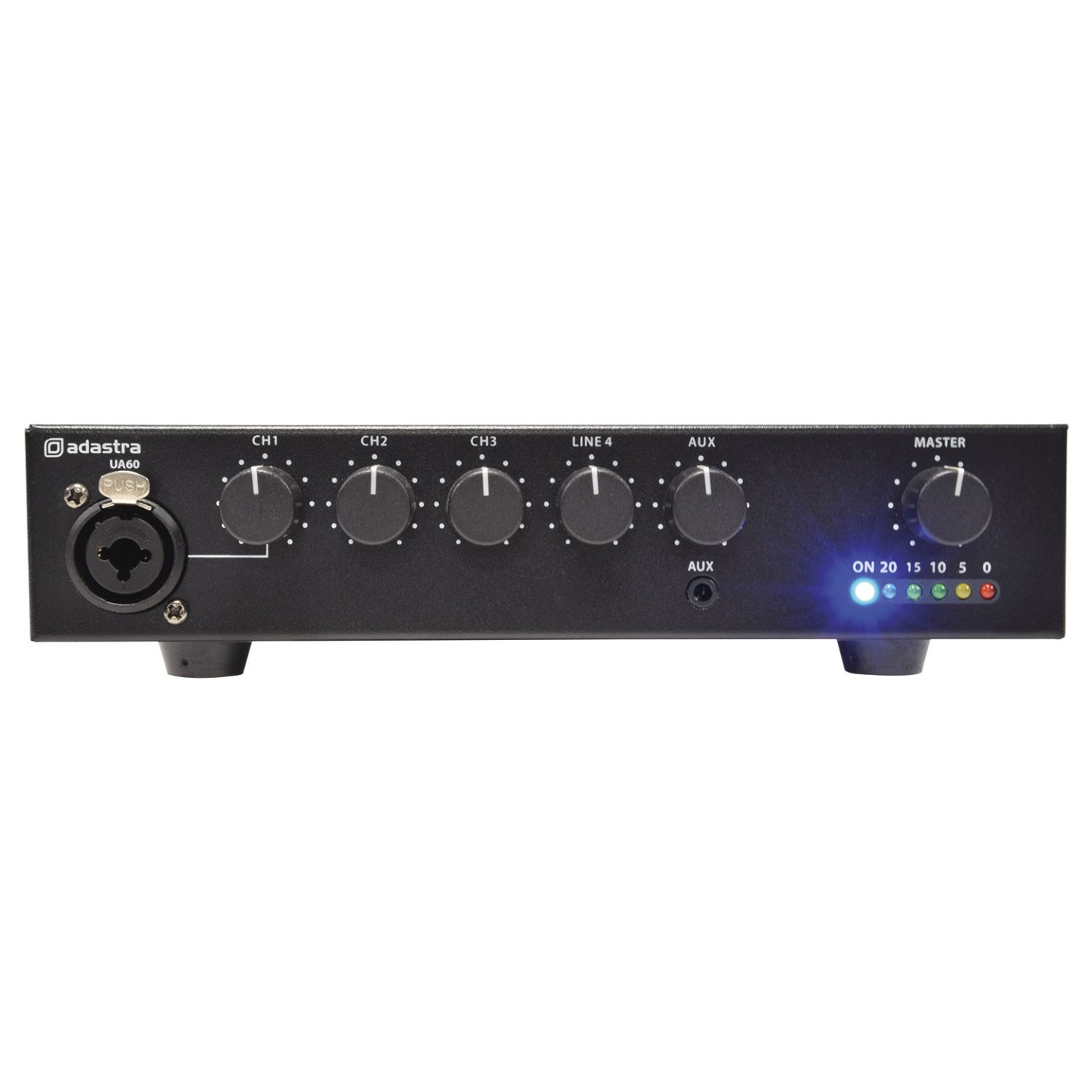

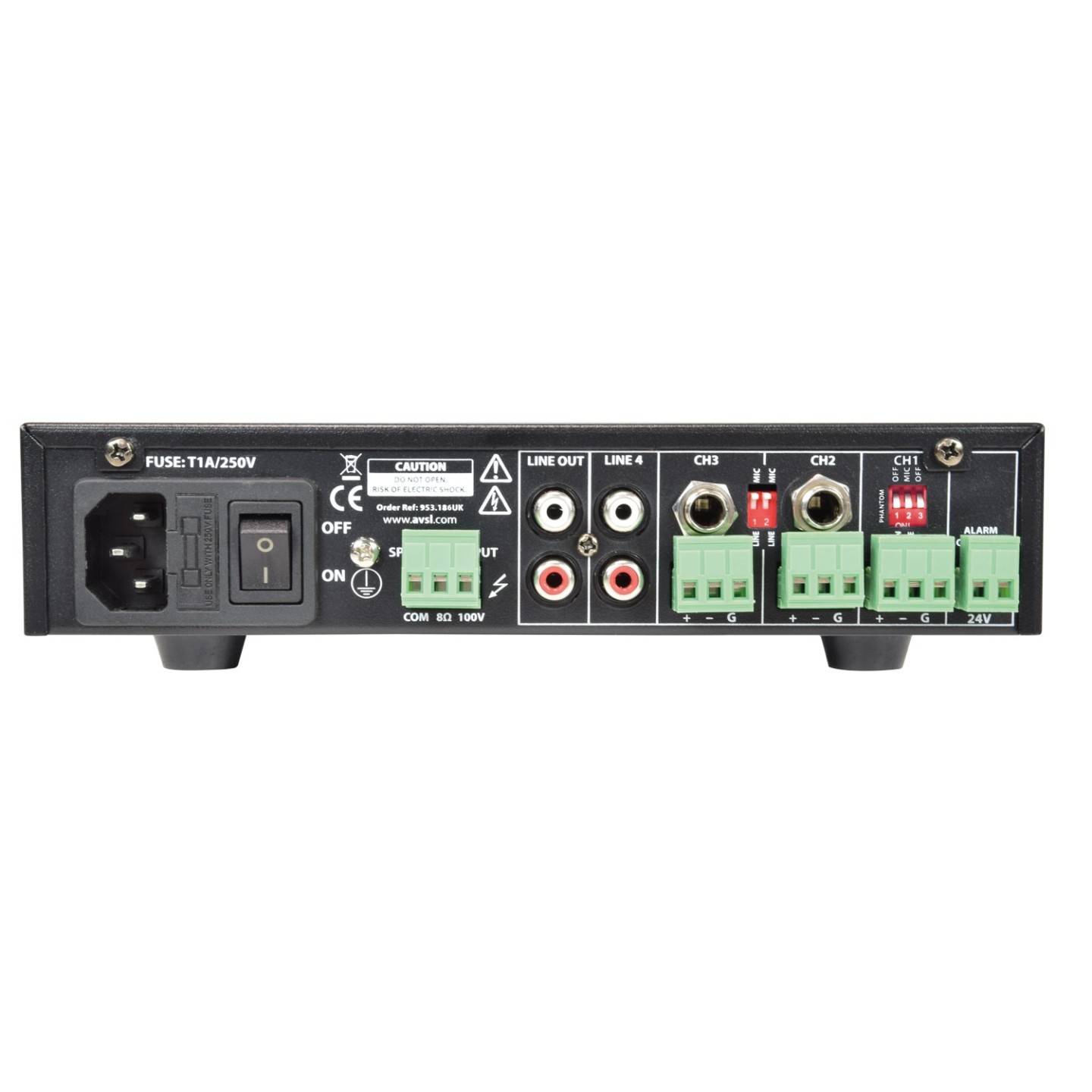

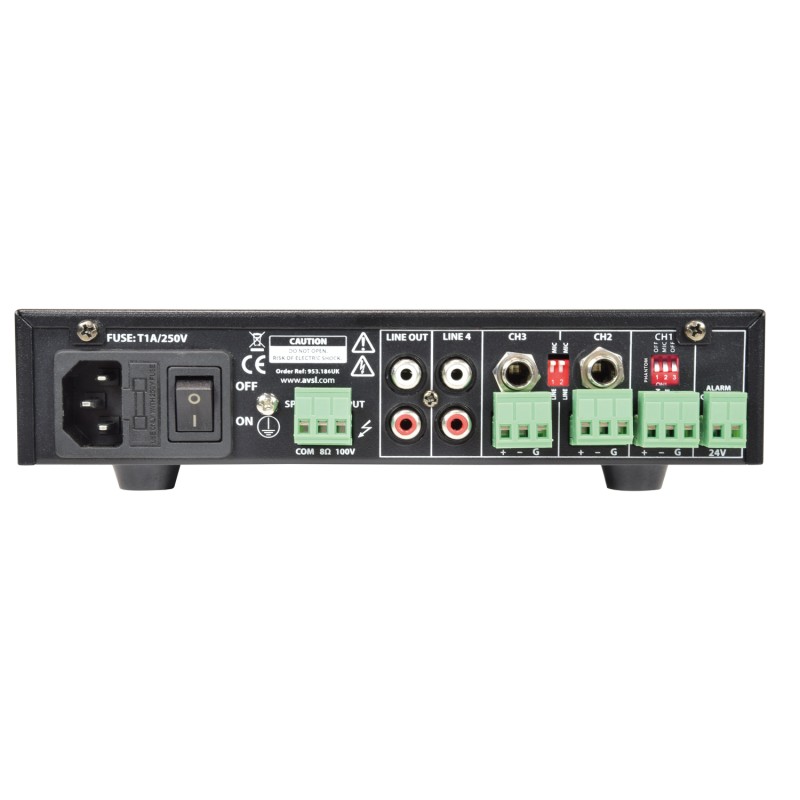

100V mixer-amplifier with a 5-input mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.
- Supplied with hardware for rack-mounting 2 units
- 5 input channels
- 24V fire alarm mute contacts
- 100V line or 8 Ohms operation
- Switchable +20V phantom power CH1
- Power supply: 170-264Vac, 50Hz (IEC)
- Amplifier : construction: Class D + transformer output
- Inputs: Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
- Phantom power: +20V CH1 (XLR or rear terminals)
- Line output: 2 x RCA (mono)
- Speaker output: Euroblock terminals: 100V / 8 Ohms / Com
- Mute: 24V relay contacts
- THD<0.4% @ 1kHz
- Input impedance: 1k Ohms (mic/line)
- Input sensitivity: -10dB (line), -45dB (mic)
- SNR: 80dB (line), 75dB (mic)
- Frequency response: 100Hz - 18kHz
- Output power : rms 60W
- Dimensions : 269 x 210 x 44mm
- Weight: 2.47kg
| Amplifier Type | Mixer Amp |
| Power | 60W |
