Mercury Economy CAT6 CCA Outdoor Cable - 808.027UK - 305m
Cat6 solid-conductor data cable with PE sheath, in a dispensing box, marked at 1 metre intervals; designed for Gigabit Ethernet.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Ethernet Cables - Category | Cat6 |
|---|---|
| Ethernet Cables - Shielding | UTP |
| Ethernet Cables - Conductor | CCA |
| Ethernet Cables - Length | Other |

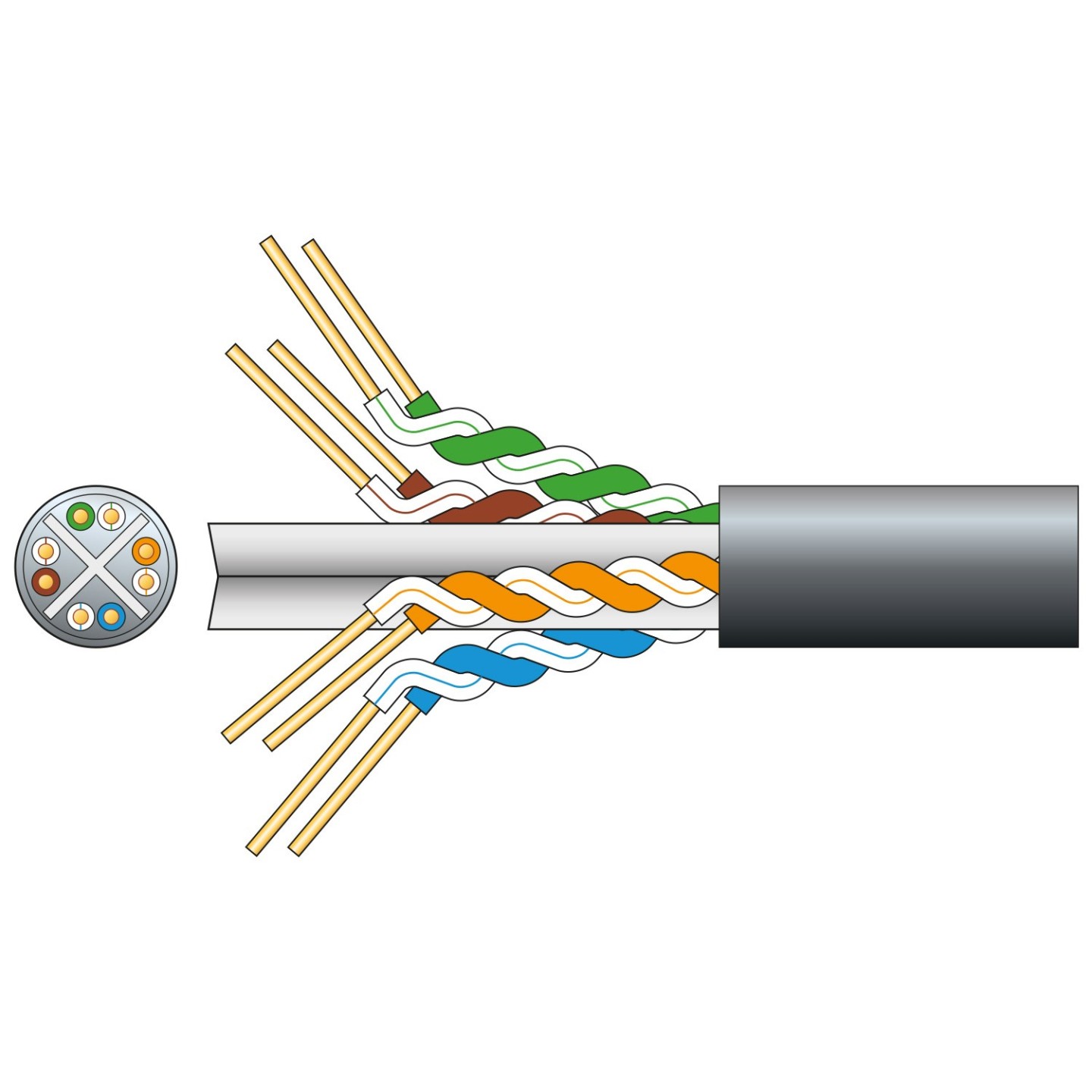

Cat6 solid conductor twisted pair data cable with PE sheath supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoor environment.
- Solid copper clad aluminium conductor
- PE sheath with UV resistant properties ideal for outdoor installations

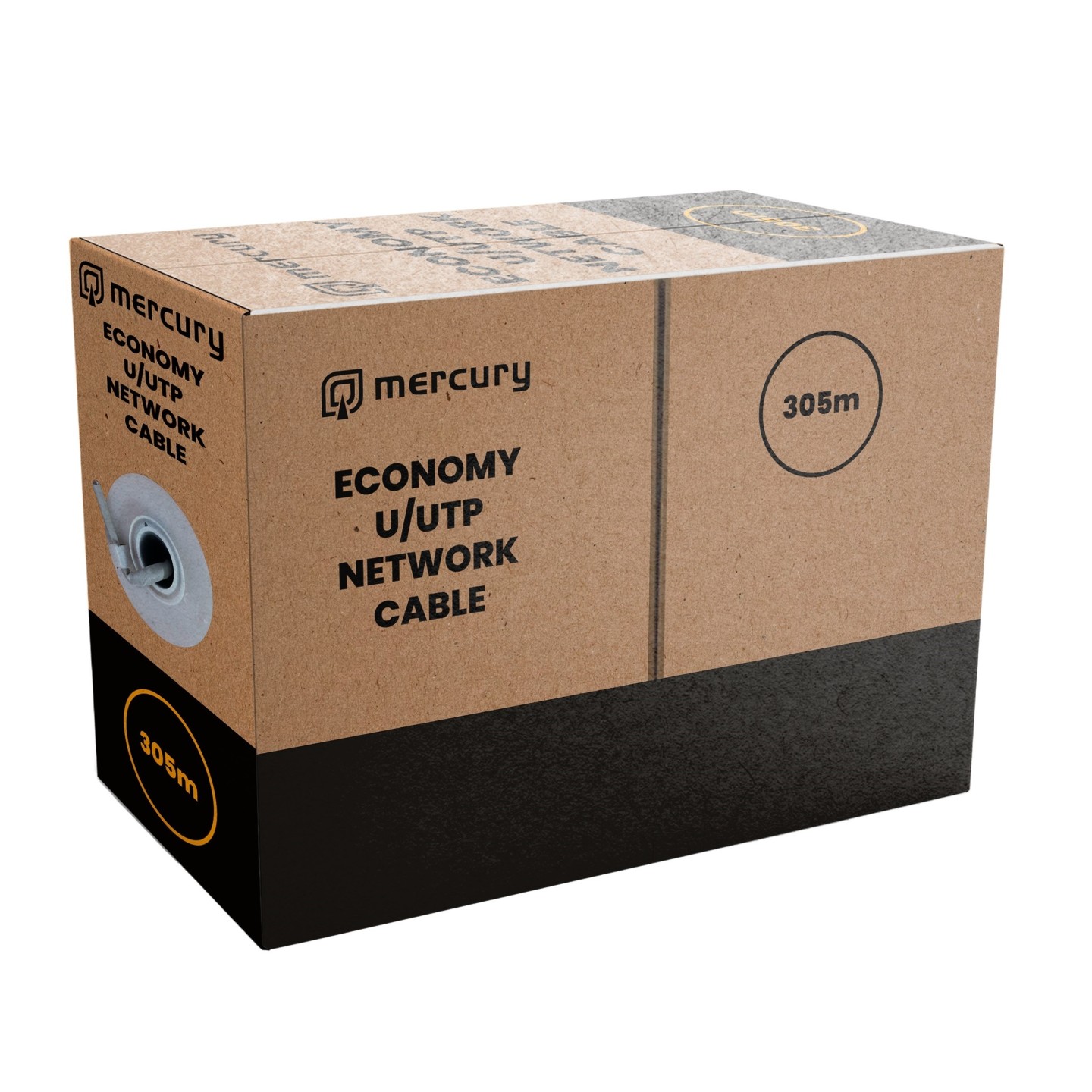

- Supplied in an easy-pull dispensing box
- Passes Cat6 fluke test 100m at 250MHz
- Complies to TIA/EIA-568 Cat6 standard
- Conductor Solid CCA
- Strands 8 x 1/0.57mmØ ±2%
- CSA 8 x 0.26mm²
- Cable : diameter 6mmØ
- Insulation HDPE 0.23mm thickness
- Sheath PE 0.5mm thickness
- Impedance 100 Ohms (±15)
- DC resistance @ 20°C<35 Ohms/100m
- Return loss >20dB @ 100m (from 1Mhz to 100Mhz)
- NEXT >40dB @ 100m
- PSNEXT >38dB @ 100m
- Cable colour Black
- Length 305m
- Weight 7kg
| Type | Cat6 |
| Cable Type | UTP |
| Conductor | CCA |
| Environment | Outdoor |
| Length | 305m |
| Colour | Black |
