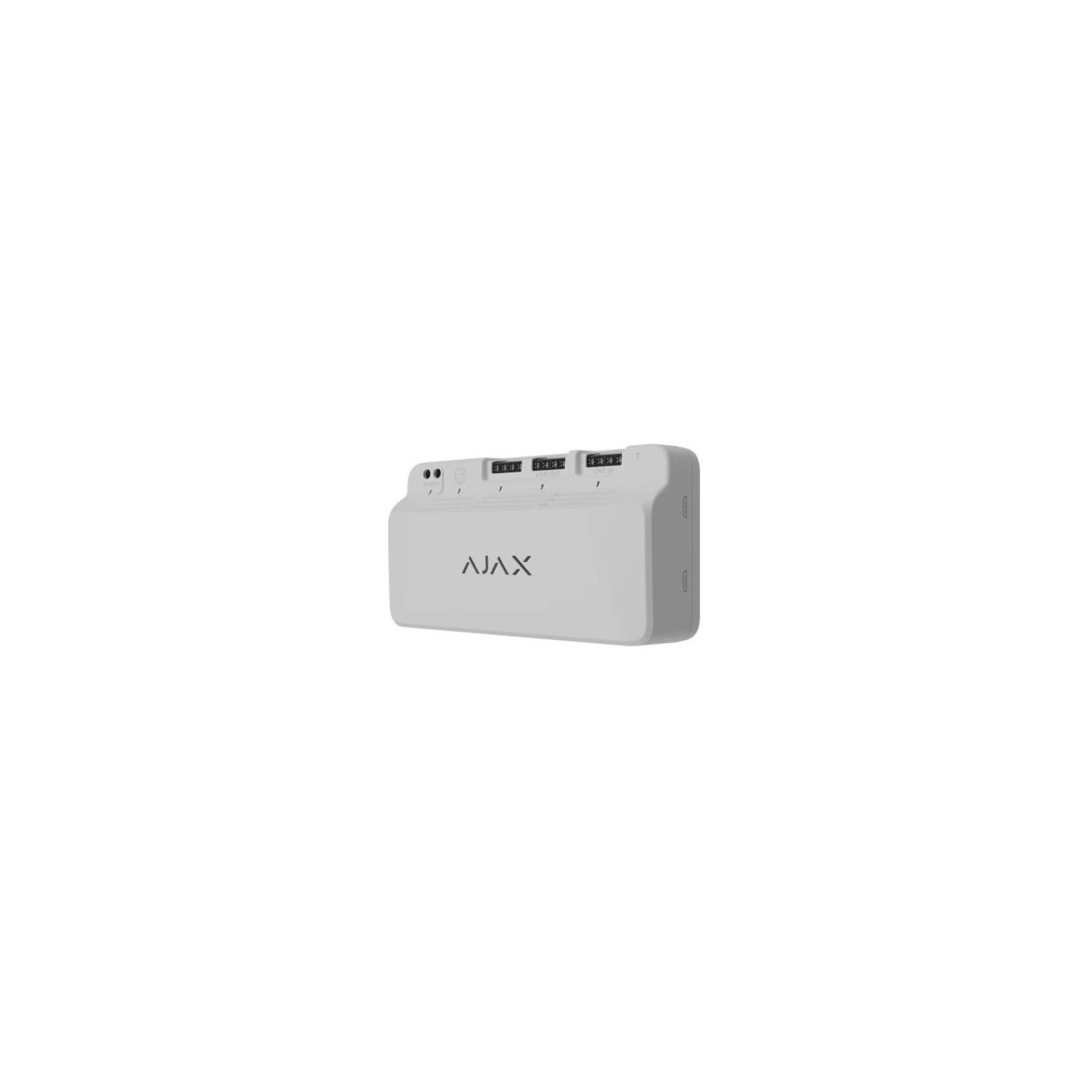

AJAX FIBRA LineSupply 45W - LineSupply 45W
FIBRA LineSupply 45W requires AJAX certification. Contact security@mstronics.com for details. Safety-focused design, secure wired Fibra line, encryption, remote app config, energy efficiency.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Alarm Kits - System Type | Wired |
|---|---|
| Alarm Kits - App/Cloud | Yes |
- ** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact security@mstronics.com for more information on how to obtain the certification license**
- Thoughtful design with safety in mind
- Record Fibra line length
- Flexible security system design
- Discover future-proof hardware
- Multi-purpose casing
- Unique wired technology
- Energy efficiency first
- Sabotage resistance
Communication
- Fibra communication technology : Proprietary wired communication technology combines the reliability of wires with the freedom of radio connection
- Key features : Two-way communication / Advanced anti-sabotage / Block encryption featuring a dynamic key / Instant notifications / Remote configuration in the Ajax apps
- Line connection : 4-core cable
- Connection : to any point of the Fibra line / LineSupply (45 W) can be installed after a hub, detector, keypad, siren, or another LineSupply. The module provides additional power to Fibra devices installed between the LineSupply (45 W) and the end of the line
- Wired connection range : between the module and the hub — up to 2,000 m / between the module and the last Fibra device on the line — up to 2,000 m / The maximum line length is relevant when using the U/UTP cat.5 twisted pair
- Encrypted communication : All stored and transmitted data are protected by block encryption featuring a dynamic key
Line connection
- Number of input lines : 1 / LineSupply (45 W) can be connected after any Fibra device
- Number of output lines : 1 / Fibra devices with a total power consumption of up to 30 W can be connected to the output line
- Cable length : up to 2,000 m / For the output line between the module and the last Fibra device on the line when using U/UTP cat.5 twisted pair
- Galvanic isolation : Ensures that devices connected between the LineSupply (45 W) and the end of the line do not consume power from the hub
Power supply
- Main : 100–240 V~, 50/60 Hz
- Backup : 12 V⎓ battery with a capacity from 7 to 18 Ah / Not included. When the main power is available, the backup battery is charged from the mains
- Power output : of the output line — 30 W / to charge the backup battery — 15 W
Recommendations
- Power supply 100–240 V~ / The device is designed for indoor use only. Installation in Case C (260) or Case D (430) is recommended. The casing is sold separately
Sabotage protection
- Tamper alarm : LineSupply (45 W) has a connector to fasten the tamper board to the module. The tamper board is in Case that is sold separately
- Protection against short circuit on the line
- Protection against overvoltage : on the Fibra signal lines / The module protects devices when voltage is applied to the signal terminals A, B
- Protection against spoofing : device authentication
- Communication loss detection : after 36 s / Between the hub and LineSupply (45 W). It can be changed in hub settings
Enclosure
- Dimensions : 160 × 85 × 53 mm
- Weight : 456 g
- Operating temperature range : from –10 °C to +40 °C
- Operating humidity : up to 75%
- Electric shock protection : Class III
Complete set
- LineSupply (45 W) Fibra
- Power supply cable
- Battery connection cable
- Terminal adapter — 2 pcs
- Quick start guide
