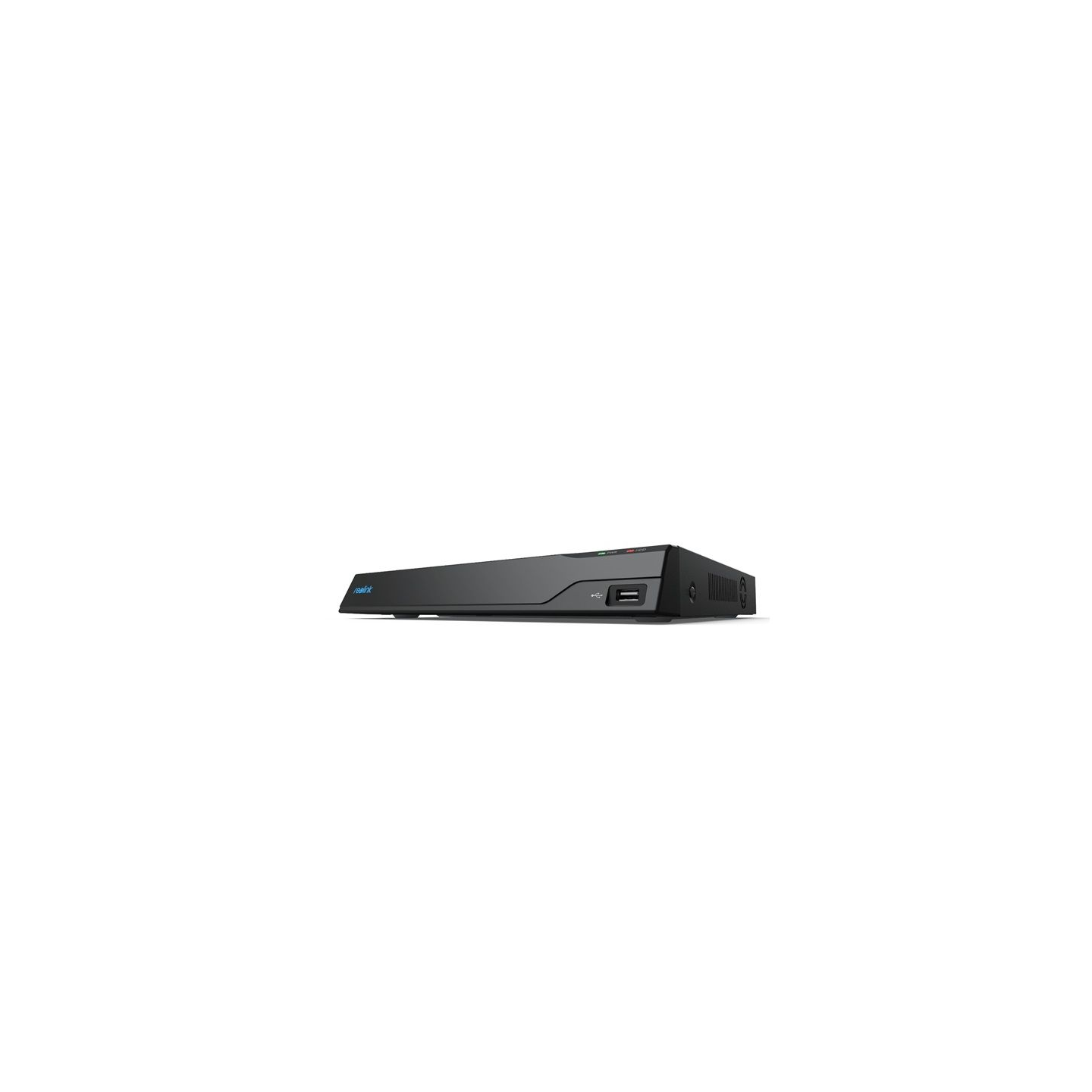

Reolink POE NVR 8-port with 2TB HDD - RLN8-410-2T - 8-port PoE NVR 2TB HDD
8-channel PoE NVR with 2TB HDD; supports up to 8 cameras for 24/7 surveillance.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Power | PoE |
|---|---|
| IP Cameras - Storage | NVR Only |
- If you want 24/7 video recording or if you have multiple IP cameras to manage, this Reolink NVR is your best choice.
- Support all cameras recording at the same time (up to 8 cameras).
- If you want longer recording, try motion detection recording, which will trigger recording only when motion is detected.
- Allow you to install an external hard disk drive via e-SATA for more storage (up to 6TB).
- Support up to 12MP
- Power over Ethernet
- 8-Channel NVR
- 24/7 Recording
Hardware
- N7MB01
Video/Audio Input
- IP Video Input : PoE IP Camera x 8
- Audio Input : Cameras with built-in mic
Video/Audio Output
- Video Output : VGA, HDMI
- Display Resolution : HDMI: 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768 / VGA: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768
- Audio output : 1-channel, RCA
Decoding
- Live View/Playback Resolution : 7680×2160,4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p
- Video Format : H.265, H.264
- Synchronous Playback : Up to 4 channels
HDD
- SATA : 1 x SATA interface (1 x 2TB HDD included)
- Capacity : Up to 12TB (Max. 6TB capacity for each HDD)
- External HDD : 1 eSATA Interface for HDD
External Interface
- USB Interface : 2 x USB 2.0
- Network Interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN
- PoE : 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
PoE
- Max. Power Per Port : 25W
- Supported Standard : IEEE 802.3 af/at
Network
- Network Protocol : HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- Browser Supported : Edge, Firefox, Chrome, Safari
- OS Supported : Windows, Mac OS; Smartphone: iOS, Android
- Max. User Access : 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
- Power Supply : DC 48V~53V
- Power Consumption : <10W (without HDD&PoE)
- Working Environment : Temperature: -10°C~+45°C Humidity: 10%~90%
- Dimensions : 255 x 49.5 x 232mm
- Weight : 1.4kg
Warranty
- Limited Warranty : 2-year limited warranty
| Channels | 8 |
| PoE Ports | 8 |
| Compression | H.265/H.264 |
| HDD | 2 Disk Up to 6TB |
