Mercury Cat7 S FTP LSZH Network Cable - 808.050UK - Cat7 S FTP LSZH Network Cable 305m
Cat7 SFTP cable with LSZH sheath and oxygen-free copper; 305m reel with individual pair aluminum foil screens and an overall braided aluminum screen.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Ethernet Cables - Category | Cat7 |
|---|---|
| Ethernet Cables - Shielding | S/FTP |
| Ethernet Cables - Conductor | Solid Copper |
| Ethernet Cables - Length | Other |

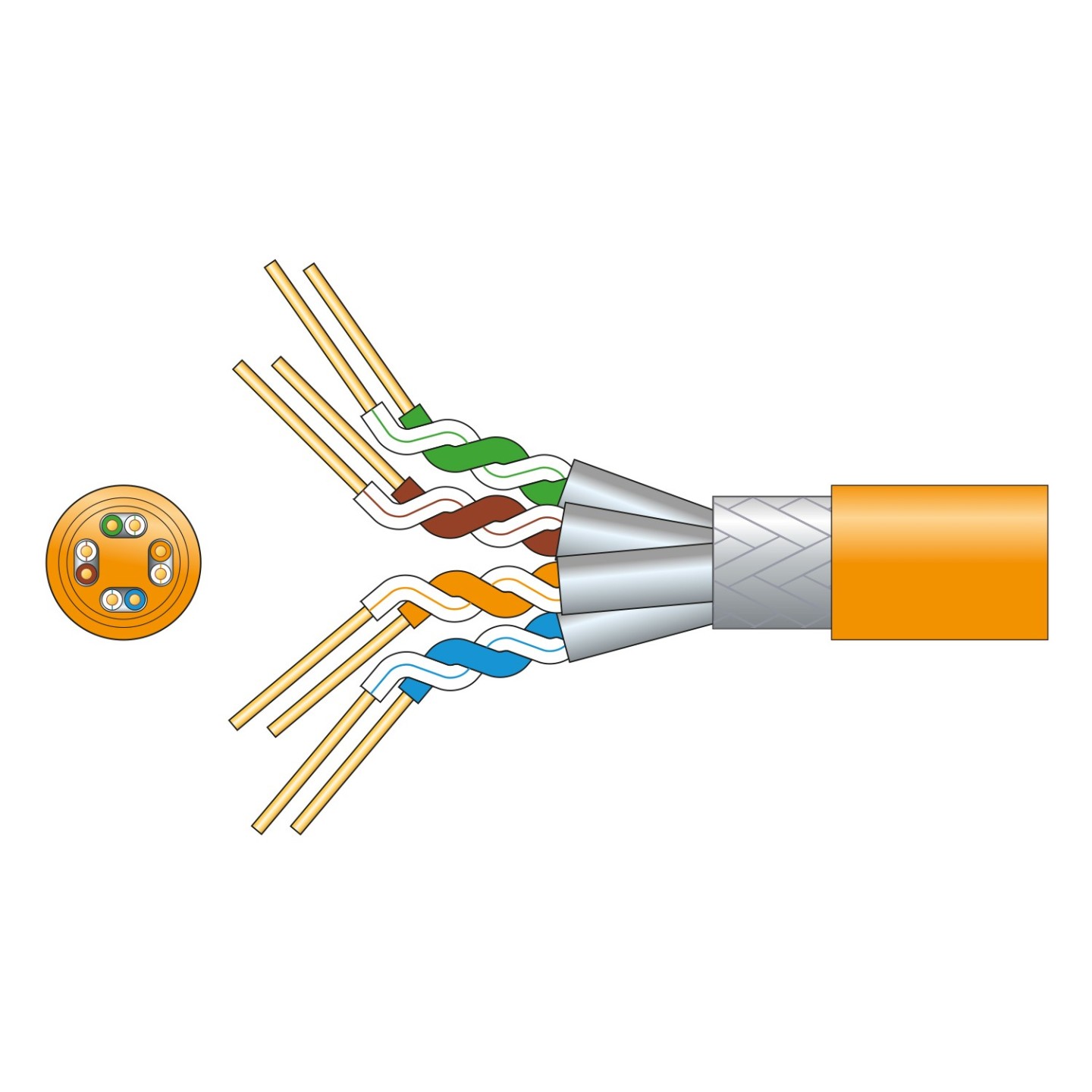

Cat7 oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Individual pair aluminium foil screen and overall braided aluminium screen provide protection from any pair or alien crosstalk. Supplied on a wooden drum reel and marked at 1 metre intervals, this cable is designed for ultra high speed data transmission up to 10 Gbps at bandwidths up to 600MHz.
- Delivers ultra high speed data transmission up to 10 Gbps at bandwidths up to 600MHz
- Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
- AWG23 oxygen free solid copper conductor
- Supplied on a sturdy wooden drum reel
- Conductor: Solid OFC
- Conductor diameter: 0.560±0.005mm
- Cable diameter: 7.2±0.5mm
- Screen: Aluminium/Mylar foil
- Braid material: Aluminium magnesium alloy
- Insulation: PE 1.30±0.05mm
- Sheath: LSZH 0.50±0.05mm
- Capacitance: <330pf/100m
- DC resistance @ 20°C: <9.38 Ohms/100m
- Impedance (1 to 100MHz): 100±15?
- Impedance (100 to 250MHz): 100±18?
- Impedance (250 to 600MHz): 100±25?
- Return loss: >20.95dB
- Attenuation: <1.92dB
- NEXT: >81.17dB
- Phase delay: <426.34ns
- PSNEXT: >81.07dB
- ELFEXT: >58.61dB
- PSELFEXT: >55.88dB
- Colour: Orange
- Weight: 17.5kg
| Type | Cat7 |
| Cable Type | SFTP |
| Conductor | Pure Copper |
| Environment | Indoor |
| Length | 305m |
| LSZH | Yes |
| Colour | Orange |
