Adastra AS 100V Multi Zoner A6 Volume+Switch 6x30W - 952.476UK - A6 Volume+Switch 6x30W

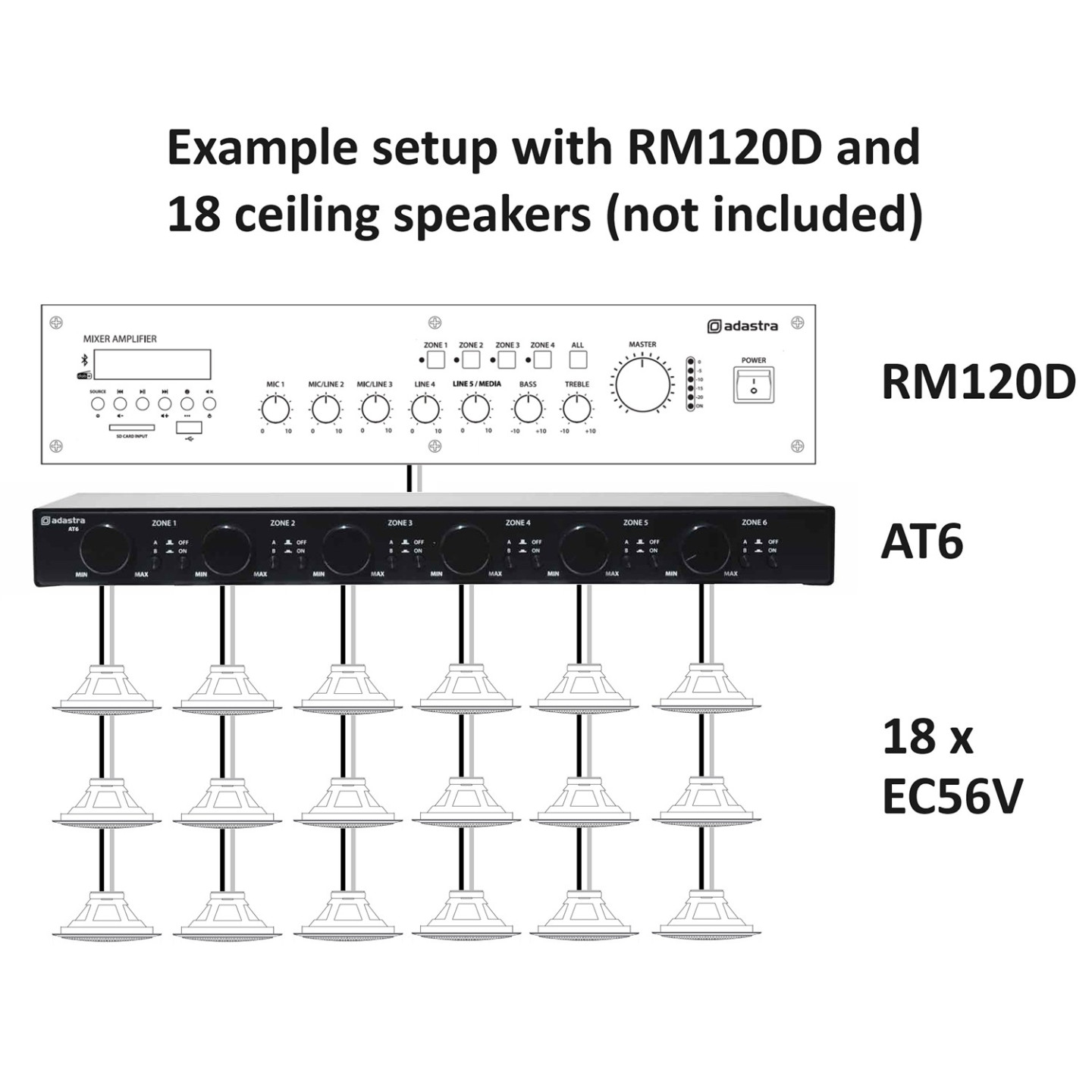

Connect an AT6 to one or two 100V amplifiers to provide a 6-zone volume and source solution for multi-room installations.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Connect an AT6 to one or two 100V amplifiers to provide a 6-zone volume and source solution for multi-room installations.

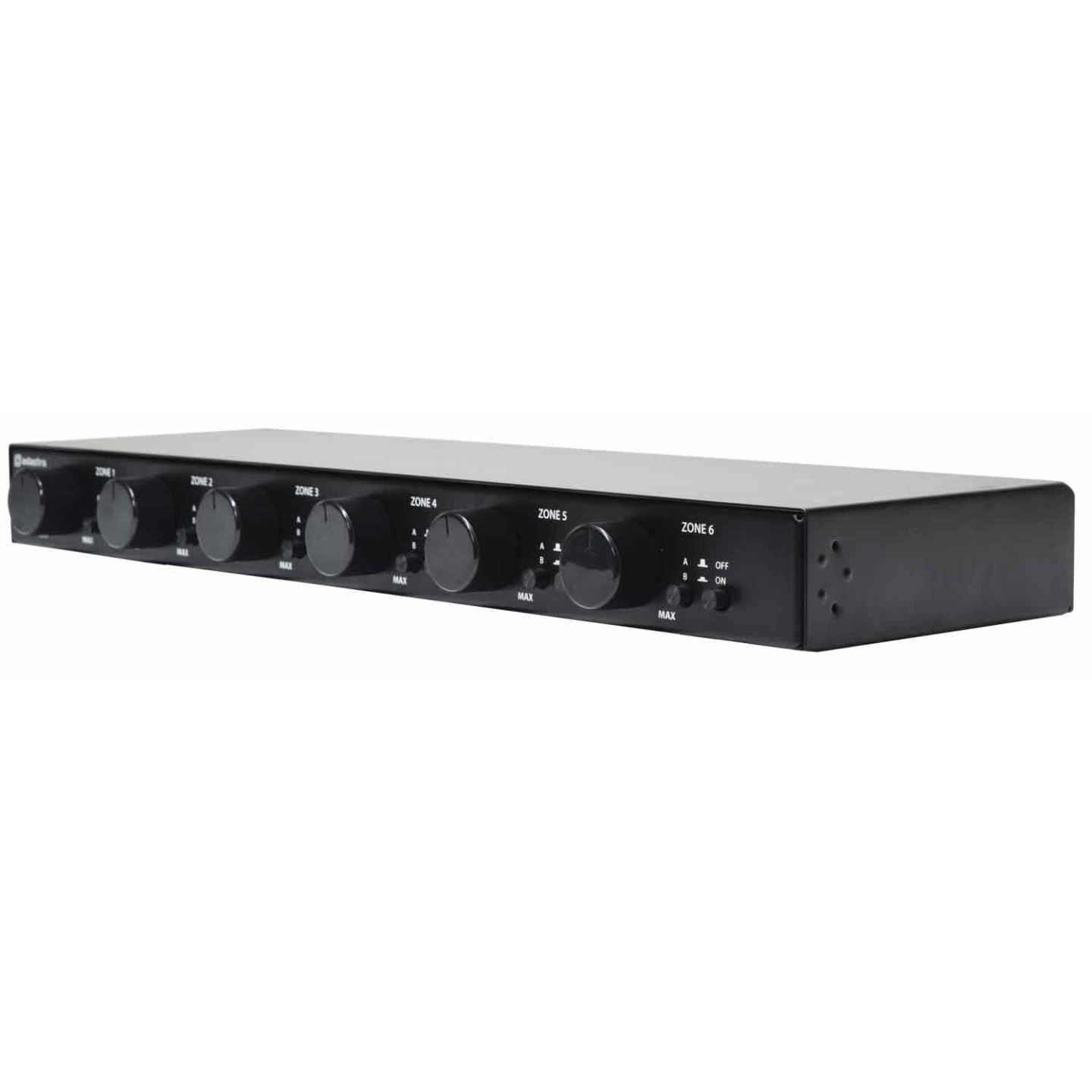

- Housed in a 1U rackmount enclosure, the AT6 has six output channels, which can feed up to 30W to one or more 100V speakers.

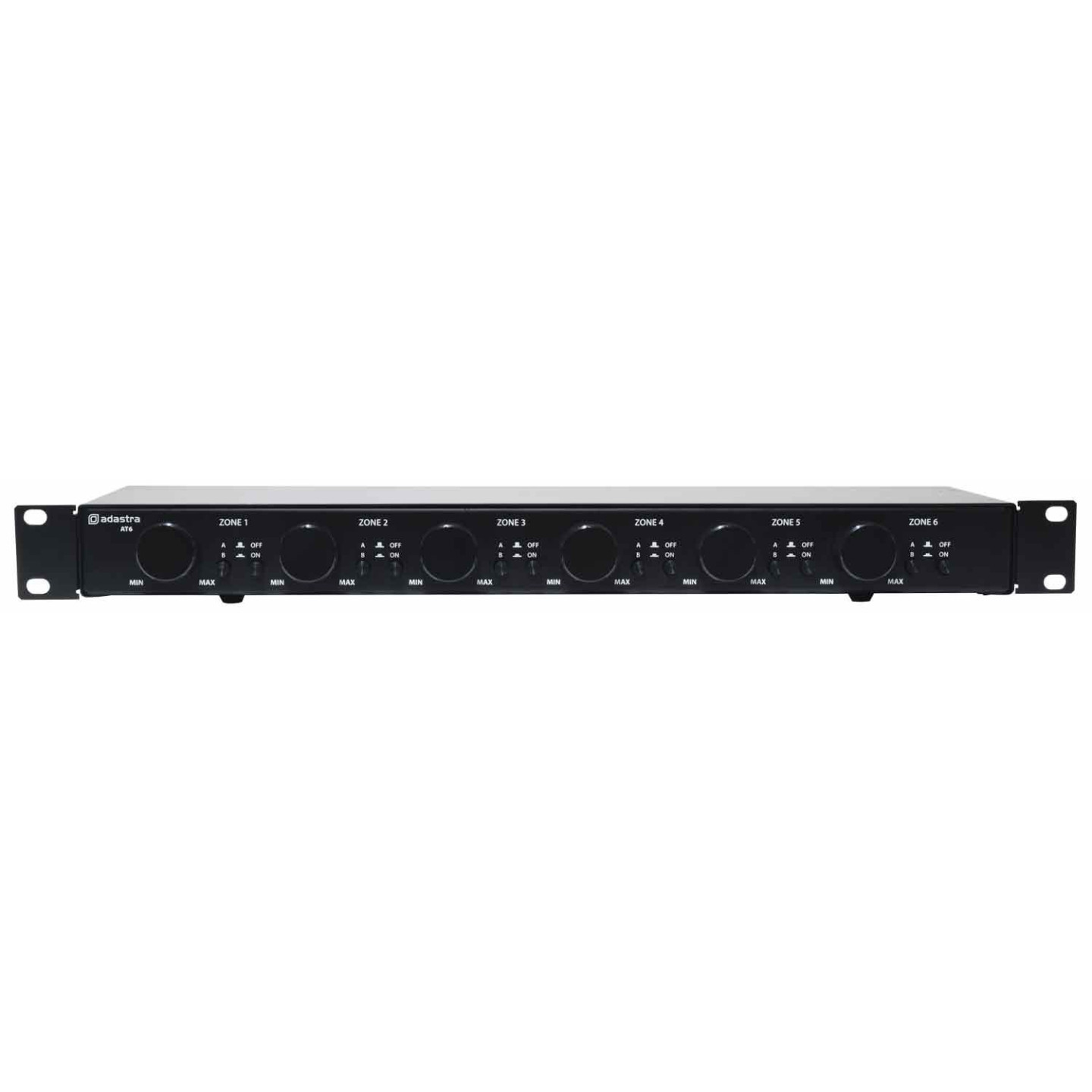

- Each channel has a rotary volume switch, on/off switch and an A/B source switch.
- When connecting 2 amplifier outputs to the AT6, one amplifier becomes input A and the other input B, so that each channel can have an independent choice of audio source and output level.
- 24V terminals can be connected to an emergency control panel for global muting.
- A completely passive and cost-effective add-on to convert single output amplifiers into a flexible zoning system.
- Choice of 2 amplifier sources to each zone
- Rotary output volume switch for each zone
- Passive operation, no power supply required
- 1U 19" rack-mountable
- Power handling 30W max. per output zone
- Channel controls 11 position volume attenuator, A/B source switch, On/Off switch

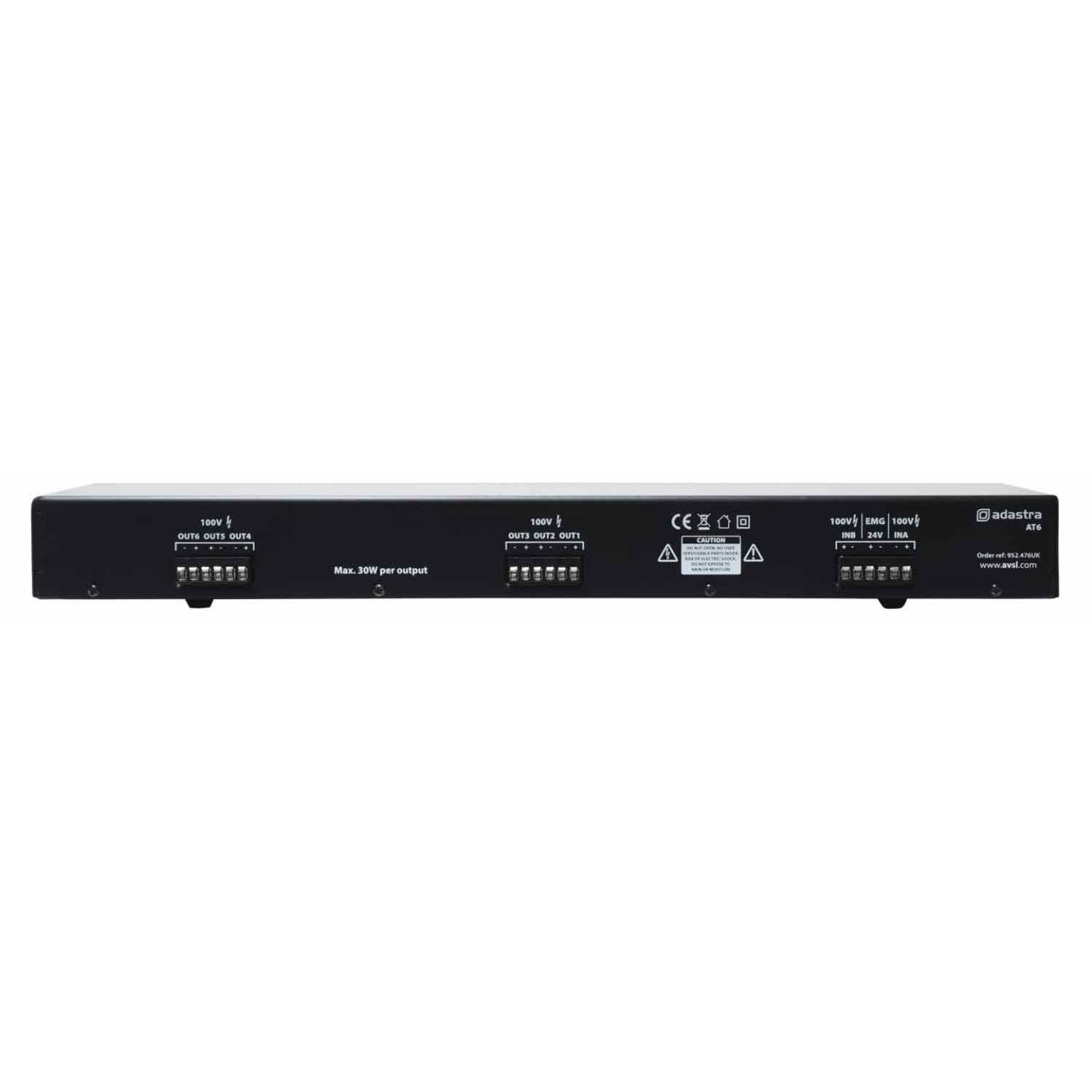

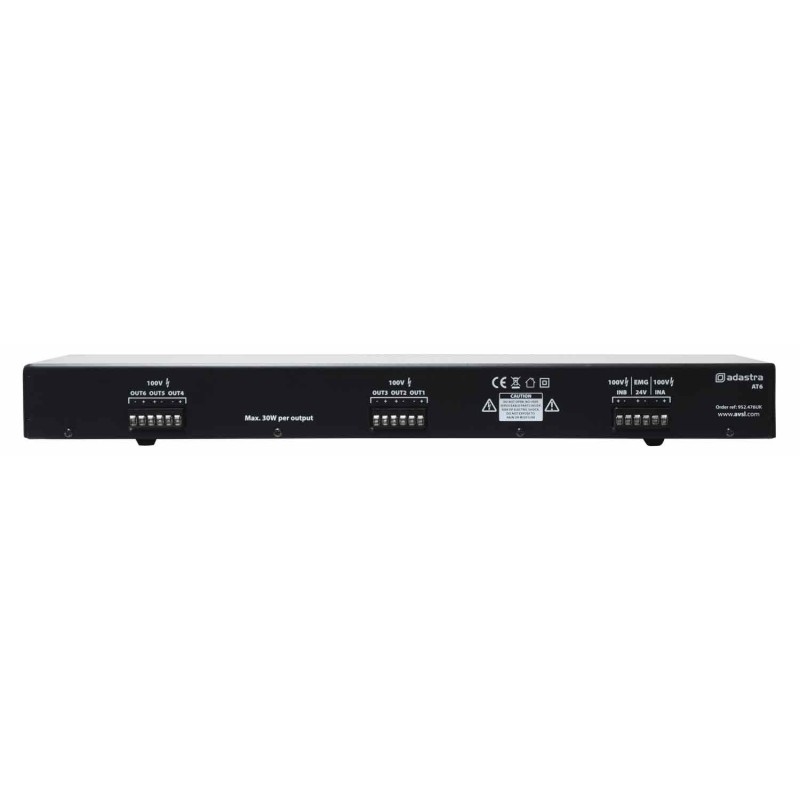

- Connections 24V mute terminals
- 482 x 160 x 43mm
- Weight
- 2.39kg
