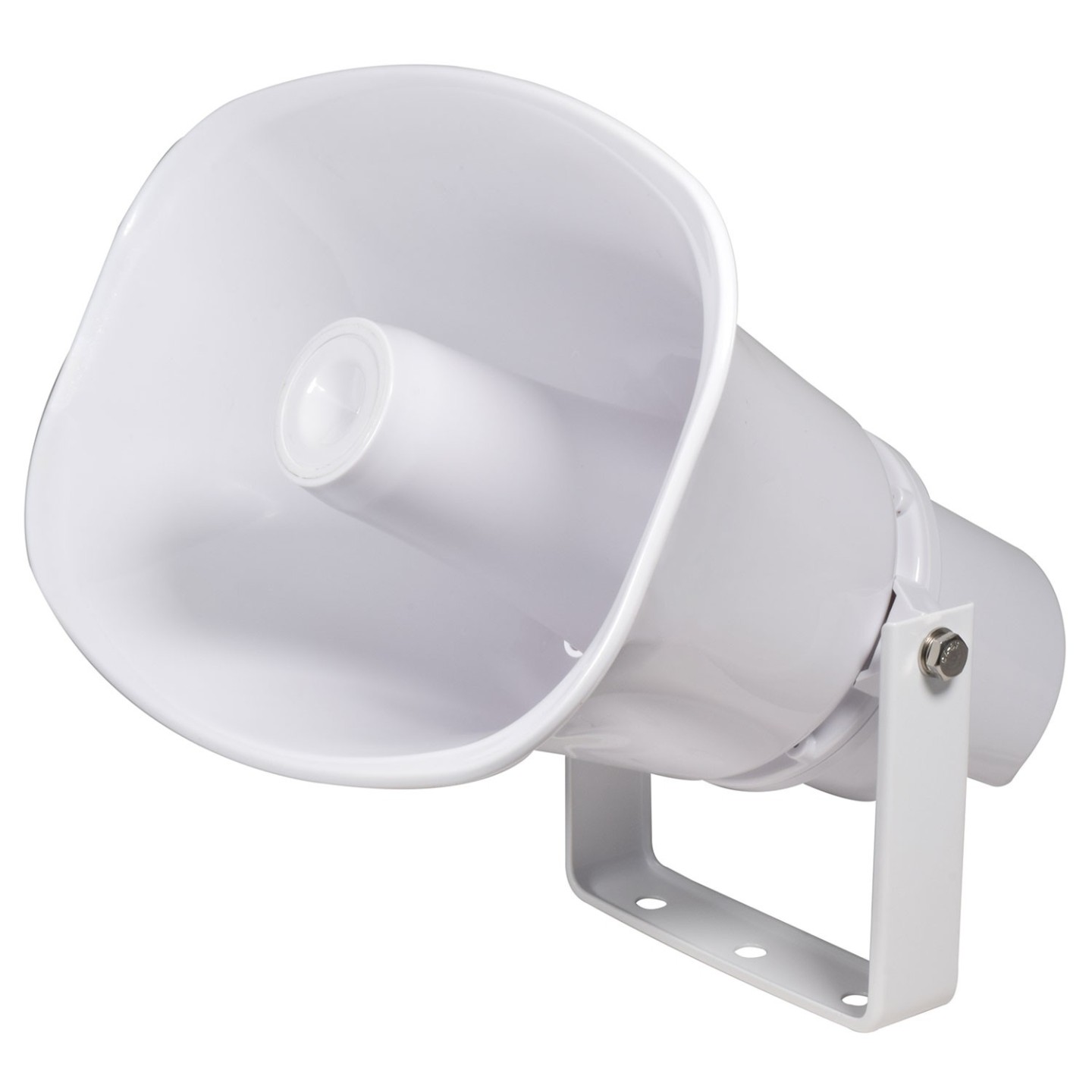

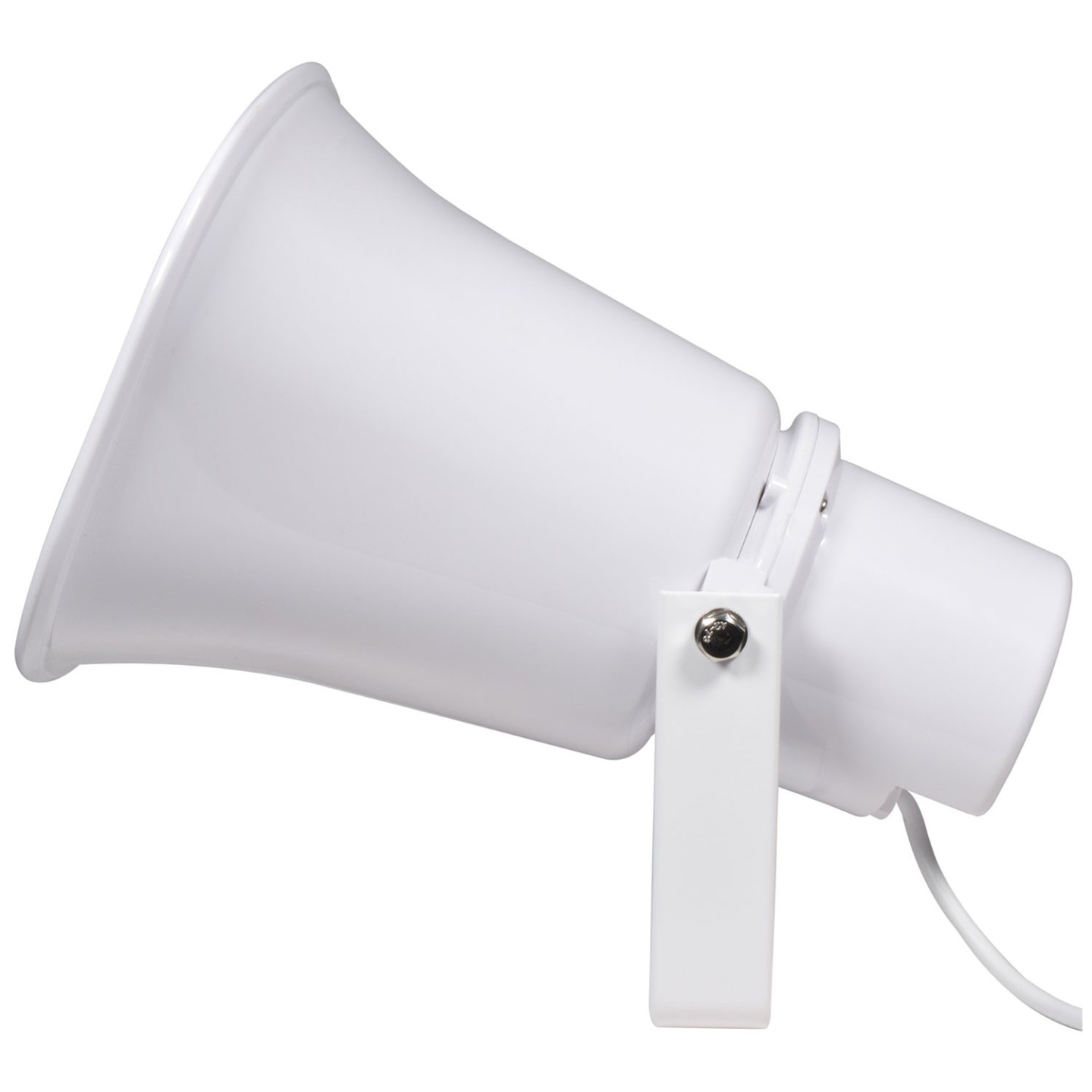

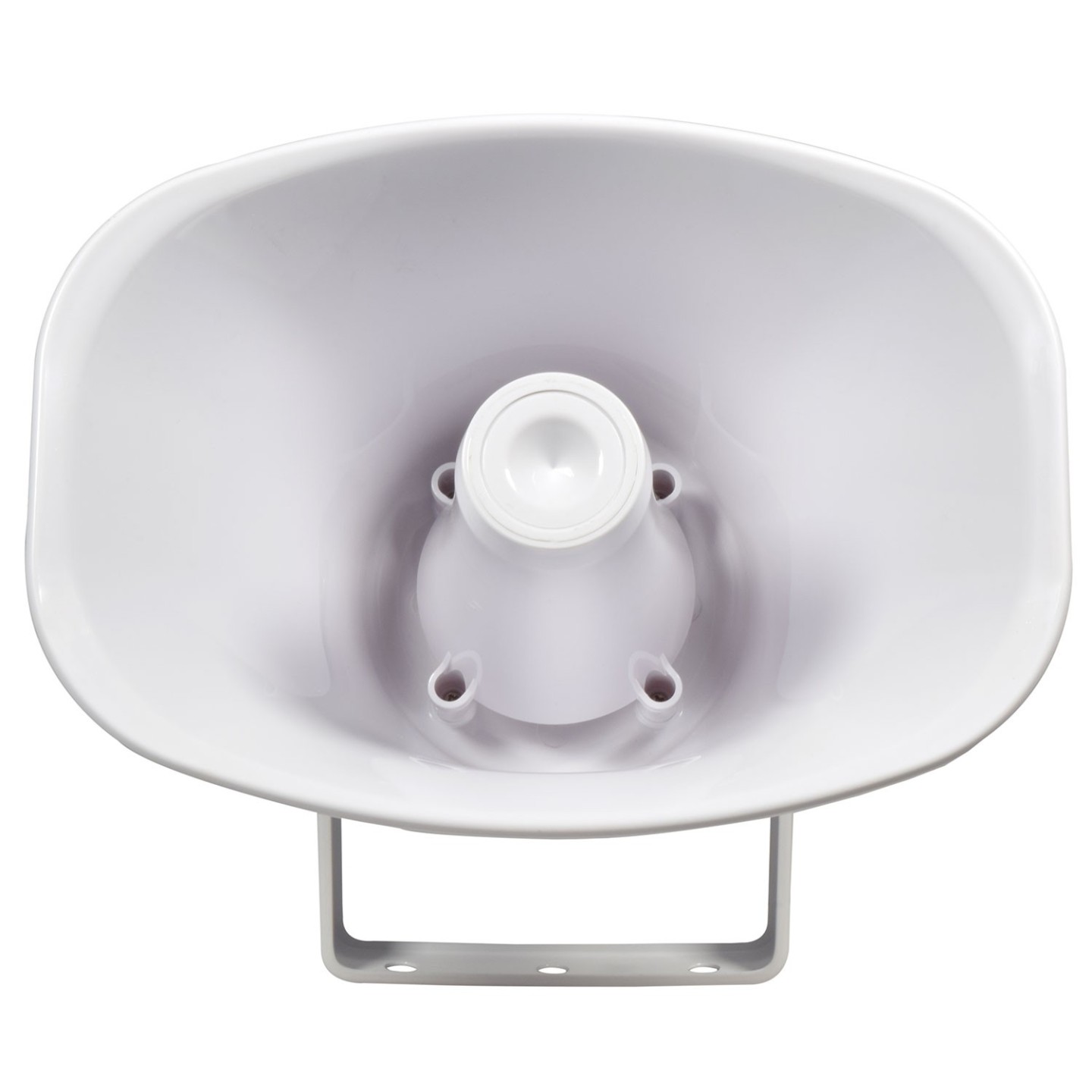

Adastra Horn Speaker - FH30V - Fire Rated EN54-24, 100V, 30W
Moulded ABS weatherproof horn speaker with EN54-24 fire rating; 8 Ohm or 100V operation with switchable tapping (70V settings included).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Speakers - Type | Outdoor |
|---|---|
| Speakers - Design | Passive |

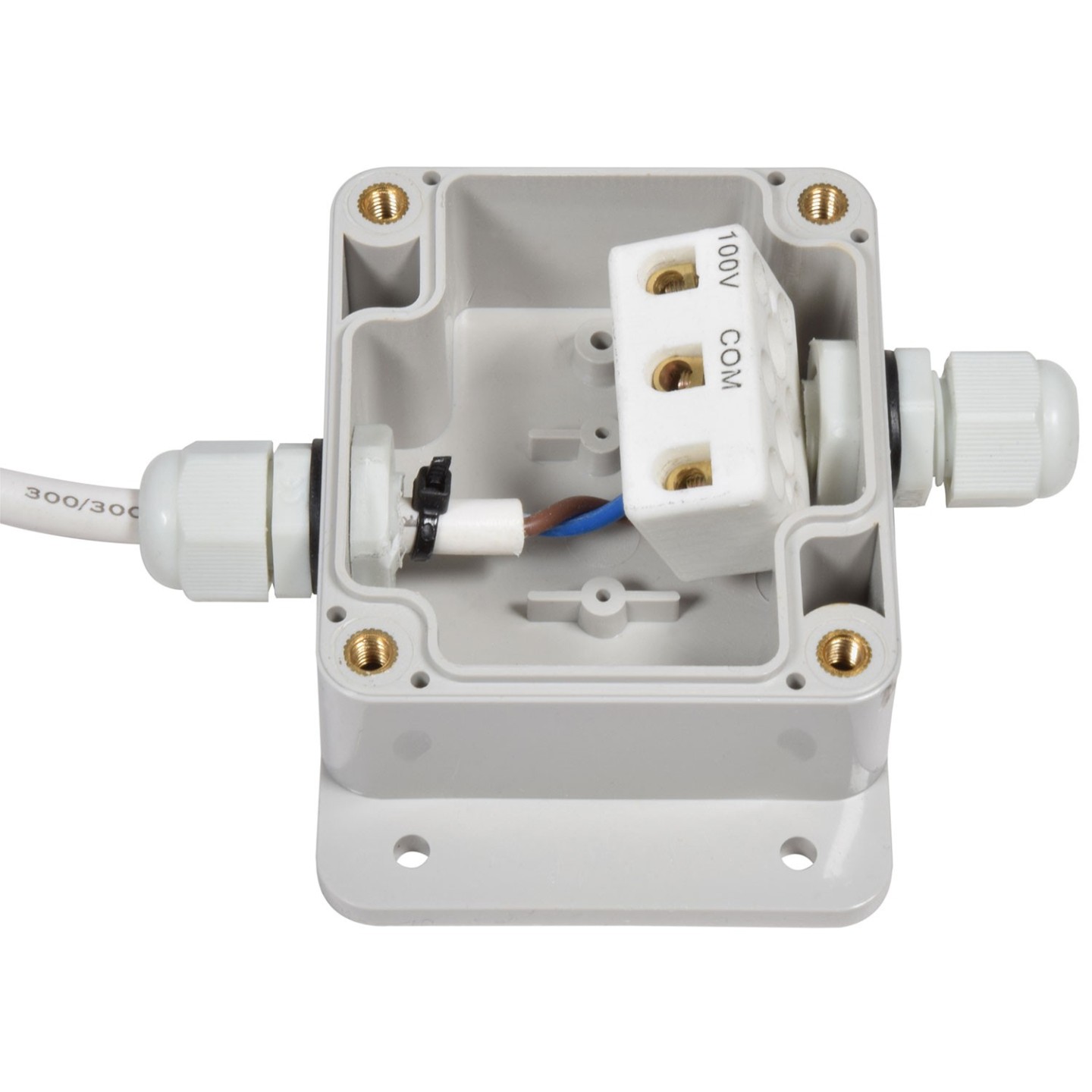

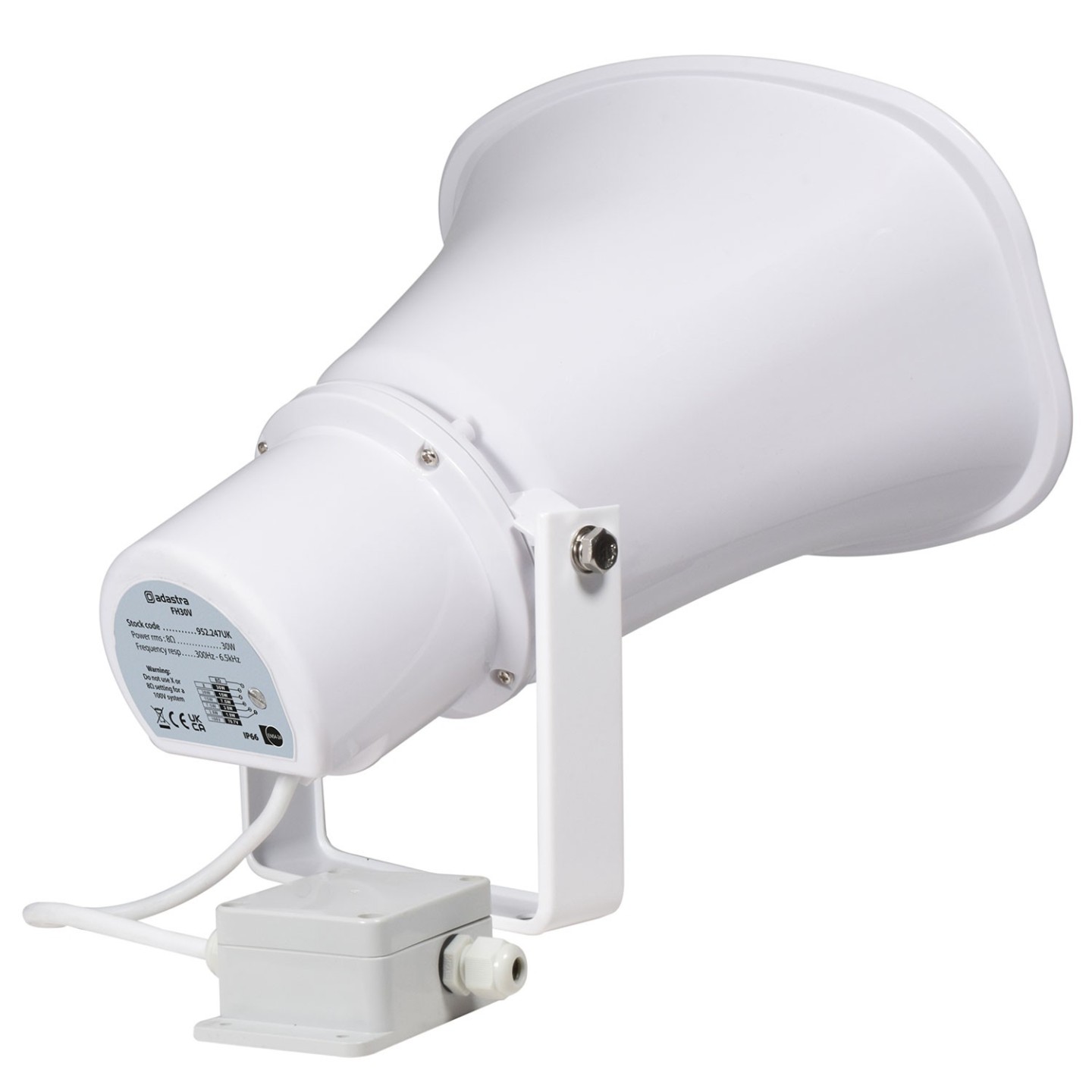

Moulded ABS weatherproof horn speakers with EN54-24 fire rating. Low impedance (8 Ohm) or 100V operation with switchable volume tappings (70V settings also included). Hard-wired with a fire-resistant cable and junction box, fitted with a ceramic screw terminal block and thermal fuse. Surface mounting via a stainless adjustable U-bracket. Designed for voice announcements and alerts in commercial PA installations.
- EN54-24 fire systems certification
- IP66 weatherproof
- 5VB fireproof ABS material
- 100V, 70V or 8 Ohm operation
- Ceramic terminals and thermal fuse
- Construction.....................5VB fire-rated ABS housing, stainless metal bracket
- IP rating............................IP66
- Fire rating.........................EN54-24 certified
- Connection.......................Hard-wired fire-resistant cable, ceramic terminal block
- Circuit protection..............Thermal fuse
- Power rms : 8 Ohms........30W

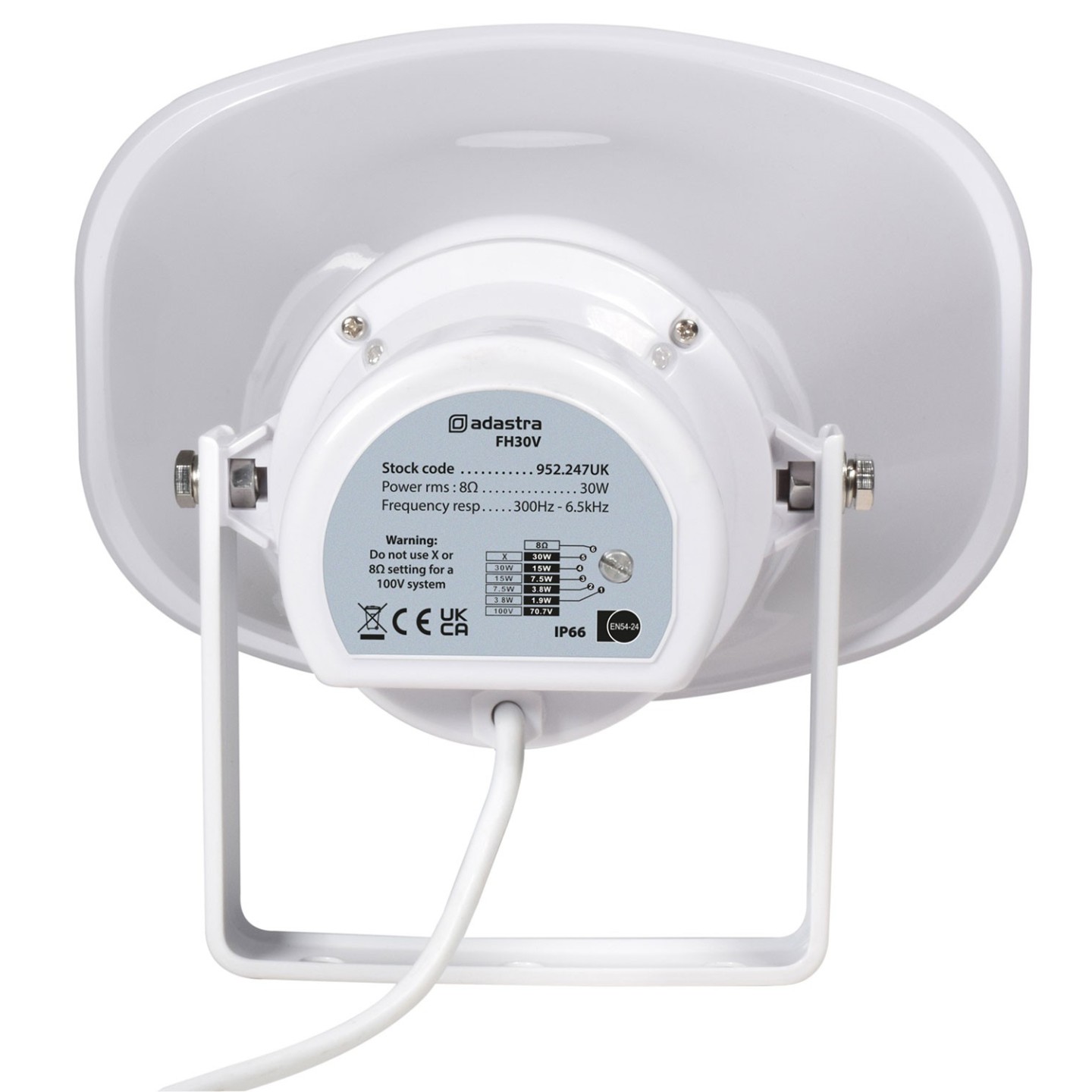

- Tappings...........................3.8W, 7.5W, 15W, 30W (100V) & 8 Ohms
- SPL @ 1W/1m.................113dB
- Frequency response........300Hz - 6.5kHz
- Dimensions......................300 x 282 x 203mm
- Weight..............................2.26kg
| Type | Outdoor-Horn |
| Fire Rated (EN54-24) | Yes |
| Power 100V | 30W |
| Power 8Ω (max) | 30W |
| Colour | White |
