Adastra V-242 100V Amplifier - 953.252UK - 2x240W FM USB SD BT
2-zone 100V amplifier with USB, FM, SD and BT playback delivering 2x240W output.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Fully-featured mixer-amplifier with class-D amplifier section, delivering 100V or low impedance output to 2 independant public address zones. Featuring a built-in audio player with Bluetooth® and DAB+/FM receiver, along with a USB/SD mp3 player for flexible and convenient playback of music or spoken information. Inputs include 3 balanced mic/line channels, which are live to both zones at all times, with switchable phantom power and selectable priority for channel 1. Additionally, a rotary selector for each zone can switch between 2 unbalanced line inputs, an auxiliary line input or the internal audio player section. Speaker connections are provided on screw terminal blocks with options for 100V line or 4-8 Ohm low impedance loads. Each zone also has an unbalanced line output if further amplifiers are to be connected to expand the system. Multiple input connections and convenient playback options make this amplifier a complete problem-solver for installers and venue owners, providing flexible and dependable control for distributed audio in commercial and leisure environments.
- Bluetooth, DAB+/FM and USB/SD media player
- 3 mono inputs and 1 selectable stereo source
- 2 independent 100V or low impedance zones
- Bass & Treble EQ for each zone
- Front jacks or rear combo and screw inputs for channels 1-3
- Power output : 2 x 240Wrms
- Audio source : DAB+/FM/USB/SD/BT audio player
- Inputs : 3 x mic/line (Jack/XLR/screw), 2 x line (RCA), Aux (RCA/3.5mm)
- Zone outputs: line : 2 x RCA

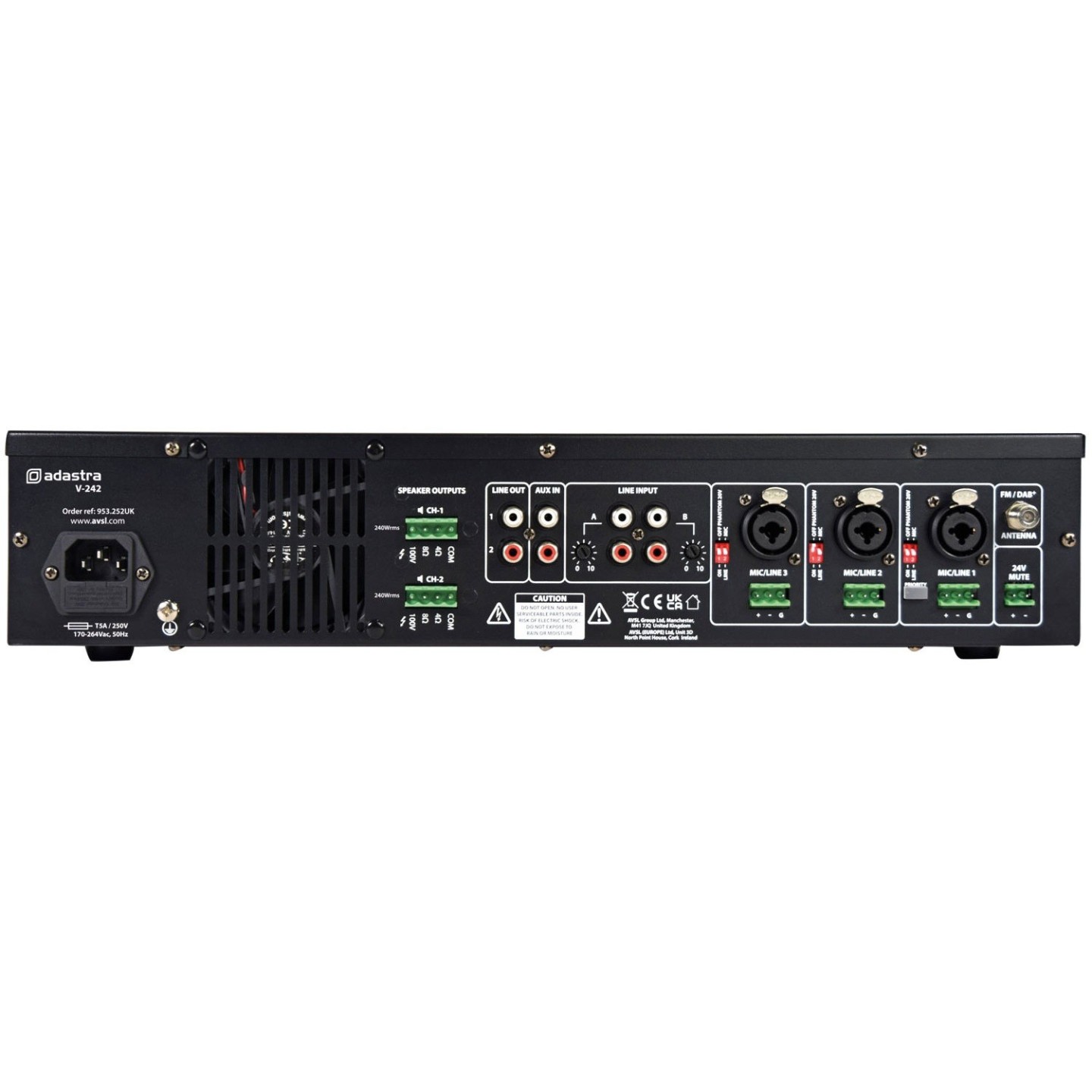

- Zone outputs: speaker : 2 x terminal outputs 100V/8 Ohms/4 Ohms/COM
- Phantom power : +20V switchable to XLR inputs
- Input impedance : 1k Ohms (mic/line)
- Input sensitivity : -11dB (line), -46dB (mic)
- THD : <0.76% @ 1kHz
- SNR : 84dB (line), 82dB (mic)
- Bluetooth version : 5.0
- Frequency response : 100Hz - 20kHz
- Power supply : 170-264Vac, 50Hz (IEC)
- Dimensions : 435 x 273 x 88mm (feet removed)
- Weight : 7.20kg
In the Box
- V-series mixer-amplifier
- IEC power lead(s)
- 19" rack-mounting ears
| Amplifier Type | Matrix Amp |
| Power | 480W |
| Zones | 2 |
| Zone Control | Volume |
| USB / FM / BT | Yes |
| Rack Mountable | Yes |
