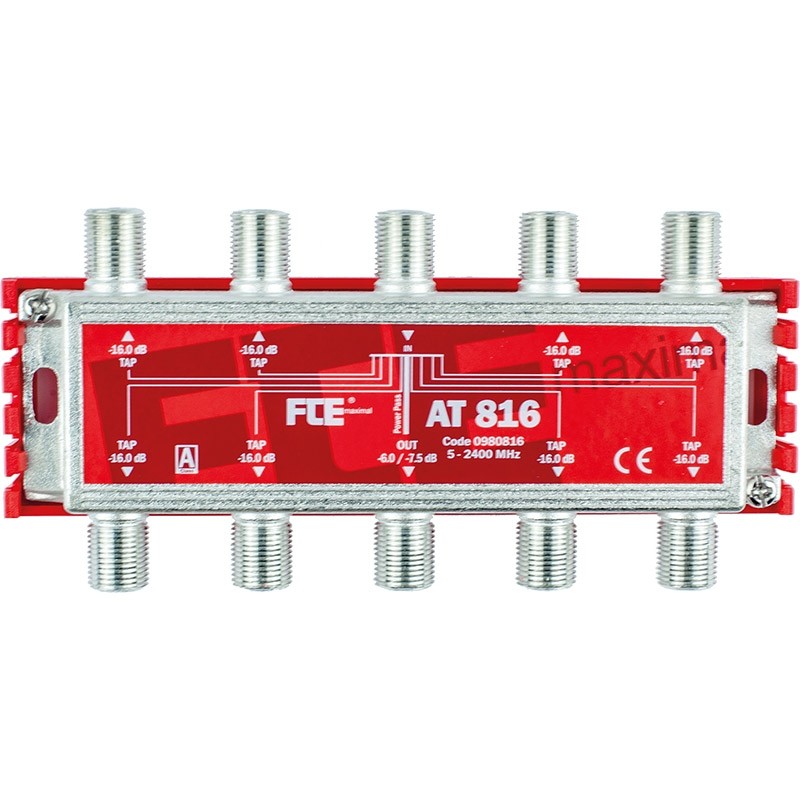

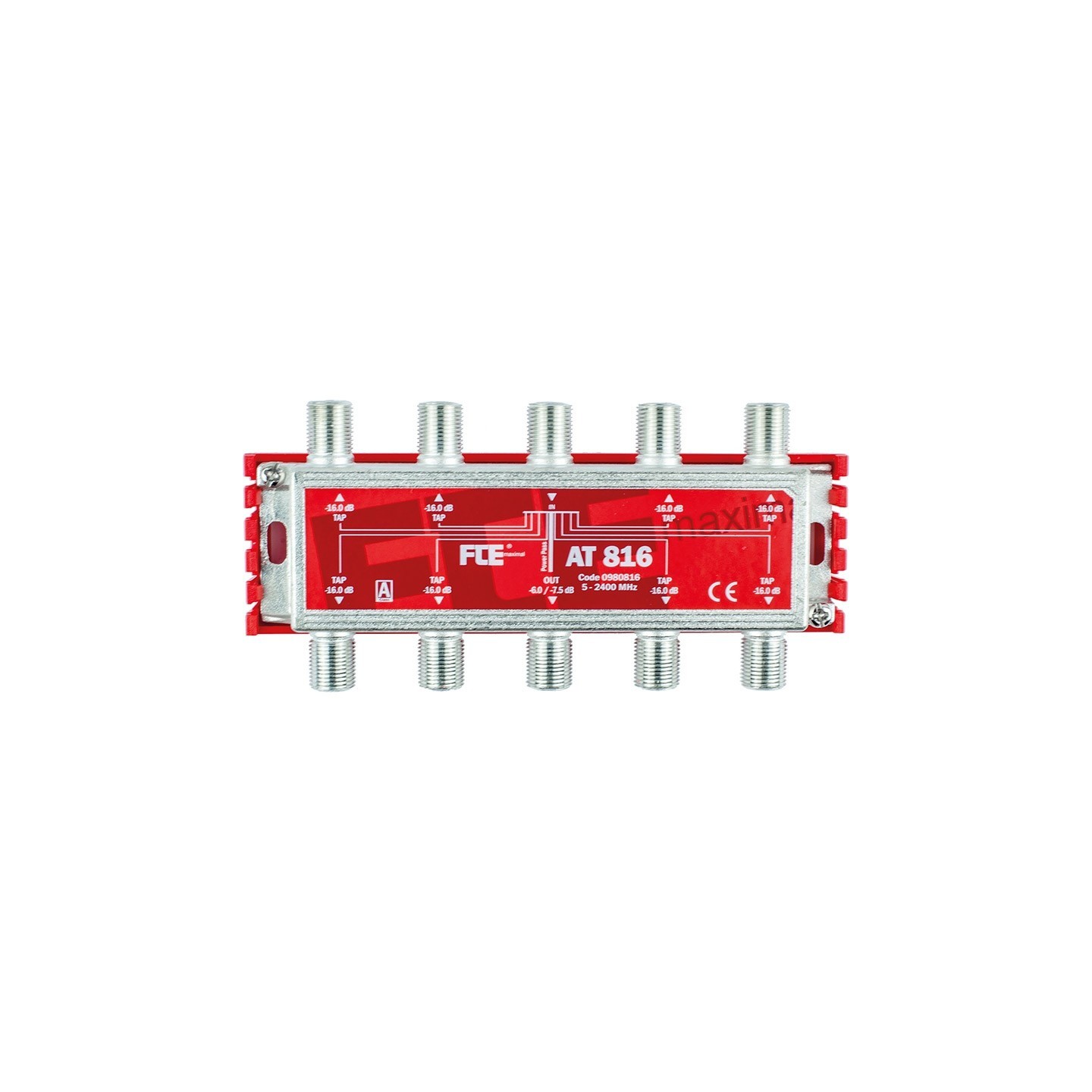

FTE Tap - AT816 - 8-Way Tap 5-2400MHz
8-output RF tap for 5-2400 MHz with eight outputs; return-path bands 5-30 and 5-65 MHz; Type: Tap; Series: AT.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Band (MHz) 5-2400
- Return path band (MHz) 5-30 / 5-65
- Number of TAPs 8
- Distribution attenuation (dB)( TYP / MAX )
- 5-470 MHz 16,0 / 17,0
- 470-862 MHz 16,5 / 17,0
- 950-2400 MHz 16,5 / 17,5
- Pass attenuation (dB) ( TYP / MAX )
- 5-470 MHz 5,0 / 6,0
- 470-862 MHz 5,2 / 6,0
- 950-2400 MHz 6,5 / 7,5
- Decoupling between outputs (dB)
- 5-470 MHz >40
- 470-862 MHz >30
- 950-2400 MHz >28
- Return loss (dB)
- IN >20
- OUT >20
- TAP >18
- Screening factor (dB) >100
- Impedance (Ω) 75
- Current pass IN - OUT
- Connectors F female
| Type | Tap |
| Tap Outputs | 8 |
| Frequency | 5-2400Mhz |
| Series | AT |
