Reolink WIFI Outdoor PTZ Camera 5MP 3x Optical Zoom E1 Outdoor - E540 - E1 Outdoor
Smart 5MP PTZ WiFi Camera with Motion Spotlights
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Form Factor | PTZ |
|---|---|
| IP Cameras - Resolution | 5 MP |
| IP Cameras - Audio | Mic + Speaker (2-way) |
| IP Cameras - Storage | microSD |
Smart 5MP PTZ WiFi Camera with Motion Spotlights

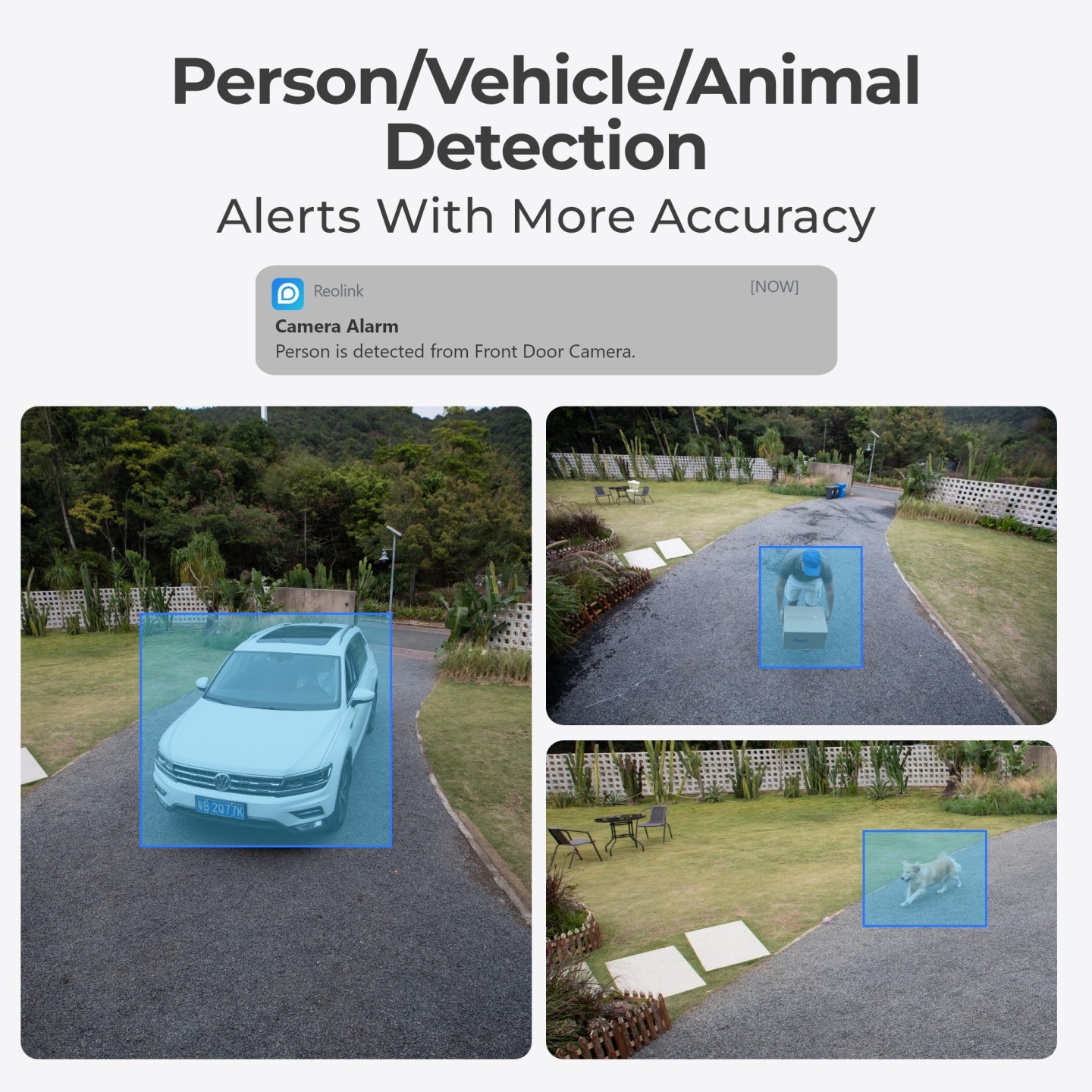

- Person/Vehicle/Pet Detection

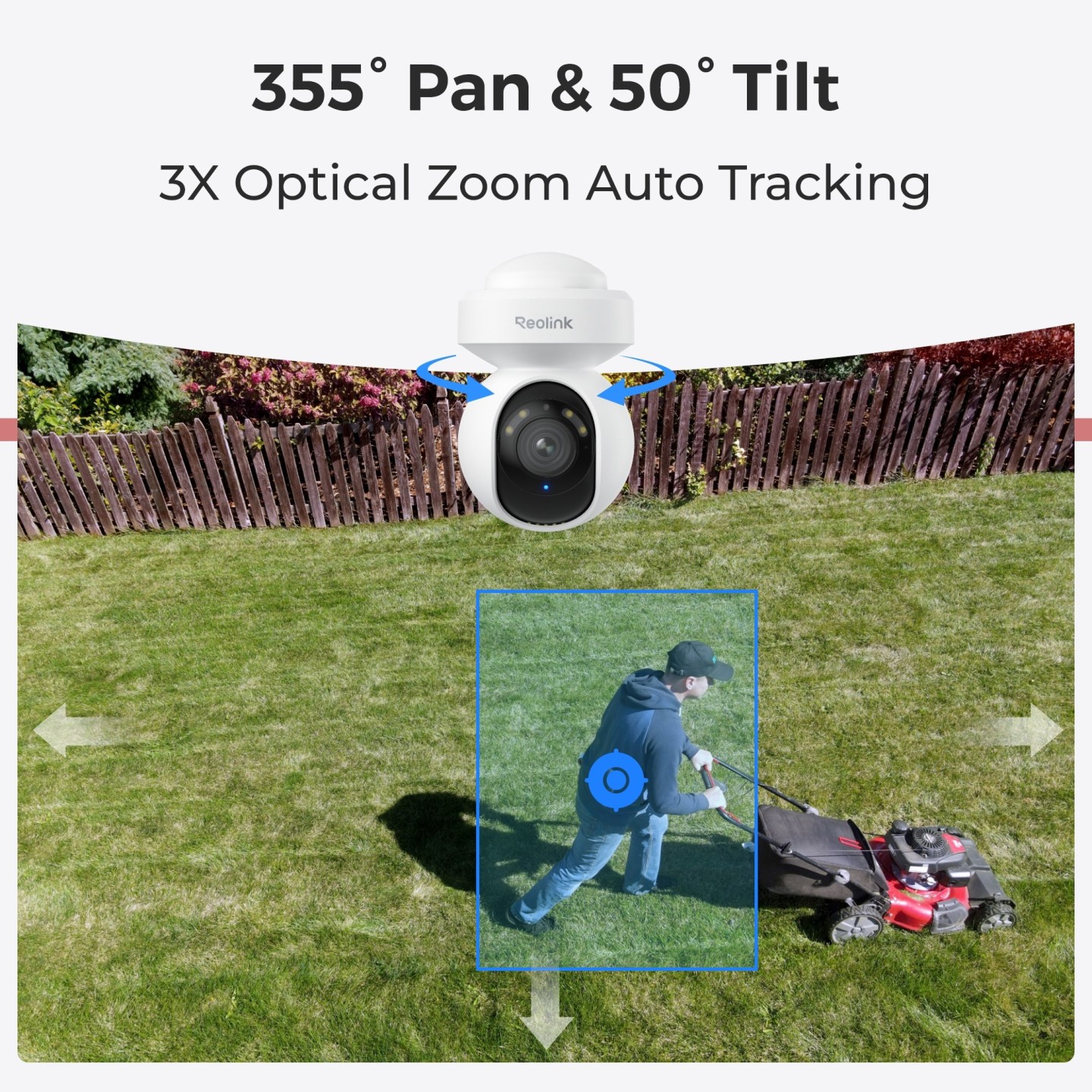

- Pan & Tilt with 3X Zoom

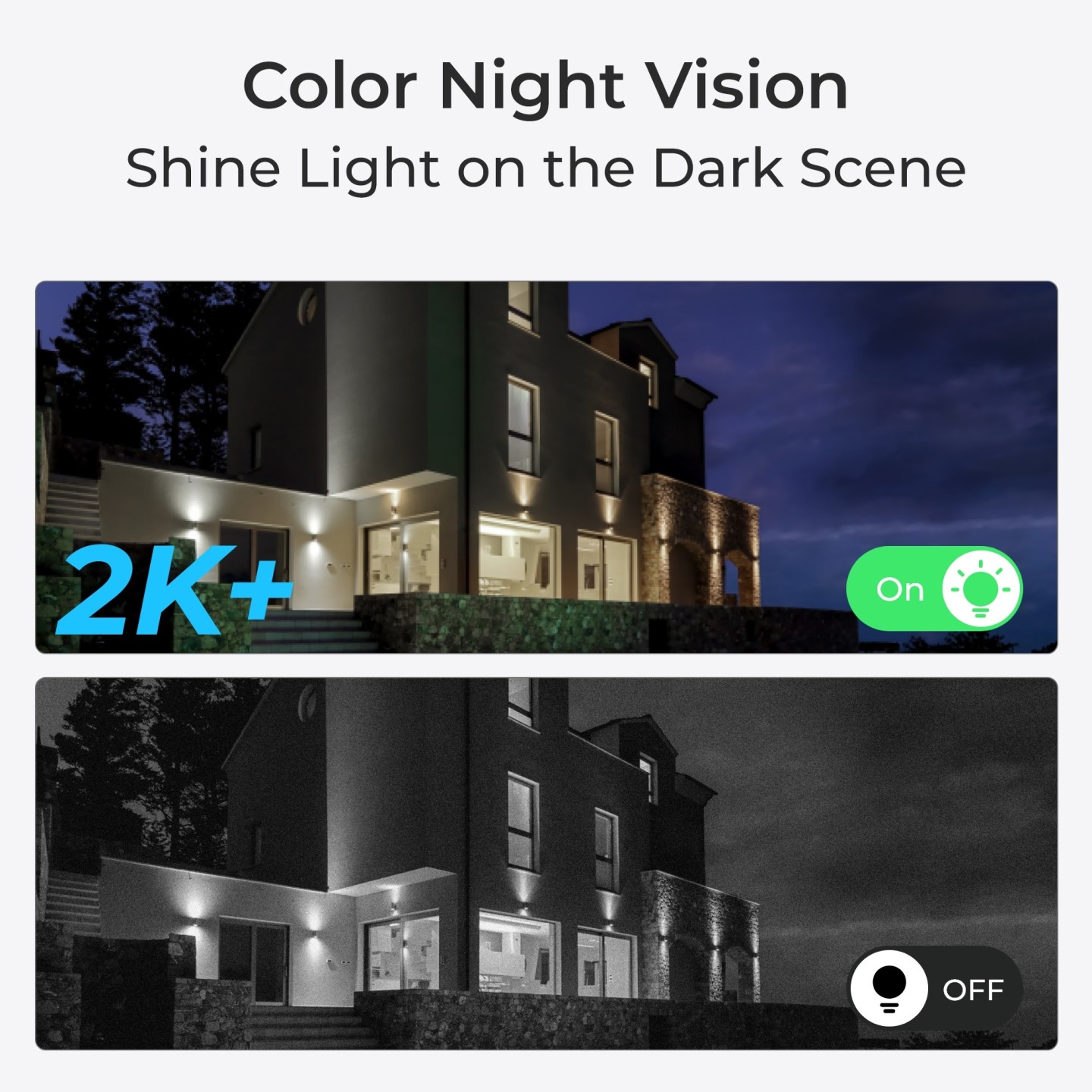

- Color Night Vision
- Auto Tracking
Video & Audio
- Image Sensor : 1/2.7" CMOS Sensor
- Video Resolution : Default: 2560 x 1920 (5.0 megapixels) at 20 frames/sec
- Lens : f=2.8 - 8mm F=1.6, with IR cut
- Zoom : 3X optical zoom
- Video Format : H.264
- Field of View : • Horizontal: 48°- 90° / Vertical: 37°- 68° /
- Pan/Tilt Angle : • Horizontal: 355° / Vertical: 50° /
- Day & Night : IR-cut filter with auto-switching
- Infrared Night Vision : Up to 12 meters (LED: 12pcs/14mil/850nm)
- Color Night Vision : Spotlights: 4pcs/2.7W/6500K
- Audio : Two-Way Audio
Interface
- Power : DC power port : DC 12.0V⎓1A, <12W
- System : Reset button
- Ethernet : One 10M/100Mbps RJ45
- Storage : Micro SD card slot (Max. 256GB)
- Audio : Built-in microphone and speaker
Software Features
- Frame Rate : Mainstream: 2fps - 25fps (default: 20fps) / Substream: 4fps - 15fps (default: 10fps)
- Code Rate : Mainstream: 1024Kbps - 8192Kbps (default: 4096Kbps) / Substream: 64Kbps - 512Kbps (default: 256Kbps)
- Browsers Supported : Edge, Chrome, Firefox, Safari
- OS Supported : PC: Windows, Mac OS; Smartphone: iOS, Android
- Smart Alarm : Motion detection/person detection/vehicle detection
- Record Mode : Motion recording (default); scheduled recording; 24/7 recording
- Protocols & Standards : HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P, FTP
- Maximal User Access : 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
- Work with : Google Assistant/Reolink Cloud (available in some countries)
Wireless Standard
- Wi-Fi : IEEE 802.11a/b/g/n
- Operating Frequency : 2.4GHz/5GHz
- Wireless Security : WPA-PSK/WPA2-PSK
Working Environment
- Temperature : -10°C~+55°C
- Humidity :Operating humidity: 20% ~ 85%

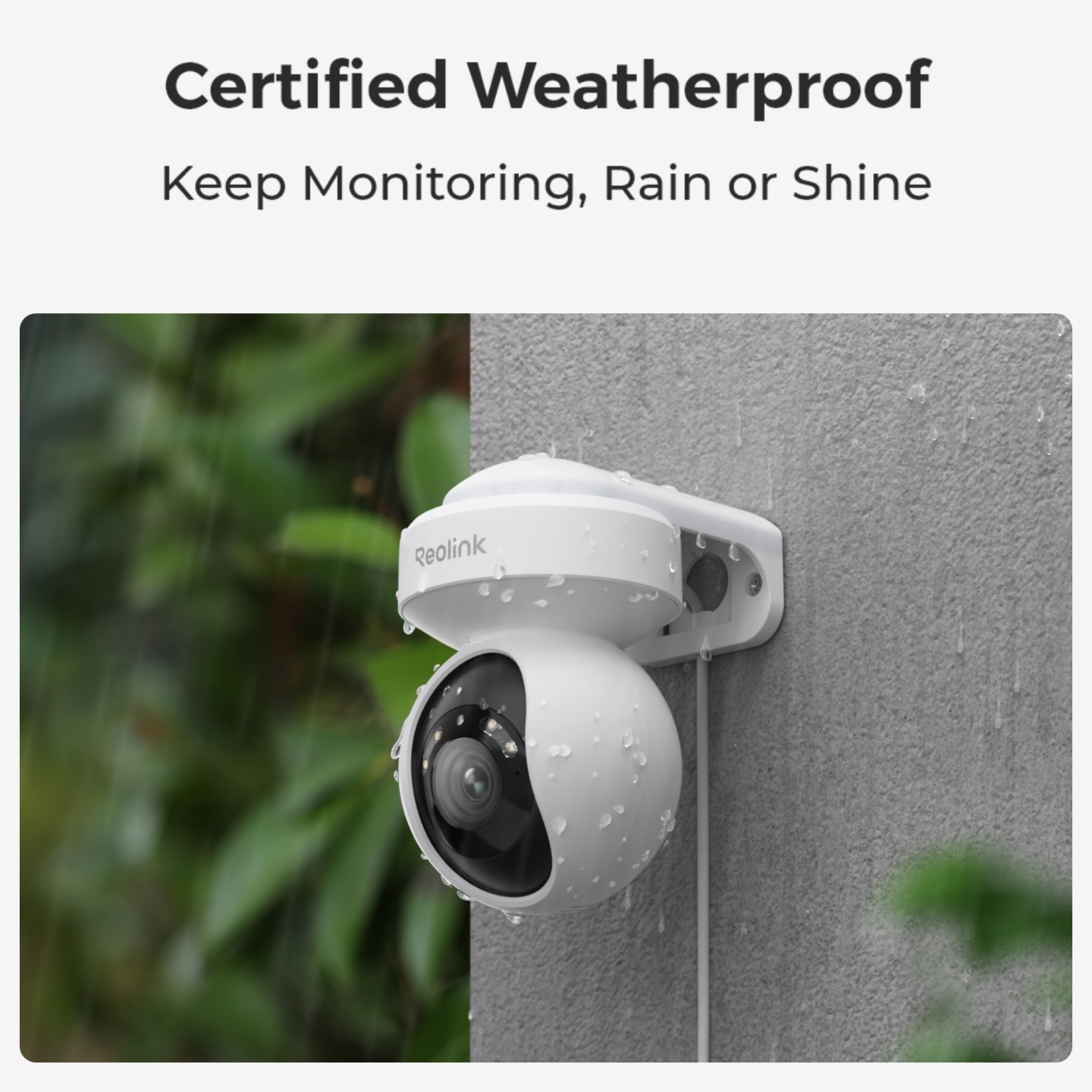

- Waterproof : Support
Size & Weight
- Dimension : Φ85×118mm
- Weight : 380g
| Type | Outdoor |
| Battery Powered | No |
| Resolution | 5MP |
| Lens Type | PTZ |
| Spotlight | Yes |
| AI | Human Detection,Vehicle Detection |
| Smart Tracking | Yes |
| Two-Way Audio | Yes |
| Capacity | Up to 256GB SD |
