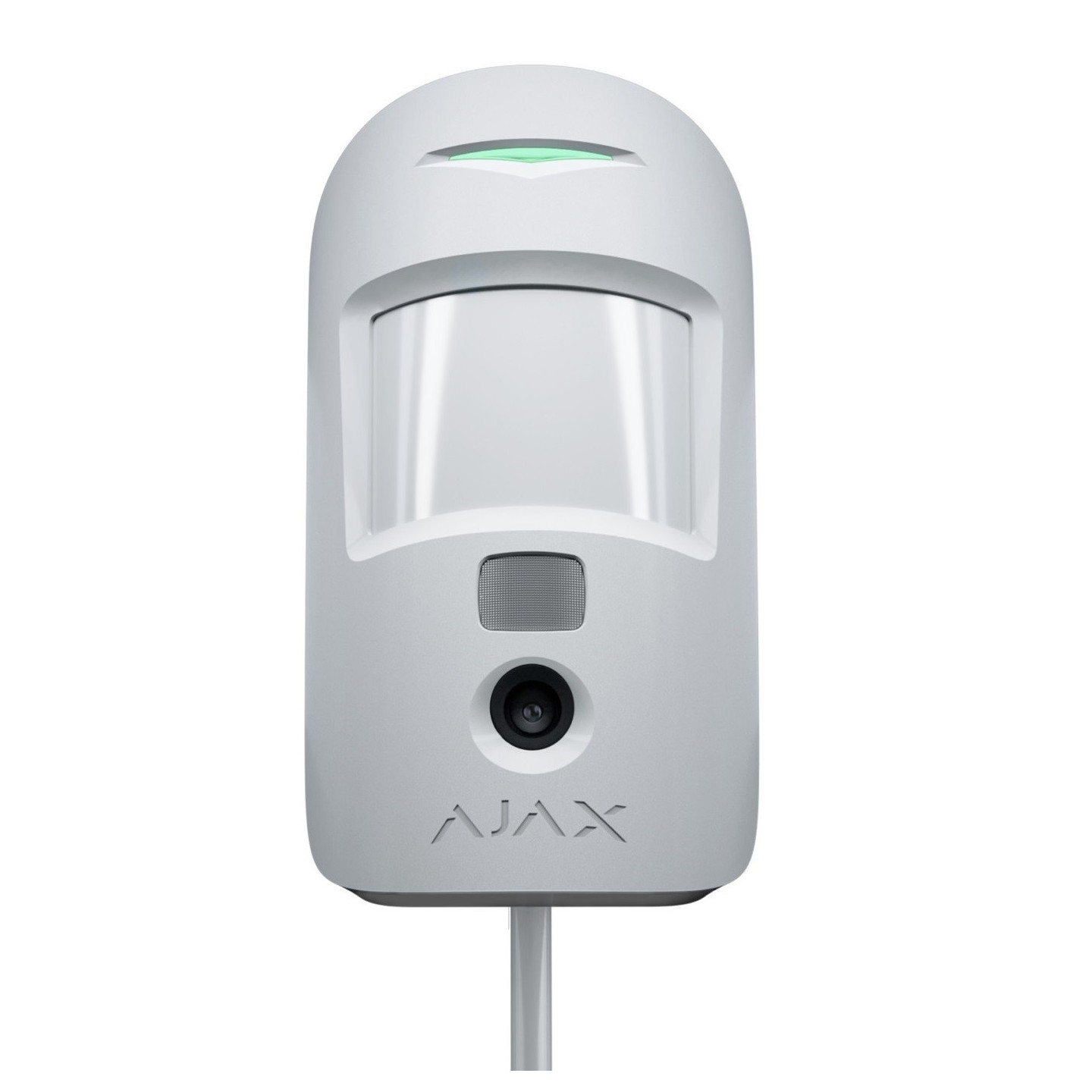

AJAX FIBRA PIR MotionCam Protect White - (Requires License)

• ** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact security@mstronics.com for more information on how to obtain the certification license
• MotionCam has a built-in camera that takes photos once the detector is triggered. It needs just 9 seconds to show the actual situation on the scene. With visual evidence available in Ajax apps, the security company can quickly check whether the threat is real to respond accordingly. Photo verification relieves users of unnecessary anxiety and security companies of false patrol calls
• MotionCam will show the actual situation from the scene even before intruders understand they're busted. An animated series of photos follows the instant alarm for an accurate situation appraisal
• MotionCam is designed to control security, not privacy. Photos are protected from prying eyes at the detector, system, and software levels

Compatible hub models

• Hub Hybrid (2G)
• Hub Hybrid (4G)

Fibra communication technology

• Two-way communication
• Advanced anti-sabotage
• Instant notifications
• Remote configuration in the Ajax apps

Line connection

• 4-core cable

Fibra line length

• up to 2,000 meters When using the U/UTP cat.5 twisted pair cable

• Encrypted communication

Detection
Sensitive element

• 1 PIR sensor

Motion detection distance

• up to 12 meters When installed at the height of 2.4 meters

Motion detection angles

• horizontal — 88.5°
• vertical — 80°

Motion detection speed

• from 0.3 to 2.0 m/s
• The direction of the detector lens should be perpendicular to an alleged intrusion path into the room

Sensitivity

• 3 levels
• Adjusted by a PRO or user with admin rights in the Ajax app

Pet immunity

• up to 20 kg
• up to 50 cm in height

False alarm prevention

• SmartDetect
• Software algorithm

Temperature compensation

• Effective motion detection within −10°C to +40°C range

Photo verification
Photo by alarm

• The built-in camera is activated if the detector is armed and motion is detected

Adjustable photo resolution

• 640 × 480 px
• 320 × 240 px (default)
• 160 × 120 px
• Adjusted by a PRO or user with admin rights in the Ajax app

IR backlight

• For night photography and low light conditions

Series of pictures

• from 1 to 5 snapshots
• Adjusted by a PRO or user with admin rights in an Ajax app

Photo delivery

• up to 7 s — 160 × 120 px resolution
• up to 9 s — 320 × 240 px resolution
• up to 20 s — 640 × 480 px resolution
• Photo delivery time depends on the image resolution selected in the device settings

Recommendations

• It is recommended to install the detector at the height of 2.4 meters. The device is designed for indoor use only

Anti-sabotage protection
Tamper alarm

• 2 tampers
• Both are needed to fasten the left or right side of the detector’s mounting panel. The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel

Protection against spoofing

• device authentication

Power supply
Fibra line power supply

• 7−30 V⎓, up to 120 mW
• The detector is powered by the control panel

Sealed battery

• LTO AA
• It is used when the detector takes photos, activates an IR backlight, and transmits an alarm. The battery is charged from the Fibra line

Enclosure
Dimensions

• 135 × 70 × 66 mm

Weight

• 150 g

Operating temperature range

• from −10°C to +40°C

Operating humidity

• up to 75%

Protection class

• IP50

Warranty

• 24 months
