Citronic Mixer - CSM-4 - 4channels USB BT Play-Record 170.871UK
Compact mixer with 2 mono inputs and stereo line input; each mono input has a combo XLR/jack with switchable impedance and +48V phantom power; includes USB, Bluetooth, and recording.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

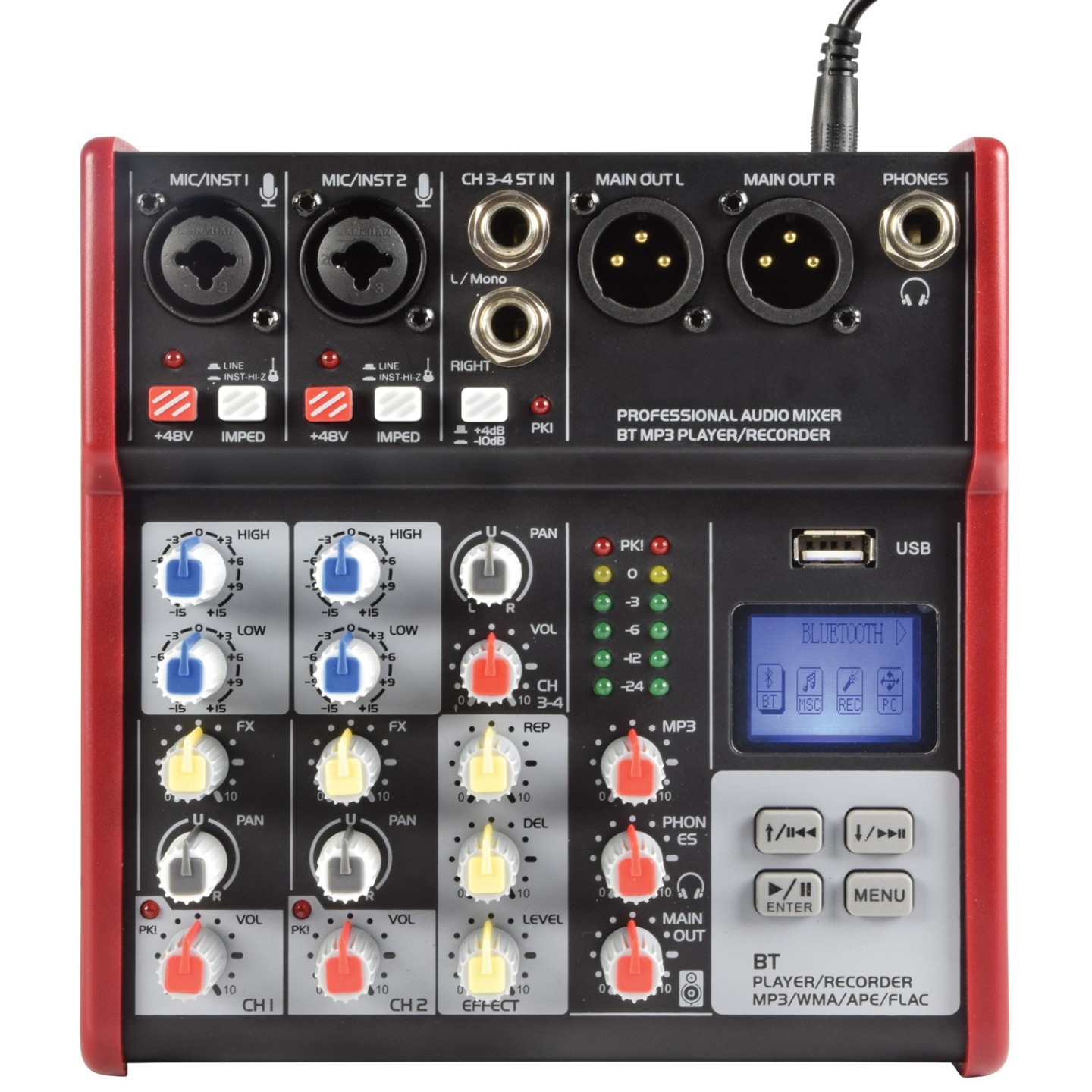

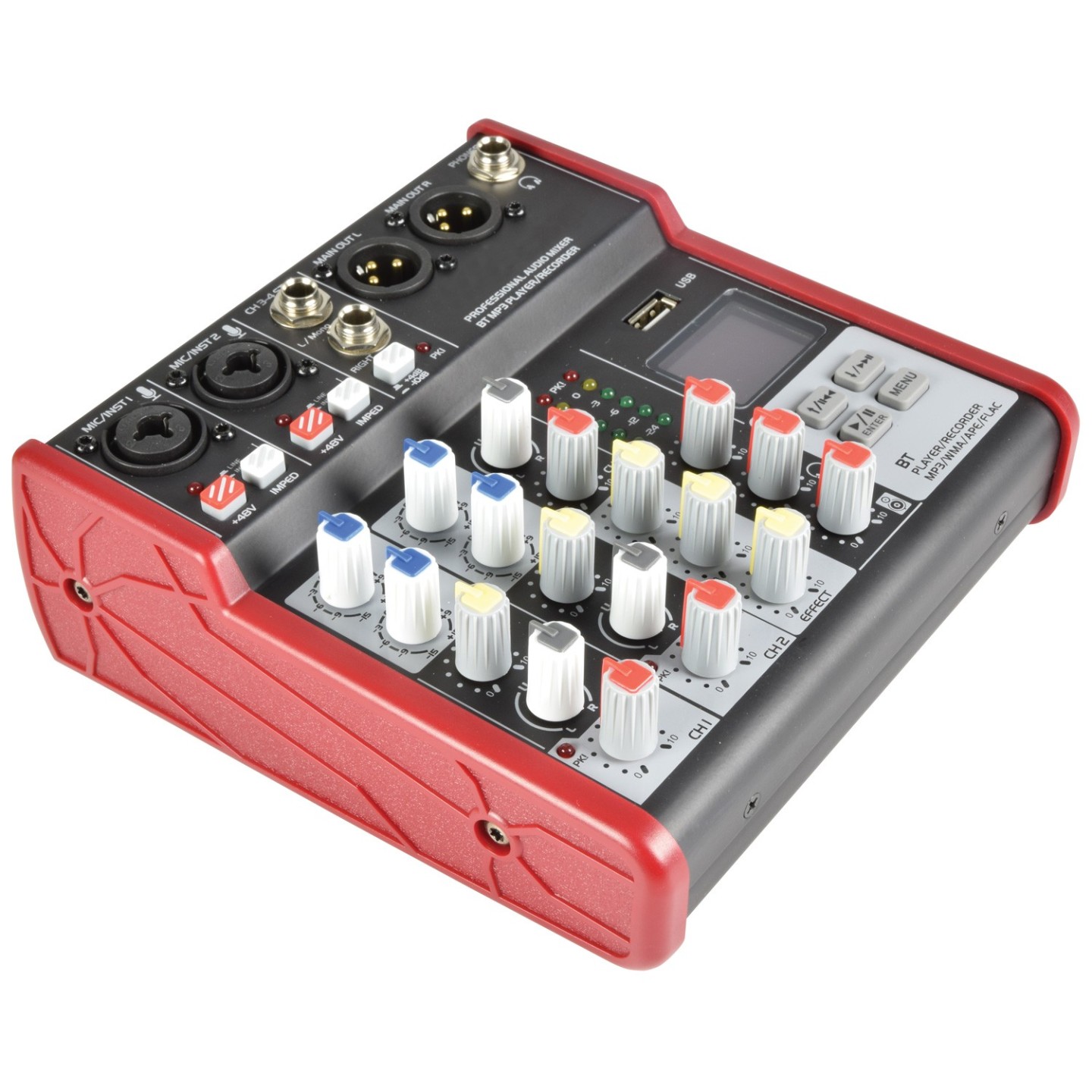

Compact format audio mixer with 2 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.
- Integral USB multi-format audio player
- BT wireless connectivity
- Digital delay effect for vocals or instruments
- Individually switchable +48V phantom power
- Built in record function
- Supplied with DC power adaptor
- Inputs: 2 x combo XLR/jack + stereo jack
- Power supply 5Vdc 1A (adaptor included)
- Power consumption max. 5W
- Gain -14 to +40dB
- EQ: low ±15dB @ 80Hz
- EQ: high ±15dB @ 12kHz
- Phantom power +48V individually switchable (XLR inputs only)
- Input impedance : mic 2k Ohms
- Input impedance : instrument 1M Ohms
- Input impedance : line 20k Ohms
- Audio source Internal USB player/recorder & BT receiver
- Audio format USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)
- Bluetooth version 2.1 + EDR
- Frequency response 20Hz - 20kHz (±0.5B)
- THD +N <0.03% @ 1kHz
- Dynamic range 102dB
- Crosstalk : stereo 92dB
- Output Left + Right balanced XLR
- Output impedance 120 Ohms
- Max. output level 3Vrms
- Dimensions: 166 x 165 x 66mm
- Weight: 0.89kg
| Channels | 4 |
| Phantom Power | Yes |
| Bluetooth | Yes |
| USB | Yes |
| Recorder | Yes |
