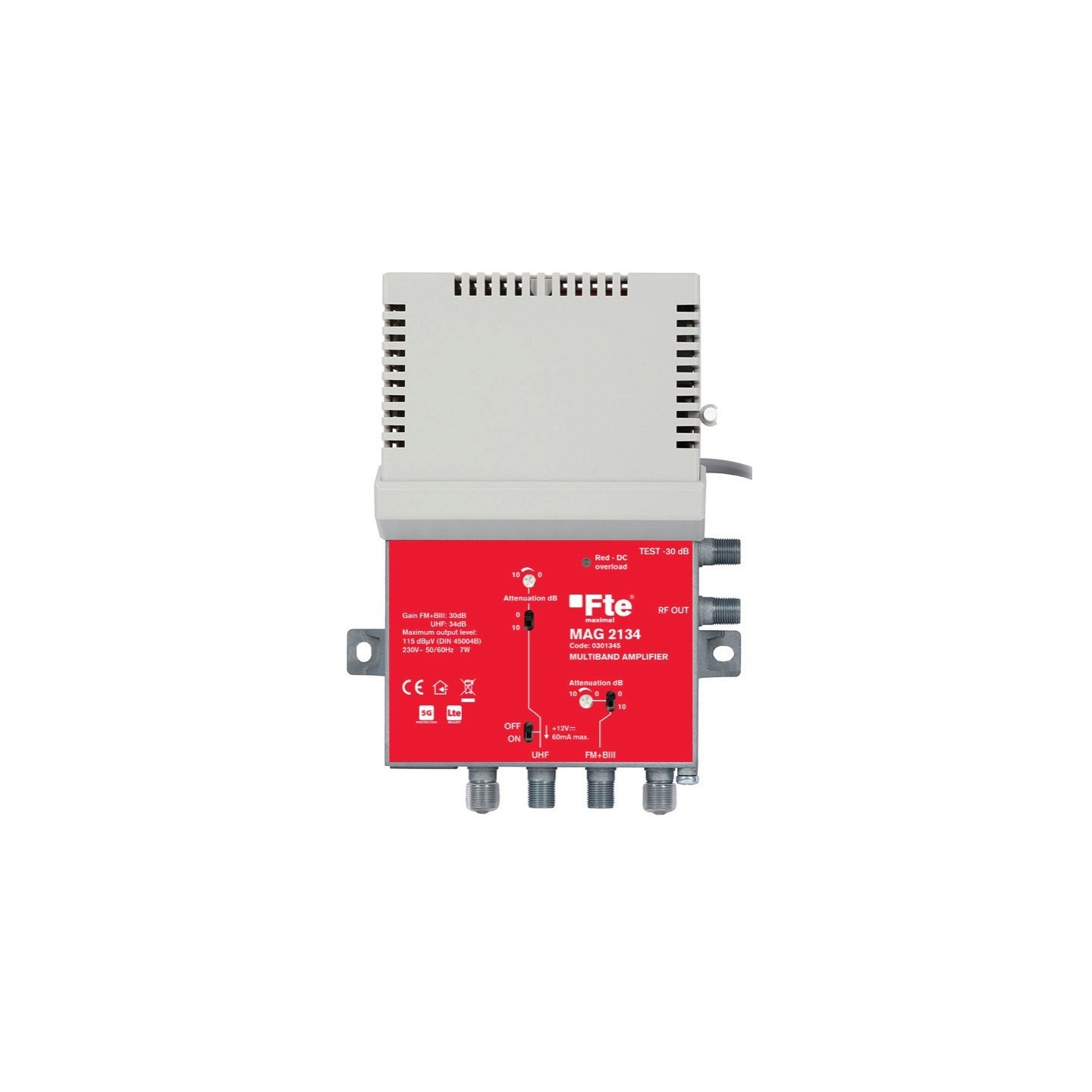

FTE Multiband Amplifier - MAG2134 - 1xUHF VHF FM 34dB Gain 115dB Max Output
Multiband amplifier with 2 inputs (1x UHF, 1x VHF) and 1 output; 34 dB gain per output; 115 dB total output.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Inputs : 1x FM+BIII, 1 UHF
- Output : 1 + 1 Test (-30dB)
- Frequency range : FM+BIII (88..108MHz) (174..230 MHz)
- Frequency range : UHF 470..694 MHz
- Gain : FM+BIII : 30 dB
- Gain : UHF : 34 dB
- Noise figure, typical : FM/BIII < 6dB
- Noise figure, typical : UHF < 5dB
- Maximum output level : IMD3=60dB (DIN45004B) 115 dBµV, IMD3=60dB 112 dBµV
- Gain adjustment : 0 / -20 dB
- Return loss : >10 dB
- Preamplifiers feeding : 12V 60 mA Max.
- Supply voltage limit values and power consumption : 200-250V~ 50/60 Hz / 7W (Without external DC loading)
- Operative temperature range : -20º / +50ºC
| Type | Multiband Amplifier |
| Inputs | 2 |
| UHF Inputs | 1 |
| VHF Inputs | 1 |
| Outputs | 1 |
| Gain per output | 34db |
| Total Output | 115db |
