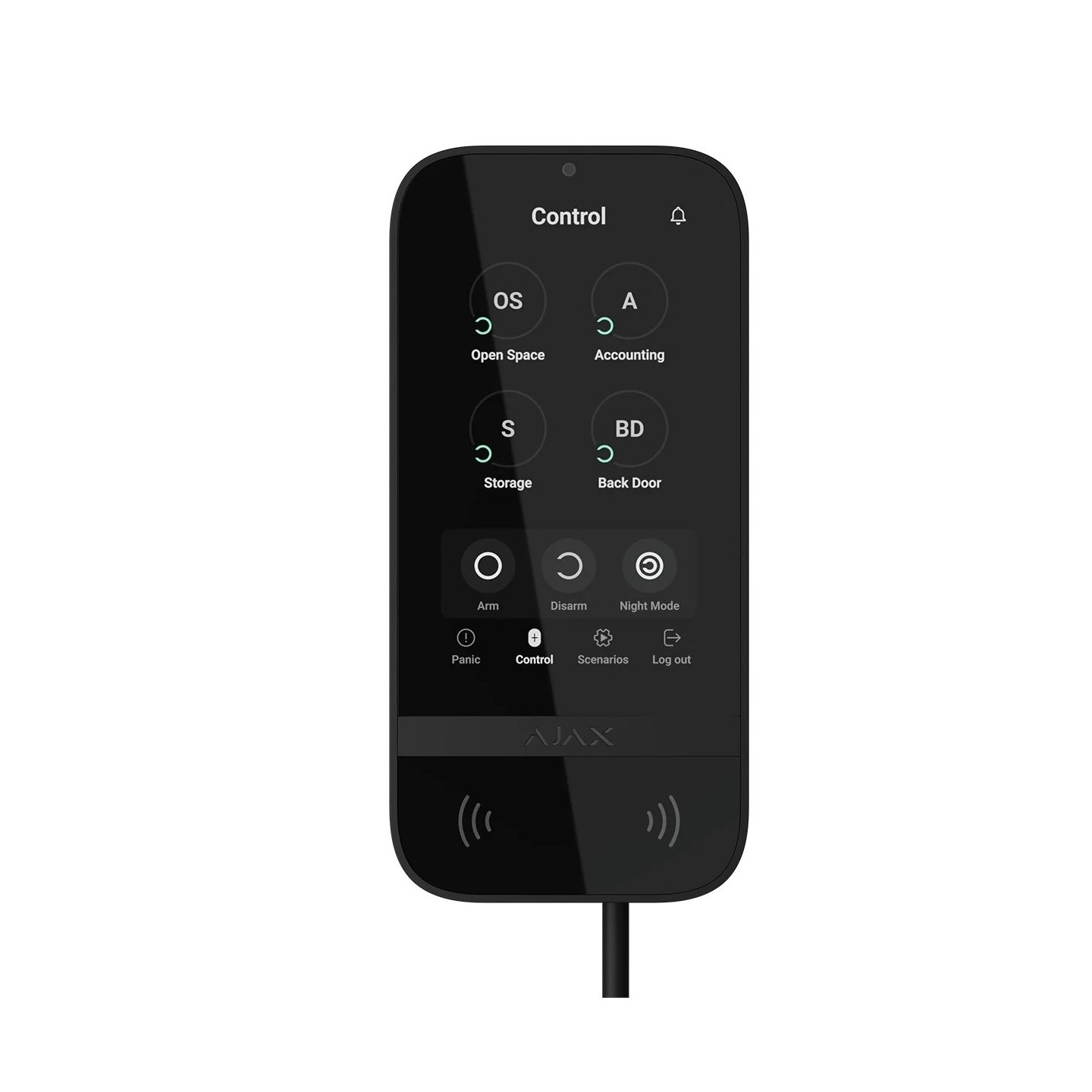

AJAX FIBRA KeyPad TouchScreen - KeyPad TouchScreen

Convenient Ajax system control

• KeyPad TouchScreen combines security and smart home device management. An intuitive Ajax app-like interface and multiple language options make it an easy-to-use solution. The big display, DESFire and BLE technologies, and code options ensure a secure and efficient experience

One device, three missions

• Easily manage security for multiple groups. Users can view what's armed and make changes with just one touch whether it's securing one group, multiple groups, activating night mode, or arming facility. It's all simple and straightforward

Three authentication methods

• There are three easy ways to control the keypad, giving users the flexibility to choose what suits them best. All events display in the feed, including user activity and authentication details

Contactless access devices

• The Pass card and the Tag key fob are equipped with original DESFire® chips and feature the same functionality but different enclosures. You can choose the form that is convenient for you. One Tag or Pass can control 13 security systems

Access for unregistered users

• With a simple assignment of a personal access code in the hub settings, office employees, cleaning company staff, or other individuals enter the area with convenience at its finest

Unique touch screen operation experience

• A high-resolution screen accommodates all necessary controls, ensuring a visually stunning and high-quality image. With automatic brightness adjustment and sleek glass material, the product offers aesthetics and convenience

Communication

• Fibra communication technology

Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection.

Key features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote configuration in Ajax apps.

Line connection

• 4-core cable

Connection

• to any point of the Fibra line
• KeyPad TouchScreen Fibra can be installed after a hub, detector, siren, or other keypad.

Fibra line length

• up to 2,000 m

Encrypted communication

• All stored and transmitted data are protected by block encryption featuring a dynamic key.

Display

• Diagonal : 5″
• Matrix type : IPS
• Resolution : 480 × 854 px
• Sensor : capacitive
• Brightness settings : automatic / manual
• Backlight lifetime : 30,000 hours / Guaranteed backlight lifetime when the Always Active Display toggle is enabled. It can be adjusted in Ajax apps and activates only when external power is connected

Key features

• Panic buttons : panic / fire / auxiliary help / Sending an alarm or calling for help from the separate keypad tab
• Control : codes / Tag key fobs / Pass cards / smartphone (Bluetooth)
• Contactless access : DESFire® EV1, EV2 / ISO14443-А (13.56 MHz)
• Access codes : up to 200 personal codes / One code per each user. The number of personal access codes depends on the hub model / 1 keypad code Per each KeyPad TouchScreen
• Duress codes : up to 50 personal codes / One code per each user. The number of personal duress codes depends on the hub model / 1 keypad code Per each KeyPad TouchScreen
• Codes for unregistered people : up to 50 personal codes / For people who are not registered in the Ajax system. The number of such codes depends on the hub model
• Arming without entering a code : The enabled feature allows the user to arm the system without entering a code or presenting the access device
• Group management : Changing the security mode of the groups to which the user has access from the keypad’s display
• Scenarios management : A separate keypad tab contains up to 6 buttons, and each one can control one automation device or a group of devices
• Indication of malfunctions and security mode : display / logo / sound indication / If enabled, the logo lights up red continuously or when the system or group is armed. KeyPad TouchScreen indication is shown on the display only when it is active. Built-in buzzer notifies about alarms, door openings and entry/exit delays.
• Fire alarm muting : Turns off the fire detectors alarm, including the interconnected alarm
• User pre-authorization : When the feature is enabled, viewing the current system status and control screen is unavailable. For access, the user must pre-authorize: enter a code or present a personal access device to the keypad
• Contactless authorization with a smartphone : A smartphone with the installed Ajax app and Bluetooth Low Energy (BLE) support can be used instead of Tag or Pass to authorize a user. BLE is a radio protocol with low power consumption. The keypad supports Android and iOS smartphones with BLE 4.2 and higher
• Auto screen wakeup : The keypad wakes up automatically when approaching it. The approaching distance can be adjusted in the app

Sabotage protection

• Unauthorized access auto-lock : The keypad locks if an incorrect code is entered or unverified access devices are used more than 3 times in a row within 1 minute. The lock time is adjusted by PRO or user with admin rights in the Ajax app
• Tamper alarm : Notifications on attempts to detach the keypad from the surface or remove it from the mounting panel
• Holding screw : To secure the keypad on SmartBracket
• Protection against spoofing : device authentication
• Communication loss detection : after 36 s / Detection time depends on the Jeweller or Jeweller/Fibra settings

Power supply

• Fibra line : 7−30 V⎓, up to 54.6 mA

The keypad is powered by the control panel. Connect the external power supply for the Always Active Display mode.

• Backup batteries : 2 × LTO AA(Pre-installed.)
• External power supply : 10.5–14 V⎓, from 0.5 A

The recommended voltage of the power supply is 12 V⎓. External power supply is not included. It is needed for the Always Active Display mode.

Certifications

• Grade 3 EN50131 / PD 6662 2017

Enclosure

• Dimensions : 172 × 82 × 26 mm
• Weight : 327 g
• Operating temperature range : from -10°C to +40°C
• Operating humidity : up to 75%

Complete set

• KeyPad TouchScreen Fibra
• SmartBracket mounting panel
• 2 LTO AA backup batteries (pre-installed)
• Installation kit
• Quick start guide
